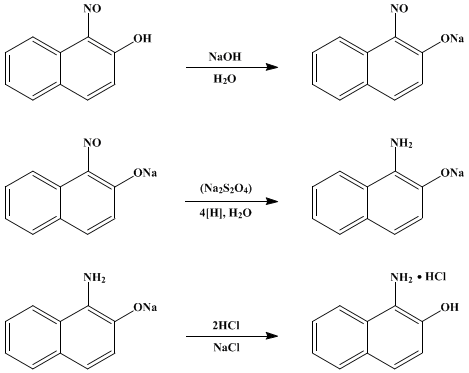

In an 8-l. (2-gal.) earthenware crock, equipped with a mechanical stirrer and a tube for introducing steam, are placed 240 g. (1.39 moles) of nitroso-β-naphthol (from 200 g. of β-naphthol, Org. Syn. Coll. Vol. I, 1941, 411) (Note 1), 1.5 l. of water, and 300 cc. of 5 N sodium hydroxide. The lumps are broken up with a rod, and the mixture is stirred for about thirty minutes. At the end of this time, practically all the nitroso compound is dissolved and 1.2 l. of 5 N sodium hydroxide is added. Steam is passed in until the temperature of the mixture is 35°, and then the steam is shut off and 600 g. of technical sodium hydrosulfite (at least 85 per cent pure) is added while the solution is being stirred. The solution is stirred continuously for five minutes while the temperature rises to 60–65°, and then for one minute at five-minute intervals during one-half hour. At the end of about fifteen minutes the solution becomes clear and light yellow in color. A small amount of black scum floats on the surface.

The solution is now cooled to 20° by the addition of about 1 kg. of ice and 500 cc. of technical concentrated hydrochloric acid (sp. gr. 1.16) is added with stirring. This precipitates the aminonaphthol as a voluminous, almost white precipitate (Note 2) which is collected on two 20-cm. Büchner funnels. It is rapidly pressed as free from mother liquor as possible and transferred quickly (Note 3) to an 8-l. (2-gal.) crock containing 2.5 l. of water and 250 cc. of technical concentrated hydrochloric acid. The large lumps are broken up with a rod, steam is passed in, and the stirrer is started. Steam is introduced at such a rate that a temperature of 85–90° is reached within ten minutes; the mixture is stirred at this temperature for one hour longer. The hot mixture is then filtered through a 15-cm. Büchner funnel, and the filtrate is cooled to 35–40° in an ice bath.

The claret-colored solution (5.2–5.8 l.) is filtered through a fluted filter paper in a 15-cm. funnel into 1.2 l. of concentrated hydrochloric acid in an 8-l. bottle. The aminonaphthol hydrochloride starts to precipitate immediately. The mixture is allowed to stand for at least two hours with occasional agitation to ensure complete precipitation. The hydrochloride is collected on a 15-cm. Büchner funnel and washed successively with three small portions of 20 per cent hydrochloric acid and three 50-cc. portions of ether (Note 4). It is then dried in the air in thin layers on filter paper. The yield is 180–200 g. of anhydrous material (Note 5) (66–74 per cent of the theoretical amount based on 200 g. of β-naphthol). The hydrochloride is unstable; in solution it decomposes rapidly, but this decomposition can largely be prevented by the addition of sodium bisulfite. The dry solid slowly changes and should be used within a few weeks of its preparation (Note 6).

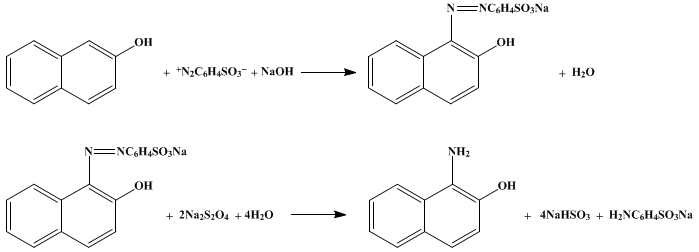

(A) Diazotization of Sulfanilic Acid.—A mixture of 105 g. (0.5 mole) of sulfanilic acid dihydrate, 26.5 g. (0.25 mole) of anhydrous sodium carbonate, and 500 cc. of water is heated and stirred until all the sulfanilic acid has dissolved, and the solution is then cooled in an ice bath to 15° (sodium sulfanilate begins to crystallize at this temperature). A solution of 37 g. (0.54 mole) of sodium nitrite in 100 cc. of water is added and the resulting solution is poured at once onto a mixture of 106 cc. (1.25 moles) (Note 1) of concentrated hydrochloric acid (sp. gr. 1.18) and 600 g. of ice contained in a 2-l. beaker. The solution, from which p-benzenediazonium sulfonate separates on stirring, is allowed to stand in an ice bath for fifteen to twenty-five minutes, during which time the naphthoxide solution is prepared.

(B) Coupling: Orange II.—Seventy-two grams of β-naphthol (0.5 mole) is dissolved in the warm solution obtained by dissolving 110 g. (2.75 moles) (Note 2) of sodium hydroxide in 600 cc. of water in a 5-l. flask, and the solution is cooled to about 5° by the addition of 400 g. of ice. The suspension of the diazonium salt then is added and the mixture is stirred well and allowed to stand without external cooling for one hour (Note 3). The azo compound soon separates from the red solution and eventually forms a stiff paste.

(C) Reduction: 1,2-Aminonaphthol Hydrochloride.—The suspension of Orange II is heated to 45–50°, when all the material dissolves with slight evolution of gas. About one-tenth of 230 g. (about 1.1 moles) of technical sodium hydrosulfite (Note 4) is added cautiously and the mixture is stirred until the froth subsides; the remainder is then added without delay. The yellow material which first separates (probably the hydrazo compound) soon is converted into the nearly colorless aminonaphthol. In order to complete the reduction and to give an easily filterable product the mixture is heated strongly until it begins to froth; it is then cooled to 25° by stirring in an ice bath, and the pink or cream-colored product is collected and washed free from the slightly yellow mother liquor with water.

The crude aminonaphthol is washed into a beaker containing a solution at 30° of 2 g. of stannous chloride dihydrate and 53 cc. (0.63 mole) of concentrated hydrochloric acid in 1 l. of water. When the mixture is stirred the amine soon dissolves, leaving in suspension a small amount of fluffy material which is easily distinguishable from the original lumps (Note 5). The solution is clarified by stirring (without heating) for five minutes with 10 g. of decolorizing carbon, and it is then filtered by suction. The pale yellow solution is treated with 50 cc. of concentrated hydrochloric acid and heated to the boiling point, a second 50 cc. of the acid being added as the heating progresses. The color becomes somewhat fainter during this process. The vessel containing the hot solution is transferred to an ice bath and allowed to cool undisturbed, and the 1-amino-2-naphthol hydrochloride soon separates in the form of large, perfectly colorless needles. When fairly cold, 100 cc. of concentrated hydrochloric acid is added and the solution is cooled to 0° before collecting the product (Note 6). The hydrochloride is washed with a cold solution of 50 cc. of concentrated hydrochloric acid in 200 cc. of water and dried on a filter paper at a temperature not above 30–35°. The yield is 70–83 g. (72–85 per cent of the theoretical amount). The material will remain colorless, or very nearly so, if protected from the light in storage. The fresh solution in water is only faintly colored and leaves but a trace of residue on filtration.

Although this material is suitable for most purposes, it may be purified further in the following manner. It is dissolved by heating in a solution of 2 g. of stannous chloride and 2 cc. of concentrated hydrochloric acid in 1 l. of water, and the hot solution is clarified by filtration through a 5-mm. mat of decolorizing carbon (Note 7). The yellow or red color which may develop disappears on reheating to the boiling point. After the addition of 100 cc. of concentrated hydrochloric acid the solution is allowed to cool in an ice bath, treated with a second 100 cc. of acid, cooled to 0°, and collected and washed as before. The crystalline product is colorless, ash-free, and of analytical purity. The loss in the crystallization of an 80-g. lot amounts to 5–10 g. (6–12 per cent).
