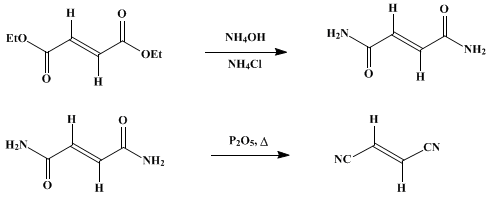

A. Fumaramide. A mixture of 516 g. (3.0 moles) of diethyl fumarate (Note 1) and (Note 2), 600 ml. of concentrated ammonium hydroxide (28%, sp. gr. 0.90, 9.0 moles), and 60 g. of ammonium chloride is placed in a 2-l. flask equipped with a stirrer and a thermometer. The reaction mixture is stirred at 25–30° with slight cooling for 7 hours (Note 3). The thick slurry of fumaramide is then filtered with suction, reslurried with 1 l. of water, filtered, and washed with about 50 ml. of ethanol. The white crystalline product is then dried in air or in an oven below 75° (Note 4). The yield is 270–300 g. (80–88%).

B. Fumaronitrile. The dry, finely powdered amide (Note 5) (228 g., 2.0 moles) and 613 g. (4.3 moles) of phosphorus pentoxide are placed in a 3-l. flask and thoroughly mixed by shaking. The flask is connected to a 1-l. suction flask receiver by means of a short 17-mm. i.d. 60° elbow extending about 15 cm. into the receiver. The receiver is cooled by immersion in an ice bath or by cold running water. The system is evacuated to 15–30 mm. by means of a water aspirator. The flask is then heated with one or two burners, using large soft flames. Heating should be started at the side and moved toward the bottom as the reaction progresses (Note 6). The reaction mass froths and blackens, and the product distils and sublimes into the receiver. The elbow leading to the receiver must be heated occasionally to melt condensed fumaronitrile. Heating is continued until no more fumaronitrile distils from the reaction flask (1.5 to 2 hours) (Note 7). The product, usually white and sufficiently pure (m.p. 93–95°) for most purposes, is obtained in a yield of 125–132 g. (80–85%). The product is recrystallized conveniently (in a fume hood) by dissolving it in 150 ml. of hot benzene and decanting or filtering the solution into 500 ml. of hexane or petroleum ether (Note 8) and (Note 9). The yield of long, glistening prisms, m.p. 96°, amounts to 117–125 g. (75–80%).
