Org. Synth. 1951, 31, 72
DOI: 10.15227/orgsyn.031.0072
O-METHYLCAPROLACTIM
[2H-Azepine, 7-methoxy-3,4,5,6-tetrahydro-]
Submitted by Richard E. Benson and Theodore L. Cairns
1.
Checked by Charles C. Price, Kenneth N. Campbell, and Richard Mcbride.

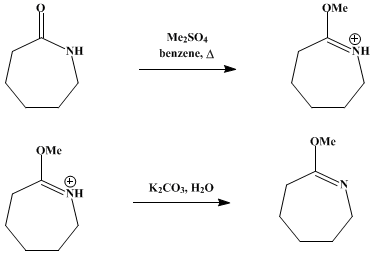

1. Procedure
In a
5-l. three-necked flask equipped with a reflux condenser, a sealed mechanical stirrer, and a 1-l. dropping funnel are placed
678 g. (6.0 moles) of ε-caprolactam2 and
2 l. of benzene (Note 1). The mixture is heated on a
steam bath to reflux temperature, during which time all the solid dissolves. At this point
569 ml. (757 g., 6.0 moles) of dimethyl sulfate (Note 1) is added with stirring in a thin stream through the
dropping funnel. The rate is about 4 ml. per minute, and the addition requires 2.5 hours. The stirring and heating are continued for an additional 2 hours, during which time two separate phases appear in the reaction mixture. The stirring is then discontinued and the mixture is heated under reflux for an additional 14 hours.
The mixture is cooled to room temperature, and 600 ml. of 50% potassium carbonate is added slowly through the dropping funnel with stirring (Note 2) to the reaction mixture over a period of 30 minutes. After the vigorous evolution of carbon dioxide has subsided, the mixture is stirred (Note 2) slowly for 30 minutes. The potassium methyl sulfate (Note 3) present is removed by filtration, the solid filter cake is washed with two 100-ml. portions of ether,and the washings are combined with the original filtrate. The filtrate is transferred to a 4-l. separatory funnel, the aqueous layer withdrawn, and the organic layer transferred to a 3-l. round-bottomed flask. The ether and benzene are removed by distillation at slightly reduced pressure (200–600 mm.) and the product distilled through an 8-in. Vigreux column. After a fore-run of benzene and O-methylcaprolactim, the fraction boiling at 65–67°/24 mm., nD25 1.4610, d425 0.9598, is collected. The yield is 450–473 g. (59–62%). An additional quantity of the imino ether can be recovered from the fore-run by distillation through an efficient column, making the total yield 463–517 g. (61–68%) (Note 4).
2. Notes
1.
Commercial grade reagents were used throughout. The
ε-caprolactam was obtained from the Explosives Department, E. I. du Pont de Nemours and Company, Inc., Wilmington, Delaware.
2.
Vigorous stirring at this point should be avoided or otherwise an emulsion will be formed that is difficult to break.
3.
The solid that separated was not identified, but it was presumed to be
potassium methyl sulfate.
4.
The corresponding
O-ethyl derivative (b.p.
81–82°/26 mm.) can be prepared in
52% yield by a similar procedure.
Working with Hazardous Chemicals
The procedures in Organic Syntheses are intended for use only by persons with proper training in experimental organic chemistry. All hazardous materials should be handled using the standard procedures for work with chemicals described in references such as "Prudent Practices in the Laboratory" (The National Academies Press, Washington, D.C., 2011; the full text can be accessed free of charge at http://www.nap.edu/catalog.php?record_id=12654). All chemical waste should be disposed of in accordance with local regulations. For general guidelines for the management of chemical waste, see Chapter 8 of Prudent Practices.
In some articles in Organic Syntheses, chemical-specific hazards are highlighted in red "Caution Notes" within a procedure. It is important to recognize that the absence of a caution note does not imply that no significant hazards are associated with the chemicals involved in that procedure. Prior to performing a reaction, a thorough risk assessment should be carried out that includes a review of the potential hazards associated with each chemical and experimental operation on the scale that is planned for the procedure. Guidelines for carrying out a risk assessment and for analyzing the hazards associated with chemicals can be found in Chapter 4 of Prudent Practices.
The procedures described in Organic Syntheses are provided as published and are conducted at one's own risk. Organic Syntheses, Inc., its Editors, and its Board of Directors do not warrant or guarantee the safety of individuals using these procedures and hereby disclaim any liability for any injuries or damages claimed to have resulted from or related in any way to the procedures herein.
The paragraphs above were added in September, 2014. The statements above do not supersede any specific hazard caution notes and safety instructions included in the procedure.
3. Discussion
O-Methylcaprolactim has been prepared by the reaction of
cyclohexanone oxime,
p-toluenesulfonyl chloride, and
methanol;
3 and by the procedure
4 described above, which is a modification of the method given in the patent literature.
5
This preparation is referenced from:
Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)
potassium carbonate (584-08-7)
Benzene (71-43-2)
methanol (67-56-1)
ether (60-29-7)
carbon dioxide (124-38-9)
dimethyl sulfate (77-78-1)
ε-caprolactam (105-60-2)
Cyclohexanone oxime (100-64-1)
O-Methylcaprolactim,
2H-Azepine, 7-methoxy-3,4,5,6-tetrahydro- (2525-16-8)
potassium methyl sulfate (562-54-9)
p-Toluenesulfonyl chloride (98-59-9)
