Org. Synth. 2009, 86, 325
DOI: 10.15227/orgsyn.086.0325
SYNTHESIS OF ETHYL 2-ETHANOYL-2-METHYL-3-PHENYLBUT-3-ENOATE
Submitted by Taisuke Fujimoto
1, Kohei Endo
2, Masaharu Nakamura
3, and Eiichi Nakamura
1.
Checked by Mark Webster and John A. Ragan.
1. Procedure
Ethyl 2-ethanoyl-2-methyl-3-phenylbut-3-enoate. A flame-dried, 10-mL Schlenk tube (Notes 1 and 2) connected to a vacuum/argon manifold through a glass stopcock and fitted with a glass stopper is equipped with a 1-cm Teflon-coated magnetic stirring bar. In(OTf)3 (64.0 mg, 0.11 mmol) (Notes 3 and 4) is placed in the Schlenk tube and connected to the vacuum line (1.0-1.5 mmHg). The Schlenk tube is immersed in an oil bath. The oil-bath temperature is gradually increased to 180 °C over 1 h and then kept for 30 min at that temperature (Note 5). The Schlenk tube is cooled to ambient temperature and charged with argon. The glass stopper is replaced with a rubber septum, and acetonitrile (4 mL) (Note 6) is introduced into the Schlenk tube via a syringe under argon to obtain a 0.025-M acetonitrile solution of In(OTf)3.
A 50-mL, 3-necked, round-bottomed flask (Note 1), connected to a vacuum/argon manifold through a glass stopcock vacuum adaptor, is equipped with a 2-cm Teflon-coated magnetic stirring bar. A solution of 0.025 M In(OTf)3 in acetonitrile (2.0 mL, 0.050 mmol) is introduced into the flask via a syringe under argon, and the remaining two necks of the flask are equipped with glass stoppers. The solution is stirred under reduced pressure (1.0-1.5 mm Hg) at room temperature for 1 h to remove acetonitrile. The flask is flushed with argon, and one of the glass stoppers is replaced with a rubber septum. Ethyl 2-methyl-3-oxobutanoate (14.48 g, 14.2 mL, 0.1 mol) (Notes 7 and 8) and phenylacetylene (12.26 g, 13.2 mL, 0.12 mol) (Note 9) are introduced into the flask via syringe under argon, and the septum is replaced with the glass stopper. The resulting clear yellow solution is stirred and the flask is immersed in an oil bath (140 °C).
After stirring for 3 h at 140 °C, the reaction mixture is cooled to ambient temperature (Note 10). The vacuum adaptor is replaced with a distillation head. Distillation of the reaction mixture under reduced pressure (1.0-1.5 mmHg) at 150-160 °C (oil bath temperature) gives the title compound as a pale yellow liquid (22.2-23.0 g, 0.090-0.093 mol) in 90-93% yield (>99.9% purity, non-calibrated GC area ratio) (Notes 11 and 12).
2. Notes
1.
All glassware was dried in an oven (110 °C), assembled while hot, and allowed to cool to room temperature under argon atmosphere.
2.
The checkers used the mass of In(OTf)
3 prior to drying for determination of the concentration of the resulting acetonitrile solution.
3.
In(OTf)
3 (complexiometric EDTA specification of 19.2-21.7% indium, 19.5% for the batch used by the checkers, theory for In(OTf)
3 = 20.4%) was purchased from Aldrich and used as received. Alternatively, the submitters report that it can be made from In
2O
3 and TfOH in boiling water.
4 In
2O
3 was purchased from Kanto Kagaku. TfOH was purchased from Wako Pure Chemical Industries, Ltd. Both reagents were used as received. In order to dispose of trifluoromethanesulfonic acid, the acid should be carefully introduced into water in a dropwise fashion.
4.
In(OTf)
3 is extremely hygroscopic.
5.
Rapid increase of the oil bath temperature causes the decomposition of hydrated In(OTf)
3.
6.
Anhydrous acetonitrile (<50 ppm water) was purchased from EMD Chemicals (Merck KGaA) and used as received.
7.
Ethyl 2-methyl-3-oxobutanoate was purchased from Acros and was purified by silica gel flash column chromatography (5% ethyl acetate in hexane as eluent) and distillation (bp 80 °C/20 mmHg) before use. The chromatographic purification is necessary to remove ethyl 3-oxobutanoate.
8.
The exact mass of keto ester was determined by weight of the syringe before and after the addition.
9.
Phenylacetylene was purchased from Aldrich Inc. and purified by vacuum distillation before use (bp 60 °C/20 mmHg). The exact mass of the charge was determined as in Note 8.
10.
The reaction was monitored by GC/MS on an HP-1 capillary column (0.2 mm × 12 m, 0.33μm) at 30 °C to 290 °C raised at 30 °C /min. Typical retention time of product is 5.7 min. The submitters monitored the reaction by TLC on glass plates coated with 0.25 mm of 230-400 mesh silica gel containing a fluorescent indicator (Merck #1.05715.0009). Plates were visualized with UV light (254 nm) and/or by immersion in an acidic staining solution of
p-anisaldehyde followed by heating on a hot plate.
11.
The purity was determined by GC/MS analysis, per Note 10.
12.
The product displays the following physicochemical properties:
1H NMR
pdf (400 MHz, CDCl
3): δ 1.20 (t,
J = 7.0 Hz, 3 H), 1.50 (s, 3 H), 2.28 (s, 3 H), 4.16 (q,
J = 7.0, 2 H), 5.26 (s, 1 H), 5.41 (s, 1 H) 7.16-7.30 (m, 5 H);
13C NMR
pdf (100 MHz, CDCl
3): δ 14.1, 21.5, 27.6, 61.8, 66.1, 119.0, 127.8, 128.0 (2C), 128.3 (2C), 140.6, 148.2, 172.0, 205.5; IR (neat) cm
-1; 1710, 1355, 1092, 1021, 915, 776; Anal. Calcd. For C
15H
18O
3: C, 73.15; H, 7.37. Found: C, 73.00; H, 7.22.
Handling and Disposal of Hazardous Chemicals
The procedures in this article are intended for use only by persons with prior training in experimental organic chemistry. All hazardous materials should be handled using the standard procedures for work with chemicals described in references such as "Prudent Practices in the Laboratory" (The National Academies Press, Washington, D.C., 2011 www.nap.edu). All chemical waste should be disposed of in accordance with local regulations. For general guidelines for the management of chemical waste, see Chapter 8 of Prudent Practices.
These procedures must be conducted at one's own risk. Organic Syntheses, Inc., its Editors, and its Board of Directors do not warrant or guarantee the safety of individuals using these procedures and hereby disclaim any liability for any injuries or damages claimed to have resulted from or related in any way to the procedures herein.
3. Discussion
The present procedure provides a simple and efficient way to produce α-alkenyl carbonyl compounds through addition of an active methylene compound to an unactivated alkyne or acetylene catalyzed by indium(III) tris(trifluoromethanesulfonate) [In(OTf)3]. The reaction does not necessarily require solvent, and, as the result, the 20-g scale synthesis can be carried out in a 50- to 100-mL flask. When viscous or solid keto esters are used, the reaction mixture can be diluted with a solvent such as toluene. The reaction also represents a method for the construction of a quaternary carbon center.
The reaction takes place smoothly at room temperature if one uses 20 mol % of In(OTf)
3, which however consumes the same amount of the alkyne. For the reaction to be performed with low catalyst loading (0.05 mol % catalyst), higher temperature is needed, but the reaction still shows good functional group tolerance as shown in Table 1.
5 Acid sensitive compounds such as benzyl propargyl ether (entry 5) and ethyl 2-allylacetoacetate (entry 9) require the presence of triethylamine as a base. The reaction of ethynylsilane requires In(OTf)
3 (5 mol %) and DBU (6 mol %) at 100 °C for 16 hours (entry 8). The addition of DBU is essential to prevent the desilylation of the vinylsilane product. The
trans- stereochemistry of the double bond in the product indicates the
cis-addition of an indium(III) enolate intermediate to the triple bond.
1,3-Diketones also take part in the reaction under slightly modified conditions. The addition of 3-methyl-2,4-pentanedione to phenylacetylene takes place in the presence of In(OTf)
3 (5 mol %), Et
3N (5 mol %), and
n-BuLi (5 mol %) in 32 hours at 100 °C to give the desired product in 88% yield (entry 11). The presence of Et
3N and
n-BuLi suppresses the formation of side products. As suggested by the data in Table 1, the present reaction is the most suited for creation of a quaternary carbon center, where there is no possibility of enolization. However, the creation of a tertiary center may be achieved in some limited examples of 3,3-diprotio-2,4-pentanedione congeners.
5a,d,e

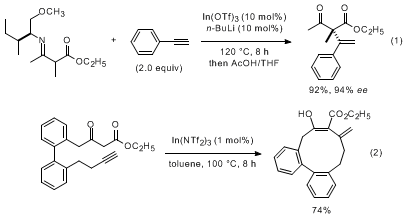

The present reaction can also be used for the creation of chiral quaternary carbon stereocenters (eq. 1).
5g An indium(III) enamide intermediate bearing a chiral auxiliary undergoes highly diastereoselective addition to an alkyne. Intramolecular version of the reaction shows remarkable generality, creating six to fifteen membered rings in good to excellent yields (eq. 2).
5e,h,i

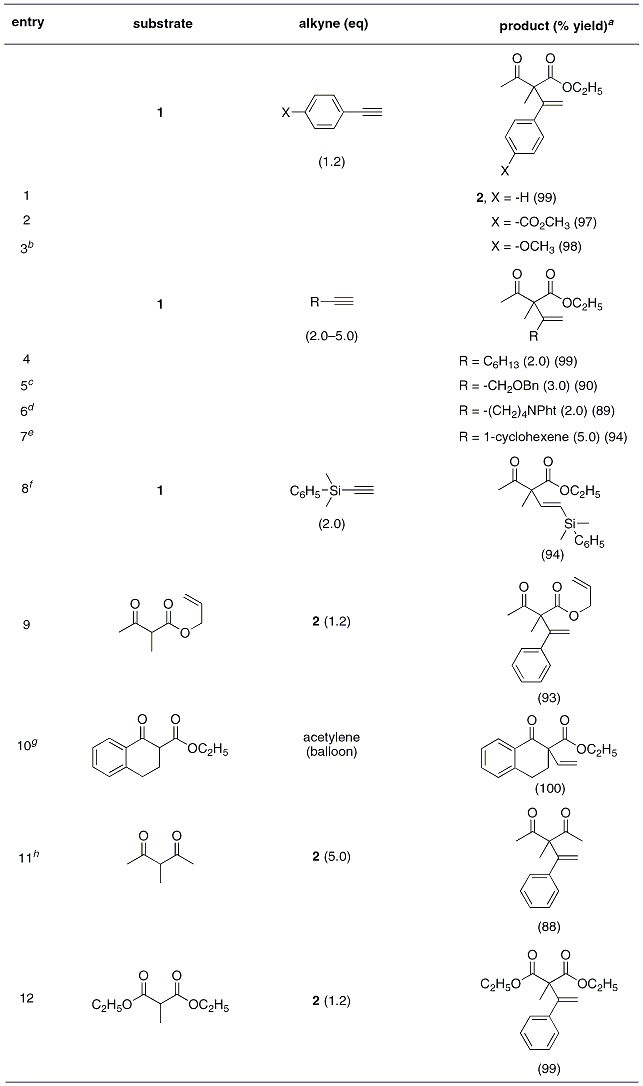

Table 1. Addition of Active Methylene Compounds to Alkynes
a)Isolated yield. b) In(OTf)3 (1 mol%) was used at 100 °C in toluene (1 M) for 2 h. c) In(OTf)3 (5 mol%) and Et3N (5 mol%) were used at 80 °C for 22 h. d) NPht is the abbreviation of phthalamide. In(OTf)3 (1 mol%) was used at 100 °C in toluene (2 M) for 10 h. e) In(OTf)3 (2 mol%) was used at 60 °C for 4 h. f) In(OTf)3 (5 mol%) and 1,8-diazabicyclo[5. 4. 0]undec-7-ene, DBU (6 mol%) were used at 100 °C for 16 h. g) In(OTf)3 (20 mol%), DBU (20 mol%), and MS 3A were used in toluene (1 M) at 100 °C. h) In(OTf)3 (5 mol%), Et3N (5 mol%), and n-BuLi (5 mol%) were used at 100 °C for 32 h.
In summary, the present procedure is useful for the introduction of an alkenyl group, featuring such synthetically convenient attributes as 1) perfect regioselectivity as to the alkyne acceptor, 2) good functional group compatibility, 3) high catalytic performance, 4) requirement of no solvent and 5) good atom economy.
Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)
Ethyl 2-methylacetoacetate: Butanoic acid, 2-methyl-3-oxo-, ethyl ester; (609-14-3)
Phenylacetylene: Benzene, ethynyl-; (536-74-3)
Indium(III) tris(trifluoromethanesulfonate): Methanesulfonic acid, trifluoro-, indium(3+) salt; (128008-30-0)
