Org. Synth. 2012, 89, 220-229
DOI: 10.15227/orgsyn.089.0220
Discussion Addendum for: -Formylations of Phenols; Discussion Addendum for: ortho-Formylations of Phenols; Preparation of 3-Bromosalicylaldehyde Preparation of 3-Bromosalicylaldehyde
Submitted by Trond Vidar Hansen1 and and Lars Skattebøl.2* .
Original Article: Org. Synth. 2005, 82, 64
Discussion
Several methods are available for the direct formylation of phenols, but most of them suffer from lack of regioselectivity. Moreover, several of the methods involve the use of noxious reagents and harsh reaction conditions resulting in moderate to good yields of aldehydes.3 An exception is the formylation of phenols using the acceptable reagents MgCl2, Et3N and paraformaldehyde giving high yields of salicylaldehydes from reactions exclusively at the ortho-position.4 Additional examples and applications of this method since its appearance in 1999 are presented here. We have emphasized the scope of the reaction and its participation in one-pot preparations.
Scope of the ortho-Formylation Reaction
Numerous applications of the formylation reaction have been reported in the past twelve years. A number of substituted phenols have been successfully formylated (Figure 1). Alkyl and alkoxy substituents promote the formylation, with high to excellent yields of salicylaldehydes being obtained (Figure 1).4,5 Highly substituted phenols undergo the reaction; for example, reaction of the phenol 1 furnished the salicylaldehyde 2 in 62% yield.6Surprisingly, however, α,ω–bis(p-hydroxyphenyl)alkanes were unreactive towards the method.7

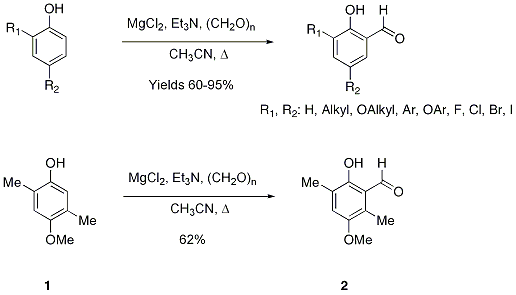

Figure 1. Ortho-formylation of phenols using MgCl2, Et3N and para-formaldehyde.
Figure 1. Ortho-formylation of phenols using MgCl2, Et3N and para-formaldehyde.
The method has been used for the formylation of estrogens.8,9 The reactions occurred to provide excellent yields of regioisomeric aldehydes, with high preference for the 2-isomer (Table 1, Figure 2).
Table 1. Results from ortho-formylation of estrogens.

R1 R2 R3 Regioisomeric ratio of 2- and 4-isomers Yield%

OH H H 13:1 92
OH CCH H 6:1 86
OH CH2CH3 H 12:1 90
H OH H 13:1 85
OAc H H 8:1 90
OH H OH not determined 15
=O H 9:1 90
OCH2CH2O H 12:1 74

The practical use of this method was demonstrated with the synthesis of the anti-cancer agent 2-methoxyestradiol (3) from estradiol in 36% overall yield (Figure 2).9

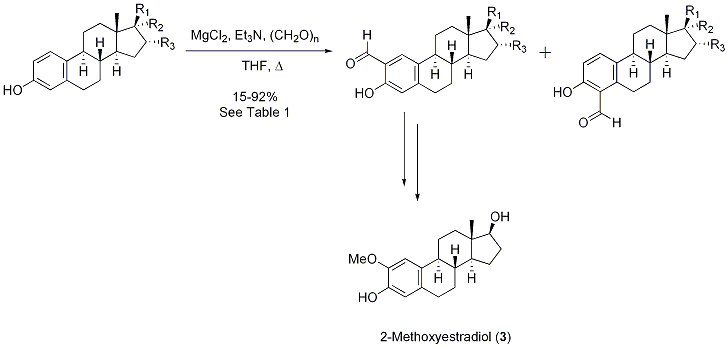

Figure 2. orthoo-Formylation of estrogens.
Figure 2. orthoo-Formylation of estrogens.
Aromatic substituents have no detrimental effect on the reaction. Phenyl-,10 perfluorophenyl-11 and 2-nitrophenyl-substituted11 phenols were formylated in good yields, and the same was the case with mono-protected 2,2´-bisphenol.12 Naphthol derivatives behave similarly giving ortho-formylation products,13,14 and of special merit is the preparation of 3-formyloctahydro-1,1´-binaphthol.14b 5-Methoxy-2-naphthol was formylated in 75% yield as part of the total synthesis of racemic juglomycin A.15
Oxygen functions are well tolerated; several mono protected resorcinols and methylenedioxy- substituted -phenols have been formylated in excellent yields and high regioselectivity.16,17 Moreover, several methylthio- and phenylthiophenol derivatives have been formylated in high yields.18 Halogen-substituted phenols are good substrates in the reaction,4 and this has been thoroughly substantiated in the last decade.19
Figure 3. Ortho-formylation of mono-protected resorcinols.
Figure 3. Ortho-formylation of mono-protected resorcinols.
The method also tolerates electron attracting groups like cyano and ester, but the reaction proceeds at a slower rate when these groups are attached to the benzene ring, and more byproducts may appear as well.4 As anticipated, faster reactions were encountered when the ester group was further removed from the benzene ring. Formylation of 4 gave 5 in 94% yield20 and reaction of the phenol 6 furnished aldehyde 7 in high yield (Figure 4).21 The presence of two ester groups was accepted; formylation of dimethyl 2-(4-hydroxyphenyl)succinate proceeded with excellent yield.22 Moreover, protected tyrosine, viz. methyl N-Cbz-tyrosinate was successfully formylated in 43% yield.23 Since the formylation of 4-cyanophenol was successful,4,24 it is interesting to note that (4-hydroxyphenyl)acetonitrile could not be formylated by the different methods tried.25
Figure 4. Examples of ortho-formylations.
Figure 4. Examples of ortho-formylations.
The Formylation Method as Part of One-pot Reactions
Much can be gained with respect to efficiency and yields by using multi-component one-pot reactions, since several reactions can be carried out successively without isolation of intermediates. The reagents of this method appeared compatible for such a set-up, and several applications have been reported.
The catechol structural entity is present in natural products, many of biological interest. A one-pot preparation of catechols from the corresponding phenols has been reported26 involving the formylation reaction followed by Dakin or Baeyer-Villliger oxidations. The yields are very good (Figure 5). The method has been used in the synthesis of combretastatins A-1 and B-1.27

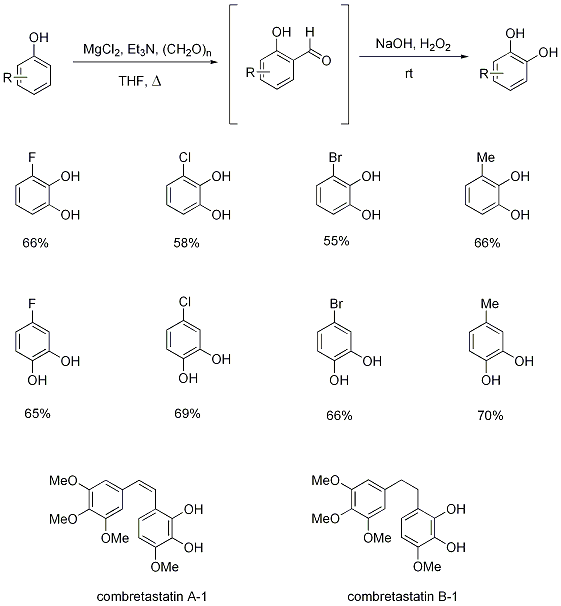

Figure 5. One-pot synthesis of catechols.
Figure 5. One-pot synthesis of catechols.
Salen ligands, that form part of the Jacobsen catalyst, were prepared in excellent yields by a one-pot reaction starting from the appropriate phenol (Figure 6).28 The yields are considerably better than those previously obtained by a two-step protocol.
Figure 6. One-pot synthesis of salens.
Figure 6. One-pot synthesis of salens.
By another one-pot reaction, salicylamines were prepared in good yields by reductive amination of the corresponding salicylaldehydes as outlined in Figure 7. The amines were further manipulated without isolation of intermediates to dihydro-2 H-1,3-benzoxazines in good overall yields, considering the four reactions involved.29 In a related one-pot procedure salicylnitriles were prepared.30 In this case the imines formed from the respective salicylaldehyde and ammonia were oxidized with o-iodoxybenzoic acid to give good yields of the corresponding nitriles.

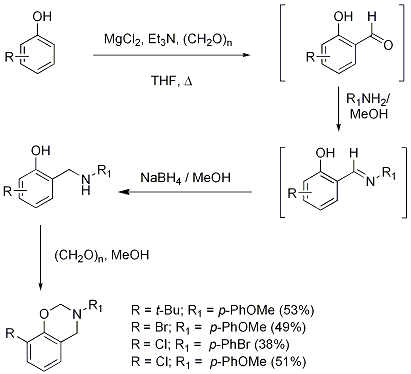

Figure 7. One-pot synthesis of salicylamines and dihydro-2H-1,3-benzoxazines.
Figure 7. One-pot synthesis of salicylamines and dihydro-2H-1,3-benzoxazines.
Cinnamic acid derivatives are useful for the synthesis of heterocyclic compounds. Converting phenols to salicylaldehydes and subsequent treatment with methyl (triphenylphosporanylidene)acetate in a one-pot reaction afforded methyl 2-hydroxycinnamate derivatives in acceptable yields (Figure 8).31
Figure 8. One-pot synthesis of methyl cinnamates.
Figure 8. One-pot synthesis of methyl cinnamates.
Conclusion
The results have demonstrated that the method described above fits well into the assembly of phenol formylation reactions. It may prove to be the method of choice in many cases because of the ease of execution, regioselectivity, and good yields.

References and Notes
  1. Department of Medicinal Chemistry, School of Pharmacy, University of Oslo, PO BOX 1068, 0316 Oslo, Norway.
  2. Department of Chemistry, University of Oslo, PO BOX 1033, 0315 Oslo, Norway. E-mail: lars.skattebol@kjemi.uio.no. Insert acknowledgement of fnding source, if desired. 3.
  3. (a) Olah, G. . A.; Ohannasian, L.; Arvanaghi, M. Chem. Rev. 1987, 87, 671-686. (b) Laird, T. In Comprehensive Organic Chemistry; Stoddart, J. F., Ed., Pergamon, Oxford 1979, Vol. 1; p 1105-1160. (c) Kantlehner, W. Eur. J. Org. Chem. 2003, 2530-2546. 4.
  4. (a) Hofsløkken, N. U.; Skattebøl, L. Acta Chem. Scand. 1999, 53, 258-262; (b) Hansen, T. V.; Skattebøl, L. Org. Synth. 2005, 82, 64-6868.. 5.
  5. Knight, P. D.; Clarkson, G.; Hammond, M. L.; Kimberley, B. S.; Scott, P. J. Organomet. Chem. 2005, 690, 5124-5144. 6.
  6. (a) Chen, Y.; Steinmetz, M. G. Org. Lett. 2005, 7, 3729-3732. (b) Chen, Y.; Steinmetz, M. G. J. Org. Chem. 2006, 71, 6053-6060. 7.
  7. Cort, A. D.; Mandolini, L.; Pasquini, C.; Schiaffino, L. J. Org. Chem. 2005, 9814-9821. 8.
  8. (a) Liu, Y.; Lien, I-.F.; Ruttgaizer, S.; Dove, P.; Taylor, S. D. Org. Lett. 2004, 6, 209-212. (b) Liu, Y.; Kim, B.; Taylor, S. D. J. Org. Chem. 2007, 72, 8824-8830. 9.
  9. Akselsen, Ø. W.; Hansen, T. V. Tetrahedron 2011, 67, 7738-7742. 10.
  10. Doshi, J. M.; Tian, D.; Xing, C. J. Med. Chem. 2006, 49, 7731-7739. 11.
  11. Mu, H-L; Ye, W-P; Song, D-P; Li, Y-S. Organometallics 2010, 29, 6282-6290. 12.
  12. Riggs, J. R.; Kolesnikov, A.; Hendrix, J.; Young, W. B.; Shrader, W.D.; Vijaykumar, D.; Stephens, R.; Liu, L.; Pan, L.; Mordenti, J.; Green, M. J.; Sukbuntherng, J. Bioorg. Med. Chem. Lett. 2006, 16, 2224-2228. 13.
  13. Wright, B. J. D.; Hartung, J.; Peng, F.; Van de Water, R.; Liu, H.; Tan, Q-H.; Chou, T-C.; Danishefsky, S. J. J. Am. Chem. Soc. 2008, 130, 16786-16790. 14.
  14. (a ) Zaichenko, N. L.; Kol´tsova, L. S.; Shcherbakova, I. M.; Os´kina, O. Yu.; Voznesenskii, V. N.; Mardaleishvili, I. R.; Shienok, A. I. Russ. Chem. Bull. Int. Ed. 2011, 60, 533-535. (b) Jung, H.; Nandhakumar, R.; Yoon, H.-J.; Lee, S.; Kim, K. M. Bull. Korean Chem. Soc. 2010, 31, 1289-1294. 15.
  15. Min, J.-P.; Kim, J-C.; Park, O-S. Synth. Commun. 2004, 383-390. 16.
  16. Akselsen, Ø. W.; Skattebøl, L.; Hansen, T. V. Tetrahedron Lett. 2009, 50, 6339-6341. 17.
  17. Juhász, L.; Docsa, T.; Brunyászki, A.; Gergely, P.; Antus, S. Bioorg. Med. Chem. Lett. 2007, 15, 4048-4056. 18.
  18. (a) Sylvestre, I.; Wolowska, J.; Kilner, C. A.; McInnes, E. J. L.; Halcrow, M. A. J. Chem. Soc. Dalton Trans. 2005, 3241-3249. (b) Hirano, K.; Biju, A. T.; Piel, I.; Glorius, F. J. Am. Chem. Soc. 2009, 131, 14190-14191. 19.
  19. (a) Feldman, K. S.; Eastman, K. J.; Laéssene, G. Org. Lett. 2002, 4, 3525-3528. (b) Marsh, G.; Stenutz, R.; Bergman, Å. Eur. J. Org. Chem. 2003, 2566-2576. (c) Clever, G.; Polborn, K.; Curell, T. Angew. Chem. Int. Ed. 2005, 44, 7204-7208. (d) Charrier, C.; Bertrand, P. J. Chem. Sci. 2011, 123, 459-466.
  20. Sun Z-N.; Wang, H-L.; Liu, F-Q.; Tam, P. K. H.; Yang, D. Org. Lett. 2009, 11, 1887-1890. 21.
  21. Hu, H.; Kolesnikov, A.; Riggs, J. R.; Wesson, K. E.; Stephens, R.; Leahy, E. M.; Shrader, W. D.; Sprengeler, P. A.; Green, M. J.; Sanford, E.; Nguyen, M.; Gjerstad, E.; Cabuslay, R.; Young, W. B. Bioorg. Med. Chem. Lett. 2006, 16, 2224-2228. 22.
  22. Shrader, W. D.; Kolesnikov, A.; Burgess-Henry J.; Rai, R.; Hendrix, J.; Hu, H.; Torkelson, S.; Ton, T.; Young, W. B.; Katz, B. A.; Yu, C.; Tang, J.; Cabuslay, R.; Sanford, E.; Janc, J. W; Sprengeler, P. A. Bioorg. Med. Chem. Lett. 2006, 16, 1596-1600. 23.
  23. Shen, K.: Qi, L.; Ravula, M. Synthesis 2009, 3765-3768. 24.
  24. Becker, J. M.; Barker, J.; Clarkson, G. J.; van Gorkum, R.; Johal, G. K.; Walton, R. J.; Scott, P. Dalton Trans. 2010, 39, 2309-2326. 25.
  25. Shetty, R.; Moffet, K. K. Tetrahedron Lett. 2006, 47, 8021-8024. 26.
  26. Hansen T. V.; Skattebøl, L. Tetrahedron Lett. 2005, 46, 3357-3358. 27.
  27. Odlo, K.; Klaveness, J.; Rongved, P.; Hansen, T. V. Tetrahedron Lett. 2006, 47, 1101-1103. 28.
  28. Hansen, T. V.; Skattebøl, L. Tetrahedron Lett. 2005, 46, 3829-3830. 29.
  29. Anwar, H. F.; Skattebøl, L.; Hansen, T. V. Tetrahedron 2007, 63, 9997-10002. 30.
  30. Anwar, H. 32. F.; Hansen, T. V. Tetrahedron Lett. 2008, 49, 4443-4445. 31.
  31. Anwar, H. F.; Skattebøl, L.; Skramstad, J.; Hansen, T. V. Tetrahedron Lett. 2005, 46, 5285-5287.

Trond Vidar Hansen obtained his MSc degree from the University of Trondheim in 1995 and his Ph.D. degree from the Agricultural University of Norway in 2001 (Professors Yngve Stenstrøm and Lars Skattebøl as supervisorssupervisors). He was a post-doctoral fellow (2001-2003) at the University of Oslo with Professor Skattebøl and then at The Scripps Research Institute, La Jolla, with Professor K. Barry Sharpless (2004). In the same year he became Associate Professor at the University of Oslo, School of Pharmacy. His research interests are synthetic methodology, medicinal chemistry, lipid chemistry and synthesis of natural products.
Lars Skattebøl obtained a BSc from the Technical University of Norway in 1951 and a PhD in 1956 from the University of Manchester (Professor E. R. H. Jones as supervisor). After a postdoctoral year with Professor J. D. Roberts at California Institute of Technology, he spent eleven years with Union Carbide, Corp. at their corporate research institutes in Brussels and Tarrytown, N.Y. In 1970 he was appointed Professor at the University of Oslo, Department of Chemistry. His research interests are carbenes, lipids, synthetic methodology and natural product synthesis.
