Org. Synth. 2014, 91, 60-71

DOI: 10.15227/orgsyn.091.0060

Synthesis of Alkynyliodonium Salts: Preparation of Phenyl(phenylethynyl)iodonium Trifluoroacetate

Submitted by Luke I. Dixon,¹ Michael A. Carroll,^1* George J. Ellames² and Thomas J. Gregson²

Checked by David M. Guptill and Huw M. L. Davies

1. Procedure

Caution! Hypervalent iodine compounds are potentially explosive and should be handled taking appropriate precautions.

Phenyl(phenylethynyl)iodonium trifluoroacetate (1) (Note 1). A 250-mL, two-necked, round-bottomed flask (Note 2), equipped with a 35 x 16 mm, PTFE-coated, oval magnetic stirrer bar, is charged with phenyliodo bis(acetate) (6.44 g, 20 mmol) (Note 3) followed by DCM (120 mL) (Note 4). The suspension is then stirred (Note 5) until dissolution is observed, at which point the solution is then cooled to between -30 °C and -35 °C using an acetone/dry ice bath (Note 6). Trifluoroacetic acid (3.06 mL, 40 mmol, 2.0 equiv) is added drop-wise over a period of 10 min via syringe pump and plastic syringe (Note 7) and stainless steel needle (20 gauge). The solution is then stirred for a further 0.5 h keeping the temperature between -30 °C and -35 °C before the reaction flask is removed from the acetone/dry ice bath and stirred at room temperature for 1 h. At this point the solution is clear and colorless in appearance. Phenylacetylene (2.20 mL, 20 mmol, 1.0 equiv) is then added to the solution by syringe, as above, over a period of 10 min, and the reaction vessel is wrapped in aluminium foil and stirred in darkness (Note 8) for 3.5 h (Notes 9 and 10) at room temperature. The resulting clear pale yellow solution is then transferred to a 250-mL, single-necked, round-bottomed flask and concentrated to a volume of 30–40 mL (Note 11) in vacuo on a rotary evaporator, keeping the water bath at 25 °C. Diethyl ether (40 mL) followed by petroleum ether 40–60 (80 mL) are then added to the solution, mixing by 'swirling' manually, to initiate crystallization of the product, visible by the appearance of a white precipitate. The suspension is then stoppered before being wrapped in foil, placed in the freezer and kept in darkness at -25 °C for 48 h (Note 12). The flask is then removed from the freezer and left for 30 min to warm to room temperature before filtration of the white crystalline solid by suction using a medium-porosity sintered glass funnel and washed with diethyl ether (2 x 15 mL), agitating the crystals quickly with a spatula before the removal of each portion of diethyl ether (Note 13). The solid is then transferred to a pre-weighed vial and dried in vacuo for 12–24 h in a vacuum desiccator to give the product as a white crystalline solid 3.98 – 4.59 g, (48 – 55%) (Notes 14 and 15). Purity of the product can be determined by ¹H NMR initially, though, due to decomposition in solution (Notes 9 and 10), elemental analysis provides a more accurate indication of purity (Note 16). The described procedure has also been shown to be suitable for larger scale syntheses (Note 17).

2. Notes

1. Iodonium salts have, in certain cases, been reported to be explosive.³ In the case of 1, TGA and DSC data (vide infra) suggests that the material is not explosive, but it does experience a little decomposition around its melting point. Caution should, however, be taken in the synthesis and isolation of 1, conducting all procedures behind a blast shield (e.g. 6 mm Perspex^®) wherever possible, in addition to the protection afforded by the sash of a fume hood.

2. All reaction glassware was dried in an oven overnight (16 h) at 178 °C (submitters) or flame-dried (checkers) then evacuated under vacuum and back-filled with nitrogen or argon three times while hot, then maintained under the inert atmosphere during the course of the reaction.

3. Checkers obtained (diacetoxyiodo)benzene (98%), phenylacetylene (98%) and trifluoroacetic acid (ReagentPlus, 99%) from Aldrich Chemical Company, and the reagents were used as received. Submitters obtained phenyliodo bis(acetate) (98+%) and phenylacetylene (98+%) from Alfa Aesar and trifluoroacetic acid (99.5%) was obtained from Apollo Scientific; all chemicals were used as supplied from new, unopened bottles.

4. Checkers obtained dichloromethane (>99.5%), diethyl ether (Laboratory grade) and petroleum ether (Certified ACS) from Fisher Scientific and were used as supplied. Submitters obtained dichloromethane (99+%), diethyl ether (99+%) and petroleum ether (40-60 °C) from Fisher and were used as supplied from new, unopened bottles.

5. Magnetic stirrer hotplates, 'IKAMAG^® RCT Classic', stirred at ~633 rpm, setting 6.

6. Acetone/dry ice baths were also equipped with a 15 mm, PTFE-coated, cross-shaped, stir bar to ensure even temperature distribution.

7. Checkers purchased plastic syringes (Norm-ject®, 5 mL) from VWR. Submitters purchased plastic syringes (‘BD Discardit™ II’, 5 mL) from Fisher Scientific.

8. Alkynyliodonium salts have previously been shown to exhibit photoinitiation behavior under irradiative conditions⁴ and should therefore be regarded as photosensitive.

9. Submitters noted that compound (1) decomposes in solution to 2-phenyl-2-oxoethyl trifluoroacetate (2), the major by-product of the reaction; prolonged reaction times encourage formation of this by-product.

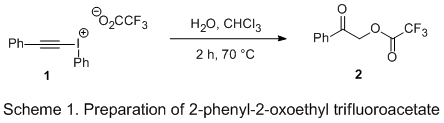

10. Submitters provided the following characterization data and procedure for the preparation of by-product (2) (Scheme 1). This method was not repeated by the Checkers. 2-Phenyl-2-oxoethyl trifluoroacetate (2). Phenyl (phenylethynyl)iodonium trifluoroacetate (1) (2.07 g, 4.96 mmol) is added to a 100-mL, single-necked, round-bottomed flask fitted with a water condenser and equipped with a 2 cm, PTFE-coated, oval magnetic stirrer bar. Chloroform (10 mL) and a few drops of water (ca 4 drops) are then added. The apparatus was equipped with a Schlenk line and the solution heated to reflux (70 °C, oil bath temperature) for 2 h under an atmosphere of nitrogen with stirring. The solution is then cooled, dried with MgSO₄, filtered by suction, using a sintered glass funnel, then concentrated in vacuo. The crude product is then purified by flash chromatography (silica), eluting with dry hexane/dry toluene (1:1)(both dried by storing over sodium wire), to give the product as a white crystalline solid (0.40 g, 1.71 mmol, 34%).

TLC R_f = 0.27 (1:1, hexane: toluene), mp = 54 °C – 55 °C (DCM: diethyl ether: petroleum ether 40 – 60), IR (ν[cm^-1]) 1785, 1700, 1600, 1451, 1433, 1384, 1356, 1304, 1287, 1228, 1206, 1154, 1078, 1037, 1027, 1001; ¹H NMR (300 MHz, CDCl₃) δ: 5.60 (s, 2 H, CH₂), 7.54 (t, 2 H, J = 7.8 Hz, H-3', H-5'), 7.68 (tt, 1 H, J = 7.5, 1.8 Hz, H-4'), 7.92 (dd, 2 H, J = 8.4, 1.2 Hz, H-2', H-6'); ¹³C NMR (75 MHz, CDCl₃) δ: 68.6 (CH₂), 114.9 (q, J = 285.3 Hz, CF₃), 128.2 (C-3', C-5'), 129.5 (C-2', C-6'), 133.7 (C-1'), 134.9 (C-4'), 157.5 (q, J = 43.0 Hz, (CO)CF₃); ¹⁹F NMR (376 MHz, CDCl₃) δ: -74.1; ACPI-MS m/z: 231(32, [M-H]^-), 227(100), 203(14), 183(5), 134(20); HRMS (ACPI): [M-H]^- calcd. for C₁₀H₆F₃O₃: 231.0275. Found 231.0273; Anal. calcd. for C₁₀H₇F₃O₃: C, 51.74; H, 3.04. Found: C, 51.66; H, 2.98.

11. The volume in the flask was assessed by filling the flask with 35 mL of DCM prior to its use and marking the level with an indelible marker.

12. The total time taken from the end of the 3.5 h stirring period to placing the flask in the freezer was no longer than 30 minutes.

13. The submitters noted that the mother liquor, including all ether washings, can be 'seeded' with a small amount of the pure product and replaced in the freezer (-25 °C) for 7 days to recover a second batch of the product using method outlined above; recovery is 0.55 – 1.47 g.

14. Phenyl(phenylethynyl)iodonium trifluoroacetate (1): mp = 90 – 92 °C (dec.); ¹H NMR pdf(600 MHz, CDCl₃) δ: 7.37 (t, J = 7.5 Hz, 2 H), 7.43 (t, J = 7.5 Hz, 1 H), 7.46-7.52 (m, 4 H), 7.60 (t, J = 7.4 Hz, 1 H), 8.17 (d, J = 8.0 Hz, 2 H); ¹³C NMR pdf(100 MHz, CDCl₃) δ: 45.2, 103.9, 115.6 (q, J = 292 Hz), 120.5, 120.6, 128.7, 130.8, 131.9, 132.1, 132.9, 133.6, 162.7 (q, J = 36.2 Hz); IR (solid): 3077, 2166, 1666, 1185, 1124 cm^-1; HRMS (NSI): m/z calcd. for C₁₄H₁₀I ([M - TFA]⁺): 304.9822. Found: 304.9821; Anal. calcd. for C₁₆H₁₀F₃IO₂: C, 45.96; H, 2.41. Found: C, 46.14; H, 2.35.

15. Submitters reported yields of 4.68 – 5.05 g (56 – 60%). Submitters provided the following additional characterization data for product (1): ¹⁹F NMR (376 MHz, [D₆]DMSO) δ: -73.6.

16. Samples (30 mg) were put in small glass vials then wrapped in foil and sent by post for elemental analysis.

17. Submitters also performed the reaction in triplicate on a 100 mmol scale showing some improvements in yield, to provide 22.80 – 24.74 g from first batch followed by 1.08 – 2.30 g (total yield: 23.87 – 26.01 g, 57 – 62%).

Handling and Disposal of Hazardous Chemicals

The procedures in this article are intended for use only by persons with prior training in experimental organic chemistry. All hazardous materials should be handled using the standard procedures for work with chemicals described in references such as "Prudent Practices in the Laboratory" (The National Academies Press, Washington, D.C., 2011 www.nap.edu). All chemical waste should be disposed of in accordance with local regulations. For general guidelines for the management of chemical waste, see Chapter 8 of Prudent Practices.

These procedures must be conducted at one's own risk. Organic Syntheses, Inc., its Editors, and its Board of Directors do not warrant or guarantee the safety of individuals using these procedures and hereby disclaim any liability for any injuries or damages claimed to have resulted from or related in any way to the procedures herein.

3. Discussion

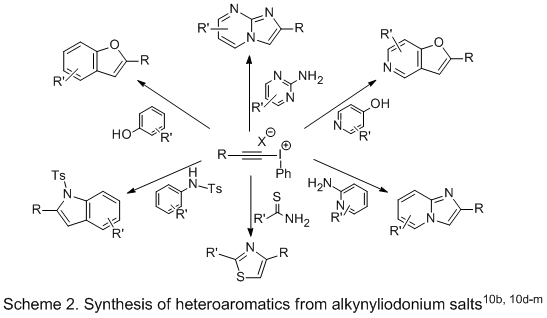

Alkynyliodonium salts are highly versatile reactive intermediates⁵ and as such, have been used in a number of cycloaddition reactions⁶ including 1,3-dipolar cycloadditions with nitrile-oxides,⁷ diazoketones⁸ and azides⁸ as well as Diels-Alder chemistry.⁹ Further syntheses of several complex ring systems from alkynyliodonium salts have been reported via carbene insertion reactions (Scheme 2).¹⁰

In addition, alkynyliodonium salts have been exploited in terms of their photosensitivity,⁴ oxidizing nature and, most commonly, their potential for alkynylation reactions.⁵^, ¹¹

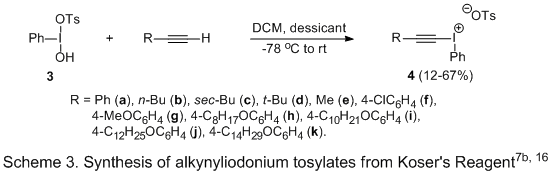

The most common methods for the synthesis of alkynyliodonium salts are via the use of Koser's Reagent ([hydroxy(tosyloxy)iodo]benzene, 3)¹² and Stang's Reagent ([cyano(trifloxy)iodo]benzene, 5).¹³

Koser's Reagent is commercially available and non-toxic making it a highly attractive precursor to alkynyliodonium salts, however, it has been shown that the yields can be low due to formation of the corresponding vinylic species as a result of tosylate addition.¹⁴ It was shown that alkynes with bulky groups afforded the desired product in high yields, whereas those with less steric hindrance in the β-acetylenic position afforded high amounts of, or even exclusively, the addition products, phenyl[β-(tosyloxy)vinyl]iodonium tosylates.^14a^, ¹⁵

The addition of a desiccant to the reaction mixture has proven advantageous allowing formation of a range of novel analogues in spite of low steric bulk in the β-acetylenic position (Scheme 3).^16a

Though triflate anions have also been shown to add,¹⁷ the lower nucleophilicity makes alkynliodonium triflates much less susceptible to decomposition and thus Stang's Reagent has found a much wider application in the synthesis of alkynyliodonium salts.¹⁸

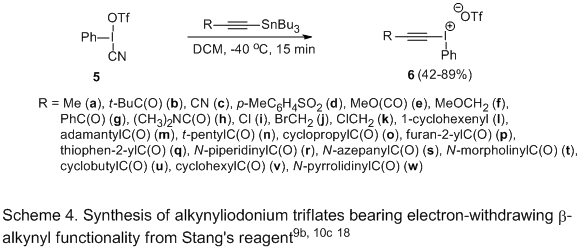

Stang demonstrated the extensive range of functionality possible in the β-alkynyl position of alkynyliodonium salts from the Stang Reagent and, although compounds 6b–w (Scheme 4) had to be isolated at low temperature, the synthetic route proved that alkynyliodonium triflates could be synthesized bearing electron-withdrawing β-alkynyl functionality, without significant triflate addition to the β-alkynyl position.^18a

It was noted in 1993^9b that many functionalised alkynyliodonium salts could not be prepared in satisfactory manner from Koser’s reagent, Zefirov’s reagent, iodosylarenes or related compounds. Stang’s reagent, however, has made possible the synthesis of the most comprehensive library of over forty highly functionalized alkynyliodonium salts to date.^9b^, ^10c^, ^11a^, ^18a^, ¹⁹

Despite their widespread use, a number of problems remain to be resolved with regard to the synthesis and isolation of alkynyliodonium salts:

Many procedures require use of the stannous alkynyl-derivatives creating problems with isolation and toxicity issues.
The most versatile and commonly used of the available precursors, Stang's Reagent,¹³ produces the noxious asphyxiant HCN as a by-product.
Many syntheses require use of iodosylbenzene (PhIO), which is known to disproportionate to the highly explosive iodylbenzene (PhIO₂).²⁰

Trifluoroacetate analogues have previously been reported as too unstable and hydroscopic to be of practical interest.²¹ We have found that not only are they stable isolatable crystalline solids, but they also address many of the problems associated with other syntheses, by the use of un-modified, terminal alkynes and commercially available, non-explosive starting materials with the production of no noxious by-products. The yields of the reaction are also comparable to those of other approaches and the purification is by far the simplest we have experienced.
