1. Procedure
B.
Tetrahydroquinoline. A 1-L oven-dried three-necked round-bottomed flask equipped with an overhead mechanical stirrer (paddle size:
w = 8 cm,
h = 1.5 cm), a 200-mL pressure-equalizing dropping funnel with a rubber septum, and a straight inlet adapter with a side arm 3-way stopcock fitted with an argon gas inlet and a thermometer (Figure 1) is charged with
DIBALH (1.00 M in
n-hexane, 199 mL, 199 mmol, 4.50 equiv) (
Note 8) through the pressure-equalizing dropping funnel (
Note 9). After the dropping funnel is replaced with a rubber septum, the solution is cooled to -16 ~ -11 °C (internal temperature) using a brine/ice bath.

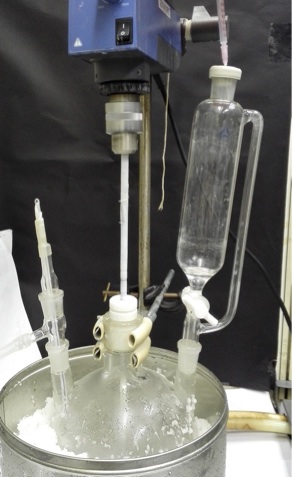

Figure 1. Reaction Assembly for Step B
The rubber septum is removed, and
1-indanone oxime (6.50 g, 44.2 mmol) is added portionwise over 3 min with stirring (300 rpm)
via a powder addition funnel, while keeping the internal temperature below 22 °C. The funnel is washed with distilled hexanes (5 mL), and the septum is fitted to the flask. After stirring for 5 min, the reaction mixture is warmed to ambient temperature and stirred for 2.5 h (
Note 10). The paddle of the overhead mechanical stirrer is washed with distilled hexanes (10 mL) and removed (
Note 11). The mixture is cooled to 2-3 °C (internal temperature) with an ice bath and gradually poured into saturated aqueous
Rochelle salt (400 mL, precooled to 3 °C using an ice bath) (
Note 12) in a 2-L three-necked round-bottomed flask with stirring (300 rpm) using an overhead mechanical stirrer (paddle size:
w = 8 cm,
h = 1.5 cm), while keeping the internal temperature below 30 °C. After the mixture is transferred to the flask with the aid of
ethyl acetate (50 mL), the mixture is warmed to ambient temperature and stirred for 3.5 h. The resulting two-phase solution is partitioned, and the aqueous phase is extracted with
ethyl acetate (2 x 100 mL). The combined organic extracts are washed with brine (200 mL), dried over
Na2SO4 (40 g), and filtered through cotton wool. The filtrate is concentrated on a rotary evaporator under reduced pressure (20 °C, 16 mmHg), and the resulting residual oil is dried
in vacuo for 2 h in a desiccator (20 °C) (
Note 13) to afford 5.95-5.96 g of a pale yellow liquid, which is purified by silica gel column chromatography (hexanes-ethyl acetate = 13:1) (Notes
14 and
15). The fractions containing the product are collected and concentrated on a rotary evaporator under reduced pressure (40 °C, 16 mmHg), and the residual oil is dried
in vacuo for 3.5 h in a desiccator (20 °C) to yield tetrahydroquinoline as a pale yellow oil (5.08 g, 86%) (Note
16 and
17).
2. Notes
1.
1-Indanone (>99%) was purchased from Sigma-Aldrich Co. and used as received without further purification.
2.
Pyridine (99.5%) was purchased from J&K Scientific and used as received without further purification.
3.
Hydroxylamine hydrochloride (98%) was purchased from Sigma-Aldrich Co. and used as received without further purification.
4. The reaction typically requires 20 min to consume all the
1-indanone and is monitored by TLC analysis on Merck silica gel 60 F
254 plates developing with hexanes/ethyl acetate (3:1). The R
f values of
1-indanone and
1-indanone oxime are 0.39 and 0.33, respectively (visualized with 254 nm UV lamp and stained with an
ethanol solution of
Ce2(SO4)3 and
phosphomolybdic acid (Ce-PMA). After dipping the TLC plate to the Ce-PMA solution, the chromatogram is stained by heating).
5. The mixture of (
E)- and
(Z)-1-indanone oxime (
E/
Z = 7:1) exhibits the following physicochemical properties: R
f = 0.33 and 0.17 (hexanes/ethyl acetate = 3:1); Merck silica gel 60 F
254 plates (visualized with 254 nm UV lamp and stained with an
ethanol solution of
Ce2(SO4)3 and
phosphomolybdic acid (Ce-PMA). After dipping the TLC plate to the Ce-PMA solution, the chromatogram is stained by heating);
1H NMR
pdf(400 MHz, CDCl
3) δ: 2.86-2.89 (m, 0.26 H), 2.97-3.00 (m, 2 H), 3.05-3.08 (m, 2.29 H), 7.23-7.34 (m, 3.55 H), 7.69 (d,
J = 7.6 Hz, 1.0 H), 8.46 (d,
J = 7.6 Hz, 0.13 H), 9.05 (br s, 0.16 H), 9.45 (br s, 0.87 H);
13C NMR
pdf(100 MHz, CDCl
3) δ: 26.20, 28.70, 28.87, 29.04, 121.82, 125.67, 125.80, 127.02, 127.21, 129.81, 130.61, 131.27, 133.89, 136.10, 148.66, 149.64, 160.77, 164.26; Chemical shifts were given relative to CDCl
3 (7.26 ppm for
1H NMR, 77.16 ppm for
13C NMR). IR (neat, cm
-1): 3157, 3124, 3096, 3064, 2849, 1654, 1479, 1458, 1432, 1411, 1334, 1070, 986, 956, 833, 818, 753; Anal. calcd. for C
9H
9NO: C, 73.45; H, 6.16; N, 9.52. Found: C, 72.67; H, 6.19; N, 9.45.
6. The E and Z isomers the
1-indanone oxime can be isolated in pure form by preparative TLC (hexanes/ethyl acetate = 1:1).
(E)-1-indanone oxime exhibits the following physicochemical properties: R
f = 0.33 (hexanes/ethyl acetate = 3:1); mp = 146.5-150.0 °C (
ethyl acetate); IR (neat, cm
-1): 3178, 3063, 2850, 1655, 1480, 1456, 1432, 1410, 1334, 1070, 987, 957, 833, 819, 775, 753, 580, 569, 544, 526, 514;
1H NMR
pdf(400 MHz, CDCl
3) δ: 2.96-3.00 (m, 2 H), 3.05-3.08 (m, 2 H), 7.22-7.36 (m, 3 H), 7.67 (d,
J = 7.7 Hz, 1 H), 8.79 (br s, 1H);
13C NMR
pdf(100 MHz, CDCl
3) δ: 26.13, 28.73, 121.76, 125.83, 127.22, 130.63, 136.16, 148.63, 164.26; Chemical shifts were given relative to CDCl
3 (7.26 ppm for
1H NMR, 77.16 ppm for
13C NMR). Anal. calcd. for C
9H
9NO: C, 73.45; H, 6.16; N, 9.52. Found: C, 73.46; H, 6.16; N, 9.50. These spectral data are identical with those reported in the literature.
2 (Z)-1-Indanone oxime exhibits the following physicochemical properties: R
f = 0.17 (hexanes/ethyl acetate = 3:1); mp = 137.6-140.9 °C (
ethyl acetate); IR (neat, cm
-1): 3200, 3075, 2884, 1662, 1462, 1442, 994, 954, 808, 750;
1H NMR
pdf(400 MHz, CDCl
3) d: 2.83-2.87 (m, 2 H), 3.05-3.09 (m, 2 H), 7.25-7.39 (m, 3 H), 8.35 (br s, 1H), 8.43 (d,
J = 7.7 Hz, 1H);
13C NMR
pdf(100 MHz, CDCl
3) δ: 28.88, 29.08, 125.70, 127.02, 129.80, 131.24, 133.87, 149.60, 160.74; Chemical shifts were given relative to CDCl
3 (7.26 ppm for
1H NMR, 77.16 ppm for
13C NMR). Anal. calcd. for C
9H
9NO: C, 73.45; H, 6.16; N, 9.52. Found: C, 73.43; H, 6.14; N, 9.43.
7. A second reaction provided 14.6 g (99%) of the mixture of E and Z isomers.
8.
DIBALH (1.00 M in
n-hexane) was purchased from J&K Scientific and used as received without further purification.
9. A pressure-equalizing dropping funnel is used to handle
DIBALH safely.
DIBALH is transferred via disposable syringe from the bottle into the pressure-equalizing dropping funnel. The volume of 199 mL is marked on the dropping funnel prior to oven drying.
10. The reaction process is monitored by TLC analysis on silica gel 60 F
254 plate. The R
f values of
1,2,3,4-tetrahydroquinoline,
(E)-1-indanone oxime,
(Z)-1-indanone oxime, and 2-isobutyl-1,2,3,4-tetrahydroquinoline are 0.48, 0.33, 0.17, and 0.67, respectively (hexanes/ethyl acetate = 3:1) (visualized with 254 nm UV lamp and stained with an
ethanol solution of
Ce2(SO4)3 and
phosphomolybdic acid (Ce-PMA). After dipping the TLC plate to the Ce-PMA solution, the chromatogram is stained by heating).
11. When this reaction is carried out in ca. >10 g scale, the following procedure is recommended to avoid large volume extraction: the reaction mixture is cooled to 2 °C (internal temperature). After portionwise addition of sodium fluoride (28.0 equiv) for 2 min (internal temperature should be kept below 40 °C), water (20.0 equiv) is carefully added dropwise for 8 min, causing a temperature rise to ca. 44 °C. The mixture is stirred (300 rpm) using an overhead mechanical stirrer (paddle size:
w = 8 cm,
h = 1.5 cm) for 30 min followed by stirring for 1 h at ambient temperature. After the paddle of the overhead mechanical stirrer is washed with
ethyl acetate (30 mL), the contents of the flask are passed through a pad of Celite (40 g) fitted to a Kiriyama funnel
® (diameter = 14 cm, height = 8 cm, fitted with a filter paper No. 4, diameter = 9.5 cm) with
ethyl acetate (3 × 150 mL). The filtrate is concentrated on a rotary evaporator under reduced pressure (20 °C, 16 mmHg), and the residual oil is dried
in vacuo for 2 h in a desiccator (20 °C) to afford a pale yellow liquid, which is purified by column chromatography (
Note 13) and dried to give tetrahydroquinoline as a pale yellow oil.
12.
Potassium sodium (+)-tartrate tetrahydrate (
Rochelle salt) was purchased from Sinopharm Chemical Reagent Co., Ltd and used as received without further purification.
13. Drying
in vacuo more than 2 h results in loss of the tetrahydroquinoline due to volatilization.
14. The crude material is dissolved in eluent (5 mL) and then charged onto a column (diameter = 10 cm, height = 40 cm) of 380-gram silica gel. The column is sequentially eluted with hexanes/ethyl acetate = 13:1 (4 L), hexanes/ethyl acetate = 6:1. During chromatography, 100-mL fractions are collected. Fractions 12−17 and 21−42 were combined and concentrated on a rotary evaporator under reduced pressure (20 °C, 16 mmHg) and dried
in vacuo to provide undesired 2-isobutyl-1,2,3,4-tetrahydroquinoline (fractions 12−17, 128-132 mg, 2%) and desired
1,2,3,4-tetrahydroquinoline (fractions 21−42, 5.04-5.12 g, 86-87%), respectively.
15.
2-Isobutyl-1,2,3,4-tetrahydroquinoline would be generated through the migration of the isobutyl group of
DIBALH to the imine intermediate. Physicochemical properties of 2-isobutyl-1,2,3,4-tetrahydroquinoline: pale yellow oil; R
f = 0.67 (hexanes/ethyl acetate = 3:1); Merck silica gel 60 F
254 plates (visualized with 254-nm UV lamp and stained with an
ethanol solution of
Ce2(SO4)3 and
phosphomolybdic acid (Ce-PMA). After dipping the TLC plate to the Ce-PMA solution, the chromatogram is stained by heating);
1H NMR
pdf(400 MHz, CDCl
3) δ: 0.94 (d,
J = 6.6 Hz, 6 H), 1.28-1.43 (m, 2 H), 1.52-1.62 (m, 1 H), 1.70-1.80 (m, 1 H), 1.90-1.96 (m, 1 H), 2.68-2.87 (m, 2 H), 3.28-3.34 (m, 1 H), 6.47 (d,
J = 8.2 Hz, 1 H), 6.60 (dd,
J = 7.3, 7.3 Hz, 1 H), 6.93-6.97 (m, 2 H);
13C NMR
pdf(100 MHz, CDCl
3) δ: 22.64, 23.36, 24.61, 26.58, 28.72, 46.05, 49.40, 114.25, 117.07, 121.51, 126.84, 129.43, 144.84; Chemical shifts were given relative to CDCl
3 (7.26 ppm for
1H NMR, 77.16 ppm for
13C NMR). IR (neat, cm
-1): 3408, 3051, 3015, 2954, 2867, 2843, 1607, 1585, 1484, 1434, 1384, 1366, 1354, 1309, 1273, 1258, 1153, 745, 716; Anal. calcd. for C
13H
19N: C, 82.48; H, 10.12; N, 7.40. Found: C, 82.20; H, 9.98; N, 7.39. These spectral data are identical with those reported in the literature.
3
16. Physicochemical properties of
1,2,3,4-tetrahydroquinoline: pale yellow oil; R
f = 0.48 (hexanes/ethyl acetate = 3:1); Merck silica gel 60 F
254 plates (visualized with 254-nm UV lamp and stained with an
ethanol solution of
Ce2(SO4)3 and
phosphomolybdic acid (Ce-PMA). After dipping the TLC plate to the Ce-PMA solution, the chromatogram is stained by heating);
1H NMR
pdf(400 MHz, CDCl
3) δ: 1.91-1.97 (m, 2 H), 2.75 (t,
J = 6.4 Hz, 2 H), 3.28 (t,
J = 5.5 Hz, 2 H), 6.46 (d,
J = 7.8 Hz, 1 H), 6.58 (dd,
J = 7.4, 7.4 Hz, 1 H), 6.94-6.98 (m, 2 H);
13C NMR
pdf(100 MHz, CDCl
3) δ: 22.29, 27.10, 42.09, 114.29, 117.01, 121.51, 126.83, 129.62, 144.90; Chemical shifts were given relative to CDCl
3 (7.26 ppm for
1H NMR, 77.16 ppm for
13C NMR). IR (neat, cm
-1): 3406, 2926, 2840, 1606, 1584, 1504, 1468, 1355, 1310, 1267, 746; Anal. calcd. for C
9H
11N: C, 81.16; H, 8.32; N, 10.52. Found: C, 80.86; H, 8.33; N, 10.53. These spectral data are identical with those reported in the literature.
4
17. A second reaction provided 5.10 g (87%) of the product.
3. Discussion
