Synthesis of Methyl 2-Bromo-3-oxocyclopent-1-ene-1-carboxylate

Rama Rao Tata and Michael Harmata*¹

Checked by Leonardo J. Nannini and Erick M. Carreira

1. Procedure (Note 1)

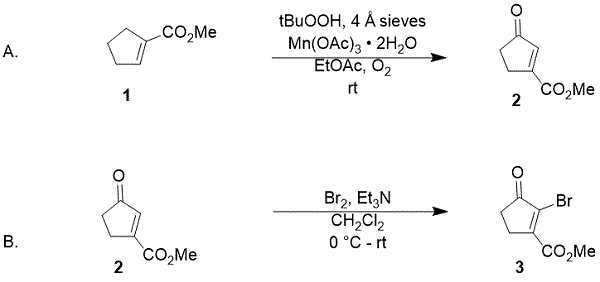

A. Methyl 3-oxocyclopent-1-ene-1-carboxylate (2).² A 1000-mL, one-necked, oven-dried, round-bottomed flask equipped with a teflon-coated magnetic stir bar (25 mm x 10 mm) is fitted with a septum and an argon balloon, and then cooled to ambient temperature (21-23 °C). The flask is charged with methyl 1-cyclopentene-1-carboxylate (1) (Note 2) (7.0 g, 55 mmol, 1.0 equiv). Ethyl acetate (280 mL) (Note 3) is added, followed by 4 Å molecular sieves (7.0 g) (Note 4). The septum is replaced with a pressure-equalizing addition funnel that is capped with a septum. A tert-butylhydroperoxide solution in decane (5.5 M) (41 mL, 221 mmol, 4.0 equiv) is added via the addition funnel over 15 min (Figure 1) (Note 5). The reaction mixture is stirred for 30 min.

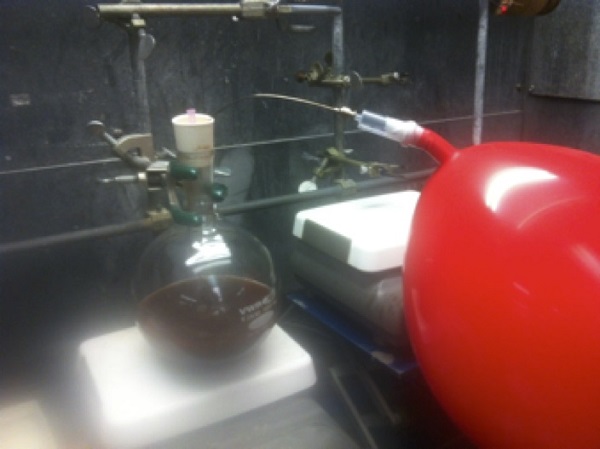

Figure 1. Addition of t-BuOOH

Manganese(III) acetate dihydrate (1.487 g, 5.5 mmol, 0.1 equiv) (Figure 2) (Note 6) is transferred to a vial in a glove bag under a nitrogen atmosphere and the solid is added quickly to the reaction mixture. The argon balloon is removed and the reaction flask is flushed with oxygen using a balloon for 10 min (Figure 3).

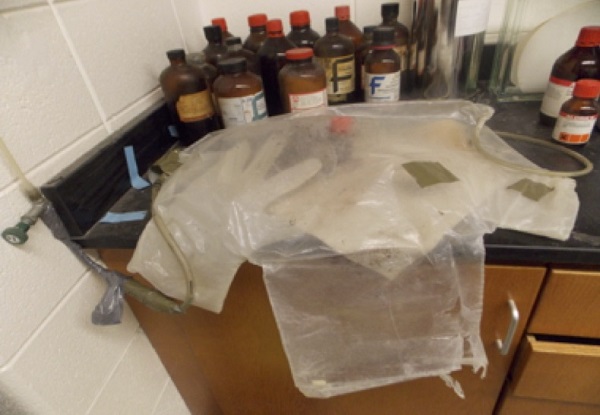

Figure 2. Glove bag

The reaction mixture is stirred under an oxygen atmosphere at 23 °C for 48 h using a balloon filled with oxygen (Figure 4) (Note 7). The reaction is monitored by TLC on silica using 30% EtOAc-hexane as the eluent (Note 8). After completion of the reaction, the reaction mixture is filtered through a Celite pad (Note 9) that is then washed with diethyl ether (40 mL). The filtrate is diluted with water (150 mL) and transferred to 1 L separatory funnel. The aqueous phase is separated and the organic layer is washed again with water (150 mL). The organic extract is tested for peroxides with KI starch paper and no color is observed (Note 10). The organic extract is dried over anhydrous sodium sulfate for 10 min and concentrated using a rotary evaporator (40 °C, 10 mmHg). A chromatography column (6.4 cm x 45 cm) is loaded with 150 g of silica gel (Note 11) and wetted with pentane (200 mL). Sand is placed on top of the silica gel. The crude compound is loaded on the column. Elution begins with 100% pentane (100 mL) and continues with diethyl ether in pentane 10% (100 mL), 20% (100 mL), and 30% (200 mL), which are collected in 250 mL Erlenmeyer flasks. The desired compound elutes with 40% diethyl ether/pentane (700 mL), which is collected in 10 mL test tubes. The collected fractions (5-75) are concentrated by rotary evaporation (40 °C, 10 mmHg). The compound is obtained as colorless oil (3.0 g, 40% yield) (Notes 12 and 13). The purity of the compound is determined to be 94.5 % by qNMR (Note 14).

Fig 3. Purging with oxygen

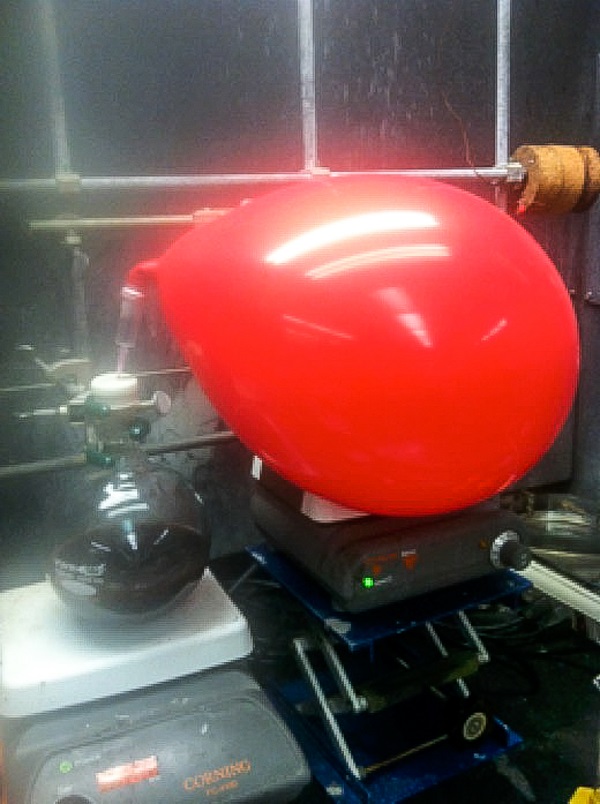

Fig 4. Oxidation under oxygen

B. Methyl 2-bromo-3-oxocyclopent-1-ene-1-carboxylate (3).³ A 1000-mL, three-necked, oven-dried, round-bottomed flask is equipped with a teflon-coated magnetic stir bar (25 mm x 10 mm). The middle neck is fitted with a pressure equalizing addition funnel (150 mL) equipped with a rubber septum and an argon balloon. One side neck is equipped with a septum pierced by a thermometer and the remaining neck is sealed with a rubber septum. The flask is charged with methyl 3-oxocyclopent-1-enecarboxylate (2) (3.0 g, 21.4 mmol, 1.0 equiv), followed by the addition of dichloromethane (214 mL, 0.1 M) by syringe. The reaction flask is cooled in an ice bath with stirring for 10 min (Note 15). A solution of bromine (1.62 mL, 32.1 mmol, 1.5 equiv) (Note 16) in dichloromethane (40 mL) is charged into the addition funnel and is added dropwise to the reaction mixture over 30 min. The addition funnel is rinsed with dichloromethane (4 mL). The initially colorless solution turned red over the course of this addition (Figure 5A). After complete addition of the bromine solution, the reaction mixture is warmed to 23 °C and stirred for 1 h (Figure 5B). The reaction mixture is again cooled in an ice bath and a solution of triethylamine (5.98 mL, 42.8 mmol, 2.0 equiv) (Note 17) in dichloromethane (40 mL) (Note 18) is carefully added dropwise through the addition funnel to the reaction mixture over 30 min (Note 19). The red-colored solution turns yellow during the addition of triethylamine (Figure 6A) (Note 20). After complete addition, the reaction mixture is again warmed to 23 °C and stirred for 8 h, during which time the yellow color turns red (Figure 6B). The reaction is monitored by TLC on silica using 30% EtOAc-hexane as the eluent (Note 21). The reaction mixture is diluted with dichloromethane (200 mL) and washed with 1M HCl (2 x 250 mL) followed by saturated Na₂SO₄ solution (1 x 200 mL) in a 1 L separatory funnel. The organic extract is dried over anhydrous Na₂SO₄ and concentrated by rotary evaporator (40 °C, 10 mmHg). Dry silica gel (100 g) (Note 11) is added to a chromatography column (6.4 cm x 45 cm) and pentane (200 mL) is used to wet the column. Sand is added on the top of the silica gel, and then the crude compound is loaded onto the sand at the top of the column. Elution is started with 100% pentane (100 mL) and continues with 5% diethyl ether in pentane (100 mL), 10% (100 mL), 20% (100 mL), 30% (100 mL), 40% (100 mL) and 50% (300 mL). Fractions are collected in 10 mL test tubes beginning with 40% diethyl ether in pentane. Fractions containing the desired compound (13-49) are concentrated by rotary evaporator (40 °C, 10 mmHg). The compound is obtained as a off-white solid (3.0 g, 64%) (Notes 22 and 23), and the purity of the product is 95% as determined by qNMR (Note 24).

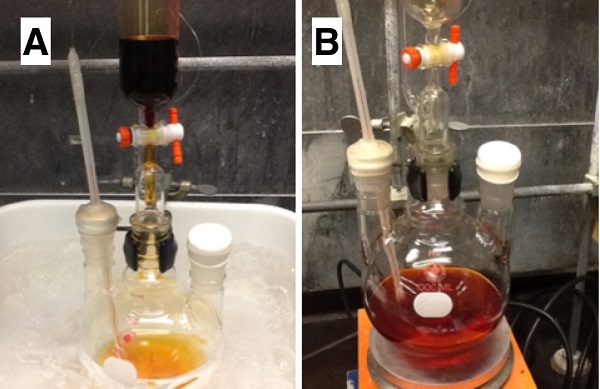

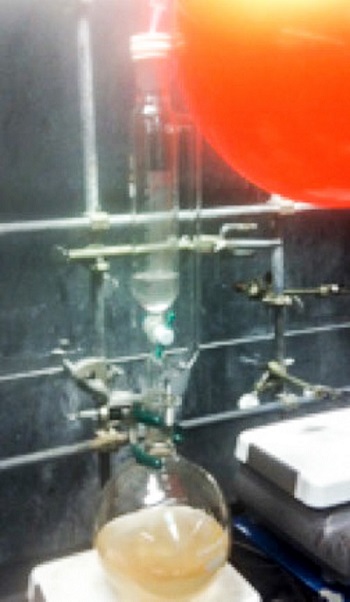

Figure 5. A) Addition of bromine; B) After addition of bromine

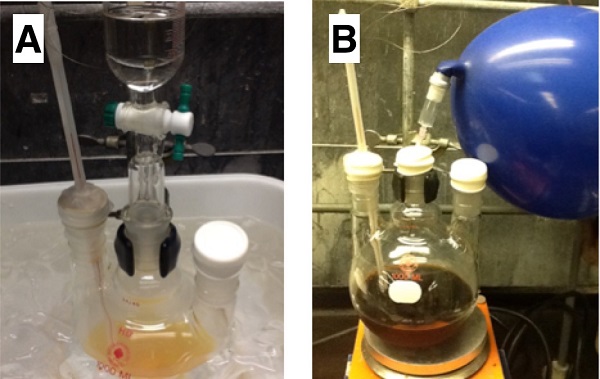

Figure 6. A) Addition of triethylamine; B) After addition of triethylamine

2. Notes

1. Prior to performing each reaction, a thorough hazard analysis and risk assessment should be carried out with regard to each chemical substance and experimental operation on the scale planned and in the context of the laboratory where the procedures will be carried out. Guidelines for carrying out risk assessments and for analyzing the hazards associated with chemicals can be found in references such as Chapter 4 of "Prudent Practices in the Laboratory" (The National Academies Press, Washington, D.C., 2011; the full text can be accessed free of charge at https://www.nap.edu/catalog/12654/prudent-practices-in-the-laboratory-handling-and-management-of-chemical. See also "Identifying and Evaluating Hazards in Research Laboratories" (American Chemical Society, 2015) which is available via the associated website "Hazard Assessment in Research Laboratories" at https://www.acs.org/content/acs/en/about/governance/committees/chemicalsafety/hazard-assessment.html. In the case of this procedure, the risk assessment should include (but not necessarily be limited to) an evaluation of the potential hazards associated with methyl 1-cyclopentene-1-carboxylate, molecular sieves, tert-butylhydroperoxide, decane, manganese(III) acetate dihydrate, oxygen, nitrogen, argon, ethyl acetate, hexane, celite, sodium sulfate, silica gel, pentane, diethyl ether, dichloromethane, bromine, triethylamine, iodine, and sodium thiosulfate.

2. Methyl 1-cyclopentene-1-carboxylate was purchased from Ark Pharm and used as received.

3. Ethyl acetate was purchased from Fisher Scientific and distilled over CaH₂.

4. Molecular sieves (4Å) were activated in an oven at 100 °C heat for more than 2 weeks.

5. tert-Butyl hydroperoxide solution (5.5 M in decane) was purchased from Sigma Aldrich and used as received.

6. Manganese(III) acetate dihydrate (97%) was purchased from Sigma-Aldrich and used as received. This catalyst was weighed in a glove bag under nitrogen atmosphere. The checkers compared the reaction with and without glove bag, observing no change in the yield.

7. Two oxygen balloons are used over the course of the two days. One balloon is used each day.

8. TLC was performed using 30% EtOAc-hexane as eluent. Starting material and product can be visualized under UV lamp and with an iodine stain. The starting material has R_f= 0.6 (pink) and the product has R_f = 0.3 (pink).

9. Celite was purchased from Fisher and used as received.

10. Starch paper was purchased from Fisher Scientific.

11. Silica gel (F60, particle size 230-400 mesh) was purchased from Silicycle and used as received.

12. The product has been characterized as follows: ¹H NMR pdf(500 MHz, CDCl₃) δ: 2.53-2.55 (m, 2H), 2.85-2.87 (m, 2H), 3.87 (s, 3H), 6.76 (dd, J = 3.0, 2.0 Hz, 1H); ¹³C NMR pdf(125 MHz) δ: 27.6, 35.7, 52.7, 138.4, 164.0, 164.9, 209.3.

13. Other reactions performed on half and full scale provided yields of 1.6 g (42%) and 2.7 g (36%), respectively.

14. Checkers determined the purity by qNMR pdf using 8.8 mg of compound 2 and 3.3 mg of standard 1,2,4,5-tetrachlorobenzene (purity 88.1%). The purity was determined using the following equation.

P = Purity, x = product, std = standard, Ix = Integration of the methyl peak, Istd = Integration of the standard, Nstd = Number of protons for the standard, Nx = Number of protons for methyl signal, m = Prepared weight, M = Molecular weight.

15. The internal temperature of the reaction mixture was measured to be between 1 °C and 3 °C during the reaction.

16. Reagent grade bromine was purchased from Sigma-Aldrich and used as received.

17. Triethylamine was purchased from Sigma-Aldrich and used as received.

18. Dichloromethane was purchased from Fisher and distilled over CaH₂.

19. White fumes were formed during the addition of triethylamine. Triethylamine was carefully added dropwise.

20. The internal temperature of the reaction mixture was measured to be between 1 °C and 3 °C during the reaction.

21. TLC was performed using 30% EtOAc-hexane as eluent. Starting material and product were visualized under a UV lamp. Both starting material and product have same R_f = 0.3 (pink).

22. The product has been characterized as follows: mp 66-68 °C; ¹H NMR pdf(500 MHz, CDCl₃) δ: 2.65 (m, 2H), 2.89 (m, 2H), 3.91 (s, 3H); ¹³C NMR pdf(125 MHz) δ: 28.4, 32.7, 52.8, 131.1, 157.7, 163.9, 201.6; FTIR (cm^-1) 2954, 1725, 1436, 1282, 1202, 1178; ESI [M + H] m/z calcd for C₇H₈BrO₃: 218.9651. Found: 218.9651.

23. A second run on half scale provided 0.9 g (41%) of compound 3 as an off-white solid.

24. Checkers determined the purity by qNMR pdf using 4.3 mg of compound 3 and 4 mg of standard 1,2,4,5-tetrachlorobenzene (purity 99.8%). Purity was calculated using the equation in Note 13.

Working with Hazardous Chemicals

The procedures in Organic Syntheses are intended for use only by persons with proper training in experimental organic chemistry. All hazardous materials should be handled using the standard procedures for work with chemicals described in references such as "Prudent Practices in the Laboratory" (The National Academies Press, Washington, D.C., 2011; the full text can be accessed free of charge at http://www.nap.edu/catalog.php?record_id=12654). All chemical waste should be disposed of in accordance with local regulations. For general guidelines for the management of chemical waste, see Chapter 8 of Prudent Practices.

In some articles in Organic Syntheses, chemical-specific hazards are highlighted in red "Caution Notes" within a procedure. It is important to recognize that the absence of a caution note does not imply that no significant hazards are associated with the chemicals involved in that procedure. Prior to performing a reaction, a thorough risk assessment should be carried out that includes a review of the potential hazards associated with each chemical and experimental operation on the scale that is planned for the procedure. Guidelines for carrying out a risk assessment and for analyzing the hazards associated with chemicals can be found in Chapter 4 of Prudent Practices.

The procedures described in Organic Syntheses are provided as published and are conducted at one's own risk. Organic Syntheses, Inc., its Editors, and its Board of Directors do not warrant or guarantee the safety of individuals using these procedures and hereby disclaim any liability for any injuries or damages claimed to have resulted from or related in any way to the procedures herein.

3. Discussion

Cyclopentadienones can be used as dienophiles in [4+2] cycloaddition reactions,⁴^,⁵ but they are highly reactive and dimerize rapidly.⁴ Treatment of 2-bromocyclopentenone derivative 3 with triethylamine in refluxing toluene for 1 h affords the indanone 6 in 71% yield. The reaction presumably proceeds via formation of intermediate cyclopentadienone 4, which undergoes dimerization and subsequent decarbonylation to generate the product 6 (Scheme 1).

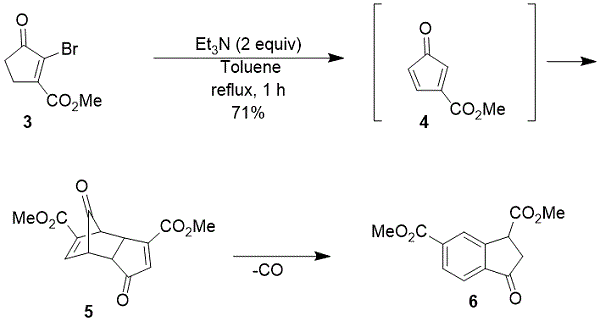

Scheme 1. Generation of a cyclopentadienone 4 from 3

Recently, our group developed conditions suitable for [4+2] cycloadditions using 3. To optimize the reaction conditions, we treated 3 and 2,3-dimethylbutadiene (7) with various bases and in various solvents. Toluene and tetrahydrofuran (THF) showed promising results. The starting material decomposed when treated with strong bases such as DBU, and the use of hindered base 2,2,6,6-tetramethylpiperidine (TMP) in THF solvent produced cycloadducts in only moderate yield. The reaction proceeded very well with triethylamine (Scheme 2).

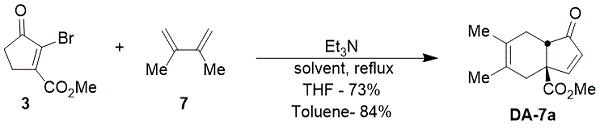

Scheme 2. [4+2] Cycloaddition reaction of 3 with 7

With the optimized conditions in hand, several dienes were tested in the cycloaddition. The diene 8 produced the cycloaddition product 8a in toluene in very good yield (82%). Cyclopentadiene (9) afforded the corresponding cycloadduct in THF in 89% yield. Cyclohexadiene (10) afforded 10a in only 17% yield under these conditions. However, diene 10 gave a better yield (57%) using toluene as solvent. Interestingly, the diene 11 produced the corresponding cylcoadduct 11a as single regio- and stereoisomer in 80% yield. The product 11a has the carbocylic skeleton of a steroid, so this methodology could be used in various syntheses of steroid-like molecules.

Table 1. [4+2] Cycloaddition reactions of cyclopentadienone 6

To ascertain the electronic effects on the cycloaddition, various experiments were conducted with the 1-substituted dienes (Table 1, entries 5-7). The dienes 1-phenylbutadiene 12 and 1-methoxybutadiene 13 afforded the corresponding Diels-Alder adducts 12a and 13a in yields of 66% and 52%, respectively. However, under the same conditions the diene 14 (2 equiv) gave 14a in only 30% yield. This might be due to the lower reactivity of diene 14. Increasing the equivalents of diene to five increased the cycloadduct yield to 72%. Danishefsky's diene 15 produced the cycloadduct 15a in 53% yield under standard conditions but benefited from the presence of 20 mol% triethylamine hydrobromide. The nitrogen and sulfur substituted dienes 16 and 17 also produced the corresponding cycloadducts in good yields.

In conclusion, we have developed an efficient generalized procedure for the synthesis of methyl 2-bromo-3-oxocyclopent-1-ene-1-carboxylate 3. This substrate can be used in [4+2] cycloaddition reactions and these reactions proceed with excellent regioselectivity and diasteroselectivity.
