Org. Synth. 2016, 93, 115-126
DOI: 10.15227/orgsyn.093.0115
Intermolecular [2+2] Cycloaddition of Alkynes with Alkenes Catalyzed by Gold(I)
Submitted by M. Elena de Orbe, and Antonio M. Echavarren*1
Checked by Giulia Rusconi, Estíbaliz Merino and Cristina Nevado

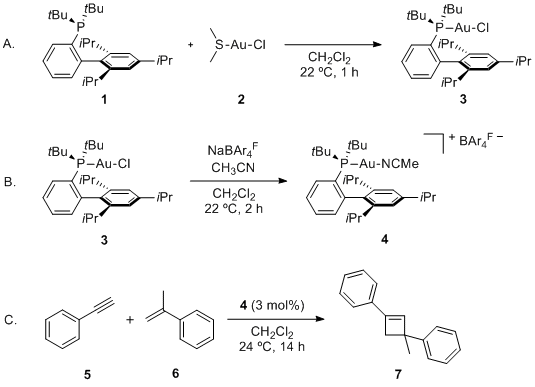

1. Procedure
A. Chloro[(2',4',6'-triisopropyl-1,1'-biphenyl-2-yl)di-tert-butylphosphine]- gold(I) (3). A one-necked (B14, diameter: 2.0 cm) 10-mL round-bottomed flask open to air, equipped with a 1-cm Teflon-coated cylindrical magnetic stirring bar is charged with di-tert-butyl(2',4',6'-triisopropyl-[1,1'-biphenyl]-2-yl)phosphine (1) (0.500 g, 1.14 mmol, 1.00 equiv) and chloro(dimethylsulfide)gold(I) (2) (0.345 g, 1.14 mmol, 1.00 equiv) (Note 1). Dichloromethane (6 mL) is added via syringe (Note 2) and the flask is fitted with a glass stopper. The resulting colorless solution is stirred (600 rpm) at 22 °C for 1 h. The volatiles are removed by rotatory evaporation (300 mmHg, 40 ºC bath temperature) and then, under vacuum for 19 h (0.2 mmHg) to afford gold(I) chloride complex 3 (735 mg, 98% yield) as a white solid (Note 3) (Figure 1).

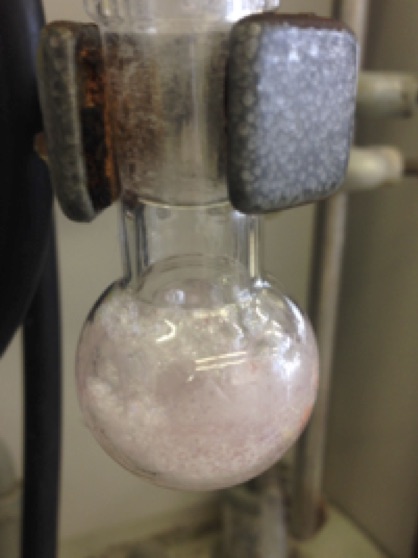

Figure 1. White solid produced in Step A
B. (Acetonitrile)[(2 ́,4 ́,6 ́-triisopropyl-1,1 ́-biphenyl-2-yl)di-tert-butylphos-phine]gold(I) tetrakis[3,5-bis(trifluoromethyl)phenyl] borate (4). A one-necked (B29, diameter: 3.5 cm) 100-mL round-bottomed flask open to air, equipped with a Teflon-coated egg-shaped magnetic stirring bar (19 × 10 mm) is charged with gold(I) chloride complex 3 (0.600 g, 0.913 mmol, 1.0 equiv) and dichloromethane (45 mL) (Note 2). Acetonitrile (119 µL, 2.28 mmol, 2.5 equiv) is added via Hamilton syringe (Note 4), the flask is fitted with a septum and the resulting colorless solution (Figure 2A) is stirred (600 rpm) at 22 ºC for 5 min. Then, sodium tetrakis(3,5-bis(trifluoromethyl)phenyl)borate (876 mg, 0.959 mmol, 1.05 equiv) is added in one portion (Note 5) and the flask is again fitted with the septum. The resulting white suspension is stirred (600 rpm) at 22 ºC for 2 h (in this time, the solution becomes purple) (Figure 2B) (Note 6). The reaction mixture is filtered under vacuum through a plug of Celite (20 mm diameter × 20 mm height) (Figure 3A) (Note 7), which is washed with dichloromethane (1 x 25 mL) (Note 2).
v93p0115-3.jpg v93p0115-4.jpg

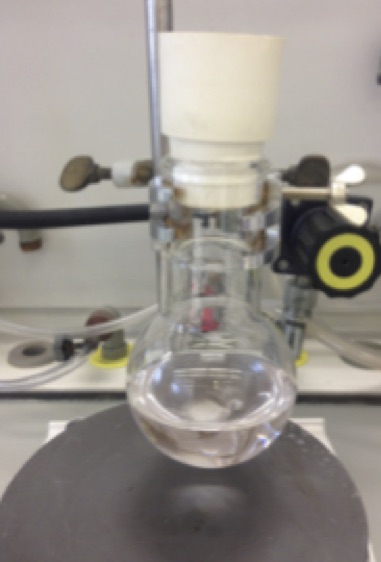

Figure 2A. Colorless Solution

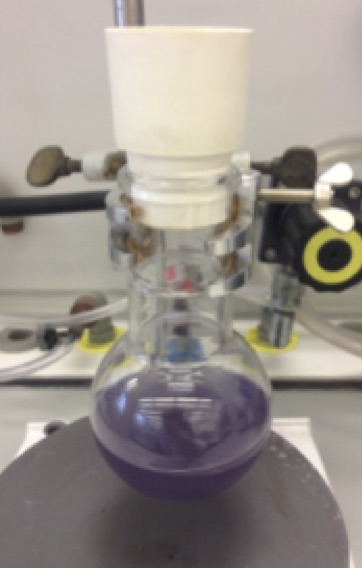

Figure 2B. Purple Solution in Step B
The filtrate is concentrated by rotatory evaporation (300 mmHg, 40 ºC bath temperature) to a volume of approximately 2 mL and filtered through two 0.2 µm Teflon filters (13 mm diameter), which are washed with dichloromethane (1 x 4 mL) (Note 2). The solvent of the filtrate is removed by rotatory evaporation (300 mmHg, 40 ºC bath temperature), and then the residue is dried under vacuum (0.3 mmHg) for 19 h to afford cationic gold(I) complex 4 (1.37 g, >99% yield) as a white solid (Figure 3B) (Note 8).
C. 1,3-Diphenyl-3-methylcyclobut-1-ene (7). A one-necked (B29, diameter: 3.5 cm) 100-mL round-bottomed flask open to air, equipped with a Teflon-coated egg-shaped magnetic stirring bar (19 × 10 mm) is charged with dichloromethane (50 mL) (Note 2). α-methylstyrene (6) (7.00 mL, 6.39 g, 53.5 mmol, 2.00 equiv) and ethynylbenzene (5) (3.00 mL, 2.79 g, 26.8 mmol, 1.00 equiv) are successively added via syringe (Note 9) while stirring (800 rpm) at 24 ºC. Afterwards, cationic gold(I) complex 4 (1.225 g, 0.803 mmol, 0.03 equiv) is added in one portion, the flask is fitted with a septum and the solution is stirred (800 rpm) at 24 ºC for 14 h (Note 10). During the course of the reaction, the solution turns progressively from colorless to yellow and finally to orange (Figure 4).
v93p0115-5.jpg v93p0115-6.jpg

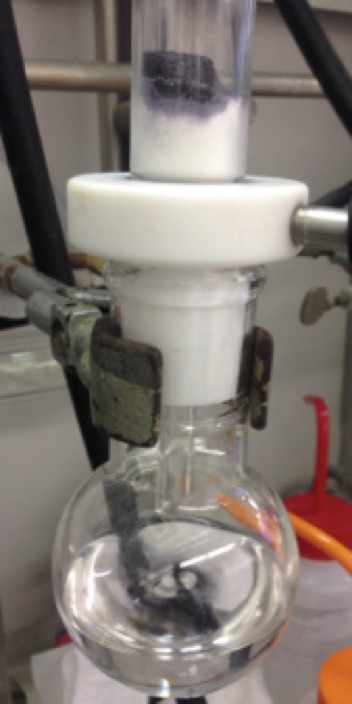

Figure 3A. Filtration of Step B

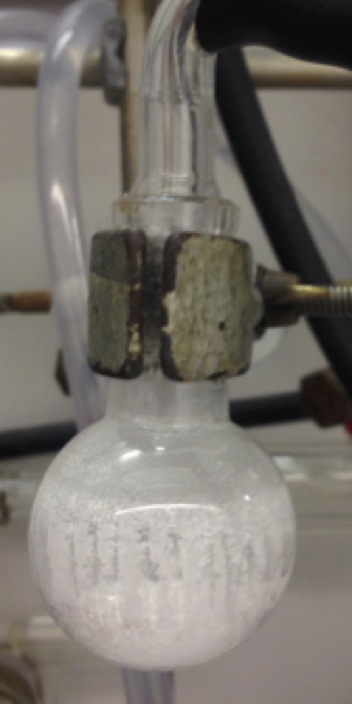

Figure 3B. White product of Step B
Triethylamine (1.6 mL) is added via syringe (Note 11) to quench the reaction while stirring. At this point, the solution becomes yellow. Volatiles are removed using a rotary evaporator under reduced pressure (375 mmHg and then 20 mmHg, 40 ºC bath temperature). The resulting residue is dissolved in dichloromethane (20 mL) and poured into a 250-mL round-bottomed flask containing florisil (22 g) (Note 12). After removing the solvent by rotatory evaporation (375 mbar and then 20 mbar, 40 ºC bath temperature), the crude material adsorbed on florisil is charged on a 390 g silica gel column (7 cm diameter × 25 cm height) (Note 13), packed with cyclohexane (600 mL) and eluted with cyclohexane (about 6 L) under compressed air (1.5 atm) (Note 14 and 15). Fractions 26-40 containing pure product are concentrated by rotary evaporation (110 mmHg and then 20 mmHg, 40 ºC bath temperature) and the resultant residue is dried under vacuum (0.2 mmHg) for 20 h to afford cyclobutene 7 (5.8 g, 98% yield) as a dense yellow oil (Note 16).
v93p0115-7.jpg v93p0115-8.jpg v93p0115-9.jpg

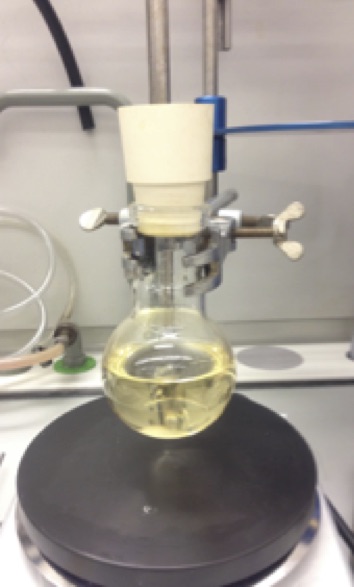

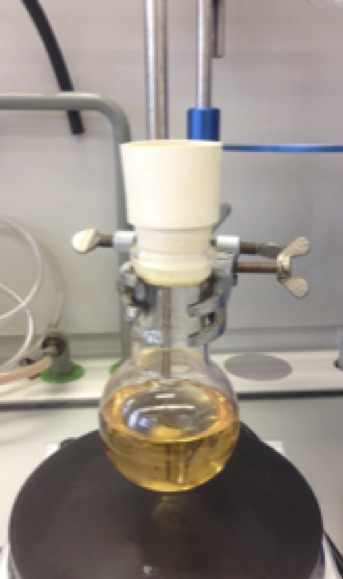

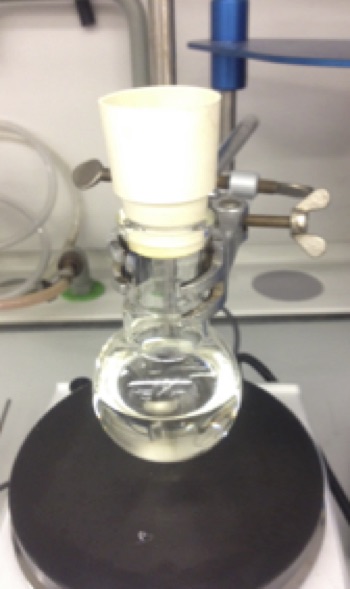

Figure 4. Progression of color from colorless to yellow to orange in Step C
2. Notes
1. Di-tert-butyl(2',4',6'-triisopropyl-[1,1'-biphenyl]-2-yl)phosphine (97%) and chloro(dimethylsulfide)gold(I) (97.5%) were purchased from Sigma-Aldrich Chemical Co. (Ref. 638080 and 420727, respectively) and used as received.
2. Dichloromethane (CHROMASOLV®, for HPLC, ≥99.8%) was purchased from Sigma-Aldrich Chemical Co. (Ref. 34856) and used as received.
3. The physical and spectroscopic properties of gold(I) chloride complex 3 are as follows: mp = 255-257 °C. 1H NMR pdf(400 MHz, CD2Cl2) δ: 0.91 (d, J = 6.6 Hz, 6H), 1.28 (d, J = 6.8 Hz, 6H), 1.35 (d, J = 6.9 Hz, 6H), 1.39 (s, 9H), 1.44 (s, 9H), 2.36 (hept, J = 6.7 Hz, 2H), 2.95 (hept, J = 6.9 Hz, 1H), 7.06 (s, 2H), 7.27-7.32 (m, 1H), 7.47-7.57 (m, 2H), 7.88-7.94 (m, 1H). 13C {1H} NMR pdf(101 MHz, CD2Cl2) δ: 23.0 (s), 24.5 (s), 26.3 (s), 31.1 (s), 31.4 (d, J (13C-31P) = 6.4 Hz), 34.7 (s), 38.6 (d, J (13C-31P) = 26.6 Hz), 122.0 (s), 126.9 (d, J (13C-31P) = 6.9 Hz), 128.3 (s), 128.8 (s), 130.7 (d, J (13C-31P) = 2.4 Hz), 135.0 (d, J (13C-31P) = 3.0 Hz), 135.2 (d, J (13C-31P) = 8.1 Hz), 136.3 (d, J (13C-31P) = 5.5 Hz), 146.3 (s), 148.5 (d, J (13C-31P) = 14.0 Hz), 150.3 (s). 31P {1H} NMR pdf(162 MHz, CD2Cl2) δ: 58.69. IR (neat) : 2970, 1739, 1444, 1365, 1228, 1217, 1206, 775, 528 cm-1. HRMS-ESI+ m/z calcd for C29H45AuClNaP+ [M+Na]+ 679.2505, found 679.2516. Anal. calcd for C29H45AuClP: C, 53.01; H, 6.90; found: C, 52.65; H, 6.77.
4. Acetonitrile (CHROMASOLV® gradient grade, for HPLC, ≥99.9%) was purchased from Sigma-Aldrich Chemical Co. (Ref. 34851) and used as received.
5. Sodium tetrakis(3,5-bis(trifluoromethyl)phenyl)borate (97%, may contain 1-5% water) was purchased from Alfa Aesar (Ref. H30014) and used as received.
6. Important: It is necessary to use an excess of acetonitrile (2.5 equiv) and sodium tetrakis(3,5-bis(trifluoromethyl)phenyl)borate (1.05 equiv) in order to obtain pure cationic gold(I) complex 4. If not, the reaction outcome can be a mixture of desired product 4, unreacted gold(I) chloride complex 3 and other different species.
7. Merck Celite 545 (particle size 0.02-0.1 mm) was used.
8. The physical and spectroscopic properties of cationic gold(I) complex 4 are as follows: mp = 148-150 °C. 1H NMR pdf(400 MHz, CD2Cl2) δ: 0.93 (d, J = 6.6 Hz, 6H), 1.26 (d, J = 6.8 Hz, 6H), 1.32 (d, J = 6.9 Hz, 6H), 1.40 (d, J = 16.3 Hz, 18H), 2.22 (broad s, 3H), 2.34 (hept, J = 6.7 Hz, 2H), 2.95 (hept, J = 6.9 Hz, 1H), 7.17 (s, 2H), 7.31-7.35 (m, 1H), 7.58 (s, 4H), 7.56-7.62 (m, 2H), 7.74-7.75 (m, 8H), 7.87-7.91 (m, 1H). 13C NMR pdf(101 MHz, CD2Cl2) δ: 3.0 (s), 23.2 (s), 24.3 (s), 26.1 (s), 31.3 (d, J (13C-31P) = 5.5 Hz), 31.4 (s), 34.5 (s), 39.1 (d, J (13C-31P) = 28.2 Hz), 117.9 (p, J (13C-19F) = 3.9 Hz), 118.9 (s), 122.3 (s), 125.1 (q, J (13C-19F) = 272.4 Hz), 125.9 (d, J (13C-31P) = 49.8 Hz), 128.0 (d, J (13C-31P) = 7.9 Hz), 129.3 (qq, J (13C-19F) = 31.6 Hz and J (13C-11B) = 2.7 Hz), 130.3 (s), 132.0 (d, J (13C-31P) = 2.4 Hz), 134.6 (d, J (13C-31P) = 4.3 Hz), 135.2 (s), 135.3 (s), 136.6 (d, J (13C-31P) = 6.3 Hz), 147.4 (d, J (13C-31P) = 11.7 Hz), 147.9 (s), 150.3 (s), 162.2 (q, J (13C-11B) = 49.8 Hz). 31P {1H} NMR pdf(162 MHz, CD2Cl2) δ: 55.35. 19F {1H} NMR pdf(376 MHz, CD2Cl2) δ: -62.83. 11B {1H} NMR pdf(128 MHz, CD2Cl2) δ: -6.56. ESI+ m/z calcd for C31H48AuNP+ [M-C32H12BF24]+ 662.3184, found 662.3186. Anal. calcd for C63H60AuBF24NP: C, 49.59; H, 3.96; N, 0.92; found: C, 49.52; H, 3.95; N, 0.58.
9. α-Methylstyrene (99%, stab. with 10-20 ppm 4-tert-butylcatechol) was purchased from Alfa Aesar (Ref. L03609). Ethynylbenzene (>98.0%) was purchased from Tokyo Chemical Industry Co. (Ref. E0196). Both were used as received.
10. The gold(I)-catalyst is neither sensitive to oxygen nor moisture, so the reaction was performed under air (with ca. 80% relative humidity).
11. Triethylamine (puriss. p.a., ≥99.5%) was purchased from Sigma-Aldrich Chemical Co. (Ref. 90340) and used as received.
12. Florisil (60-100 mesh) was purchased from Acros Organics.
13. Silica gel (technical grade, pore size 60 Å, 230-400 mesh particle size, 40-63 µm particle size) was purchased from Sigma-Aldrich Chemical Co.
14. Column fractions were checked by TLC analysis on Merck Silica Gel 60 F254 aluminium sheets, using cyclohexane as eluent. Visualization is accomplished with 254 nm UV light and subsequently with vanillin staining (solution of 12 g of vanillin and 2 mL of concentrated sulphuric acid in 200 mL of absolute ethanol) by immersion and heating with a heat gun. The starting α-methylstyrene has Rf = 0.71 (UV active; blue after staining) whereas the cyclobutene product 7 has Rf = 0.50 (UV active; purple after staining).
15. Fractions of 60 mL (about 1.5 L, 25 fractions in total) are collected until all α-methylstyrene is eluted and then, fractions of 60 mL (about 0.9 L, 15 fractions) and 500 mL (about 4 L, 8 fractions in total) are collected until no more product elutes.
16. The physical and spectroscopic properties of cyclobutene 7 are as follows: 1H NMR pdf(400 MHz, CDCl3) δ: 1.64 (s, 3H), 2.96 (q, J = 12.5 Hz, 2H), 6.74 (s, 1H), 7.18-7.23 (m, 1H), 7.25-7.29 (m, 1H), 7.31-7.37 (m, 4H), 7.39-7.42 (m, 4H). 13C {1H} NMR (101 MHz, CDCl3) d: 27.6, 44.3, 46.0, 124.6, 125.7, 125.8, 127.8, 128.1, 128.3, 133.7, 134.7, 143.8, 147.7. IR (neat): 3025, 2953, 1741, 1736, 1727, 1490, 1445, 1368, 1229, 1216, 1206, 748, 690 cm-1. HRMS-APCI m/z calculated for C17H17 [M+H]+ 221.1325, found 221.1324. Anal. calcd for C17H16: C, 92.68; H, 7.32; found: C, 92.69; H, 7.30.
Working with Hazardous Chemicals
The procedures in Organic Syntheses are intended for use only by persons with proper training in experimental organic chemistry. All hazardous materials should be handled using the standard procedures for work with chemicals described in references such as "Prudent Practices in the Laboratory" (The National Academies Press, Washington, D.C., 2011; the full text can be accessed free of charge at http://www.nap.edu/catalog.php?record_id=12654). All chemical waste should be disposed of in accordance with local regulations. For general guidelines for the management of chemical waste, see Chapter 8 of Prudent Practices.
In some articles in Organic Syntheses, chemical-specific hazards are highlighted in red "Caution Notes" within a procedure. It is important to recognize that the absence of a caution note does not imply that no significant hazards are associated with the chemicals involved in that procedure. Prior to performing a reaction, a thorough risk assessment should be carried out that includes a review of the potential hazards associated with each chemical and experimental operation on the scale that is planned for the procedure. Guidelines for carrying out a risk assessment and for analyzing the hazards associated with chemicals can be found in Chapter 4 of Prudent Practices.
The procedures described in Organic Syntheses are provided as published and are conducted at one's own risk. Organic Syntheses, Inc., its Editors, and its Board of Directors do not warrant or guarantee the safety of individuals using these procedures and hereby disclaim any liability for any injuries or damages claimed to have resulted from or related in any way to the procedures herein.
3. Discussion
The synthesis of cyclobutenes by metal-catalyzed intermolecular [2+2] cycloaddition of alkynes with alkenes is normally restricted to strained bicyclic olefins.2 Otherwise, internal or terminal alkynes react with electron-deficient alkenes to give cyclobutenes using rhodium (I)3 or (II)4 catalysts, respectively. Cyclobutenes are also obtained in the intermolecular reaction of 1,3-enynes with alkenes catalyzed by nickel5 or cobalt6 complexes. Apart from that, in the presence of cobalt catalysts, only cyclopentene and cycloheptene were found to undergo cycloaddition with internal alkynes to generate cyclobutene derivatives.7 In this context, the gold(I)-catalyzed intermolecular [2+2] cycloaddition of terminal alkynes with differently-substituted alkenes, whose procedure is reported herein, is an important method for the formation of cyclobutenes.8
The key point for the development of this transformation was the use of a gold(I)-catalyst bearing a sterically hindered ligand such as tBuXPhos, which allows the selective activation of the alkyne towards nucleophilic attack of the alkene and reduces competitive pathways leading to oligomers.8a Further mechanistic studies revealed the impact of the more bulky, non-coordinating and less basic BAr4F- as counterion in the gold catalyst in order to decrease the deprotonation of terminal alkynes forming unreactive a,π-(acetylide)digold complexes.8b
The optimized [tBuXPhosAu(MeCN)]BAr4F catalyst can be easily synthesized in two steps, starting from the phosphine tBuXPhos and chloro(dimethylsulfide)gold(I) to form the gold(I) chloride complex9 and then, treating with slight excess of NaBAr4F and acetonitrile to obtain the corresponding cationic gold(I) complex.

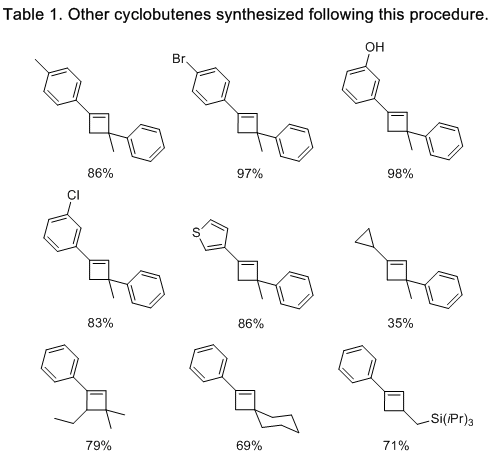

In the presence of this efficient gold(I)-catalyst, terminal arylalkynes react with mono-, di- and trisubstituted alkenes to build regioselectively cyclobutenes containing a wide variety of functional groups in moderate to excellent yields (Table 1). Ethynylcyclopropane also undergoes the cycloaddition in moderate yields, but internal alkynes such as 1-phenyl-1-propyne are unreactive under these conditions.
It is worth mentioning that this gold(I)-catalyzed transformation proceeds at room temperature and under air. Thus, our procedure represents a facile method for the preparation of substituted cyclobutenes under mild conditions.

References and Notes
  1. Institute of Chemical Research of Catalonia (ICIQ), Av. Països Catalans 16, 43007 Tarragona, Spain. E-mail: aechavarren@iciq.es. We thank MINECO (project CTQ2013-42106-P, Severo Ochoa Excellence Accreditation SEV-2013-0319 and Severo Ochoa predoctoral fellowship), European Research Council (Advanced Grant No. 321066), AGAUR (2014 SGR 818, and the ICIQ Foundation for financial support.
  2. Using nickel: (a) Huang, D.-J.; Rayabarapu, D. K.; Li, L.-P.; Sambaiah, T.; Cheng, C.-H. Chem. Eur. J. 2000, 6, 3706-3713. Employing ruthenium: (b) Jordan, R. W.; Tam, W. Org. Lett. 2000, 2, 3031-3034. Utilizing cobalt: (c) Chao, K. C.; Rayabarapu, D. K.; Wang, C.-C.; Cheng, C-H. J. Org. Chem. 2001, 66, 8804-8810. (d) Treutwein, J.; Hilt, G. Angew. Chem. Int. Ed. 2008, 47, 6811-6813. Using rhodium: (e) Shibata, T.; Takami, K.; Kawachi, A. Org. Lett. 2006, 8, 1343-1345. Employing iridium: (f) Fan, B.-M.; Li, X. J.; Peng, F.-Z.; Zhang, H.-B.; Chan, A. S. C.; Shao, Z. H. Org. Lett. 2010, 12, 304-306.
  3. Motokura, K.; Nakayama, K.; Miyaji, A.; Baba, T. ChemCatChem 2011, 3, 1419-1421.
  4. Sakai, K.; Kochi, T.; Kakiuchi, F. Org. Lett. 2013, 15, 1024-1027.
  5. Nishimura, A.; Ohashi, M.; Ogoshi, S. J. Am. Chem. Soc. 2012, 134, 15692-15695.
  6. Nishimura, A.; Tamai, E.; Ohashi, M.; Ogoshi, S. Chem. Eur. J. 2014 , 20, 6613-6617.
  7. Hilt, G.; Paul, A.; Treutwein, J. Org. Lett. 2010, 12, 1536-1539.
  8. (a) López-Carrillo, V.; Echavarren, A. M. J. Am. Chem. Soc. 2010, 132, 9292-9294. (b) Homs, A.; Obradors, C; Leboeuf, D.; Echavarren, A. M. Adv. Synth. Catal. 2014, 356, 221-228.
  9. Other methods to prepare phosphine gold(I) chlorides: (a) Nieto-Oberhuber, C.; Muñoz, M. P.; López, S.; Jiménez-Núñez, E.; Nevado, C.; Herrero-Gómez, E.; Raducan, M.; Echavarren, A. M. Chem. Eur. J. 2006, 12, 1677-1693. (b) Hashmi, A. S. K.; Bechem, B.; Loos, A.; Hamzic, M.; Rominger, F.; Rabaa, H. Aust. J. Chem. 2014, 67, 481-499.

Appendix
Chemical Abstracts Nomenclature (Registry Number)

Di-tert-butyl(2',4',6'-triisopropyl-[1,1'-biphenyl]-2-yl)phosphine: Phosphine, bis(1,1-dimethylethyl)[2',4',6'-tris(1-methylethyl)[1,1'-biphenyl]-2-yl]-; (1) (564483-19-8)

Chloro(dimethylsulfide)gold(I): Gold, chloro[thiobis[methane]]-; (2) (29892-37-3)

Chloro[(2',4',6'-triisopropyl-1,1'-biphenyl-2-yl)di-tert-butylphosphine]gold(I): Gold, [bis(1,1-dimethylethyl)[2',4',6'-tris(1-methylethyl)[1,1'-biphenyl]-2-yl]phosphine]chloro-; (3) (1312108-97-6)

Sodium tetrakis(3,5-bis(trifluoromethyl)phenyl)borate: Borate(1-), tetrakis[3,5-bis(trifluoromethyl)phenyl]-, sodium (1:1) (79060-88-1)

(Acetonitrile)[(2 ́,4 ́,6 ́-triisopropyl-1,1 ́-biphenyl-2-yl)di-tert- butylphosphine]gold(I) tetrakis[3,5-bis(trifluoromethyl)phenyl] borate; (4) (1610790-72-1)

Ethynylbenzene: Benzene, ethynyl-; (5) (536-74-3)

α-Methylstyrene: Benzene, (1-methylethenyl)-; (6) (98-83-9)

(1,3-Diphenyl-3-methylcyclobut-1-ene: Benzene, 1,1'-(3-methyl-1-cyclobutene-1,3-diyl)bis-; (7) (1235453-87-8)
