Org. Synth. 1938, 18, 27
DOI: 10.15227/orgsyn.018.0027
DIPHENYL SELENIDE
[Phenyl selenide]
Submitted by Henry M. Leicester
Checked by W. W. Hartman and R. H. Bullard.
1. Procedure
In a 500-cc. beaker are placed 360 g. (6.4 moles) of powdered potassium hydroxide and 240 g. (3 gram atoms) of black powdered selenium which have been previously ground together in a mortar. This mixture is heated (Note 1) in an oil bath at 140–150° until a thick, dark red liquid is formed (Note 2), and then it is added (Note 3) in small portions to 400 cc. of ice water in a 5-l. flask. The solution is kept in an ice bath until used.

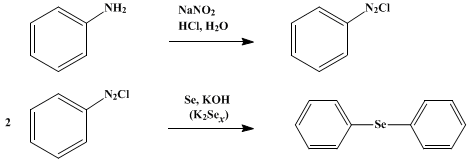

To 375 cc. (4.3 moles) of hydrochloric acid (sp. gr. 1.18) and 200 g. of ice is added 139.6 g. (1.5 moles) of aniline. The resulting solution is diazotized with a solution of 103.5 g. (1.5 moles) of c.p. sodium nitrite, ice being added to the reaction mixture, as necessary, in order to keep the temperature below 5°. The final volume of the diazotized solution is about 1 l. This solution is added in a slow stream from a dropping funnel to the potassium selenide solution, which is vigorously stirred with a mechanical stirrer. When all the diazotized solution has been added, the red aqueous solution is decanted from the dark oil which forms and is heated to boiling (Note 4). It is then poured back on the oil, the mixture is well stirred (Note 5), 200 cc. of chloroform is added, and the selenium is collected on a filter and washed with a little more chloroform (Note 6). After the chloroform layer is separated, the aqueous layer is again extracted with 200 cc. of chloroform. The combined extracts are then distilled, the diphenyl selenide being collected from 300 to 315°. The yield of yellow oil of rather unpleasant odor is 138–150 g. (79–86 per cent of the theoretical amount) (Note 7). If a purer product is desired, this material can be distilled under diminished pressure. It boils at 165–167°/12 mm.
2. Notes
1. Although no toxic gases are evolved in this reaction, the mixture has a rather unpleasant odor, so that it is best to use a hood throughout.
2. If the potassium hydroxide and selenium are absolutely dry, a thick paste is formed. The addition of a few cubic centimeters of water will form the dark red liquid mentioned.
3. If the mass is allowed to cool and solidify, it becomes very hard and is difficult to break up and dissolve.
4. Unless the aqueous layer is heated separately, the beaker containing the viscous oil always cracks, no matter how well the liquid is stirred.
5. This treatment converts the selenium from the red, colloidal form into the more easily filterable black modification.
6. The amount of selenium recovered is 101–115 g.
7. When smaller amounts of the selenide are prepared, the yield drops to 70–75 per cent. The method may be applied equally well to the preparation of the selenides from the three toluidines, giving yields of 50–70 per cent.
3. Discussion
The method described here is a modification of that of Schoeller.1 Diphenyl selenide has also been prepared from diazotized aniline and alkali monoselenides;2 by the Friedel-Crafts reaction with benzene and selenium tetrachloride3 or selenium dioxide;4 from diphenyl sulfone and selenium;5 from phenylmagnesium bromide and selenium,6 selenium dichloride,7 selenium oxychloride,7 or selenium dibromide;8 and from sodium selenophenoxide and bromobenzene.9
This preparation is referenced from:

References and Notes
  1. Schoeller, Ber. 52, 1517 (1919).
  2. Lesser and Weiss, ibid. 47, 2521 (1914).
  3. Krafft and Kaschau, ibid. 29, 428 (1896); Bradt and Green, J. Org. Chem. 1, 540 (1937).
  4. Lyons and Bradt, Ber. 60, 60 (1927).
  5. Krafft and Vorster, ibid. 26, 2817 (1893); Krafft and Lyons, ibid. 27, 1761 (1894)
  6. Taboury, Ann. chim. (8) 15, 35 (1908).
  7. Strecker and Willing, Ber. 48, 196 (1915).
  8. Pieroni and Balduzzi, Gazz. chim. ital. 45 (II) 106 (1915).
  9. Foster and Brown, J. Am. Chem. Soc. 50, 1182 (1928).

Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)

sodium selenophenoxide

hydrochloric acid (7647-01-0)

Benzene (71-43-2)

aniline (62-53-3)

chloroform (67-66-3)

sodium nitrite (7632-00-0)

diphenyl sulfone (127-63-9)

selenium dioxide (7446-08-4)

potassium hydroxide (1310-58-3)

bromobenzene (108-86-1)

Phenylmagnesium bromide (100-58-3)

Diphenyl selenide,
Phenyl selenide (1132-39-4)

selenium

potassium selenide

selenium tetrachloride (10026-03-6)

selenium dichloride (14457-70-6)

selenium oxychloride

selenium dibromide (22987-45-7)
