HYDROGEN BROMIDE (ANHYDROUS)
[Hydrobromic acid]
Submitted by John R. Ruhoff, Robert E. Burnett, and E. Emmet Reid.
Checked by W. H. Carothers and W. L. McEwen.
1. Procedure
(
A)
Apparatus.—A
125-cc. distilling flask (B,
Fig. 9)
(Note 1) is fitted with a
two-holed rubber stopper bearing a 50-cc. dropping funnel (Note 2) and an
inlet tube about 6 mm. in diameter, both of which reach to the bottom of the flask. The flask is supported in an
800-cc. beaker which serves as a water bath. The side arm of the flask is connected by means of a short piece of rubber tubing to the narrow end
(Note 3) of the
combustion tube C which is made of Pyrex glass and is 20 mm. in diameter (inside) and 30 cm. in length. It is packed with pieces of porous plate held in place by constrictions as shown in the figure, and it is supported at each end by a small clamp at a sufficient height to give a clearance of 3–4 cm. above a
Bunsen burner. The open end of the tube is connected by means of stoppers and a three-way stopcock
(Note 4) to the vertical tube D, of the same diameter as C and 60 cm. long. This tube is packed with
copper turnings to remove any uncombined
bromine which may escape from the combustion tube. A
safety bottle A containing water or some other suitable liquid and having a tube leading to the vent of the hood is placed in the train to provide an outlet for the hydrogen in case an obstruction is formed in the apparatus. It also provides a convenient method for determining the
hydrogen pressure
(Note 5).
Hydrogen is obtained from a cylinder fitted with a reducing valve.

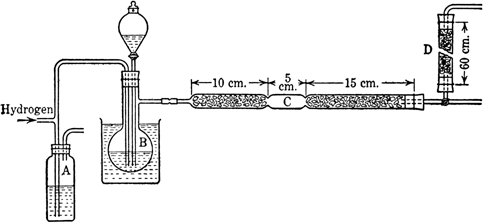

Fig. 9
(B) Operation.—The tube D is disconnected from the combustion tube by turning the stopcock so that the gases pass directly to the hood. Bromine is placed in flask B; the water bath is heated to 38° and maintained at this temperature (Note 6). A slow stream of hydrogen is started through the apparatus, and, when the combustion tube is completely filled with bromine vapors, a low flame is placed under the empty section of the combustion tube. Soon a small yellow flame appears inside the heated portion of the tube, and, when all bromine vapor has been swept from the combustion tube, the latter is connected to the tube D (Note 7). The flame is adjusted to keep the lower part of the tube at a dull red heat; it may be necessary to raise or lower it, according to the rate of operation. The flow of hydrogen is regulated to give the desired output. The apparatus will conveniently produce 300 g. of hydrogen bromide per hour (Note 8).
2. Notes
1.
It is convenient to bend the side arm of the distilling flask so that it is perpendicular to the neck.
2.
The stopcock of the dropping funnel should be held in place by means of a rubber band.
3.
The distilling flask may be connected to the combustion tube by means of a rubber stopper, but it is preferable to seal a piece of 6-mm. tubing to one end and to use a small piece of rubber tubing for the connection. Even with this arrangement the connection must be inspected from time to time to be sure that the tube is not obstructed. It is still more satisfactory to use a ground-glass joint.
4.
The three-way stopcock may be dispensed with, but it facilitates the starting operation and provides a quick method for venting the gas in case combination does not take place properly, thus preventing deterioration of the
copper turnings.
5.
When operating to produce about 300 g. of
hydrogen bromide per hour the water level is depressed approximately 12 cm.
6.
The vapor pressure of
bromine should be maintained at half an atmosphere. The vapor pressure of
bromine is reported as 324 mm. at 35° and 392 mm. at 40°. If the bath becomes too warm, it should be cooled at once with ice; otherwise more
bromine will be evaporated than will combine with the
hydrogen present.
A more convenient form of apparatus for the vaporization of
bromine is shown in
Fig. 10. This is the same in principle as that described in the above procedure, but the
bromine container instead of being heated by warm water is heated by the vapor of boiling
ethyl bromide (38.4°). Thus no attention to a water bath is required.
7.
The
copper turnings remove any trace of
bromine that may be present by converting it to black
cupric bromide. If the level of blackened
copper rises,
bromine is being carried over. The presence of a small quantity of moisture, however, will cause a slight darkening of all the
copper.

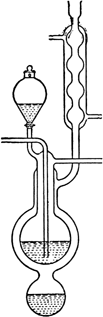

Fig. 10
Alternatively,
bromine may be removed by passing the
hydrogen bromide through a solution of
phenol in
carbon tetrachloride (Org. Syn. 20, 65).
If very dry hydrogen bromide is desired, a small trap surrounded by solid carbon dioxide and placed in the train will condense the water and a small amount of hydrogen bromide. Attention is necessary to prevent clogging of the trap.
8.
According to the literature,
1 in the preparation of
hydrogen bromide by combination of the elements the chief difficulties are avoiding explosive combination on the one hand and spontaneous extinction of the flame on the other hand. Neither of these difficulties has been encountered in repeated operations extending over many hours with the apparatus described above.
3. Discussion
The very extensive literature on the preparation of
hydrogen bromide is completely and concisely reviewed in Gmelin's "Handbuch."
1 The methods most commonly used involve the hydrolysis of certain bromides, particularly the action of
bromine on
red phosphorus and water; the action of
bromine on hydrocarbons, particularly on
tetralin; and the direct combination of the elements. The action of
bromine on
tetralin is a convenient one for small-scale laboratory operation.
2 The direct combination of the elements has certain advantages of simplicity and cleanliness especially when considerable amounts of
hydrogen bromide are required.
Platinum and charcoal have frequently been used as catalysts but they can be dispensed with at sufficiently high temperatures.
3Detailed directions for preparing
hydrogen bromide by the bromination of and by the direct combination of
hydrogen and
bromine are given in Inorganic Syntheses.
