Org. Synth. 1933, 13, 74
DOI: 10.15227/orgsyn.013.0074

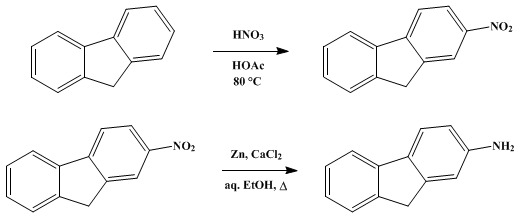

2-NITROFLUORENE AND 2-AMINOFLUORENE
[Fluorene, 2-nitro-, and 2-Fluorenylamine]
Submitted by W. E. Kuhn
Checked by Louis F. Fieser and J. T. Walker.
1. Procedure
(A) 2-Nitrofluorene.—Sixty grams (0.36 mole) of fluorene (Note 1) is dissolved in 500 cc. of warm glacial acetic acid in a 1-l. three-necked flask fitted with a thermometer, a mechanical stirrer, and a dropping funnel, and supported in a water bath. The temperature is brought to 50°, and 80 cc. (1.3 moles) of concentrated nitric acid (sp. gr. 1.42) is added with stirring in the course of fifteen minutes. During the addition, the solution becomes slightly yellow, and a small amount of material precipitates. The water bath is slowly brought to 60–65°, when the precipitate dissolves and the color of the solution deepens. Stirring is continued, and heat is applied continuously until the temperature of the mixture reaches 80° (Note 2). After five minutes, the water bath is removed, and the mixture, which now consists of a semi-solid paste of fine, yellow needles, is allowed to cool to room temperature during two hours. The product is collected on a Büchner funnel, sucked as dry as possible, and washed with two 25-cc. portions of cold glacial acetic acid containing 0.5 g. of potassium acetate. It is then washed several times with water and dried. The 2-nitrofluorene so obtained melts at 155–156° and is sufficiently pure for most purposes. The yield is 60 g. (79 per cent of the theoretical amount).
If a purer product is desired, the above material may be crystallized from 200 cc. of glacial acetic acid. The purified product melts at 157° and weighs 56 g.
(B) 2-Aminofluorene.—In a 2-l. round-bottomed flask, 30 g. (0.14 mole) of dried and powdered 2-nitrofluorene is made into a thin paste with 1 l. of 78 per cent alcohol (820 cc. of 95 per cent alcohol and 180 cc. of water). A solution of 10 g. of calcium chloride in 15 cc. of water, together with 300 g. of zinc dust, is added to the suspension, and the whole is thoroughly mixed. The flask is fitted with an effective reflux condenser, and the mixture is refluxed for two hours.
The sludge of zinc dust and zinc oxide is filtered from the boiling solution and extracted (Note 3) with 50 cc. of boiling 78 per cent alcohol. The combined filtrates are then poured into 2 l. of water, whereupon a white, flocculent precipitate is obtained. This is filtered with suction and recrystallized from 400 cc. of hot 50 per cent alcohol. The purified 2-aminofluorene crystallizes in needles melting at 127.5°. The yield is 20–21 g. (78–82 per cent of the theoretical amount).
2. Notes
1.
The
fluorene used had a melting point of
113–114° and was obtained from the Gesellschaft für Teerverwertung, Duisberg-Meiderich.
2.
The reaction is exothermic at this point, and the temperature of the reaction mixture may be expected to rise ten to fifteen degrees above that of the surrounding bath. If the temperature is allowed to rise above 85°, the
2-nitrofluorene will be highly colored and impure.
3.
The sludge of
zinc dust and
zinc oxide is filtered while hot, through a previously warmed filter. Unless the solution is kept near the boiling point, some of the compound will crystallize during the filtration. If a small amount of
zinc dust runs through the filter paper, it is advisable to heat the filtrate to the boiling point and refilter without suction through a
folded filter paper in a hot water or
steam jacket.
3. Discussion
The procedures given are essentially those of Diels.
1 2-Nitrofluorene has also been prepared by passing nitrous vapors into a
benzene solution of fluorene.
2
This preparation is referenced from:
Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)
alcohol (64-17-5)
calcium chloride (10043-52-4)
acetic acid (64-19-7)
Benzene (71-43-2)
nitric acid (7697-37-2)
zinc (7440-66-6)
zinc oxide
potassium acetate (127-08-2)
2-Nitrofluorene,
Fluorene, 2-nitro- (607-57-8)
2-Aminofluorene,
2-Fluorenylamine (153-78-6)
fluorene (86-73-7)
