Org. Synth. 1955, 35, 30
DOI: 10.15227/orgsyn.035.0030
α-(4-CHLOROPHENYL)-γ-PHENYLACETOACETONITRILE
[Acetoacetonitrile, 2-(p-chlorophenyl)-4-phenyl-]
Submitted by Stephen B. Coan and Ernest I. Becker1.
Checked by Charles C. Price and G. Venkat Rao.
1. Procedure

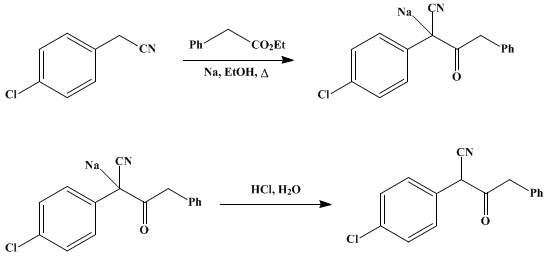

A solution of 11.5 g. (0.5 g. atom) of sodium is prepared in 150 ml. of absolute ethanol (Note 1) in a 500-ml. three-necked flask equipped with a stirrer, a condenser, and a dropping funnel. While this solution is refluxing with stirring, a mixture of 37.8 g. (0.25 mole) of 4-chlorophenylacetonitrile and 50.8 g. (0.31 mole) of ethyl phenylacetate is added through the dropping funnel over a period of 1 hour. The solution is refluxed for 3 hours, cooled, and poured into 600 ml. of cold water. The aqueous alkaline mixture is extracted three times with 200-ml. portions of ether and the ether extracts discarded. The aqueous solution is acidified with cold 10% hydrochloric acid and extracted three times with 200-ml. portions of ether. The ether solution is then extracted once with 100 ml. of water, twice with 100 ml. each of 10% sodium bicarbonate solution, and once with 100 ml. of water, the aqueous extracts being discarded in turn. The organic phase is dried with anhydrous sodium sulfate, filtered through a fluted filter, and the ether removed by distillation. The yield of α-(4-chlorophenyl)-γ-phenylacetoacetonitrile is 58–62 g. (86–92%), m.p. 128.5–130.0°. For many purposes, this crude product may be used without further purification. If a purer product is desired, however, it may be recrystallized from methanol or aqueous methanol (Note 2) to yield 50–55 g. (74–82%), m.p. 131.0–131.2° (Note 3).
2. Notes
1. Comparable results were obtained when fresh commercial grade (2-B) anhydrous ethanol was used.
2. For recrystallization, a solution of the nitrile in 3–4 ml. of hot methanol per gram was treated with Darco G-60 and filtered on a fluted paper. Distilled water was added to the hot solution until incipient crystallization was observed. In general the final solvent was approximately 90% methanol.
3. The above method has been used in the preparation of other ring-substituted diphenylacetoacetonitriles. The method is equally successful when applied to the condensation of phenylacetonitrile with the ethyl ester of a 4-substituted phenylacetic acid. The table summarizes the results reported by the submitters.
DIPHENYLACETOACETONITRILES

Acetoacetonitrile

Yield, %

M.P.


From Phenylacetonitrile and an Ethyl 4-Substituted Phenylacetate

α-Phenyl-γ-phenyl-

82

79.4–80.0°

α-Phenyl-γ-(4-methylphenyl)-

84

88.0–89.0°

α-Phenyl-γ-(4-methoxyphenyl)-

81

69.5–70.4°

α-Phenyl-γ-(4-bromophenyl)-

80

94.0–95.0°

α-Phenyl-γ-(4-methylthiophenyl)-

85

85.0–85.2°

From 4-Substituted Phenylacetonitrile and Ethyl Phenylacetate

α-(4-Fluorophenyl)-γ-phenyl-

75

111.8–112.0°


3. Discussion
The above procedure is a modification of that described by Walther and Hirschberg.2 α,γ-Diphenylacetoacetonitrile has been prepared by the condensation of phenylacetonitrile with ethyl phenylacetate in the presence of sodium ethoxide without solvent.3
This preparation is referenced from:

References and Notes
  1. Polytechnic Institute of Brooklyn, Brooklyn 2, New York.
  2. Walther and Hirschberg, J. prakt. Chem., [2] 67, 377 (1903).
  3. Walther and Schickler, J. prakt. Chem., [2] 55, 305 (1897).

Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)

a-Phenyl-?-phenyl-Acetoacetonitrile

a-Phenyl-?-(4-methylphenyl)-Acetoacetonitrile

a-Phenyl-?-(4-methoxyphenyl)-Acetoacetonitrile

a-Phenyl-?-(4-bromophenyl)-Acetoacetonitrile

a-Phenyl-?-(4-methylthiophenyl)-Acetoacetonitrile

a-(4-Fluorophenyl)-?-phenyl-Acetoacetonitrile

ethanol (64-17-5)

hydrochloric acid (7647-01-0)

methanol (67-56-1)

ether (60-29-7)

sodium bicarbonate (144-55-8)

sodium sulfate (7757-82-6)

sodium (13966-32-0)

sodium ethoxide (141-52-6)

phenylacetonitrile (140-29-4)

Ethyl phenylacetate (101-97-3)

α-(4-CHLOROPHENYL)-γ-PHENYLACETOACETONITRILE,
Acetoacetonitrile, 2-(p-chlorophenyl)-4-phenyl- (35741-47-0)

4-chlorophenylacetonitrile (140-53-4)

Acetoacetonitrile

α,γ-Diphenylacetoacetonitrile
