Org. Synth. 1961, 41, 53
DOI: 10.15227/orgsyn.041.0053
2-INDANONE
Submitted by J. E. Horan and R. W. Schiessler
1.
Checked by William E. Parham, Wayland E. Noland, and Abdel-Moneim M. Makky.
1. Procedure

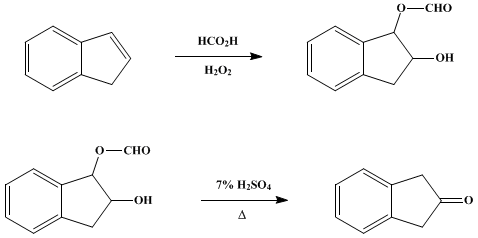

In a 2-l. three-necked flask fitted with stirrer, dropping funnel, and thermometer are placed 700 ml. of formic acid (88%) and 140 ml. of hydrogen peroxide (30%, 1.37 moles). While the temperature is kept at 35–40° (Note 1), 116.2 g. (117.3 ml., 1.00 mole) of indene (98%) (Note 2) is added dropwise, with stirring, over a period of 2 hours. An additional 100 ml. of formic acid is used to rinse the last of the indene from the dropping funnel into the reaction flask. The reaction solution is stirred at room temperature for 7 hours to ensure complete reaction (Note 3). The solution is transferred to a 2- or 3-l. Claisen flask, and the formic acid is removed under aspirator pressure (b.p. 35–40°/20–30 mm.), care being taken to maintain the boiler temperature below 60° (Note 4). The residue, after being cooled to room temperature, is a yellowish brown crystalline solid (Note 5), the color being due to contamination by a small amount of brownish oil.
In a 5-l. flask fitted with a long condenser (about 40 cm.) connected to an ice-cooled receiver is placed 2 l. of 7% (by volume) sulfuric acid. The solution is heated to boiling, and the crude monoformate of 1,2-indanediol is added. Steam is introduced and the mixture is steam distilled, while external heat is applied with a flame in order to maintain the boiler contents at a constant volume of 2 l. The steam distillation is carried out at the rate of about 1 l. per hour until 5–6 l. of distillate have been collected and the 2-indanone has stopped distilling (Note 6). The dark-brown oily residue becomes semisolid at room temperature.
The cold distillate is filtered with suction, and the white crystalline solid is sucked thoroughly dry on the filter (Note 7). The crystals are dried further in a vacuum desiccator (at about 1 mm.) at room temperature or below for about 12 hours. The melting point of the 2-indanone is 57–58° (Note 8). The yield is 90–107 g. (69–81%).
2. Notes
1.
This is the best temperature at which to control the reaction. At higher temperatures, the reaction becomes too vigorous. The stirrer must be sufficiently powerful to thoroughly mix the phases or a very low yield will result. A
Hershberg stirrer has been found to be very effective in this preparation (private communication from H. E. Baumgarten).
2.
The
indene (nD25.5 1.5698, b.p. 74–76°/24 mm.) was obtained from Rütgerswerke, A. G., West Germany, through Terra Chemicals, Inc., 500 Fifth Avenue, New York 36, N. Y. It was faintly yellow, but was used without distillation, since distillation, although it removed the yellow color, did not change the refractive index. When
Matheson, Coleman and Bell technical grade indene was used (redistilled,
nD25.5 1.5606, b.p.
177–179°), a
45% yield of
2-indanone was obtained.
3.
The reaction mixture can be left overnight at this point with no adverse effect upon yield.
4.
A higher temperature should be avoided at the start to prevent boilover, and later to reduce side reactions and eliminate danger from possible residual peroxides.
5.
The reaction can be interrupted at this point and the formate ester stored for several weeks, if desired.
6.
The rate of flow of cooling water through the condenser must be regulated so that the condenser does not become clogged with
2-indanone. The end point of the distillation can be recognized by lack of turbidity in the condensate or of solidification in the condenser when cold water is passed rapidly through the condenser.
7.
The steam distillate, with the
2-indanone under water, can be kept for as long as a week in the
refrigerator. In the dry state,
2-indanone is unstable to air at room temperature but can be kept in a
closed vessel for several days at room temperature and for longer periods (several weeks or more) in a refrigerator.
8.
The ultraviolet spectrum in the 300–350 mμ region showed that less than
1% of 1-indanone was present. If the
2-indanone darkens on standing, it can be repurified by steam distillation or by crystallization from
ethanol.
3. Discussion
2-Indanone was first prepared by distillation of the
calcium salt of o-phenylenediacetic acid2,3 and, more recently, by the action of
acetic anhydride on its potassium salt.
4 It has been obtained by the dilute sulfuric acid-catalyzed hydrolysis and decarboxylation of
2-iminoindan-1-carboxylate5 and
ethyl 2-indanone-1-carboxylate.
6 2-Indanone is commonly obtained by acid-catalyzed dehydration of an
indene glycol,
7,8 as illustrated in this preparation.
Indene glycol has been obtained from
indene via the bromohydrin.
9,10,11,12 The most recent preparation of
2-indanone is by Curtius degradation of
2-indenecarboxylic acid.
13
Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)
calcium salt of o-phenylenediacetic acid
ethanol (64-17-5)
sulfuric acid (7664-93-9)
acetic anhydride (108-24-7)
formic acid (64-18-6)
hydrogen peroxide (7722-84-1)
1-Indanone (83-33-0)
indene (95-13-6)
2-Indanone (615-13-4)
monoformate
1,2-indanediol
2-iminoindan-1-carboxylate
ethyl 2-indanone-1-carboxylate
indene glycol
2-indenecarboxylic acid
