Org. Synth. 1927, 7, 20
DOI: 10.15227/orgsyn.007.0020
α-CYANO-β-PHENYLACRYLIC ACID
Submitted by Arthur Lapworth and Wilson Baker.
Checked by J. B. Conant and W. C. Boyd.
1. Procedure

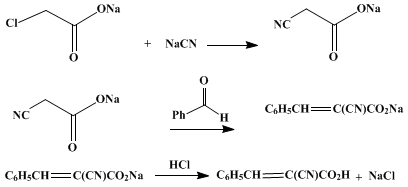

(A) Preparation of Sodium Cyanoacetate Solution.—In a 3-l. round-bottomed flask is placed 250 g. (2.65 moles) of monochloroacetic acid. To this are added 100 cc. of water and 375 g. (1.3 moles) of crystalline sodium carbonate (decahydrate) (Note 1), the mixture being gently warmed. The neutralization is completed by adding sodium carbonate solution using litmus paper as an indicator. The flask is transferred to the hood, and a solution of 130 g. (2.65 moles) of sodium cyanide in 250 cc. of warm water is added in two approximately equal portions, waiting after the first addition until no further evolution of heat occurs, or the mixture ceases to boil. The cooled solution is neutralized with hydrochloric acid, using methyl orange as an outside indicator. The solution is then diluted with water to 1 l. and filtered; it should be of a light straw color. It can be kept for long periods of time in a stoppered bottle, although the color deepens somewhat.
(B) Condensation with Benzaldehyde.—To 400 cc. (1.06 moles) of the sodium cyanoacetate solution is added a solution of 5 g. (0.13 mole) of sodium hydroxide in 400 cc. of water. The resulting alkaline solution is warmed to 40° and treated with 100 g. (0.94 mole) of benzaldehyde which has been shaken with sodium carbonate solution and distilled under reduced pressure. The benzaldehyde dissolves after vigorous shaking for a few minutes. After standing one hour, during which time some of the sodium cyanophenylacrylate crystallizes (Note 2), the mixture is acidified with concentrated hydrochloric acid until acid to litmus and 40 cc. additional concentrated acid added, and the whole is shaken vigorously. After another hour, the crystalline cyanophenylacrylic acid is filtered on a Büchner funnel, washed thoroughly with cold water, and dried in a steam oven. It is then shaken with 100 cc. of benzene, filtered on a Büchner funnel, and further washed with 50 cc. of benzene and dried. The yield of product melting at 178–179° is 105–115 g. (65–70 per cent of the theoretical amount).
This product may have a slight pinkish color, which can be removed by recrystallization from 740 cc. of alcohol or 10 l. of hot water. The recovery is about 57 per cent from alcohol and 92 per cent from water (Note 3). The melting point remains unchanged.
2. Notes
1.
In place of the crystallized
sodium carbonate, the equivalent amount of dehydrated material (138 g.) and water (240 cc.) may be used.
2.
If the
sodium salt is crystallized out by chilling externally, then separated and acidified, it gives a purer
α-cyano-β-phenylacrylic acid. The yield of acid is
90–105 g., and this purer acid is more satisfactory for the preparation of
phenylsuccinic acid (p. 451) (C. F. H. Allen and C. V. Wilson, private communication).
3.
Owing to hydrolysis in alkaline or neutral solutions, it is very difficult to free the acid from a slight odor of
benzaldehyde if it is recrystallized from water, but a final washing with
benzene removes this odor.
3. Discussion
α-Cyanophenylacrylic acid can be prepared by the hydrolysis of the corresponding ester obtained by the condensation of
benzaldehyde with
cyanoacetic ester in the presence of
sodium alkoxide or
acetic anhydride.
1 The direct condensation of
benzaldehyde and
cyanoacetic acid or its sodium salt takes place when the substances are heated
2 for some time at 180°. The most convenient method for the preparation of the acid (as the
sodium or
potassium salt) is by the action of
benzaldehyde on an alkaline aqueous solution of
sodium or potassium cyanoacetate prepared by the interaction of salts of
bromoacetic3 or
chloroacetic acids4 with
potassium or
sodium cyanide in aqueous solution.
This preparation is referenced from:
Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)
cyanoacetic ester
sodium alkoxide
sodium or potassium cyanoacetate
bromoacetic
chloroacetic acids
hydrochloric acid (7647-01-0)
Benzene (71-43-2)
acetic anhydride (108-24-7)
sodium hydroxide (1310-73-2)
sodium cyanide (143-33-9)
sodium carbonate (497-19-8)
benzaldehyde (100-52-7)
monochloroacetic acid (79-11-8)
sodium (13966-32-0)
α-Cyano-β-phenylacrylic acid,
cyanophenylacrylic acid,
α-Cyanophenylacrylic acid (1011-92-3)
Sodium cyanoacetate (1071-36-9)
sodium carbonate (decahydrate) (6132-02-1)
sodium cyanophenylacrylate
Phenylsuccinic acid (635-51-8)
cyanoacetic acid (372-09-8)
potassium (7440-09-7)
sodium salt (824-79-3)
