Org. Synth. 1927, 7, 60
DOI: 10.15227/orgsyn.007.0060
METHYL n-AMYL KETONE
[2-Heptanone]
Submitted by John R. Johnson and F. D. Hager.
Checked by Frank C. Whitmore and W. F. Singleton.
1. Procedure
In a

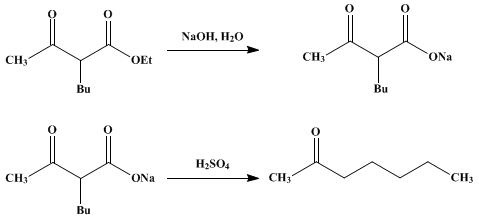

12-l. round-bottomed flask, fitted with an efficient mechanical stirrer, is placed
5 l. of a 5 per cent solution of sodium hydroxide (6.25 moles). To this is added the crude
ethyl n-butylacetoacetate (about 925 g.) obtained (p. 248) from 5 moles of ethyl acetoacetate. The mixture is stirred at room temperature for four hours, during which time the
monosubstituted acetoacetic ester is completely saponified and passes into solution. The mixture is then allowed to stand until the unsaponified material separates completely as an oily layer. The aqueous layer is separated
(Note 1) and transferred to a flask provided with a stopper fitted with a
separatory funnel and a
large bent glass tube leading to a
condenser set for distillation.
Through the separatory funnel is added slowly 500 cc. of 50 per cent (sp. gr. 1.40) sulfuric acid (3.6 moles), which is somewhat more than the amount required to neutralize the alkali (6.25 moles) used in the saponification of the ester. When the evolution of carbon dioxide ceases to be vigorous, the reaction mixture is heated slowly to boiling, and from one-third to one-half of the total volume is distilled. The distillate is made alkaline with solid sodium hydroxide (Note 2) and redistilled until 80–90 per cent has been collected.
In the distillate the ketone layer is separated from the water, and the latter is distilled until one-third has been collected. The ketone layer in this distillate is separated, and the water layer is again distilled. This procedure is repeated as long as any considerable amount of ketone is obtained in the distillate (Note 3). The combined ketone fraction is washed four times with one-third its volume of a concentrated solution of calcium chloride (sp. gr. 1.3 or greater) to remove alcohol (Note 4), then dried over 50 g. of solid calcium chloride, filtered, and distilled. The yield of methyl n-amyl ketone boiling at 148–151°/750 mm. is 300–350 g. (52–61 per cent of the theoretical amount, based upon the original ethyl acetoacetate) (Note 5).
2. Notes
1.
The insoluble layer is usually quite small in amount and may be discarded. On distillation it yields but a small amount of ketone and monosubstituted ester, along with considerable high-boiling material, presumably the disubstituted ester, which was present in the crude
ethyl n-butylacetoacetate.
2.
The distillate is rendered alkaline to remove any acids formed by the acid decomposition of the substituted acetoacetic ester or unreacted
ethyl acetoacetate.
3.
With
methyl n-amyl ketone this process was repeated three times after the first separation. In the case of higher ketones, fewer separations are required; with the simpler ketones a greater number is advisable, on account of their solubility in water.
4.
With the lower-molecular-weight ketones it is advantageous to distil the
calcium chloride solution to recover the dissolved ketone. This is carried out exactly as described for the separation from the water. With
methyl n-amyl ketone the loss is slight if a sufficiently concentrated solution of
calcium chloride is employed.
5.
Other ketones may be prepared by the same general procedure. Based upon the
ethyl acetoacetate used, the following yields were obtained:
Methyl n-butyl ketone (hexanone-2) b.p. 126–128°, 50 per cent.
Methyl iso-butyl ketone (4-methylpentanone-2) b.p. 115–119°, 20 per cent.
Methyl β-methylbutyl ketone (4-methylhexanone-2) b.p. 139–142°, 30 per cent.
The lower yields are due in some cases to the difficulty of isolating the products, and, in the last two, to the less complete reaction between the secondary alkyl bromide and the sodium derivative of ethyl acetoacetate.
3. Discussion
Methyl n-amyl ketone can be prepared by the hydration of
heptine-1 and of
heptine-2;
1 by heating
n-amylpropiolic acid with
potassium hydroxide;
2 by the oxidation of
methyl-n-amylcarbinol;
3 and by the ketone decomposition of
ethyl n-butylacetoacetate4 which is adapted from that used by Michael and Wolgast
5 for
ethyl ethylacetoacetate.
This preparation is referenced from:
Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)
monosubstituted acetoacetic ester
sodium derivative of ethyl acetoacetate
calcium chloride (10043-52-4)
sulfuric acid (7664-93-9)
sodium hydroxide (1310-73-2)
carbon dioxide (124-38-9)
potassium hydroxide (1310-58-3)
Ethyl acetoacetate (141-97-9)
ETHYL n-BUTYLACETOACETATE (1540-29-0)
2-Heptanone,
METHYL n-AMYL KETONE (110-43-0)
hexanone-2,
Methyl n-butyl ketone (591-78-6)
4-methylpentanone-2,
Methyl iso-butyl ketone (108-10-1)
Methyl β-methylbutyl ketone,
4-Methylhexanone-2
heptine-1 (628-71-7)
heptine-2
ethyl ethylacetoacetate (607-97-6)
methyl-n-amylcarbinol (543-49-7)
n-amylpropiolic acid (5663-96-7)
