Org. Synth. 1927, 7, 80
DOI: 10.15227/orgsyn.007.0080
TRIPHENYLSTIBINE
[Stibine, triphenyl-]
Submitted by G. S. Hiers
Checked by Henry Gilman and F. Schulze.
1. Procedure

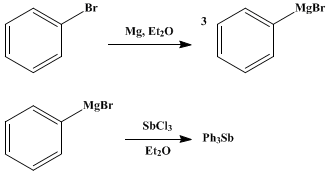

In a 2-l. round-bottomed, three-necked flask fitted with a mercury-sealed mechanical stirrer, a reflux condenser, and a separatory funnel is placed 40 g. (1.65 atoms) of magnesium turnings (Note 1). This is covered with 200 cc. of dry ether, and there is then added 100 cc. of a mixture of 260 g. (1.65 moles) of dry bromobenzene and 800 cc. of dry ether. As soon as the reaction starts, 200 cc. more of dry ether is added and the remainder of the bromobenzene solution at such a rate as to cause gentle boiling (about two hours). With external cooling, the time may be shortened.
When all the bromobenzene has been added, there is added slowly through the separatory funnel a solution of 114 g. (0.5 mole) of freshly distilled antimony trichloride (m.p. 67–73°) in 300 cc. of dry ether. The reaction proceeds smoothly and even briskly with the freshly distilled chloride. However, if the latter has not been freshly prepared, gentle warming may be required to start the reaction. When all the antimony trichloride has been added (one to two hours), the mixture is heated on the steam bath for one hour longer.
When cool, the reaction mixture is poured slowly with stirring into 1 l. of ice and water (Note 2). If the stirring is thorough, most of the triphenylstibine is to be found in the ether layer. The hydrolysis mixture is filtered through a Büchner funnel and the residue on the filter extracted three times (Note 3) with 100-cc. portions of ether. The aqueous layer is separated and extracted twice with 200-cc. portions of ether. The combined ether portions are evaporated slowly on a steam bath to remove the ether, and there remains behind a yellow semi-solid which crystallizes to a white solid on cooling (Note 4). The yield of crude product melting at 49° is 145–160 g. (82–90 per cent of the theoretical amount). For purification from a small amount of biphenyl which is present in the crude product, 90 g. of triphenylstibine is dissolved in 200 cc. of petroleum ether (b.p. 40–50°) by warming on a steam bath. There is generally a small amount of insoluble residue which is filtered and the filtrate cooled in a freezing mixture. The triphenylstibine separates as small prisms and weighs 58–65 g.; by further concentration of the filtrate to an approximate volume of 50 cc. and then cooling again, an additional 15–20 g. of product separates. Both portions melt at 50°.
2. Notes
1.
The excess of the Grignard reagent insures the complete removal of all the halogen from the
antimony.
2.
During the hydrolysis the use of acids to dissolve the
magnesium hydroxide must be avoided, for the presence of acid tends to decompose the
antimony compound.
3.
During the filtration some other evaporates and the
stibine compound is left on the filter with the
magnesium hydroxide. Extraction is necessary to remove this product.
4.
The same method may be used for the preparation of
tri-p-tolylstibine. Starting with
282 g. (1.65 moles) of p-bromotoluene (p. 136) and proceeding in the same manner as described there was secured
150–157 g. (
77–80 per cent of the theoretical amount) of crude
tri-p-tolylstibine. This product purified by recrystallization from
methyl alcohol or
ether melts at
125–126°. The reaction is somewhat more vigorous, and sometimes cooling is necessary at first.
3. Discussion
Triphenylstibine can be prepared from the interaction of
chlorobenzene and
antimony trichloride with
sodium,
1 from
antimony trichloride and
phenylmagnesium bromide,
2 and from
antimony and
phenyllithium.
3
Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)
petroleum ether
antimony compound
stibine compound
methyl alcohol (67-56-1)
ether (60-29-7)
magnesium turnings (7439-95-4)
chlorobenzene (108-90-7)
sodium (13966-32-0)
bromobenzene (108-86-1)
Biphenyl (92-52-4)
antimony trichloride (7647-18-9)
magnesium hydroxide
Phenylmagnesium bromide (100-58-3)
Triphenylstibine,
Stibine, triphenyl- (603-36-1)
antimony (7440-36-0)
Phenyllithium (591-51-5)
p-Bromotoluene (106-38-7)
Tri-p-tolylstibine
