Org. Synth. 1931, 11, 76
DOI: 10.15227/orgsyn.011.0076
3-METHYLPENTANOIC ACID
[Valeric acid, β-methyl-]
Submitted by E. B. Vliet, C. S. Marvel, and C. M. Hsueh.
Checked by Henry Gilman and R. E. Brown.
1. Procedure

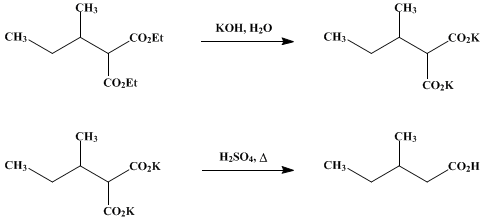

A solution of 200 g. (3.6 moles) of potassium hydroxide (Note 1) in 200 cc. of water is placed in a 2-l. round-bottomed flask fitted with a reflux condenser, a mechanical stirrer, and a separatory funnel. The stirrer is started, and to the hot solution 200 g. (0.92 mole) of ethyl sec.-butylmalonate (Note 2) is added slowly. The solution refluxes quietly owing to the heat of saponification. After all the sec.-butylmalonic ester has been added, the solution is boiled gently for two hours. It is then diluted with 200 cc. of water, and 200 cc. of liquid is distilled from the solution in order to remove all the alcohol formed during the saponification (Note 3).
The residual liquid in the flask is allowed to cool, and a cold solution of 320 g. (3.3 moles) of concentrated sulfuric acid (Note 4) in 450 cc. of water is added through the separatory funnel. This should be done slowly and with stirring in order to prevent foaming. The solution becomes hot and may reflux spontaneously. After all the sulfuric acid has been added the solution is refluxed for about three hours. A layer of organic acid appears and the reflux condenser is replaced by an automatic separator (Note 5). The solution is distilled with the separator attached, and the aqueous portion is returned to the distilling flask. This operation is continued until practically all the organic acid has been driven over; from ten to fifteen hours is required. At the end, about 100 cc. of water is collected in the separator and extracted with ether in order to remove the dissolved acid (Note 6). The ether is distilled; the crude acid is mixed with an equal volume of dry benzene (Note 7) and distilled from a modified Claisen flask with a fractionating side arm. Benzene and water distil first and then 3-methylpentanoic acid distils at 193–196°/743 mm. The yield is 66–69 g. (62–65 per cent of the theoretical amount) (Note 8).
2. Notes
1. Sodium hydroxide is unsatisfactory for this saponification because an organic sodium salt separates, yielding a semi-solid mass.
2. The ethyl sec.-butylmalonate was prepared from sec.-butyl bromide and malonic ester according to the general method described in Org. Syn. Coll. Vol. I, 1941, 250. The yield of ester boiling at 124–132°/28 mm. was 80–81 per cent of the theoretical amount. The yields of 3-methylpentanoic acid given in this procedure were obtained with this grade of ester.
3. It is necessary that all the alcohol be eliminated after the saponification. If some is allowed to remain, ethyl 3-methylpentanoate is formed and a considerable amount of low-boiling material is present in the final product.
4. If hydrochloric acid is used, it distils and complicates the purification of the product.
5. The apparatus shown in Org. Syn. Coll. Vol. I, 1941, 422, Fig. 22, was found to be very effective. Other methods of isolating the acid were not so satisfactory. When extraction with a solvent was used, the yield was about 10 per cent less and the product was contaminated with tarry impurities.
6. The amount of acid recovered by the ether extraction is only 1–2 g.
7. The acid may be dried by other means, but this method was found most convenient.
8. Other acids may be prepared by this general procedure; thus n-caproic acid may be obtained from ethyl n-butylmalonate in 75 per cent yield.
3. Discussion
3-Methylpentanoic acid has been prepared by heating sec.-butylmalonic acid,1 and by the addition of ethylmagnesium bromide to the N-methylanilide of crotonic acid, followed by hydrolysis.2
This preparation is referenced from:

References and Notes
  1. Van Romburgh, Rec. trav. chim. 6, 153 (1887); Kulisch, Monatsh. 14, 559 (1893); Bentley, J. Chem. Soc. 67, 267 (1895); Olivier, Rec. trav. chim. 55, 1032 (1936).
  2. Maxim and Ioanid, Bul. Soc. Chim. România 12, (1930) [C. A. 25, 488 (1931)].

Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)

Malonic Ester

N-methylanilide of crotonic acid

sec.-butylmalonic ester

sulfuric acid (7664-93-9)

hydrochloric acid (7647-01-0)

Benzene (71-43-2)

ether (60-29-7)

sodium hydroxide (1310-73-2)

sec.-BUTYL BROMIDE (78-76-2)

potassium hydroxide (1310-58-3)

n-caproic acid (142-62-1)

ETHYL n-BUTYLMALONATE

ethylmagnesium bromide (925-90-6)

3-Methylpentanoic acid,
Valeric acid, β-methyl- (105-43-1)

ethyl 3-methylpentanoate (5870-68-8)

ethyl sec.-butylmalonate

sec.-butylmalonic acid
