Org. Synth. 1938, 18, 70
DOI: 10.15227/orgsyn.018.0070
2-PHENYLPYRIDINE
[Pyridine, 2-phenyl-]
Submitted by J. C. W. Evans and C. F. H. Allen.
Checked by Reynold C. Fuson, W. E. Ross, and E. A. Cleveland.
1. Procedure

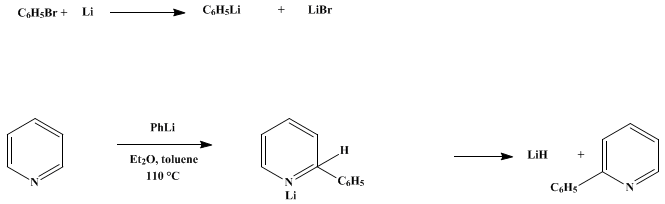

In a 1-l. three-necked flask, fitted with a dropping funnel, a thermometer, mechanical stirrer, and reflux condenser protected from moisture (Note 1), the whole being swept with dry nitrogen, are placed 3.5 g. (0.5 gram atom) of lithium, cut into pieces the size of a pea, and 100 cc. of dry ether. The stirrer is started, and about 10 cc. of a mixture of 40 g. of bromobenzene (0.25 mole) in 50 cc. of dry ether is admitted from the dropping funnel; a vigorous reaction usually takes place (Note 2). The remainder of the mixture is added gradually over a half-hour period, when the metal should have largely disappeared (Note 3).
From the dropping funnel is next slowly introduced, with stirring, 40 g. (0.5 mole) of dry pyridine (Note 4) in 100 cc. of dry toluene. The ether is then distilled (Note 5) and the residual suspension stirred at 110° (inside temperature) for eight hours. It is then cooled to about 40°, 35 cc. of water cautiously added, and the liquids filtered if necessary (Note 6). The lower layer is separated and discarded. The toluene layer is dried for an hour with 20 g. of pulverized potassium hydroxide and carefully distilled, using a modified Claisen flask with a fractionating column attached. The material boiling up to 150° is removed at ordinary pressure and the residue distilled in vacuo; after two fractional distillations, the yield of 2-phenylpyridine, b.p. 140°/12 mm., is 15.5–19 g. (40–49 per cent of the theoretical amount).
2. Notes
1.
The apparatus and reagents must be dried as for the Grignard reaction.
2.
Occasionally the reaction will not start without the application of heat; as soon as the reaction begins, however, the source of heat is removed.
3.
The yield of
phenyllithium is approximately
75 per cent. It can be determined by allowing the
phenyllithium to react with an excess of
benzophenone and weighing the
triphenylcarbinol formed. It is assumed that the carbinol is formed quantitatively.
1
4.
The success of the preparation depends on the dryness of the
pyridine. The
pyridine was refluxed for eight hours over fresh
quicklime and distilled, and then a similar treatment with pulverized
potassium hydroxide followed. None of the available
barium oxide gave as good results. Merck's medicinal
pyridine gave the highest yields.
5.
This is easily accomplished by running the water out of the condenser, while heating to 110°.
6.
The small particles of unused metal that usually remain hinder the separation into layers.
3. Discussion
2-Phenylpyridine has been prepared from
pyridine and
phenyllithium2 or
benzenediazonium chloride.
3 In the procedure described above, replacing
ether as a solvent by
toluene avoids the necessity of using a
sealed tube.
4
This preparation is referenced from:
Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)
quicklime
ether (60-29-7)
barium oxide
nitrogen (7727-37-9)
benzenediazonium chloride
pyridine (110-86-1)
potassium hydroxide (1310-58-3)
toluene (108-88-3)
Benzophenone (119-61-9)
bromobenzene (108-86-1)
Triphenylcarbinol (76-84-6)
Phenyllithium (591-51-5)
lithium (7439-93-2)
2-Phenylpyridine,
Pyridine, 2-phenyl- (1008-89-5)
