Org. Synth. 1941, 21, 10
DOI: 10.15227/orgsyn.021.0010
o-AMINOBENZYL ALCOHOL
[Benzyl alcohol, o-amino-]
Submitted by George H. Coleman and Herbert L. Johnson.
Checked by Reynold C. Fuson and E. A. Cleveland.
1. Procedure

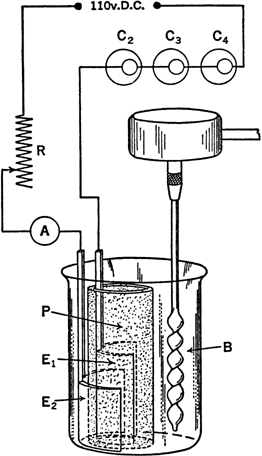

The reduction is carried out in four cells of the type shown in
Fig. 2. Each cell consists of a
1-l. beaker (
B), a
porous cup (
P), a
mechanical stirrer, and
sheet lead electrodes (
E1 and
E2) each having a total surface area of 100 sq. cm.
(Note 1). In the cathode space of each cell are placed
25 g. (0.18 mole) of anthranilic acid (Note 2) and
400 ml. of 15% sulfuric acid. In each porous cup is placed
200 ml. of 15% sulfuric acid. The cells are connected in series as shown in
Fig. 5 with an
ammeter (
A) and suitable
resistance (
R)
(Note 3) also in the circuit.
Fig. 2.
The stirrers are started, the current (110 volt d.c.) is turned on, and the resistance is so adjusted that the ammeter records 10–12 amperes. The temperature of the solution in the cells is maintained at 20–30° by surrounding them with a bath of cool water (Note 4). The reduction is complete after 60–70 ampere-hours. This fact is indicated by the increased evolution of hydrogen and the complete solution of the anthranilic acid.
The cathode liquid is removed from the cells and neutralized with solid ammonium carbonate or concentrated aqueous ammonia. The solution is filtered to remove any resinous material, then saturated with ammonium sulfate and extracted with five 80-ml. portions of chloroform (Note 5). The chloroform solution is dried with 20 g. of anhydrous sodium or magnesium sulfate and filtered, and the chloroform is removed by evaporation on a steam bath (Note 6). The yield of o-aminobenzyl alcohol obtained from the four cells is 62–70 g. (69–78%).
This product is light brown and melts at 75–80°. After one recrystallization from petroleum ether the melting point is 80–81° (Note 7).
2. Notes
1.
Ordinary sheet lead of 99.9% purity is satisfactory.
2.
The
anthranilic acid melted at
143–144°.
3.
A resistance of 10–12 ohms is required for the apparatus described. It may be necessary to adjust the rheostat several times during the course of the reaction.
4.
The checkers found it necessary to cool the cells by frequent addition of ice to the
water bath surrounding them.
5.
Ethyl ether may be used in place of
chloroform but is not so satisfactory since several more extractions are necessary to remove the same amount of product from the aqueous solution.
6.
The evaporation may be carried out in an apparatus that permits recovery of the solvent.
7.
Petroleum ether boiling at
65–75° is used for recrystallization. The product has a limited solubility even in the hot solvent, and a relatively large volume is therefore required.
3. Discussion
o-Aminobenzyl alcohol has been prepared by the reduction of
o-nitrobenzaldehyde1,2 or
o-nitrobenzyl alcohol3,4 with
zinc and
hydrochloric acid in alcoholic solution, and by the reduction of anthranilic acid with
lithium aluminum hydride.
5,6 The present method of preparing
o-aminobenzyl alcohol is a modification of that described by Mettler.
7 Other substituted benzyl alcohols have been obtained by the same method.
This preparation is referenced from:
Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)
petroleum ether
sodium or magnesium sulfate
sulfuric acid (7664-93-9)
hydrochloric acid (7647-01-0)
ammonium carbonate (506-87-6)
ammonia (7664-41-7)
ethyl ether (60-29-7)
hydrogen (1333-74-0)
chloroform (67-66-3)
zinc (7440-66-6)
Anthranilic Acid (118-92-3)
ammonium sulfate (7783-20-2)
o-Nitrobenzaldehyde (552-89-6)
lithium aluminum hydride (16853-85-3)
o-Aminobenzyl alcohol,
Benzyl alcohol, o-amino- (5344-90-1)
o-nitrobenzyl alcohol (612-25-9)
