Org. Synth. 1948, 28, 55
DOI: 10.15227/orgsyn.028.0055
DIPHENYLACETONITRILE
[Acetonitrile, diphenyl-]
Submitted by C. M. Robb and E. M. Schultz.
Checked by Richard T. Arnold and J. W. Britain.
1. Procedure

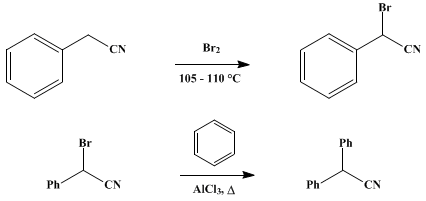

A. α-Bromo-α-phenylacetonitrile. In a well-ventilated hood (Note 1), a dry 500-ml. round-bottomed three-necked flask is equipped with a sealed stirrer, an air condenser (Note 2), and a cork carrying a dropping funnel and a thermometer. In the flask is placed 117 g. (1 mole) of benzyl cyanide (Note 3). The thermometer is adjusted so that the bulb is immersed in the benzyl cyanide. The flask is placed in a bath and heated to 105–110° (inside temperature). With good stirring, 176 g. (1.1 moles) of bromine (Note 4) is added over a period of 1 hour; during the addition and for 15 minutes thereafter the temperature of the liquid is maintained at 105–110°. At the end of the heating period the evolution of hydrogen bromide gas has practically ceased. The dropping funnel is replaced by a cork carrying a glass tube reaching to within 2–3 cm. of the surface of the reaction mixture. Dry nitrogen is then led through the apparatus for 30 minutes. The hot mixture is poured into the 500-ml. addition funnel fitted to the apparatus to be used in the next step (see part B). The reaction flask is rinsed with 100 g. (1.3 moles) of dry benzene (Note 5), and this is added to the bromonitrile. The benzene solution thus obtained is used immediately in the next step (Note 6).
B. Diphenylacetonitrile. A dry 2-l. round-bottomed three-necked flask, equipped with a sealed stirrer, a 500-ml. dropping funnel, and a dry reflux condenser (Note 2), is mounted on a steam bath. In the flask are placed 368 g. (4.7 moles) of dry benzene (Note 5) and 133.5 g. (1 mole) of powdered anhydrous aluminum chloride. The stirrer is started, and the benzene is heated to vigorous refluxing. The α-bromo-α-phenylacetonitrile solution is added to the boiling mixture over a period of 2 hours in small portions (Note 7). After the addition is complete, the reaction mixture is refluxed for an additional hour. The flask is cooled, and the mixture is poured into a stirred mixture of 1 kg. of crushed ice and 100 ml. of concentrated hydrochloric acid in a 3-l. beaker.
The benzene layer is separated. The aqueous layer is extracted with 500 ml. of ether in two equal portions. The ether and benzene solutions are combined and washed successively with 500 ml. of water, 250 ml. of saturated sodium bicarbonate solution, and 500 ml. of water. The organic layer is dried over 100 g. of anhydrous sodium sulfate. The drying agent is separated from the solution, and the solvents are removed by heating on a steam bath. The last traces of benzene are removed by vacuum distillation from a 250-ml. Claisen flask heated on a steam bath. The residue weighs about 190 g. A receiver is connected directly to the side arm (Note 8) of the Claisen flask, and the product is distilled under reduced pressure. It boils at 122–125°/1–2 mm. and crystallizes to a yellow solid which melts at 68–70°. The solid is recrystallized from isopropyl alochol (1 ml. per g.); the flask containing the filtered hot solution is placed on an asbestos mat, and the solution is allowed to cool only to room temperature without shaking or stirring. The crystals are then collected and washed on the funnel with chilled isopropyl alcohol (one-fifth the volume used in the recrystallization). The product is dried in a vacuum desiccator over concentrated sulfuric acid or phosphorus pentoxide. The yield of pure white product, melting at 74–75°, is 97–116 g. (50–60% based on benzyl cyanide) (Note 9).
2. Notes
1. α-Bromo-α-phenylacetonitrile is a lachrymator.
2. The mouth of the condenser is fitted with a cork carrying a short U-tube, to prevent condensed moisture from running back into the flask.
3. The benzyl cyanide used was a redistilled grade obtained from the Benzol Products Company.
4. Reagent grade bromine was used.
5. Reagent grade benzene was subjected to distillation until no droplets of water formed in the distillate. The residual benzene was used directly without further distillation or drying.
6. The checkers found that the work could be interrupted for as much as 1 day after the preparation of α-bromo-α-phenylacetonitrile without appreciable effect on the yield.
7. The reaction is vigorous, but it can be readily controlled by adding the bromonitrile frequently in small portions.
8. The flask must be of such a type that the side arm can be heated to prevent plugging by the solidified distillate.
9. A second crop, amounting to 10–15 g. and melting at 68–70°, can be obtained by chilling the mother liquor, but recrystallization of this fraction from isopropyl alcohol does not raise the melting point.
3. Discussion
Diphenylacetonitrile has been prepared by the dehydration of diphenylacetamide,1,2,3,4,5,6,7,8,9 by the reaction of diphenylbromomethane and mercuric cyanide,10 by the reaction of diphenylaectic acid and lead thiocyanate,11 by the removal of ammonia from diphenylacetamidine,12 by phenylation of potassium acetonitrile with chlorobenzene in liquid ammonia,13 by the action of benzene on benzaldehyde cyanohydrin in the presence of aluminum chloride,14 and from diphenylmethane and cyanogen chloride.15 The present method is a modification of that of Hoch.16,17

References and Notes
  1. Neure, Ann., 250, 142 (1889).
  2. Zinsser, Ber., 24, 3556 (1891).
  3. Norris and Klemka, J. Am. Chem. Soc., 62, 1432 (1940).
  4. Rupe and Gisiger, Helv. Chim. Acta, 8, 338 (1925).
  5. Trivedi, Phalnikar, and Nargund, J. Univ. Bombay, 10, 135 (1942) [C. A., 37, 622 (1943)].
  6. Hellerman, Cohn, and Hoen, J. Am. Chem. Soc., 50, 1716 (1928).
  7. Smith, Ber., 71, 634 (1938).
  8. Wilson, J. Chem. Soc., 1950, 2173.
  9. Reid and Hunter, J. Am. Chem. Soc., 70, 3515 (1948).
  10. Anschutz, Ann., 233, 345 (1886).
  11. Wittig and Hopf, Ber., 65, 760 (1932).
  12. Lipp, Ann., 449, 15 (1926).
  13. Bergstrom and Agostinho, J. Am. Chem. Soc., 67, 2152 (1945).
  14. Homeyer and Splitter, U. S. pat. 2,443,246 [C. A., 42, 7338 (1948)].
  15. Dixon, U. S. pat. 2,553,404 [C. A., 45, 9081 (1951)]
  16. Hoch, Compt. rend., 197, 770 (1933)
  17. Shapiro, J. Org. Chem., 14, 839 (1949).

Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)

isopropyl alochol

diphenylaectic acid

sulfuric acid (7664-93-9)

hydrochloric acid (7647-01-0)

ammonia (7664-41-7)

Benzene (71-43-2)

ether (60-29-7)

sodium bicarbonate (144-55-8)

hydrogen bromide (10035-10-6)

bromine (7726-95-6)

sodium sulfate (7757-82-6)

nitrogen (7727-37-9)

chlorobenzene (108-90-7)

aluminum chloride (3495-54-3)

isopropyl alcohol (67-63-0)

Diphenylmethane (101-81-5)

Benzyl cyanide (140-29-4)

benzaldehyde cyanohydrin (532-28-5)

mercuric cyanide (592-04-1)

cyanogen chloride (506-77-4)

Diphenylacetonitrile,
Acetonitrile, diphenyl- (86-29-3)

bromonitrile

α-bromo-α-phenylacetonitrile (5798-79-8)

diphenylacetamide (519-87-9)

diphenylbromomethane (776-74-9)

diphenylacetamidine

potassium acetonitrile

phosphorus pentoxide (1314-56-3)

lead thiocyanate
