Org. Synth. 1943, 23, 52
DOI: 10.15227/orgsyn.023.0052

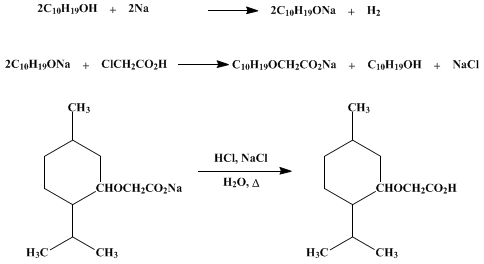

l-MENTHOXYACETIC ACID
[Acetic acid, (menthyloxy)-, l-]
Submitted by M. T. Leffler and A. E. Calkins.
Checked by R. L. Shriner and C. H. Tilford.
1. Procedure
A 5-l. three-necked round-bottomed flask is fitted with a mechanical stirrer (Note 1) and a reflux condenser bearing a calcium chloride tube. A solution of 400 g. (2.56 moles) of l-menthol (crystals, m.p. 41–42°) in 1 l. of dry toluene (Note 2) is placed in the flask, and to it is added 70 g. (3.04 gram atoms) of clean sodium. The third neck of the flask is then tightly closed with a cork stopper, and the flask is heated in an oil bath until the toluene refluxes gently. As soon as the sodium has melted, stirring is begun and is maintained at such a rate that the sodium is broken into fine globules.
After the reaction mixture has been refluxed for 15 hours, the stirrer is stopped, the reaction mixture is allowed to cool, and the excess sodium (Note 3) is carefully removed. The apparatus is then assembled as before (Note 1), but with a 1-l. separatory funnel fitted into the third neck of the flask (Note 4). The temperature of the oil bath is raised to 85–90°, and with continued stirring, a solution of 95 g. (1.01 moles) of monochloroacetic acid (Note 5) in 800 ml. of warm dry toluene is added from the separatory funnel at such a rate that refluxing is not too vigorous. A heavy precipitate of sodium chloroacetate forms immediately. After all the chloroacetic acid has been added, the mixture is refluxed and stirred for 48 hours. During this period, the stirring must be as thorough as possible; it is necessary to add 1–1.5 l. of dry toluene, and the stirrer must be stopped at frequent intervals while the solid material is removed from the side of the flask.
When the reaction is complete, the flask is removed from the oil bath and the cooled reaction mixture is transferred to a 5-l. separatory funnel and extracted with three 1-l. portions of water (Note 6). The water extract is carefully acidified with 20% hydrochloric acid, and the crude menthoxyacetic acid, which collects on top as a brown oil, is extracted with three 200-ml. portions of benzene. The benzene extracts are combined, and the solvent is removed by distillation on a steam cone. The residue is then fractionally distilled under reduced pressure. The fraction boiling below 100°/20 mm. is mainly water and toluene. The second fraction boiling at 100–115°/8–10 mm. is impure l-menthol and may be saved for redistillation (Note 6). The yield of l-menthoxyacetic acid, boiling at 134–137°/2 mm. (150–155°/4 mm.), [α]2D −92.4°, amounts to 166–180 g. (78–84%).
2. Notes
1.
The success of the reaction depends largely on the type of agitation used. A stainless-steel stirrer of the anchor type with a gas-tight rubber or metal-graphite bearing serves well because of its strength. It should be operated at high speed in the first part of the reaction in order to powder the
sodium; in the second stage vigorous stirring is not so essential, but the solid and liquid phases should be mixed efficiently.
2.
The
toluene may be dried by refluxing it over metallic
sodium for several hours. It is distilled from the
sodium into a
receiver protected from the air by a calcium chloride tube.
3.
The excess
sodium should amount to about 11 g. If the
sodium remains divided, it is removed by filtering the hot mixture through glass wool.
4.
It is not advisable to leave the separatory funnel attached to the flask during the long period of stirring which follows, as the constant, heavy vibration tends to loosen the connection. As soon as it has been used, the funnel should be replaced by a tightly fitting cork stopper.
5.
The commercial grade (m.p.
61–63°) of
monochloroacetic acid should be ground and thoroughly dried over concentrated
sulfuric acid in a
vacuum desiccator for 2 days. The yield was lowered by about 10% when the
chloroacetic acid was used without previous drying.
6.
The
toluene layer, containing the
menthol formed in the reaction, is saved for the recovery of both the
toluene and the
menthol, which are separated by distillation under atmospheric pressure. The
l-menthol collected at 210–212° (cor.) amounts to 150–225 g.
3. Discussion
l-Menthoxyacetic acid has been prepared only by the action of
sodium menthoxide upon
monochloroacetic acid.
1
This preparation is referenced from:
Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)
sodium menthoxide
sulfuric acid (7664-93-9)
hydrochloric acid (7647-01-0)
Benzene (71-43-2)
chloroacetic acid,
monochloroacetic acid (79-11-8)
sodium chloroacetate (3926-62-3)
toluene (108-88-3)
sodium (13966-32-0)
menthol,
l-menthol (15356-60-2)
menthoxyacetic acid,
l-MENTHOXYACETIC ACID,
Acetic acid, (menthyloxy)-, l- (40248-63-3)
