Org. Synth. 1958, 38, 5
DOI: 10.15227/orgsyn.038.0005
BENZYLTRIMETHYLAMMONIUM ETHOXIDE
[Ammonium, benzyltrimethyl-, ethoxide]
Submitted by W. J. Croxall, Marion F. Fegley, and H. J. Schneider
1.
Checked by John C. Sheehan and M. Gertrude Howell.
1. Procedure
A 3-l. three-necked flask (flask A) is fitted with a nitrogen inlet, a reflux condenser protected by a soda-lime tube, and a reflux condenser fitted with a dropping funnel protected by a soda-lime tube.
A second 3-l. three-necked flask (flask B) is fitted with a gas-tight modified Hershberg stirrer (Note 1), a gas inlet tube, and an appropriately designed gas outlet tube bearing a thermometer and connections leading to a soda-lime tube and an open-end mercury manometer. All rubber stoppers and connections are wired in place with 16-gauge copper wire.

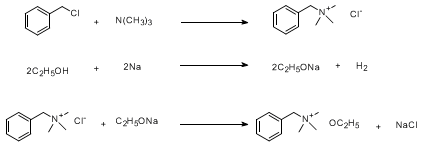

Sodium (69 g., 3 g. atoms) is introduced into flask A, which had been flushed previously with nitrogen (Note 2). Ethanol (1.2 kg.) (Note 3) is added at such a rate that a continuous reflux is maintained. After the sodium is completely dissolved, the solution is allowed to cool to room temperature. During this period the benzyltrimethylammonium chloride is prepared.
A solution of 379.5 g. (3 moles) of benzyl chloride (Note 4) dissolved in 750 g. of anhydrous ethanol (Note 3) is placed in flask B. The system is flushed with trimethylamine previously dried by passage through a soda-lime tower. The gas outlet is closed and connected to the manometer. Over a period of 80 minutes, 195 g. (3.3 moles) of trimethylamine (Note 5) is introduced with stirring. The reaction is exothermic and must be cooled to keep the temperature below 50°. After the amine addition is complete, the solution is kept at 50° under an amine pressure of 5 cm. of mercury above atmospheric pressure for 1 hour. The mixture is then cooled to room temperature under an amine atmosphere.
The inlet tube of flask B is replaced by a rubber stopper bearing a short glass outlet tube and a glass inlet tube which is connected to an appropriately designed glass siphon outlet tube extending to the bottom of flask A. Gentle suction applied to the outlet tube of flask B draws the ethoxide solution slowly into flask B. The benzyltrimethylammonium chloride solution is stirred throughout the addition of the sodium ethoxide. After the transfer of the sodium ethoxide is completed, the finely divided precipitate of sodium chloride is allowed to settle overnight. When the sodium chloride has completely settled, the stopper bearing the inlet and outlet tubes is replaced by a stopper bearing a 15-in. length of 19-mm. glass tubing which is attached in turn by a gum rubber connection to a clean, dry, 1-gal. bottle fitted with an inlet tube and an outlet tube protected by soda-lime. The bottle is flushed with nitrogen before use. The 15-in. tube is adjusted so that the bottom is approximately ½ in. above the level of the precipitated sodium chloride. With the open-end manometer sealed off by a screw clamp, nitrogen pressure is applied through the outlet tube of the flask until 1.7–1.9 kg. of supernatant liquor is forced from the flask into the bottle (Note 6). This solution contains 24–30% benzyltrimethylammonium ethoxide (2.1–2.7 moles), as determined by titration with 0.1N hydrochloric acid, using methyl red as indicator. This represents a yield of 70–90%. An additional 270–400 g. of solution is obtained by filtration of the residual mixture under nitrogen. To ensure rapid filtration, a filter aid, such as Filtercel (Note 7), must be employed. The filtrate contains 24–30% benzyltrimethylammonium ethoxide (0.3–0.7 mole). The total yield is 89–100%. The solutions are stored under nitrogen and refrigeration in bottles sealed with rubber stoppers which are wired in place (Note 8).
Three hundred and thirty-five grams of the 25% ethanolic solution of benzyltrimethylammonium ethoxide (0.43 mole) is placed under nitrogen in a 3-l. three-necked flask equipped with a gas inlet tube, a gas-tight modified Hershberg stirrer (Note 1), and a gas outlet tube fitted with a thermometer. All stoppers and rubber connections are wired in place with 16-gauge copper wire. There is obtained by evaporation at 40° (Note 9) under reduced pressure (Note 10) 97 g. (0.40 mole) of the ethoxide containing an equivalent of ethanol. The vacuum is broken with dry nitrogen.
2. Notes
1.
The stirrer is of the type designed by Hershberg,
2 but it has a single paddle of 16-gauge Nichrome wire.
2.
A bubble counter is employed for indicating
nitrogen flow.
3.
The water content of the
ethanol, determined by Karl Fischer analysis, is 0.02–0.10%.
4.
Benzyl chloride is redistilled before use. The fraction collected at 40–41° /6 mm. is used.
5.
The flask is disconnected periodically from the gas train and stirring mechanism for weighing.
6.
In small-scale preparations (approximately 0.5 mole) centrifugation of the total mixture is a convenient method for separation of the product from
sodium chloride.
7.
Filtercel is supplied by Johns-Manville Corporation.
8.
This method is more satisfactory than storage of the
benzyltrimethylammonium ethoxide monoethanolate. The excess
ethanol is removed as necessary.
9.
The temperature is maintained by surrounding the flask with a warm
water bath. Higher temperatures are not recommended because of the tendency of the quaternary
ammonium ethoxide to decompose.
10.
The bulk of the
ethanol was removed by using a
water pump (40–50 mm.) and collected in
1-l. and 200-ml. Dry Ice traps connected in series. The remaining
ethanol was removed by using an
oil pump protected with two
300-ml. Dry Ice traps.
3. Discussion
The procedure described is adapted from the preparation outlined by Meisenheimer.
3 The method has been applied by the authors to the preparation of
benzyltrimethylammonium methoxide,
dibenzyldimethylammonium methoxide,
bisisopropylbenzyltrimethylammonium methoxide and
benzyltriethylammonium ethoxide.
Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)
Methyl Red
ethanol (64-17-5)
hydrochloric acid (7647-01-0)
sodium chloride (7647-14-5)
nitrogen (7727-37-9)
mercury (7439-97-6)
sodium (13966-32-0)
sodium ethoxide (141-52-6)
benzyl chloride (100-44-7)
Trimethylamine (75-50-3)
Benzyltrimethylammonium ethoxide,
Ammonium, benzyltrimethyl-, ethoxide (27292-06-4)
benzyltrimethylammonium chloride (56-93-9)
benzyltrimethylammonium ethoxide monoethanolate
ammonium ethoxide
benzyltriethylammonium ethoxide
benzyltrimethylammonium methoxide (122-08-7)
dibenzyldimethylammonium methoxide
bisisopropylbenzyltrimethylammonium methoxide
