Org. Synth. 1952, 32, 45
DOI: 10.15227/orgsyn.032.0045
2,4-DIAMINO-6-HYDROXYPYRIMIDINE
[4-Pyrimidinol, 2,6-diamino-]
Submitted by J. A. VanAllan1
Checked by Cliff S. Hamilton and John D. Sculley.
1. Procedure

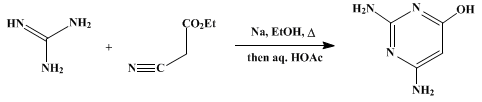

A solution of sodium ethoxide is prepared from 23 g. (1 g. atom) of sodium and 250 ml. of anhydrous ethanol in a 1-l. round-bottomed flask fitted with a reflux condenser carrying a calcium chloride drying tube. After the sodium has dissolved, the solution is cooled and 113 g. (1 mole) of ethyl cyanoacetate is added (Note 1). This mixture is allowed to stand while a second solution of sodium ethoxide of the same volume and concentration is prepared. To this solution is added 97 g. (1.02 moles) of guanidine hydrochloride. The sodium chloride is separated by filtration, and the clear filtrate containing guanidine is added to the solution of ethyl sodiocyanoacetate. This mixture is heated for 2 hours under reflux and is then evaporated to dryness at atmospheric pressure. The solid product is dissolved in 325 ml. of boiling water and acidified with 67 ml. of glacial acetic acid. Upon cooling of the solution, 101–103 g. (80–82%) of yellow needles separates; m.p. 260–270° (dec.) (Note 2).
2. Notes
1. Eastman Kodak Company white label grade of ethyl cyanoacetate was used by the checkers.
2. Analyses carried out by the checkers showed that the product is quite pure.
3. Discussion
This procedure is a modification of the method of Traube,2 which has been studied by Berezovskii and Strel'chunas.3 The reaction has been carried out in the presence of alkali or alkali earth hydroxides.4

References and Notes
  1. Eastman Kodak Company, Rochester, New York.
  2. Traube, Ber., 33, 1371 (1900); Ger. pat. 135,371 [Frdl., 6, 1192 (1900–1902)].
  3. Berezovskii and Strel'chunas, Trudy Vsesoyuz. Nauch. Issledovatel. Vitamin Inst., 5, 28 (1954) [C. A., 51, 7379 (1957)].
  4. Heinrich and Buth (to Wickhen Products Inc.), U. S. pat. 2,673,204 [C. A., 49, 1825 (1955)]; Sugino, Jap. pat. 2733 (1953) [C. A., 49, 2527 (1955)].

Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)

ethanol (64-17-5)

acetic acid (64-19-7)

sodium chloride (7647-14-5)

sodium (13966-32-0)

sodium ethoxide (141-52-6)

Ethyl cyanoacetate (105-56-6)

guanidine (113-00-8)

2,4-Diamino-6-hydroxypyrimidine,
4-Pyrimidinol, 2,6-diamino- (56-06-4)

guanidine hydrochloride (50-01-1)

ethyl sodiocyanoacetate
