Org. Synth. 1950, 30, 51
DOI: 10.15227/orgsyn.030.0051
HEXAHYDRO-1,3,5-TRIPROPIONYL-s-TRIAZINE
[s-Triazine, hexahydro-1,3,5-tripropionyl]
Submitted by W. O. Teeters and M. A. Gradsten
1.
Checked by Arthur C. Cope and Mark R. Kinter.
1. Procedure

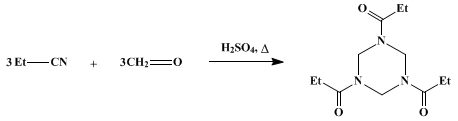

In a 3-l. three-necked flask equipped with a mechanical stirrer, a dropping funnel, a reflux condenser, and a thermometer are placed 110 g. (138 ml., 2 moles) of propionitrile (Note 1) and 8 g. (4.35 ml.) of concentrated sulfuric acid (sp. gr. 1.84). To the stirred mixture, which is heated to 90°, is added gradually a solution of 60 g. of trioxane (equivalent to 2 moles of formaldehyde) in 110 g. (138 ml., 2 moles) of propionitrile. During the addition the temperature of the reaction mixture is kept between 95° and 105° (Note 2). When the addition is complete (30 to 60 minutes) (Note 3) the reaction mixture is heated under reflux for an additional 3 hours, the internal temperature being kept at approximately 105°. The mixture is then allowed to cool to room temperature; during the cooling period the product crystallizes. The light-brown crystals are collected by filtration with suction on a Büchner funnel (Note 4). The solid (160 to 170 g.) is washed three times with 100-ml. portions of ether and air-dried. The crude yellow product (130 to 135 g., melting point between 164° and 170°) is recrystallized from 160 ml. of 90% ethanol. The product is collected on a Büchner funnel, washed on the funnel with 100 ml. of ether, and air-dried. In this way 105 to 115 g. (62 to 68%) of white crystals of hexahydro-1,3,5-tripropionyl-s-triazine melting at 170–172° is obtained (Note 5). Recrystallization from 95% ethanol (2.4 ml. per g.) results in 91% recovery of an analytically pure product, m.p. 173.2–174.1° (cor.).
2. Notes
1.
A
practical grade of propionitrile obtained from the Eastman Kodak Company was used.
2.
During the addition external heating may be discontinued and the internal temperature regulated by the rate of addition.
3.
The reaction mixture turns from light yellow to a reddish brown color during the addition.
4.
An appreciable amount of
propionitrile (100 to 110 g.) can be recovered from the filtrate. If subsequent batches of
hexahydro-1,3,5-tripropionyl-s-triazine are being prepared the filtrate can be added to the next charge without isolating the
propionitrile. To counteract the accumulation of impurities, activated
carbon may be used in the recrystallization of the reaction product.
5.
Another
35 to 50 g. of a less pure product (m.p.
160–165°) may be isolated by concentrating the mother liquor.
3. Discussion
A
hexahydro-1,3,5-triacyl-s-triazine was first prepared by Duden and Scharff
2 from
ammonium chloride,
formalin, and
benzoyl chloride or from
hexamethylenetetramine and
benzoyl chloride. Procedures similar to the one described
3,4 also have been used for the preparation of
hexahydro-1,3,5-triacetyl-, tri(β-chloropropionyl)-, triacrylyl-, trimethacrylyl-, and tribenzoyl-s-triazine. Several of these compounds also have been prepared by Wegler and Ballauf
5 from the corresponding nitriles and
paraformaldehyde in the presence of
acetic anhydride and
sulfuric acid.
Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)
hexahydro-1,3,5-triacyl-s-triazine
hexahydro-1,3,5-triacetyl-, tri(β-chloropropionyl)-, triacrylyl-, trimethacrylyl-, and tribenzoyl-s-triazine
ethanol (64-17-5)
sulfuric acid (7664-93-9)
ether (60-29-7)
acetic anhydride (108-24-7)
ammonium chloride (12125-02-9)
formaldehyde,
formalin (50-00-0)
carbon (7782-42-5)
benzoyl chloride (98-88-4)
hexamethylenetetramine (100-97-0)
propionitrile (107-12-0)
trioxane
Hexahydro-1,3,5-tripropionyl-s-triazine,
s-Triazine, hexahydro-1,3,5-tripropionyl (30805-19-7)
paraformaldehyde (30525-89-4)
