Org. Synth. 1967, 47, 14
DOI: 10.15227/orgsyn.047.0014
BIS(1,3-DIPHENYLIMIDAZOLIDINYLIDENE-2)
[Δ2,2'-Bis(1,3-diphenylimidazolidine)]
Submitted by H.-W. Wanzlick
1
Checked by D. J. LaFollette and Ronald Breslow.
1. Procedure

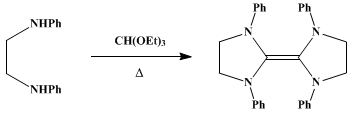

In a 250-ml. round-bottomed flask equipped with a gas-inlet tube and reflux condenser 20 g. (0.094 mole) of N,N'-diphenylethylenediamine (1,2-dianilinoethane) (Note 1) and 100 ml. of purified triethyl orthoformate (Note 2) are heated by an oil bath under nitrogen (Note 3) for 5 hours. The oil bath is maintained between 190° and 200°, and water is allowed to stand in the condenser. The water in the condenser begins to boil slowly, and the alcohol which is produced is allowed to escape (Note 4). The reaction product which crystallizes during the reaction is filtered after cooling and washed with ether. There is obtained 19–20 g. (91–95%) of product, m.p. 285° (dec.) (Note 5).
2. Notes
1.
1,2-Dianilinoethane, containing water of crystallization, is best dried by melting under vacuum.
2.
Commercial material, distilled.
3.
The
nitrogen is dried by passing it through concentrated
sulfuric acid. It must be nearly oxygen-free; otherwise
1,3-diphenylimidazolidinone-2 is formed, and its removal by recrystallization results in a decreased yield.
4.
An air condenser may also be employed.
5.
The melting range depends on the rate of decomposition during heating. The checkers observed that in an evacuated capillary there is darkening from 270° to 290°, and fairly sharp melting at
299–300°. The product is autoxidizable and is best stored under dry
nitrogen. Preparations which have oxidized on standing may be purified by digesting and washing with
methylene chloride.
Working with Hazardous Chemicals
The procedures in Organic Syntheses are intended for use only by persons with proper training in experimental organic chemistry. All hazardous materials should be handled using the standard procedures for work with chemicals described in references such as "Prudent Practices in the Laboratory" (The National Academies Press, Washington, D.C., 2011; the full text can be accessed free of charge at http://www.nap.edu/catalog.php?record_id=12654). All chemical waste should be disposed of in accordance with local regulations. For general guidelines for the management of chemical waste, see Chapter 8 of Prudent Practices.
In some articles in Organic Syntheses, chemical-specific hazards are highlighted in red "Caution Notes" within a procedure. It is important to recognize that the absence of a caution note does not imply that no significant hazards are associated with the chemicals involved in that procedure. Prior to performing a reaction, a thorough risk assessment should be carried out that includes a review of the potential hazards associated with each chemical and experimental operation on the scale that is planned for the procedure. Guidelines for carrying out a risk assessment and for analyzing the hazards associated with chemicals can be found in Chapter 4 of Prudent Practices.
The procedures described in Organic Syntheses are provided as published and are conducted at one's own risk. Organic Syntheses, Inc., its Editors, and its Board of Directors do not warrant or guarantee the safety of individuals using these procedures and hereby disclaim any liability for any injuries or damages claimed to have resulted from or related in any way to the procedures herein.
The paragraphs above were added in September, 2014. The statements above do not supersede any specific hazard caution notes and safety instructions included in the procedure.
3. Discussion
This amino olefin was first prepared by thermal elimination of
chloroform from
1,3-diphenyl-2-trichlormethylimidazolidine,
2 and later by the procedure described here.
3,4 It can also be made by treatment of
1,3-diphenylimidazolinium salts with strong bases.
5,6
4. Merits of the Preparation
The procedure described is the simplest one known. All other methods also employ 1,2-dianilinoethane as starting material. This method, however, converts it directly into the amino olefin in one step.
The preparative value of this compound lies in the surprising fact that
bis(1,3-diphenylimidazolidinylidene-2) behaves in many reactions (
e.g., with aromatic aldehydes,
2,7 and with carbon acids
2,7,8,9) as if it dissociated to form a "nucleophilic carbene." The hydrolytic cleavage of these derived imidazolidine derivatives makes possible the preparation of formyl compounds, so that the amino olefin can be considered as a potential carbonylation reagent. In many reactions it is not necessary to isolate the reagent, as it may be produced
in situ.
10 It should be pointed out, however, that the reaction of the amino olefin with aldehydes and carbon acids does not actually involve prior dissociation to the
carbene, but it is convenient, from a preparative point of view, to describe it in these terms.
6
This preparation is referenced from:
Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)
Bis(1,3-diphenylimidazolidinylidene-2)
Δ2,2'-Bis(1,3-diphenylimidazolidine)
sulfuric acid (7664-93-9)
ether (60-29-7)
chloroform (67-66-3)
nitrogen (7727-37-9)
triethyl orthoformate (122-51-0)
carbene (2465-56-7)
methylene chloride (75-09-2)
1,2-dianilinoethane,
N,N'-diphenylethylenediamine (150-61-8)
1,3-diphenylimidazolidinone-2
1,3-diphenyl-2-trichlormethylimidazolidine
1,3-diphenylimidazolinium
