Org. Synth. 1969, 49, 39
DOI: 10.15227/orgsyn.049.0039
trans-CYCLOOCTENE
Submitted by Arthur C. Cope
1 and Robert D. Bach
2.
Checked by A. DeMeijere and K. B. Wiberg.
1. Procedure

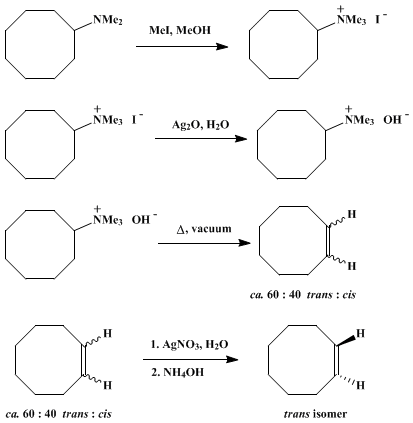

A. N,N,N-Trimethylcyclooctylammonium iodide. To a 2-l., three-necked, round-bottomed flask equipped with a stirrer, condenser, drying tube, and pressure-equalizing dropping funnel are added 155.3 g. (1 mole) of N,N-dimethylcyclooctylamine (Note 1) and 700 ml. of reagent grade methanol. To the stirred solution is added 170.3 g. (1.2 moles) of iodomethane (Note 2) dropwise over a 30-minute period. The flask is cooled intermittently with an ice bath to keep the reaction temperature at approximately 25° (Note 3). After 1 hour the bath is removed and the reaction mixture is allowed to stir at 25° for an additional 3 hours.
The light yellow solution is transferred to a 2-l. round-bottomed flask, and the solvent is removed under reduced pressure (Note 4) with slight warming. The solid product is triturated with 500 ml. of diethyl ether, filtered, and washed with three 200-ml. portions of diethyl ether. The white solid (291–296 g.) is dried under reduced pressure, m.p. 269–270° dec. (Note 5).
B. N,N,N-Trimethylcyclooctylammonium hydroxide. To a 1-l. round-bottomed flask equipped with a stirrer are added 100 g. (0.34 mole) of N,N,N-trimethylcyclooctylammonium iodide, 76 g. of silver oxide (Note 6), and 350 ml. of distilled water. The suspension is stirred at room temperature for 5 hours and is filtered through a Buchner funnel. The filter cake is washed with four 35-ml. portions of distilled water. The light yellow filtrate is transferred to a 1-l. round-bottomed flask and the volume is reduced to approximately 90 ml. employing a rotary evaporator and a 40° water bath. The viscous N,N,N-trimethylcyclooctylammonium hydroxide solution is transferred (Note 7) to a 200-ml. dropping funnel, with a pressure-equalizing side arm, for use in the next step in the synthesis (Note 8).
C. trans-Cyclooctene. A 500-ml., three-necked, round-bottomed flask is equipped with a nitrogen inlet capillary tube (Note 9), a short (10–20 cm.) unpacked column (Note 10), and a pressure-equalizing dropping funnel. The round-bottomed flask is connected by the unpacked column to a 100-ml. trap cooled in an ice bath. This trap is then connected to a 200-ml. trap cooled in dry ice-acetone (Note 11). The flask is heated in an oil bath to 110–125°, and the apparatus is evacuated to a pressure of ca. 10 mm. under a constant sweep of nitrogen. The hydroxide solution is added dropwise at approximately the rate of decomposition of the quaternary ammonium hydroxide (Note 12).
The combined distillates from the cold traps are allowed to come to room temperature (Note 13) and are placed in a 1-l. separatory funnel with 200 ml. of 5% hydrochloric acid solution. The mixture of cis- and trans-cyclooctenes (Note 14) is extracted with 200 ml. of n-pentane and subsequently with two 50-ml. portions of n-pentane. The n-pentane extracts are combined and washed with 170 ml. of 5% sodium bicarbonate solution.
To a 1-l. separatory funnel is added ca. 500 ml. of 20% aqueous silver nitrate solution (100 g. of Mallinckrodt C.P. crystals to ca. 500 ml. of water). The pentane solution is added to the separatory funnel in five approximately equal portions, with intermittent shaking until all the silver nitrate complex has gone into solution (Note 15).
The silver nitrate solution is extracted as described above with three portions of n-pentane to remove cis-cyclooctene (Note 16). The aqueous silver nitrate solution is added slowly to 300 ml. of concentrated ammonium hydroxide containing cracked ice. The hydrocarbon that separates is extracted with 300 ml. of n-pentane as described above and the pentane solution is dried over anhydrous magnesium sulfate and the pentane distilled through a 23 × 250 mm. column packed with glass beads.
The product is distilled under reduced pressure through a short (8 cm.) Vigreux column (Note 17) and has b.p. 75° (78 mm.), 44° (23 mm.), n25D = 1.4741, d425 = 0.8456. The yield of pure trans-cyclooctene is 15.0 – 15.3 g. (40%) (Note 18), (Note 19), (Note 20), (Note 21).
2. Notes
1.
Cyclooctylamine was purchased from Aldrich Chemical Co. It was converted to
N,N-dimethylcyclooctylamine in
74% yield using a procedure analogous to that for
β-phenylethyldimethylamine.
32.
Fischer reagent grade methanol and
Eastman Organic Chemicals iodomethane were used.
3.
The molar ratio of
iodomethane to
N,N-dimethylcyclooctylamine may be reduced if precautions are taken to prevent loss of
iodomethane due to vaporization.
4.
It is convenient to use a rotary evaporator for removal of the solvents.
5.
After one recrystallization from an
acetone-methanol mixture, the compound melts at
273–275° dec. The compound is sufficiently pure for the next step in the synthesis without recrystallization.
6.
Mallinckrodt purified silver oxide powder was used. The reaction flask should be protected from direct sunlight with a suitable wrapping.
7.
The flask may be rinsed with a minimum of water and transferred to the dropping funnel. The total volume of hydroxide solution at this point should not exceed 100 ml.
8.
The conversion of the quaternary ammonium iodide to the hydroxide may also be carried out using a strongly basic ion exchange resin.
49.
The decomposition should be carried out under a constant sweep of
nitrogen. The
nitrogen may be introduced through the pressure-equalizing dropping funnel if that is more convenient.
10.
The unpacked column should be wrapped with a heating tape, or Nichrome heating wire, and kept at
ca. 110° throughout the decomposition.
11.
The reaction is stopped and the trap, cooled in dry ice-acetone, is emptied when the reaction is
ca. one half finished to prevent plugging by ice. Most of the olefinic products are found in the first trap. The second trap contains mostly
trimethylamine and water.
12.
About 3 hours is required to add the hydroxide solution. The rate of addition may be increased, but considerable foaming occurs during the decomposition, and caution should be taken that the hydroxide does not foam over into the traps.
13.
This part of the experiment should be carried out in a
hood because
trimethylamine is evolved.
14.
The decomposition of
N,N,N-trimethylcyclooctylammonium hydroxide forms a mixture of
cis- and
trans-cyclooctenes which contains
ca. 60% of the
trans- and 40% of the
cis-isomer (see
(Note 19)). The mixture is separated by extraction of the
trans-isomer with aqueous
silver nitrate.
515.
If the
pentane solution is added to the
silver nitrate solution too rapidly, the
trans-cyclooctene forms a dark precipitate that is difficult to get into solution. This situation can, however, be remedied by the addition of more
silver nitrate solution and continued shaking.
16.
The
pentane is removed and
ca. 11 g. of
cis-cyclooctene is obtained on distillation, b.p.
65° (59 mm.);
n25D = 1.4684.
17.
Considerable foaming occurs during distillation of
trans-cyclooctene. The distillation may therefore be facilitated by use of a
distilling adapter with a foam trap. The distilling adapter (5225) may be purchased from Ace Glass Incorporated, Vineland, New Jersey. The bath temperature should be kept below 100° owing to the possibility of isomerization to
cis-olefin and polymerization.
6 The distillation should be carried out as rapidly as possible because the condensed product evaporates under prolonged exposure to reduced pressure.
18.
The submitters carried out this preparation on a 1.0-mole scale and obtained
49–51 g. (
45–46%) of
trans-cyclooctene.
19.
The purity of the
trans-cyclooctene may be determined by infrared spectroscopy
5 or by gas chromatography using an NMPN (
3-nitro-3-methylpimelonitrile) column.
7 A low injection port temperature is desirable (<200°).
20.
trans-Cyclooctene is stable for at least 1 year if kept under refrigeration and if a free radical inhibitor is used (
e.g. di-t-butyl-resorcinol). The compound has a very disagreeable odor.
21.
Since this procedure was submitted the submitter has found that higher overall yields of
trans-cyclooctene may be obtained from a stirred suspension of
trimethylcyclooctylammonium iodide in anhydrous
dimethyl sulfoxide using commercially available (sublimed)
potassium t-butoxide as the base at 25°. The
cis/trans ratio under these conditions is 1/4.6 (private communication from R. D. Bach).
3. Discussion
trans-Cyclooctene has been prepared by the Hofmann elimination of
N,N,N-trimethylcyclooctylammonium hydroxide,
5,8 the present method; by the treatment of
N,N,N-trimethylcyclooctylammonium bromide with
phenyllithium,
methyllithium, and
potassium amide:
9 and by the treatment of
trans-1,2-cyclooctene thiocarbonate with
triisooctyl phosphite.
10
This procedure illustrates a general method for preparing olefins by the elimination of an amine and a β-hydrogen atom.
11 The present method is more convenient for adaptation to large-scale laboratory preparation than is the Wittig modification, which utilizes liquid
ammonia; both methods give essentially the same overall yield of
trans-cyclooctene.
The preparation of olefins
via their thiocarbonate
10 is a stereo-specific elimination reaction which may be used to advantage when a mixture of
cis- and
trans-olefins is difficult to separate. However, all the reagents required to prepare the thiocarbonate are not readily available.
