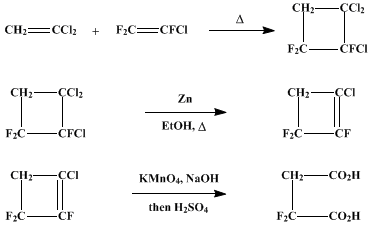

A. 1,1,2-Trichloro-2,3,3-trifluorocyclobutane. In a 1-l. rocker bomb are placed 350 g. (3.6 moles) of 1,1-dichloroethylene (Note 1) are 1 g. of hydroquinone. The bomb is cooled in a mixture of Dry Ice and acetone and evacuated. The vacuum is released with nitrogen and the bomb is again evacuated. The bomb is then charged with 300 g. (2.6 moles) of chlorotrifluoroethylene (Note 1) from a cylinder. The bomb is heated at 180° for 7 hours behind a barricade (Note 2) and is then cooled, vented, and unloaded. The solid polymer (about 45 g.) is removed by filtration and is rinsed with 50 ml. of ether. The combined filtrate and rinse are concentrated and then distilled through a 30-cm. packed column to give 242–262 g. (44–48%) of 1,1,2-trichloro-2,3,3-trifluorocyclobutane, b.p. 120–121°, n²⁵D 1.4139–1.4141.

B. 1-Chloro-2,3,3-trifluorocyclobutene. A 1-l. three-necked flask fitted with mercury-sealed stirrer, dropping funnel, reflux condenser, and heater is charged with 150 ml. of absolute ethyl alcohol and 76 g. (1 mole) of 95% zinc dust. The alcohol is heated to boiling, and 235 g. (1.1 moles) of 1,1,2-trichloro-2,3,3-trifluorocyclobutane is added through the dropping funnel during 40 minutes. After the reaction has started, external heating is decreased. The mixture is heated under reflux for 1 hour after the end of the addition. It is then cooled below reflux temperature, 15 g. (0.2 mole) more of zinc powder is added, and the heating under reflux is continued for 30 minutes more. The mixture is again cooled below reflux temperature, and a simple still head arranged for downward distillation is attached in place of the condenser. Distillation is carried out until 165 ml. of distillate has been collected. The still head reaches a temperature of about 90°. The distillate is washed with two 250-ml. portions of water and dried by shaking gently for 5 minutes with 5 g. of 8-mesh calcium chloride. The product is decanted from the calcium chloride and distilled through a 30-cm. packed column to give 107–113 g. (68–72%) of 1-chloro-2,3,3-trifluorocyclobutene, b.p. 52–53°, n²⁵D 1.3614–1.3619.

C. 2,2-Difluorosuccinic acid. In a 3-l. three-necked flask fitted with stirrer, thermometer, and dropping funnel, 80 g. (2 moles) of sodium hydroxide is dissolved in 2 l. of water and 158 g. (1 mole) of potassium permanganate is then added. The mixture is cooled to 15–20° with an ice-salt bath, and 107 g. (0.75 mole) of 1-chloro-2,3,3-trifluorocyclobutene is added through the dropping funnel during 1 hour while the permanganate solution is stirred and maintained at 15–20°. After the solution has been stirred for 2 hours more at this temperature, the manganese dioxide is removed by filtration and rinsed with three 300-ml. portions of water. The combined filtrate and washings are concentrated to a volume of 500 ml. by evaporation on a steam bath (Note 3). The solution is then cooled and 85 ml. of concentrated sulfuric acid is added slowly with stirring. The cold solution is extracted with four 250-ml. portions of ether (Note 4). Drying of the ether extract is accomplished by agitating it for 5 minutes with 30 g. of anhydrous magnesium sulfate. When the drying agent has been removed by filtration and rinsed with ether, the filtrate and the ether washings are combined and concentrated to give 91–97 g. (79–84%) of 2,2-difluorosuccinic acid. The acid is recrystallized by dissolving it in hot nitromethane (1.25 ml. per g.), filtering the solution through a layer of filter aid if necessary, and cooling the solution to 3°. The crystals are collected by suction filtration and rinsed with 30 ml. of cold nitromethane. After drying, this gives 85–92 g. (74–80%) of 2,2-difluorosuccinic acid, m.p. 144–146°.
