Org. Synth. 1962, 42, 57
DOI: 10.15227/orgsyn.042.0057
DIMESITYLMETHANE
[Methane, dimesityl-]
Submitted by John H. Cornell, Jr. and Morton H. Gollis
1.
Checked by William E. Parham and James Togeas.
1. Procedure

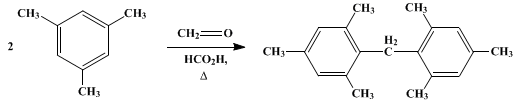

Into a 5-l. round-bottomed flask fitted with stirrer, thermometer, and reflux condenser are introduced 165 g. (5 moles) of 91% paraformaldehyde (Note 1) and 1250 g. (24 moles) of 88% formic acid (Note 2). The mixture is heated to 80° with stirring and is stirred until the paraformaldehyde has dissolved. To the stirred mixture is rapidly added 1.8 kg. (15 moles) of mesitylene and the whole heated under reflux for 6 hours (Note 3).
On cooling to room temperature, a large mass of dirty-yellow crystals separates. The liquid layers are decanted from the yellow solid, and the aqueous (lower) layer is separated and discarded. The solid is washed in the reaction flask by stirring with 500 ml. of benzene. This slurry of solid in benzene is filtered and the solid sucked dry on a Büchner funnel. This filtrate is combined with the upper organic layer from the original reaction mixture, and the combined benzene solution is washed with 500 ml. of water, 500 ml. of 2–3% aqueous sodium carbonate (Note 4), and 200 ml. of saturated sodium chloride solution. Benzene and water are removed from this solution by distillation at atmospheric pressure. The still residue is cooled to room temperature, and precipitated solid is removed by filtration and added to the large crop of solid from the original reaction mixture. The combined solids are washed twice with 300 ml. of water, once with 400 ml. of 2–3% aqueous sodium carbonate, and once with 300–400 ml. of water and sucked dry on a Büchner funnel.
The yield is 779 g. of crude dimesitylmethane (62% of theoretical) melting at 128.5–131°, uncor.; its purity as determined by vapor-phase chromatography is 99.9 mole per cent (Note 5).
2. Notes
1.
The checkers used
150 g. (5 moles) of paraformaldehyde obtained from Eastman Organic Chemicals.
2.
Contact with
formic acid and inhalation of its vapors should be avoided.
3.
When a smaller ratio of
mesitylene to
formaldehyde was used, a considerable amount of polymeric residue was formed and the yield was very much reduced.
4.
It is advisable to add the
sodium carbonate solution cautiously and with good agitation to avoid a violent evolution of
carbon dioxide.
5.
The crude product is pure enough for most purposes. However, for catalytic reduction to
bis(2,4,6-trimethylcyclohexyl)methane, the residual acid must be removed by dissolving the solid in hot
benzene and stirring or shaking with dilute aqueous
sodium carbonate solution until the washings are basic; this is followed by a water wash and drying.
The solid can be recrystallized from boiling
benzene and precipitated with about 0.15 part of boiling
methanol to give white platelets (
68%), m.p.
133–135°, plus a second, less pure crop (
22%) melting at
128–133°. Reported for
dimesitylmethane,
2 m.p.
134.4–135.4°, b.p.
212–213°/21 mm.
The reaction has been scaled up tenfold using a 50-l. flask without changes in procedure and in the same yield.
3. Discussion
Substituted diarylmethanes have been prepared from
formaldehyde and a variety of its derivatives.
Sulfuric acid is a common catalyst.
2,3 The procedure described is based on the general method of Gordon, May, and Lee.
4 Formic acid is preferable to
sulfuric acid as a catalyst because it is capable of acting as a solvent as well, thus eliminating troublesome emulsions. Side reactions such as sulfonation are avoided.
Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)
sulfuric acid (7664-93-9)
Benzene (71-43-2)
methanol (67-56-1)
formaldehyde (50-00-0)
sodium chloride (7647-14-5)
sodium carbonate (497-19-8)
formic acid (64-18-6)
carbon dioxide (124-38-9)
Mesitylene (108-67-8)
Dimesitylmethane,
Methane, dimesityl- (733-07-3)
bis(2,4,6-trimethylcyclohexyl)methane
paraformaldehyde (30525-89-4)
