Org. Synth. 1967, 47, 54
DOI: 10.15227/orgsyn.047.0054
2,6-DIMETHYL-3,5-DIPHENYL-4H-PYRAN-4-ONE
[4H-Pyran-4-one, 2,6-dimethyl-3,5-diphenyl-]
Submitted by Thomas L. Emmick and Robert L. Letsinger1.
Checked by Donald J. MacGregor and Peter Yates.
1. Procedure

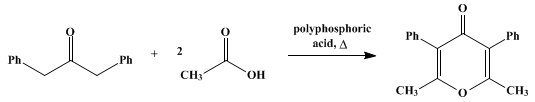

A mixture of 400 g. of polyphosphoric acid and 250 ml. of glacial acetic acid is heated to reflux in a 2-l. round-bottomed flask equipped with a stirrer, reflux condenser, and thermometer. Dibenzyl ketone (42.0 g., 0.200 mole) (Note 1) is then added, and the reaction mixture is heated at reflux (130–135°) for 1.5 hours. The solution is cooled to 30° in an ice water bath, and 1 l. of water is added slowly with stirring. The brown precipitate which forms is collected by filtration, washed with 1 l. of water, and dissolved in 1 l. of hot benzene. The hot benzene solution is treated with 2 g. of activated carbon, filtered hot through a pad of diatomaceous earth, dried with 10 g. of magnesium sulfate, decanted from the magnesium sulfate, and concentrated to 500 ml. On addition of 450 ml. of hexane and cooling to 5–10°, tan crystals of the crude pyranone separate. Filtration affords 25–27 g. (45–49%) of product melting at 202–206°. For purification this material is dissolved in 500 ml. of hot benzene, treated with 1 g. of activated carbon as before, and precipitated from solution by the addition of 250 ml. of hexane and cooling of the mixture to 5–10°. On filtration 19–21 g. (34–38%) of 2,6-dimethyl-3,5-diphenyl-4H-pyran-4-one is obtained. This material melts sharply at 207–209° (Note 2). An additional quantity (3–4 g., 5–7%) of somewhat less pure product (m.p. 204–206°) may be recovered by evaporation of the filtrate and recrystallization of the residue from 200 ml. of benzene-hexane (50% benzene by volume).
2. Notes
1. For this preparation Matheson, Coleman and Bell practical grade dibenzyl ketone was recrystallized once from anhydrous ether at −70°. It melted at 33–34°. Practical grade dibenzyl ketone may be used directly; however, the yield of the pyranone is somewhat lower.
2. The corrected melting point is 209.5–210.0°. Melting points were obtained with a Fisher-Johns apparatus. The recrystallized sample retained a pale tan shade.
3. Discussion
This procedure is a modification of that of Letsinger and Jamison.2 The pyranone has also been prepared by treatment of dibenzyl ketone with acetic anhydride-perchloric acid or acetyl chloride-aluminum chloride.3
4. Merits of the Preparation
This procedure represents a simple and unique route to certain pyran-4-ones. The reaction can be applied also to benzyl methyl ketone and diethyl ketone; the corresponding pyran-4-ones are obtained in yields of 48% and 26%, respectively.

References and Notes
  1. Northwestern University, Evanston, Illinois.
  2. R. L. Letsinger and J. D. Jamison, J. Am. Chem. Soc., 83, 193 (1961).
  3. A. T. Balaban, G. D. Mateescu, and C. D. Nenitzescu, Acad. Rep. Populare Romine, Studii Cercetari Chim., 9, 211 (1961) [C.A., 57, 15065 (1962)].

Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)

polyphosphoric acid

acetic acid (64-19-7)

Benzene (71-43-2)

ether (60-29-7)

carbon (7782-42-5)

benzyl methyl ketone (103-79-7)

magnesium sulfate (7487-88-9)

dibenzyl ketone (102-04-5)

diethyl ketone (96-22-0)

benzene-hexane (1077-16-3)

hexane (110-54-3)

2,6-Dimethyl-3,5-diphenyl-4H-pyran-4-one,
4H-Pyran-4-one, 2,6-dimethyl-3,5-diphenyl- (33731-54-3)

acetic anhydride-perchloric acid

acetyl chloride-aluminum chloride
