Org. Synth. 1962, 42, 62
DOI: 10.15227/orgsyn.042.0062
HEXAHYDROGALLIC ACID AND HEXAHYDROGALLIC ACID TRIACETATE
[Cyclohexanecarboxylic acid, 3,4,5-triol and triacetate]
Submitted by Albert W. Burgstahler and Zoe J. Bithos
1.
Checked by R. P. Lutz and John D. Roberts.
1. Procedure
A.

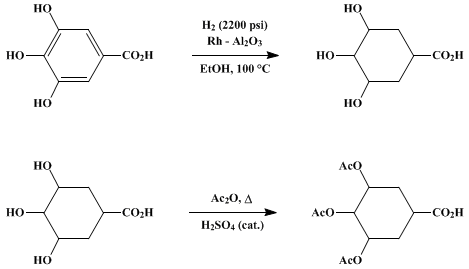

Hexahydrogallic acid. A solution of
50 g. (0.266 mole) of recrystallized gallic acid monohydrate (Note 1) in
225 ml. of 95% ethanol (Note 2) is placed in a
1-l. high-pressure hydrogenation bomb (Note 3) with
8 g. of 5% rhodium-alumina catalyst
(Note 4). The bomb is then closed,
hydrogen admitted at full tank pressure (2200 lb.,
(Note 5)), and the temperature raised to 90–100°
(Note 6) while agitation is commenced. When the
hydrogen uptake is complete (8–12 hours), heating is discontinued and the bomb is allowed to cool. The residual
hydrogen is bled off, and the contents of the bomb are rinsed out with two 40-ml. portions of warm distilled water and then heated to boiling on the
steam bath for 5 minutes to dissolve any product which has crystallized on the catalyst. After removal of the catalyst by suction filtration
(Note 7), the colorless filtrate
(Note 8) is concentrated on the steam bath under reduced pressure (preferably using a
rotary evaporator). The viscous residue which may have begun to deposit crystals is diluted with
75–100 ml. of ethyl acetate and the product allowed to crystallize at 0° for several hours or overnight. The product is collected on a
9-cm. Büchner funnel and washed with
75 ml. of cold 3:1 ethyl acetate-absolute ethanol and finally with
100 ml. of 30–40° petroleum ether. When dry, it weighs
21–24 g. (
45–51%); an additional
2–4 g. can usually be obtained by concentration of the mother liquors and crystallization from
ethyl acetate. Recrystallization is achieved by dissolution of the combined products in the minimum amount of boiling water
(Note 9), suction filtration if necessary to remove suspended matter
(Note 10), addition of hot
ethanol to bring the volume of the solution to about 110 ml., and finally addition of about
35 ml. of acetone, sufficient to produce a faint cloudiness. The solution is allowed to cool slowly to room temperature and is then stored at 0° overnight. The fine, colorless crystals are collected on a
7-cm. Büchner funnel and washed with
80 ml. of cold 5:3 absolute ethanol-acetone, then with
100 ml. of 30–40° petroleum ether. The product when dry weighs
18–20 g. (
38–43%). The yield may be increased somewhat by concentration of the combined mother liquor and washings, and treatment as before with
ethanol and
acetone. The melting point is not a useful criterion of purity, since the
hexahydrogallic acid decomposes on heating
(Note 11). The product is apparently substantially the all-
cis isomer.
2
B. Hexahydrogallic acid triacetate. A suspension of 10 g. (0.057 mole) of the dry, recrystallized hexahydrogallic acid in 40 ml. of acetic anhydride is treated with 1 drop of concentrated sulfuric acid, which initiates the reaction (Note 12). Most of the solid then goes into solution with some evolution of heat. The reaction is completed on a steam bath for 30 minutes. The acetic acid and most of the excess anhydride are then removed on the steam bath under reduced pressure with the aid of an oil pump. Twenty-five milliliters of water is added, and the mixture is shaken and heated on the steam bath for 10 minutes in order to hydrolyze residual acetic anhydride and the mixed anhydride of the product and acetic acid. Most of the solvent is then removed under reduced pressure on the steam bath; the product usually crystallizes during this process. About 15 ml. of water is added, and the mixture is heated on the steam bath until the solids dissolve. The solution is first allowed to cool slowly to room temperature and then stored at 0° for several hours to complete crystallization. The colorless crystals are collected, washed rapidly with 10–15 ml. of cold water, and dried at 60° or in a vacuum desiccator at room temperature. The yield is 15–17 g., m.p. 152–154°. The product may be recrystallized by dissolution in 25–30 ml. of hot acetone and addition of 50 ml. of 30–40° petroleum ether. The colorless crystalline granules are collected by suction filtration and washed with a small amount of 2:1 petroleum ether(30–40°)-acetone. The recrystallized product when dried amounts to 13.5–14.5 g. (78–84%), m.p. 155–156° (Note 13).
2. Notes
1.
Gallic acid is conveniently recrystallized from water (heated to boiling, then cooled to 0°) with treatment with decolorizing
carbon if necessary.
2.
Absolute alcohol leads to partial esterification of the product; a higher percentage of water deactivates the catalyst.
3.
A glass liner may be helpful in preventing poisoning of the catalyst. Stainless-steel vessels usually require one run to "condition" the surfaces before the reported yields can be obtained.
4.
The catalyst is available from Englehardt Industries, Inc., Chemical Division, Newark, New Jersey. The activity appears to vary slightly with different lots. Other catalysts, such as
palladium,
platinum, and
ruthenium on various supports, or Raney
nickel, were found to be much less satisfactory or completely ineffective.
5.
Pressures lower than 1800 lb. usually lead to incomplete reduction.
6.
Reduction is inconveniently slow at lower temperatures; temperatures higher than 125° tend to favor esterification and other by-product formation.
7.
The recovered catalyst (along with fresh catalyst) can be reused several times for further reductions.
8.
The
ferric chloride test is negative, and the filtrate remains colorless when hydrogenation is complete. A deep blue color (due to the presence of
gallic acid or dihydro products) appears when it is not, but the
hexahydro acid can usually be isolated in good yield in spite of this.
9.
A hot plate equipped with a
magnetic stirrer is especially convenient for this operation.
10.
Any excess water used to transfer the solution or to wash the filter must be evaporated; otherwise the recovery is smaller.
11.
Decomposition usually begins at about 190°, with melting at
198–200°. Melting points as high as 203–204° have been observed by the submitters and checkers. The purity of successively recrystallized products may be compared by immersing the samples enclosed in
capillary tubes of uniform dimensions in a melting-point bath maintained at a constant temperature of 200° and noting the times required for complete melting.
12.
Acetylation in
pyridine is comparatively less satisfactory and considerably more inconvenient.
13.
Using a Kofler melting-point block fitted with a
microscope, the checkers observed a crystal transition at about 140° with final, moderately sharp, melting at
157–158°.
3. Discussion
The all-
cis diasteroisomer of
hexahydrogallic acid has been prepared from
gallic acid in 13–19% over-all yield by a two-stage reduction, first with Raney
nickel in basic solution to form the somewhat difficultly isolated dihydro intermediate, and then with a
platinum catalyst to complete the reduction.
3 The present procedure is based on a published preparation.
2
The acetylation procedure described here is based on that which has already been published.
3
4. Merits of Preparation
The direct reduction of
gallic acid described here illustrates the virtue of the
rhodium-on-alumina catalyst to achieve the perhydrogenation of polyhydroxylated aromatic compounds with minimal attendant hydrogenolysis. A closely related hydrogenation, that of
pyrogallol, to yield a dihydro intermediate,
3 and also the direct reduction of
pyrogallol with
palladium-on-strontium carbonate to afford the all
cis-pyrogallitol (
1,2,3-cyclohexanetriol) have been reported.
4
Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)
petroleum ether
Cyclohexanecarboxylic acid, 3,4,5-triol and triacetate
rhodium-alumina
ethyl acetate-absolute ethanol
hexahydro acid
rhodium-on-alumina
palladium-on-strontium carbonate
ethanol (64-17-5)
sulfuric acid (7664-93-9)
acetic acid (64-19-7)
ethyl acetate (141-78-6)
acetic anhydride (108-24-7)
hydrogen (1333-74-0)
platinum (7440-06-4)
nickel (7440-02-0)
acetone (67-64-1)
carbon (7782-42-5)
pyridine (110-86-1)
palladium (7440-05-3)
ferric chloride (7705-08-0)
gallic acid (149-91-7)
pyrogallol (87-66-1)
HEXAHYDROGALLIC ACID (53796-39-7)
HEXAHYDROGALLIC ACID TRIACETATE (53796-40-0)
gallic acid monohydrate (5995-86-8)
ruthenium (7440-18-8)
1,2,3-cyclohexanetriol (6286-43-7)
cis-pyrogallitol
