Org. Synth. 1963, 43, 55
DOI: 10.15227/orgsyn.043.0055
2-HYDROXYTHIOPHENE
[Thiophene-2-ol and 2(5H)-thiophenone]
Submitted by C. Frisell and S.-O. Lawesson
1.
Checked by R. M. Scribner, C. G. McKay, and B. C. McKusick.

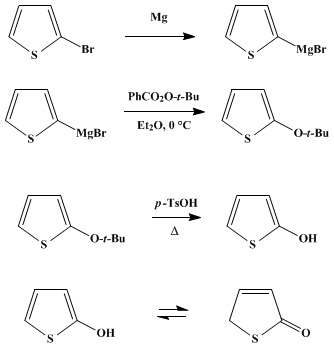

1. Procedure
A.
2-t-Butoxythiophene. A dry
1-l. three-necked flask is fitted with a
mechanical stirrer (Note 1), a
reflux condenser having a take-off attachment, and a
250-ml. dropping funnel with a pressure-equalizing side tube.
2 A
nitrogen-inlet tube is connected to the top of the condenser, and a T-tube branch of this is led to a
mercury valve. The latter consists of a U-tube the bend of which is just filled with
mercury.
Ten grams (0.41 g. atom) of magnesium turnings (Note 2) is placed in the flask and covered with 200 ml. of dry ether. Ten milliliters of a solution of 65.2 g. (0.40 mole) of 2-bromothiophene in 60 ml. of dry ether is added, the Grignard reaction is started by gently warming the reaction flask, and the remainder of the solution is added dropwise during 45 minutes. The mixture is stirred for 3.5 hours, the last 15 minutes under reflux. The Grignard reagent is cooled to 0–5° by immersing the flask in ice water. t-Butyl perbenzoate (62 g., 56 ml., 0.32 mole) (Note 3) in 100 ml. of dry ether is added dropwise during 45 minutes to the stirred ice-cooled mixture. The reaction mixture is stirred overnight, poured into ice water, and acidified with concentrated hydrochloric acid. The two phases are separated, and the water phase is twice extracted with ether. The combined ether solutions are extracted with three 60-ml. portions of 2N sodium hydroxide solution (Note 4), washed until neutral with water, dried over anhydrous sodium sulfate, and transferred to a distillation flask equipped with a Vigreux column. Caution! The ether extract should not be distilled unless a test shows that peroxides are absent (Note 5). The ether is distilled off at atmospheric pressure, and the residual oil is distilled under reduced pressure to give 35–38 g. (70–76%) of 2-t-butoxythiophene, b.p. 64–66°/13 mm., nD20 1.4991.
B. 2-Hydroxythiophene. The 2-t-butoxythiophene obtained in Step A is placed in a distillation flask equipped with a short Vigreux column and a capillary inlet for nitrogen, and 0.1 g. of p-toluenesulfonic acid is added. The apparatus is placed in an oil bath at 155°. Decomposition begins immediately. After 5–10 minutes the oil bath is removed, and the distillation assembly is connected to a water pump (Note 6). 2-Hydroxythiophene is distilled under reduced pressure, nitrogen gas being drawn through the capillary during the whole procedure (Note 7). 2-Hydroxythiophene is collected at 91–93°/13 mm.; yield 20–23 g. (89–94%); nD20 1.5613 (Note 8).
2. Notes
1.
Although a
mercury seal is preferable, a rubber tube lubricated with
glycerol is an adequate seal.
2.
Common laboratory
magnesium is as satisfactory as extremely pure sublimed
magnesium.
3.
t-Butyl perbenzoate is supplied by Lucidol Division, Wallace and Tiernan, Inc., Buffalo, New York, and Light and Co., Colnbrook, Bucks, England.
4.
Acidification of the basic solution gives
29–32 g. (
80–88%) of
benzoic acid if the reaction has proceeded properly.
5.
To make a peroxide test, place a few milligrams of
sodium iodide, a trace of
ferric chloride, and
2–3 ml. of glacial acetic acid in a test tube and carefully add
1–2 ml. of the ether solution. When unconsumed perbenzoate is present, a yellow ring is immediately formed between the two phases.
If this test indicates the presence of peroxide, the extract should not be concentrated and distilled until it has been extracted first with a solution of potassium iodide in acetic acid to remove peroxide and then with aqueous sodium thiosulfate to remove iodine.
6.
The decomposition is considered to be complete when the pressure is constant.
7.
2-Hydroxythiophene resinifies on prolonged exposure to air.
8.
It has recently been shown that
2-hydroxythiophene exists mainly as
2(5H)-thiophenone at room temperature.
3
3. Discussion
The procedure described is essentially that of Lawesson and Frisell.
4 2-Hydroxythiophene has been prepared in low yields by Hurd and Kreuz
5 from
2-thienylmagnesium bromide and
oxygen in the presence of excess
isopropylmagnesium bromide.
4. Merits of the Preparation
The first step of the procedure illustrates a general way of preparing aryl
t-butyl ethers.
4,6 The second step is the best way to prepare
2-hydroxythiophene, inasmuch as the yield is good and
t-butyl perbenzoate is a readily available perester that is relatively stable. The same procedure has been used to convert several other haloaromatic compounds to hydroxyaromatic compounds in good yield
4 and is probably quite general.
Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)
t-butyl perbenzoate
hydrochloric acid (7647-01-0)
acetic acid (64-19-7)
ether (60-29-7)
sodium hydroxide (1310-73-2)
glycerol (56-81-5)
magnesium,
magnesium turnings (7439-95-4)
sodium sulfate (7757-82-6)
oxygen (7782-44-7)
potassium iodide (7681-11-0)
sodium thiosulfate (7772-98-7)
nitrogen (7727-37-9)
Benzoic acid (65-85-0)
mercury (7439-97-6)
iodine (7553-56-2)
ferric chloride (7705-08-0)
sodium iodide (7681-82-5)
isopropylmagnesium bromide (920-39-8)
2-Bromothiophene (1003-09-4)
2-thienylmagnesium bromide
t-Butyl (1605-73-8)
2-Hydroxythiophene,
Thiophene-2-ol (17236-58-7)
2(5H)-thiophenone
p-toluenesulfonic acid (104-15-4)
2-t-butoxythiophene (23290-55-3)
