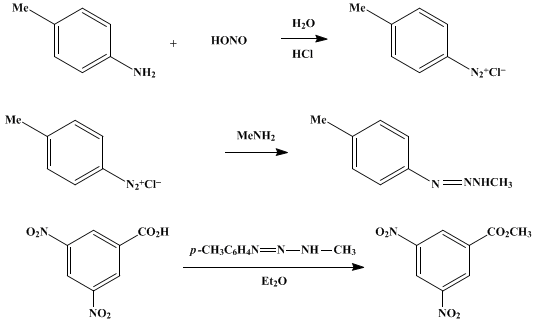

A. 1-Methyl-3-p-tolyltriazene. p-Toluidine (50.2 g., 0.47 mole) is added to a 2-l. flask equipped with a 200-ml. dropping funnel and an efficient stirrer, and the flask is immersed in an ice-salt bath at ca. −10°. A solution of 46.8 g. (0.55 mole) of potassium nitrite in 150 ml. of water is placed in the dropping funnel, and a mixture of 250 g. of crushed ice and 140 ml. of concentrated hydrochloric acid is added to the p-toluidine with stirring. The potassium nitrite solution is slowly added with continued stirring during 1–2 hours until a positive starch-potassium iodide test is obtained (Note 1), and the mixture is stirred for an additional hour to ensure the reaction of all the toluidine.

The solution of p-toluenediazonium chloride is then brought to pH 6.8–7.2 at 0° with cold, concentrated, aqueous sodium carbonate, whereupon the solution becomes red to orange in color and a small amount of red material settles out. The cold, neutral solution is transferred to a dropping funnel and added slowly to a vigorously stirred mixture of 150 g. of sodium carbonate, 300 ml. of 30–35% aqueous methylamine (Note 2), and 100 g. of crushed ice in a 3-l. flask. The reaction mixture is kept at ca. −10° during the addition, which requires about 45 minutes (Note 3). The solution is extracted with three 1-l. portions of ether. The ethereal extracts are dried with anhydrous sodium sulfate and evaporated on a rotary evaporator at room temperature to give 65 g. of crude 1-methy1-3-p-tolyltriazene (Note 4). This is placed in a water-cooled sublimer, and the triazene is sublimed at 50° (1 mm.) (Caution! See (Note 5)); 43.3 g. (0.29 mole, 62%) of a yellow, crystalline sublimate, m.p. 77–80°, is obtained (Note 6). The sublimate can be recrystallized from hexane to give the triazene as white needles, m.p. 80.5–81.5°. More conveniently, it is dissolved in the minimum amount of ether, and the solution is diluted with 2 volumes of hexane and cooled to 0° to give flat plates with a slightly yellow cast; m.p. 79–81°. The yield of pure triazene is 33–37 g. (47–53%) (Note 7).

B. Esterification of 3,5-dinitrobenzoic acid with 1-methyl-3-p-tolyltriazene (Note 8). A solution of 1-methyl-3-p-tolyltriazene (1.05 g., 7.0 mmoles) in 10 ml. of ether is placed in a 100-ml. flask equipped with a 100-ml. dropping funnel (Note 9). A solution of 1.50 g. (7.1 mmoles) of 3,5-dinitrobenzoic acid in 25 ml. of ether is placed in the dropping funnel and is slowly added to the triazene solution; the contents of the flask are gently swirled from time to time. During the addition, nitrogen is evolved, and the solution becomes red in color. After the nitrogen evolution has ceased (ca. 1 hour), the ethereal solution is transferred to a separatory funnel and washed with 5N hydrochloric acid to remove toluidine (Note 10). It is then washed with 5% aqueous sodium carbonate and dried over anhydrous sodium sulfate. Evaporation of the ether yields methyl 3,5-dinitrobenzoate (1.11–1.42 g., 70–90%) as light tan crystals, m.p. 106–107.5° (Note 11). Recrystallization from ether yields small, flat plates, m.p. 107–107.5°.
