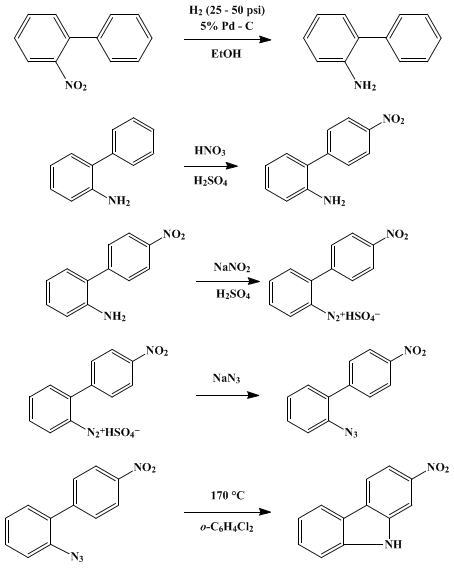

A. o-Aminobiphenyl. A Parr bottle is charged with 60 g. (0.30 mole) of o-nitrobiphenyl (Note 1), 3 g. of 5% palladium-on-carbon catalyst (Note 2), and 200 ml. of 95% ethanol. The mixture is shaken with hydrogen under 25–50 p.s.i. until the gas is no longer absorbed (about 70 minutes), the catalyst is filtered from the hot solution and washed with 20 ml. of ethanol, and the filtrates are poured in a thin stream into 1 l. of ice water contained in a 2-l. Erlenmeyer flask (Note 3). After standing for 20 minutes the white solid is filtered with suction, pressed to remove excess water, and allowed to dry in air. The yield of essentially pure o-aminobiphenyl is 48–51 g. (94–100%), m.p. 43–45.5°.

B. o-Amino-p'-nitrobiphenyl. Concentrated sulfuric acid (400 ml.) is placed in a 1-l. round-bottomed flask fitted with a mechanical stirrer and a thermometer. Stirring is begun, and 45.0 g. (0.27 mole) of powdered o-aminobiphenyl is added all at once through a powder funnel. When the amine has dissolved, the flask is placed in an ice-salt bath and its contents cooled to a temperature between 0° and −5°. A mixture of 30 ml. of concentrated sulfuric acid and 11.0 ml. of fuming nitric acid (density 1.5) is then added dropwise from a separatory funnel while the temperature is kept below 0°. The addition requires about an hour, and stirring is continued 45 minutes longer. The liquid is poured onto 1.5 kg. of ice in a 4-l. beaker and treated carefully until neutral with a solution of 580 g. (14.5 moles) of sodium hydroxide in 1.5 l. of water cooled to room temperature. The resultant hot suspension of product is allowed to cool nearly to room temperature, filtered with suction, and the orange solid is washed with 500 ml. of water. The crude material is pressed free of excess water and recrystallized from 850–1000 ml. of 95% ethanol (Note 4), giving 32–42 g. (56–74%) of orange needles, m.p. 156–158.5°.

C. o-Azido-p'-nitrobiphenyl. Water (100 ml.) is placed in a 1-l. round-bottomed flask equipped with a thermometer and an efficient mechanical stirrer. With stirring, 30 ml. of concentrated sulfuric acid is added, followed by 32.1 g. (0.15 mole) of recrystallized o-amino-p'-nitrobiphenyl. When all the amine has been converted to the white sulfate, 50 ml. more of water is added and the suspension is cooled to 0–5° in an ice-salt bath. A solution of 11 g. (0.16 mole) of sodium nitrite in 30 ml. of water is added dropwise over a period of 15 minutes (Note 5), and the mixture is stirred for 45 minutes longer. A thick precipitate of the sparingly soluble diazonium salt may have separated from the initially clear solution by this time. With strong stirring, a solution of 12 g. (0.17 mole) of sodium azide in 40 ml. of water is run in (Note 6), and stirring is continued for 40 minutes longer. The thick white solid is filtered with suction and washed with 200 ml. of water. After pressing free of excess water, the material is allowed to dry in air in a dark place. The yield of gray-white azide is 35.5–36 g. (99–100%), m.p. 91.5–92.5° (Note 7).

D. 2-Nitrocarbazole. In a 2-l. round-bottomed flask fitted with a mechanical stirrer, a thermometer, and a short air condenser are placed 35.5 g. (0.15 mole) of powdered o-azido-p'-nitrobiphenyl and 1 l. of o-dichlorobenzene (Note 8). The stirred mixture is heated above 170° for 1 hour by means of a heating mantle, allowed to cool to room temperature, and chilled in a refrigerator (5°) for several hours. The crude product is filtered with suction, washed with 40 ml. of light petroleum, and sucked dry on the filter. There results 26–28 g. of yellow-brown crystals, m.p. 171.5–174°. The filtrate is distilled under aspirator pressure to a volume of 150–200 ml. and chilled as before, to yield an additional 2–3 g., m.p. 171–174°. The total yield is 28–30 g. (89–96%). The combined crops are dissolved in 400–450 ml. of boiling 95% ethanol with 3–4 g. of Norit^® to remove impurities and filtered through a preheated Büchner funnel. The filtrate on cooling deposits bright yellow needles of product, which are filtered after standing at 5° for several hours. This crop weighs 23–25 g., m.p. 174–175.5°. Concentration of the mother liquor to a small volume (50–70 ml.) and chilling gives a second crop of lesser purity, 1–2 g., m.p. 172–175°. The total yield of recrystallized material is 24–26.5 g. (77–85%), and the overall yield from o-nitrobiphenyl is 40–63%.
