BENZOCYCLOPROPENE

[Bicyclo [4.1.0]hepta-1,3,5-triene]

Submitted by W. E. Billups¹, A. J. Blakeney, and W. Y. Chow¹.

Checked by Nobuo Nakamura and S. Masamune.

1. Procedure

Caution! Benzocyclopropene is characterized by an extremely unpleasant (foul) odor, and use of a good hood is recommended for the preparation.

A. 7,7-Dichlorobicyclo[4.1.0]hept-3-ene.² A 2-l., three-necked, round-bottomed flask is equipped with a sealed mechanical stirrer, a reflux condenser, and a pressure-equalizing dropping funnel. The system is flushed with nitrogen with a gas-inlet tube attached to the top of the condenser before 126 g. (1.123 moles) of potassium tert-butoxide (Note 1) and 1.2 l. of pentane are added. The stirred suspension is cooled to 0–5° with an ice bath and 90 g. (1.12 moles) of 1,4-cyclohexadiene (Note 2) is introduced rapidly through the dropping funnel; 135 g. (1.131 moles) of chloroform (Note 3) is then added dropwise over a period of 1.5–2 hours. The resulting mixture is stirred for an additional 30 minutes before 300 ml. of cold water is added to dissolve all of the precipitated salts. The organic phase is separated, and the aqueous phase is extracted with one 50-ml. portion of pentane. The extract is combined with the original pentane solution and dried over approximately 20 g. of anhydrous sodium sulfate. The solvent is removed on a rotary evaporator, and the product is distilled through a 15-cm. Vigreux column, giving 69–72 g. (38–39%) of 7,7-dichlorobicyclo[4.1.0]hept-3-ene, b.p. 50–51° (0.8 mm.) (Note 4).

B. Benzocyclopropene. A dry, three-necked, round-bottomed flask fitted with a sealed mechanical stirrer, a reflux condenser, and a pressure-equalizing dropping funnel is flushed with nitrogen and charged with 35.0 g (0.312 mole) of potassium tert-butoxide (Note 1), followed by 200 ml. of dimethyl sulfoxide (Note 5). The stirred mixture is cooled to 15–20° (Note 6) with an ice bath before 24.5 g. (0.154 mole) of 7,7-dichlorobicyclo[4.1.0]hept-3-ene is added over a 7-minute period. The bath is removed, the mixture stirred an additional 25 minutes, and the reaction quenched by first cooling the flask with an ice bath and then adding 180 ml. of ice water. The crude product is pumped directly into an acetone–dry ice cold trap through a glass vacuum take-off adapter. The tert-butyl alcohol and dimethyl sulfoxide are removed by washing the distillate once with 400 ml. of ice water (Note 7) and (Note 8). The benzocyclopropene that separates as the lower layer is distilled from 1 g. of anhydrous sodium sulfate, using the apparatus shown in Figure 1. This procedure gives 4.35–5.48 g. (32–41%) of almost pure benzocyclopropene (Note 9).

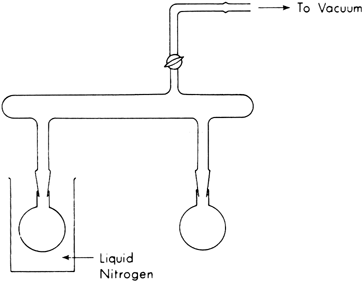

Figure 1.

2. Notes

1. Potassium tert-butoxide was used from a freshly opened bottle supplied by the MSA Research Corporation.

2. The checkers purchased 1,4-cyclohexadiene from Aldrich Chemical Company, Inc., and distilled it prior to use.

3. Reagent grade chloroform was used without removal of stabilizer.

4. The product was shown to be approximately 95% pure by GC analysis, using a 180 cm. × 0.24 cm. column packed with UCW-98 and heated to 130°.

5. Dimethyl sulfoxide (supplied by the Aldrich Chemical Company, Inc.) was dried by distilling over calcium hydride at 5 mm.

6. Care should be taken not to freeze the dimethyl sulfoxide.

7. On one occasion the checkers observed that the mixture formed an emulsion and that centrifugation facilitated the separation of the layers.

8. An alternative procedure is to extract the product into pentane.

9. The ¹H NMR spectrum shows that the product is approximately 95% pure. The major impurities are toluene and styrene. The product has the following spectral properties; IR (neat) cm.⁻¹: 1666, 1380, 1060, 735; ¹H NMR (CDCl₃), δ (number of protons): 3.17 (2H), 7.21 (4H); ¹³C NMR (CDCl₃ δ: 18.56, 115.07, 125.86, 129.15; UV (cyclohexane) nm. max. (log ε): 263 (3.88), 268 (3.96), 276 (3.90).

Working with Hazardous Chemicals

The procedures in Organic Syntheses are intended for use only by persons with proper training in experimental organic chemistry. All hazardous materials should be handled using the standard procedures for work with chemicals described in references such as "Prudent Practices in the Laboratory" (The National Academies Press, Washington, D.C., 2011; the full text can be accessed free of charge at http://www.nap.edu/catalog.php?record_id=12654). All chemical waste should be disposed of in accordance with local regulations. For general guidelines for the management of chemical waste, see Chapter 8 of Prudent Practices.

In some articles in Organic Syntheses, chemical-specific hazards are highlighted in red "Caution Notes" within a procedure. It is important to recognize that the absence of a caution note does not imply that no significant hazards are associated with the chemicals involved in that procedure. Prior to performing a reaction, a thorough risk assessment should be carried out that includes a review of the potential hazards associated with each chemical and experimental operation on the scale that is planned for the procedure. Guidelines for carrying out a risk assessment and for analyzing the hazards associated with chemicals can be found in Chapter 4 of Prudent Practices.

The procedures described in Organic Syntheses are provided as published and are conducted at one's own risk. Organic Syntheses, Inc., its Editors, and its Board of Directors do not warrant or guarantee the safety of individuals using these procedures and hereby disclaim any liability for any injuries or damages claimed to have resulted from or related in any way to the procedures herein.

The paragraphs above were added in September, 2014. The statements above do not supersede any specific hazard caution notes and safety instructions included in the procedure.

3. Discussion

Fusion of the smallest cycloalkene, cyclopropene, to benzene would be expected to result in accommodation of the aromatic sextet with consequent bond length alteration in the aromatic ring. Benzocyclopropene thus arouses theoretical interest, and the high strain energy (approximately 68 kcal./mole)³ associated with the compound suggests unusual chemical reactivity. Two review articles have appeared.⁴^,⁵

The first successful synthesis of benzocyclopropene was reported by Vogel and coworkers⁶ and is illustrated below. Though elegant, this method does require the prior, lengthy synthesis of the commercially unavailable 1,6-methano[10]annulene.⁷

The procedure described here⁸ is a convenient two-step reaction which relies on the base-induced elimination-isomerization reactions of gem-dichlorocyclopropanes.⁹^,¹⁰^,¹¹^,¹²^,¹³^,¹⁴^,¹⁵^,¹⁶ The reaction mechanism has been studied.¹⁷ The principal advantage of this method is the availability of reagents.
