(3S,4S)-3-AMINO-1-(3,4-DIMETHOXYBENZYL)-4-[(R)-2,2-DIMETHYL-1,3-DIOXOLAN-4-YL]-2-AZETIDINONE
[2-Azetidinone, 3-amino-1-[(3,4-dimethoxyphenyl)methyl]-4-(2,2-dimethyl-1,3-dioxolan-4-yl)-, [3S-[3a,4a(S*)]]-]
Submitted by Christian Hubschwerlen and Jean-Luc Specklin
1.
Checked by Julien G. Doyon and Leo A. Paquette.
1. Procedure

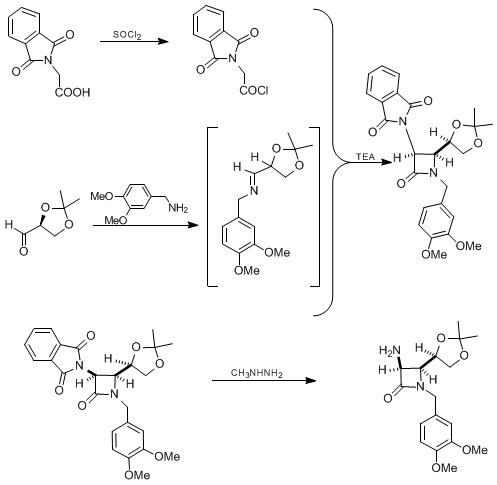

A. Phthalylglycyl chloride. Phthalylglycine (102.5 g, 0.5 mol; (Note 1)) is placed in a 750-mL, round-bottomed flask equipped with a Teflon-coated magnetic stirring bar and a reflux condenser (Note 2). Thionyl chloride (109 mL, 1.5 mol, (Note 3)) is added in one portion and the resulting suspension is stirred at reflux for 18 hr. The reaction mixture is cooled to room temperature before removing excess thionyl chloride under reduced pressure (Note 4). The residue is suspended in ether (100 mL, (Note 5)) and stirred for 1 hr at 0°C. The crystals are filtered by suction using a Büchner funnel (Note 6), washed with cold ether (50 mL), and dried under vacuum. Approximately 100 g of phthalylglycyl chloride (90% based on phthalylglycine) is obtained (Note 7).
B.
(3S,4S)-3-Amino-1-(3,4-dimethoxybenzyl)-4-[(R)-2,2-dimethyl-1,3-dioxolan-4-yl]-2-azetidinone. An aqueous solution of crude
L-(S)-glyceraldehyde acetonide2 (estimated content, 190 mmol) is placed in a
1000-mL, round-bottomed flask equipped with a Teflon-coated magnetic stirring bar (32 mm) and a
100-mL, pressure-equalizing dropping funnel that is connected to an
argon flow line.
Dichloromethane (200 mL, (Note 5)) is added to the aqueous solution and the
dropping funnel is charged with a solution of
3,4-dimethoxybenzylamine (31.1 g, 0.186 mol, (Note 8)) in
dichloromethane (50 mL). The flask is flushed with
argon and an
argon atmosphere is maintained throughout the entire reaction sequence until the final work up. The solution is vigorously stirred and cooled to 10°C with an
ice-water bath. The solution of
3,4-dimethoxybenzylamine is added dropwise over 5 min, the mixture is stirred for 20 min and then transferred into a
1000-mL separatory funnel. The organic phase is separated and the aqueous layer is extracted with
dichloromethane (2 × 100 mL). The combined organic layers are collected in a
1000-mL Erlenmeyer flask and dried over
magnesium sulfate under
argon. After the
magnesium sulfate is removed by filtration and thoroughly washed with three
100-mL portions of dichloromethane, the filtrate is placed in a
1000-mL, round-bottomed flask and concentrated to about 100 mL
(Note 9). The solution is transferred to a
500-mL, two-necked, round-bottomed flask equipped with a Teflon-coated magnetic stirring bar, a
thermometer, and a
250-mL, pressure-equalizing dropping funnel connected to an
argon flow line. The solution is cooled to 0°C (
ice-methanol bath) and treated with
triethylamine (33.5 mL, 0.24 mol, (Note 10)). The dropping funnel is filled with a solution of
phthalylglycyl chloride (41.5 g, 0.186 mol) in
dichloromethane (75 mL). This solution is added dropwise over 45 min. The reaction mixture is stirred for 1 hr at room temperature, then transferred to a
1000-mL separatory funnel before sequentially washing with water (2 × 200 mL), cold
2 N hydrochloric acid (100 mL), saturated, aqueous
sodium bicarbonate solution (100 mL), and
brine (100 mL). The organic phase is dried over a mixture of
magnesium sulfate and Fuller's earth (Fluka), filtered, and evaporated under reduced pressure. The resulting yellow syrup (
72 g, 0.154 mol,
82% from
3,4-dimethoxybenzylamine,
(Note 11)) is dissolved in
1,2-dichloroethane (200 mL, (Note 5)), treated with
N-methylhydrazine (8.9 mL, 0.170 mol, (Note 12)) and refluxed for 60–80 min. The resulting suspension is cooled to room temperature and filtered by suction using a Büchner funnel. The crystals are thoroughly washed with two
100-mL portions of 1,2-dichloroethane and discarded. The combined organic solutions are evaporated to a heavy syrup under reduced pressure. The residue is dissolved in
ethyl acetate (400 mL) and sequentially washed with water (2 × 150 mL) and aqueous
10% sodium chloride solution. The organic layer is dried over
magnesium sulfate, filtered by suction using a Büchner funnel and evaporated. The resulting crystals are recrystallized from
ethyl acetate/
hexane (2:1). Approximately
30–32 g of
(3S,4S)-3-amino-1-(3,4-dimethoxybenzyl)-4-[(R)-2,2-dimethyl-1,3-dioxolan-4-yl]-2-azetidinone are obtained (
49–52% from
3,4-dimethoxybenzylamine;
54% from
5,6-O-isopropylidene-L-gulono-1,4-lactone2) as pale yellow crystals, mp.
101–103°C (Note 13).
2. Notes
1.
Phthalylglycine was purchased from Fluka A.G and used without any purification.
2.
The gas released during the reaction should be vented through a
calcium chloride trap to the back of an
efficient hood.
3.
Thionyl chloride of technical grade was distilled prior to use.
4.
The submitters used the following conditions: rotatory evaporator;
water bath temperature, 60°C; pressure, 120 mm then 60 mm.
5.
Diethyl ether, dichloromethane, and dichloroethane puriss p.a. were used as purchased from Fluka A.G.6.
The submitters filtered the suspension under a stream of
argon.
7.
Phthalylglycyl chloride is a colorless powder. It can be stored for several weeks at room temperature in the absence of moisture and air, mp
85–87°C (lit.
3 85–86°C).
8.
3,4-Dimethoxybenzylamine was purchased from Aldrich Chemical Company, Inc., and used without any purification. It is air sensitive and decomposes on standing into a white solid (
3,4-dimethoxybenzoic acid). The success of the cycloaddition depends on having stoichiometric quantities of reagents. The quantity of
3,4-dimethoxybenzylamine added (less than one equivalent) is related to the average quantity of
glyceraldehyde acetonide present in the crude aqueous solution.
9.
The submitters used the following conditions: rotatory evaporator, water bath temperature, 35°C; pressure: 500 mm. The quality of the imine solution is determined in the following way: an aliquot of the
dichloromethane solution is further evaporated under reduced pressure and analyzed by
1H NMR (CDCl
3). The ratio of integral value (height in mm) of the signal of the imine proton at δ 7.8 ppm to the signal of the three aromatic protons at δ 6.85 ppm gives a fairly good idea of the course of the reaction. The presence of an excess of
3,4-dimethoxybenzylamine in the solution leads to the formation of an insoluble by-product resulting from the reaction of
3,4-dimethoxybenzylamine with
phthalimidoacetyl chloride. It renders the final purification more tedious.
10.
Triethylamine (puriss. p.a.) was purchased from Fluka A.G. and used without any purification.
11.
N-[(2R,3R)-cis-1-(3,4-Dimethoxybenzyl)-2-[(S)-2,2-dimethyl-1,3-dioxolan-4-yl]-4-oxo-3-azetidinyl]phthalimide can be purified at this stage by flash column chromatography (
dichloromethane/
ethyl acetate 9:1) but does not tend to crystallize. The
1H NMR spectrum is as follows (CDCl
3) δ: 1.23 and 1.35 (2 s, 2 × 3 H), 3.39 (dd, 1 H, J = 6.5, 8.5), 3.66 (dd, 1 H, J = 6.5, 8.5), 3.79 (dd, 1 H, J = 5, 9), 3.89 and 3.91 (2 s, 2 × 3 H), 4.32 and 4.81 (2 × d, 2 × 1 H, J = 15), 4.36 (dt, 1 H, J = 6.5 and 9), 5.30 (d, 1 H, J = 5), 6.82–6.93 (m, 3 H), 7.76–7.90 (m, 4 H).
12.
N-Methylhydrazine was purchased from Fluka and was used without any purification. All the operations should be carried out under a
well-vented hood since
N-methylhydrazine is a carcinogen.
13.
An analytically pure sample can be obtained after a further recrystallization from
ethyl acetate (mp
106–107°C). The
1H NMR spectrum is as follows (CDCl
3) δ: 1.36 and 1.45 (2 s, 2 × 3 H), 1.86 (broad s, 2 H), 3.53 (t, 1 H, J = 7.5), 3.70 (dd, 1 H, J = 6, 10), 3.87 (2 s, 2 × 3 H), 4.06 and 4.80 (2 d, 2 × 1 H, J = 18), 4.15–4.30 (m, 3 H), 6.80–6.82 (m, 3 H).
