Org. Synth. 1998, 75, 189
DOI: 10.15227/orgsyn.075.0189
6,7-DIHYDROCYCLOPENTA-1,3-DIOXIN-5(4H)-ONE
[
Cyclopenta-1,3-dioxin-5(4H)-one, 6,7-dihydro-
]
Submitted by Kwunmin Chen, Christopher S. Brook, and Amos B. Smith, III
1
.
Checked by Aimee Reed and Louis S. Hegedus.
1. Procedure
A 1-L, three-necked, round-bottomed flask equipped with a 2-cm magnetic stirring bar, rubber septum, 50-mL graduated addition funnel, and an argon inlet tube is charged with
10.0 g (0.1019 mol) of 1,3-cyclopentanedione
(Note 1),
55.0 g (0.6106 mol) of 1,3,5-trioxane
(Note 2),
5 g of activated, powered, 4 Å molecular sieves, and
500 mL of freshly distilled dichloromethane
(Note 3). The resultant suspension is stirred at room temperature and
37.6 mL (0.3057 mol) of boron trifluoride etherate
(Note 4) is added dropwise over 2 hr via the addition funnel (Note 5). After 48 hr, the reaction mixture is filtered through a pad of Celite and the yellow solid is washed twice with
100 mL of dichloromethane
. The filtrate is poured into a 3-L separatory funnel containing 500 g of ice and
1 L of saturated sodium bicarbonate
(Note 6). The aqueous phase is extracted with two
100-mL portions of dichloromethane
, and the combined organic solutions are washed with
500 mL of brine
, dried over
magnesium sulfate
, filtered, and concentrated under reduced pressure. Flash chromatography on
500 g of silica gel
(Note 7) with
hexane-acetone
(3 : 1) as eluant (Note 8) gives 10.3 g (72% yield) of 2 as a white crystalline solid (Note 9) and (Note 10).
2. Notes
1.
1,3-Cyclopentanedione (ca. 97%) is purchased from Aldrich Chemical Company, Inc.
, and used without purification.
2.
1,3,5-Trioxane (99+%) is purchased from Aldrich Chemical Company, Inc.
, and used without purification.
3.
Reagent-grade
dichloromethane
is distilled under
argon from
calcium hydride.
4.
The submitters use the purified,
redistilled grade of boron trifluoride etherate available from Aldrich Chemical Company, Inc.
5.
Upon initial addition of
boron trifluoride etherate, a slightly endothermic reaction takes place.
6.
CAUTION: A large amount of
carbon dioxide
is generated in this extraction and appropriate care should be taken.
7.
The crude residue is applied to the column head using a minimum of
dichloromethane. The submitters use
flash-grade (230-400 mesh) silica gel purchased from E. Merck and a column 10 cm in diameter. TLC values for
2 are R
f = 0.18 (
hexane :
acetone = 3 : 1) and for
3 (see
(Note 10)) are R
f = 0.08 (
hexane :
acetone = 3 : 1), employing Whatman K6F silica gel TLC plates 60 Å. In a typical purification, collecting 200-mL fractions,
2 would elute in fractions 9-18 and
3 in fractions 20-30. The checkers found that immediate purification of the crude residue was necessary. Yields decreased dramatically with time between isolation and purification. Furthermore, the activity (related to the degree of dehydration) of the silica gel greatly affected yields. Only half the amount of silica mentioned above was used by the checkers to get the reported yields. When the full amount was used, the yield decreased to 40-50%.
8.
Reagent-grade hexanes (Fisher Scientific Company) and
HPLC-grade
acetone (Baxter Diagnostics Inc.) were used without further purification.
9.
The product can be recrystallized from
hexane-
ethyl acetate (5:1): mp
73-75°C;
IR (CHCl
3) cm
−1: 3000 (m), 1690 (m), 1640 (s), 1430 (m), 1310 (m), 1180 (m), 1090 (br m), 910 (s), 890 (s)
;
1H NMR (CDCl
3, 500 MHz) δ: 2.36-2.38 (m, 2 H), 2.59-2.62 (m, 2 H), 4.44 (t, 2 H, J = 2.2), 5.20 (s, 2 H)
;
13C NMR (CDCl
3, 125 MHz) δ: 26.4, 32.6, 63.1, 92.7, 114.7, 181.9, 201.0
; high resolution mass spectrum (CI, NH
3) m/z 140.0482 (M
+; calcd for C
7H
8O
3: 140.0473). Anal. Calcd for C
7H
8O
3: C, 60.00; H, 5.75. Found: C, 60.19; H, 5.82.
10.
Further elution furnishes a small amount (
0.57 g,
2% yield) of crystalline
propellane
3: mp
178-180°C;
IR (CHCl
3) cm
−1: 3000 (m), 1760 (s), 1700 (m), 1650 (s), 1450 (s), 1400 (s), 1195 (m), 1165 (m), 970 (m)
;
1H NMR (500 MHz, CDCl
3) δ: 1.95-2.06 (m, 3 H), 2.33-2.38 (m, 1 H), 2.42-2.74 (m, 6 H), 3.28 (d, 1 H, J = 11.7), 4.21 (d, 1 H, J = 11.7), 4.80 (d, 1 H, J = 6.4), 4.82 (d, 1 H, J = 6.6)
;
13C NMR (125 MHz, CDCl
3) δ: 20.4, 25.9, 30.7, 33.3, 44.7, 64.7, 87.7, 106.8, 111.0, 180.7, 202.1, 210.2
; high resolution mass spectrum (CI, NH
3) m/z 250.0841 (M
+; calcd for C
13H
14O
5: 250.0836). Structure
3 is confirmed by single-crystal X-ray analysis.
Handling and Disposal of Hazardous Chemicals
The procedures in this article are intended for use only by persons with prior training in experimental organic chemistry. All hazardous materials should be handled using the standard procedures for work with chemicals described in references such as "Prudent Practices in the Laboratory" (The National Academies Press, Washington, D.C., 2011 www.nap.edu). All chemical waste should be disposed of in accordance with local regulations. For general guidelines for the management of chemical waste, see Chapter 8 of Prudent Practices.
These procedures must be conducted at one's own risk. Organic Syntheses, Inc., its Editors, and its Board of Directors do not warrant or guarantee the safety of individuals using these procedures and hereby disclaim any liability for any injuries or damages claimed to have resulted from or related in any way to the procedures herein.
3. Discussion
1,3-Dioxin vinylogous esters derived from cyclic 1,3-diketones (e.g.,
4) are valuable building blocks for the construction of natural and unnatural carbocyclic products.
2 In connection with a synthesis of plant-growth regulators, Crow and co-workers reported the preparation of substituted 1,3-dioxins
5-7 in 1982.

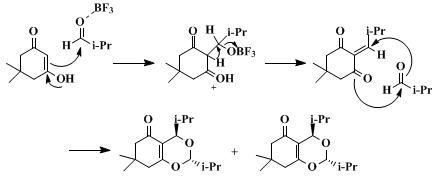

3 To account for their formation, Crow proposed a Prins mechanism whereby the enol of the 1,3-diketone adds to the BF
3-aldehyde complex (Scheme 1).
4 Incorporation of a second equivalent of aldehyde and cyclization then yields the
dioxin. Use of a slight excess of aldehyde (ca. 2.5-3.0 equiv) was recommended.
3
Scheme 1
A systematic investigation
5 demonstrated that this reaction could be successfully generalized by employing a larger excess of
1,3,5-trioxane (or
paraformaldehyde) and increasing the BF
3·Et
2O to
1,3,5-trioxane ratio. Presumably the latter results in more rapid breakdown of
1,3,5-trioxane to
formaldehyde and/or its BF
3 complex, analogous to the sulfuric acid-induced depolymerization of
paraformaldehyde.
6 Best results were obtained by using 6 equiv of
1,3,5-trioxane and 3 equiv of BF
3·Et
2O.
5
The synthetic usefulness of dioxin vinylogous esters as
β-keto vinyl cation equivalents was demonstrated by a variety of reductive and alkylative 1,3-carbonyl transpositions.
5,7 Regioselective alkylation and hydroxylation at the α'-position (and, in some cases, at the γ-position)
8,9 further extend the usefulness of 1,3-dioxin vinylogous ester templates in organic synthesis.
Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)
6,7-Dihydrocyclopenta-1,3-dioxin-5(4H)-one:
Cyclopenta-1,3-dioxin-5(4H)-one, 6,7-dihydro- (11);
(102306-78-5)
1,3-Cyclopentanedione (8,9);
(3859-41-4)
1,3,5-Trioxane (8,9);
(110-88-3)
4 Å Molecular sieves: Zeolites, 4 Å (10);
(70955-01-0)
Boron trifluoride etherate:
Ethyl ether, compd. with boron fluoride (BF3) (1:1) (8);
Ethane, 1,1'-oxybis-, compd. with trifluoroborane (1:1) (9);
(109-63-7)
