SYNTHESIS OF AMINOARENETHIOLATO-COPPER(I) COMPLEXES
Submitted by Elena Sperotto, Gerard P.M. van Klink, and Gerard van Koten
1.
Checked by Karla Bravo-Altamirano and Peter Wipf
2.
1. Procedure

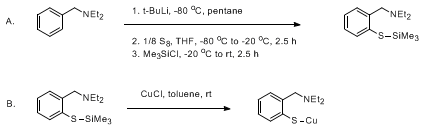

A. Diethyl(2-[(trimethylsilanyl)sulfanyl]benzyl)amine. A flame-dried, 250-mL Schlenk tube (Note 1), containing a magnetic stir bar, equipped with a rubber septum and a nitrogen inlet is charged with benzyldiethylamine (6.00 g, 36.7 mmol) (Note 2). The flask is cooled in a dry ice-acetone bath to −78 °C (temperature of the bath is checked with a thermometer, internal temperature is not monitored) (Note 3) and anhydrous, degassed pentane (80 mL) (Notes 4, 5) is added by syringe. A solution of t-butyllithium in pentane (1.7 M, 23.8 mL, 40.4 mmol, 1.1 equiv) (Note 6) is added dropwise by syringe over 5 min, and the reaction mixture is maintained at −78 °C for another 1.5 h. The mixture is slowly allowed to reach room temperature with stirring over 16 h. The solution is concentrated in vacuo at 0.01 mmHg. Cold anhydrous, degassed THF (70 mL at −78 °C, kept in a dry ice-acetone bath) (Notes 5, 7) is added by syringe to the Schlenk tube which is immersed in a cold bath at −78 °C. Sublimed sulfur (1.296 g, 40.43 mmol, 1.1 equiv) (Note 8) is added to the reaction flask by temporarily removing the septum (Note 9). The reation mixture is maintained at a bath temperature of −78 °C for 2 h, then the reaction mixture is allowed to slowly warm (by adding acetone to the cooling bath) to about −20 °C (temperature of the bath). Chlorotrimethylsilane (9.8 mL, 77.2 mmol, 2.1 equiv) (Note 10) is added over 1 min by syringe and the mixture is stirred for another 2 h while slowly warming up to room temperature. The solvent is then removed in vacuo at 0.01 mmHg and the residue is re-dissolved in anhydrous, degassed hexanes (50 mL) (Notes 4, 5). The solvent is then removed in vacuo at 0.01 mmHg, the residue is re-dissolved in hexanes (50 mL), and precipitation of LiCl is observed. The suspension is transferred to a flame-dried, 100-mL centrifuge vessel via cannula (Note 1), and is separated from the precipitated LiCl by centrifugation (7 min, 28,000 rpm). A suitable alternative to centrifugation is Schlenk filtration or any other technique that allows manipulation under inert atmosphere. Finally, the hexane supernatant is removed by cannula into a flame-dried, 100-mL Schlenk tube (Note 1). The solution is concentrated in vacuo at 0.01 mmHg to afford 9.32 g (95%) of the product as a yellow oil (Note 11).
B. 2-[(Diethylamino)methyl]benzene thiolato-copper(I). A flame-dried, 100-mL Schlenk tube (Note 1), containing a magnetic stir bar, is equipped with a rubber septum and a nitrogen inlet, and is charged with diethyl(2-[(trimethylsilanyl)sulfanyl]benzyl)amine (2.32 g, 8.69 mmol). Anhydrous, degassed toluene (20 mL) (Notes 5, 12) is added by syringe resulting in a yellow solution. A second flame-dried 100-mL Schlenk tube (Note 1), containing a magnetic stir bar, equipped with a rubber septum and a nitrogen inlet, is charged with CuCl (0.774 g, 7.82 mmol, 0.9 equiv) (Note 13) and anhydrous, degassed toluene (20 mL), to provide a white suspension. The thiolate solution is transferred by cannula to the suspension of CuCl and the mixture is stirred under nitrogen until the reaction mixture is clear and free from visible solids (Note 14). The solvent is removed at 0.01 mmHg, anhydrous, degassed hexanes (50 mL) (Notes 4, 5, 15) is added and the reaction mixture is vigorously stirred. The solution is transferred to a flame-dried, 100-mL centrifuge vessel (Note 1) by cannula and separated from the precipitate by centrifugation (7 min, 28,000 rpm). Finally, the hexanes solution is removed by cannula. The precipitate is dried in vacuo at 0.01 mmHg to give the product as a fine off-white powder (1.63 g, 6.32 mmol, 81%) (Note 16).
2. Notes
1.
The apparatus is first flame-dried under vacuum (using an inert gas manifold with a mercury bubbler) and once it cools to room temperature, it is placed under an atmosphere of nitrogen and carefully maintained under this atmosphere during the entire course of the reaction because the product is highly air and moisture sensitive.
2.
Benzyldiethylamine was purchased from TCI America at =98% purity and vacuum-distilled (60 °C, 2 mmHg) before use. The submitters purchased benzyldiethylamine from Acros Organics and used it as received.
3.
The submitters performed the reaction using a liquid nitrogen-ethanol bath at −80 °C.
4.
n-Pentane was purchased from Acros Organics at 99+% purity, and
hexanes (technical grade) was purchased from Fischer Scientific. Both solvents were distilled under nitrogen over calcium hydride before use. The submitters purchased pentane and hexane from Interchema and distilled them under nitrogen over sodium sand.
5.
All anhydrous solvents used in the procedure were freeze-thaw degassed (4 cycles) prior to use.
6.
t-Butyllithium (1.7 M in pentane) was used as received from Sigma Aldrich. The submitters obtained
t-butyllithium (1.5 M in pentane) from Acros Organics.
7.
THF was obtained from Alfa Aesar at 99+% purity and distilled under nitrogen over sodium benzophenone ketyl. The submitters purchased THF from Sigma Aldrich and distilled it under nitrogen over sodium sand.
8.
Sulfur (99.50%, sublimed) was purchased from Acros Organics and used as received. The submitters obtained sulfur from Sigma Aldrich (powder 100 mesh, sublimed) and used it as received.
9.
The sulfur is added in a single portion via the use of weighing paper. The submitters found it more convenient to add the sulfur in a small glass container, which is dropped into the reaction mixture.
10.
Chlorotrimethylsilane (TMSCl) was purchased from Sigma Aldrich at =99% purity, distilled under nitrogen from quinoline (TMSCl/quinoline, 9:1) (T = 57 °C) and stored over 4 Å molecular sieves. The submitters purchased TMSCl from Acros Organics, distilled it under nitrogen and stored it over activated 4 Å molecular sieves.
11.
The product displayed the following physicochemical properties:
1H NMR
pdf (400 MHz, C
6D
6) δ: 0.13 (s, 9H, SSi(C
H3)
3), 0.94 (t, 6 H,
J = 7.0 Hz, N(CH
2C
H3)
2), 2.44 (q, 4 H,
J = 7.0 Hz, N(C
H2CH
3)
2), 3.85 (s, 2 H, C
H2N), 6.92 (m, 1 H, Ar
H), 7.10 (m, 1 H, Ar
H), 7.44 (d, 1 H,
J = 7.40 Hz, Ar
H), 7.73 (d, 1 H,
J = 7.8 Hz, Ar
H);
13C NMR
pdf (100.5 MHz, C
6D
6) δ: 1.5 (SSi(
CH
3)
3), 12.9 (NCH
2CH
3)
2), 47.9 (N
CH
2CH
3)
2), 57.2 (
CH
2N), 127.1 (Aryl
C), 127.8, 130.3, 131.5, 136.9, 144.9. Because of the high air and moisture sensitivity of the compound, no elemental analysis or GC-MS analysis could be obtained. Preparation of NMR samples under a nitrogen atmosphere (NMR tube kept in a Schlenk tube during preparation) allows NMR analysis and determination of purity of the sample. The solvent C
6D
6 was distilled under nitrogen over calcium hydride at 80 °C, stored over activated 4 Å molecular sieves and freeze-thaw degassed prior to use.
12.
Toluene was obtained from Fischer Scientific (99.9%) and was distilled under nitrogen over sodium benzophenone ketyl. The submitters purchased toluene from Interchema and distilled it under nitrogen over sodium sand.
13.
CuCl was freshly prepared and kept under nitrogen according to the following procedure: To a preheated solution of
CuSO4·5H2O (99.9 g, 0.40 mol) and
NaCl (25.96 g, 0.40 mol, 1 equiv) in
400 mL of water at 65 °C (oil bath temperature) is slowly added over 1.5 h an aqueous solution of
NaOH (14.40 g, 0.36 mol, 0.9 equiv) and
NaHSO3 (22.89 g, 0.22 mol, 0.55 equiv). The mixture is stirred for 1 h and the temperature is kept between 65 and 70 °C. After being cooled, the reaction mixture is transferred under nitrogen onto a 250-mL Schlenk-type filter funnel (25-50 μm porosity) where the solid is washed with: an aqueous solution of acetic acid (1 mL in 1 L of water), an aqueous solution of NaHSO
3 (1 g in 1 L of water),
acetone (800 mL), technical diethyl ether (1 L), pre-dried (on KOH) diethyl ether (1 L) and dry diethyl ether (1 L).
Very important: always keep the solid under a layer of solvent, and never in contact with air! The resulting solid is then transferred into a pre-dried Schlenk tube and dried under vacuum, to afford copper(I) chloride as a white powder (31.7 g, 0.32 mol, 80%). This reagent must be stored under an atmosphere of nitrogen.
14.
The reaction time may vary from 2 to 4 h. Under a strictly air-free manifold, a suitable alternative is to allow the reaction to proceed overnight.
15.
Hexanes were used to remove all soluble impurities.
16.
The product is slightly air sensitive and is stored under a nitrogen atmosphere. The product displayed the following physicochemical properties:
1H NMR
pdf (400 MHz, C
6D
6) δ: 0.99 (t, 6 H,
J = 7.0 Hz, N(CH
2C
H3)
2), 2.44 (q, 4 H,
J = 6.3 Hz, N(C
H2CH
3)
2), 3.68 (br s, 2 H, C
H2N), 6.78 (d, 1 H,
J = 7.0 Hz, Ar
H), 6.88 (t, 1 H,
J = 7.0 Hz, Ar
H), 7.02 (t, 1 H,
J = 7.0 Hz, Ar
H), 7.91 (d, 1 H,
J = 7.4 Hz, Ar
H);
13C NMR
pdf (100.5 MHz, C
6D
6) δ: 11.4 (N(CH
2CH
3)
2), 49.9 (N(
CH
2CH
3)
2), 61.6 (
CH
2N), 124.0 (Aryl
C), 127.9, 132.7, 135.5, 136.4, 143.3; Anal. Calc. for C
11H
16CuNS: C, 51.24; H, 6.25; N, 5.43; Found: C, 50.57; H, 6.24; N, 5.33. Although the combustion data for carbon is outside the acceptable range, it is the best result obtained by the checkers.
Handling and Disposal of Hazardous Chemicals
The procedures in this article are intended for use only by persons with prior training in experimental organic chemistry. All hazardous materials should be handled using the standard procedures for work with chemicals described in references such as "Prudent Practices in the Laboratory" (The National Academies Press, Washington, D.C., 2011 www.nap.edu). All chemical waste should be disposed of in accordance with local regulations. For general guidelines for the management of chemical waste, see Chapter 8 of Prudent Practices.
These procedures must be conducted at one's own risk. Organic Syntheses, Inc., its Editors, and its Board of Directors do not warrant or guarantee the safety of individuals using these procedures and hereby disclaim any liability for any injuries or damages claimed to have resulted from or related in any way to the procedures herein.
3. Discussion
Copper(I)-mediated reactions have recently become the choice for large industrial scale applications, since copper is environmentally friendly and cheaper than other transition metals already explored. However, most organocopper compounds still present several limitations including the sensitivity towards moisture and air, the low solubility in organic solvents and the thermal instability. Many studies were performed trying to improve the activity and selectivity of copper-catalyzed reactions.
3One of the problems met with copper-catalyzed reactions is the solubility of the catalyst, which influences the catalytic activity and often requires the use of high temperatures and/or harsh reaction conditions. Improvements can be found, using additives or external ligands or solvents, which render the copper salts more soluble, allowing the use of milder reaction conditions.
4,5 An obvious solution to these problems is the synthesis of well-defined copper complexes, which are soluble in a broad range of solvents.
The procedure reported herein describes the synthesis of such a well-defined copper(I) complex in which a copper(I) cation is bonded to a monoanionic, potentially S,N-bidentate coordinating amino-thiolate ligand. The synthesis proceeds through a three-step procedure; the first step involves the heteroatom assisted ortho-lithiation of the arene to the corresponding organolithium compound. In the second step, the insertion of sulfur into the lithium-carbon bond of the aryllithium reagent affords the in situ preparation of the corresponding lithium arenethiolate. Subsequent reaction with chlorotrimethylsilane gives the trimethylsilyl-protected arenethioether, which then is reacted with CuCl in toluene to afford the desired copper(I) arenethiolate complex.
A set of modified complexes (Fig.1) can be synthesized by changing the diethylamino functionality for, i.e., dimethylamino, pyrrolidinyl, piperidinyl or morpholinyl substituents. Diverse substituents can be introduced directly onto the aromatic ring (i.e. TMS, t-Bu, CF3, OMe) and a naphthalene backbone can be used instead of a benzene unit.
These well-defined copper(I) complexes
6 exhibit good thermal stability and solubility in common organic solvents. In addition, electronic and physical properties can easily be fine tuned by introducing substituents at the arene ring or the amino-functionality.

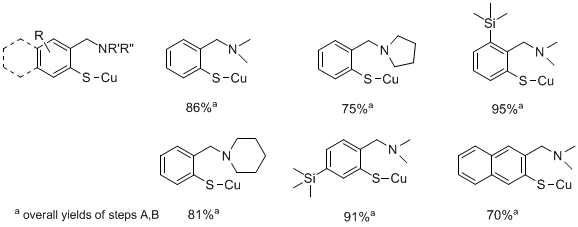

7Figure 1. Selected examples of copper(I) aminoarenethiolates.
Characterization of copper(I) aminoarenethiolates by NMR and X-ray crystal structure determination, both in solution and in the solid state, showed highly aggregated species (trimers, tetramers or even nonamers).
8 The molecular structure is generally based on a core comprising a six-membered cyclohexane-like Cu
3S
3 ring, with alternating copper and sulfur atoms. The sulfur atom of each of the arenethiolate ligands bridges two copper atoms while the trigonal coordination geometry at each copper atom is attained by intramolecular N-Cu coordination.
7These copper-aminoarenethiolates have already been tested as catalyst (precursors) in allylic substitution,
9 1,4-
10 and 1,6-
11 addition reactions, aromatic
N-
12 and
O-
13 arylation reactions, and have shown excellent catalytic properties (Figure 2).
Taking into account the actual performances and activities of these copper complexes, and their wide range of applicability, they can be considered as a useful and versatile tool in organic synthesis, and a valid soluble replacement of the common, insoluble copper(I) halide salts.

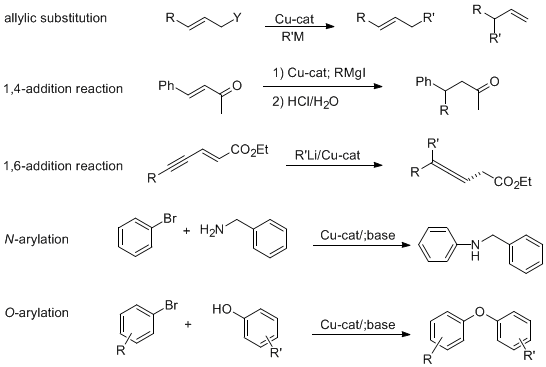

Figure 2. Application examples of aminoarenethiolato-copper(I) catalyzed reactions.
Appendix
Chemical Abstracts Nomenclature (Collective Index Number);
(Registry Number)
(Registry Number)
t-Butyllithium: (594-19-4)
Sulfur; (7704-34-9)
Trimethylsilyl chloride:
Silane, chlorotrimethyl-; (75-77-4)
Copper chloride:
Cuprous chloride; (7758-89-6)
 |
