BENZYL ISOPROPOXYMETHYL CARBAMATE - AN AMINOMETHYLATING REAGENT FOR MANNICH REACTIONS OF TITANIUM ENOLATES

Submitted by Hartmut Meyer¹, Albert K. Beck², Radovan Sebesta², and Dieter Seebach².

Checked by Scott E. Denmark and Tyler W. Wilson.

1. Procedure

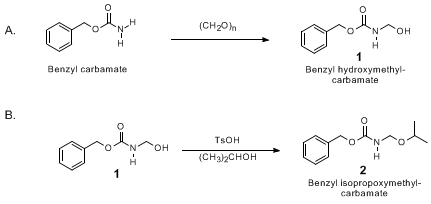

A. Benzyl hydroxymethyl carbamate (1). A 500-mL, four-necked, round-bottomed flask, fitted with a thermocouple, a reflux condenser, an adapter with a nitrogen inlet and an overhead mechanical stirrer (Note 1) is charged with benzyl carbamate (24.2 g, 0.16 mol) (Note 2) and dist. water (120 mL). Aqueous formaldehyde solution (37% in water, 30 mL, ca. 0.4 mol) (Note 3) and anhydrous potassium carbonate (0.44 g, 3.2 mmol) are added with stirring (400 rpm) at room temperature. The flask is then immersed into an oil bath, preheated to 65 °C, and the mixture is vigorously stirred until complete reaction has taken place (Note 4). The reaction flask is then transferred into an ice-water bath and vigorous stirring is continued until the product precipitates. After 2 h, water (120 mL) and anhydrous potassium carbonate (0.44 g, 3.2 mmol) are added, and the resulting mixture is stirred (600 rpm) at room temperature for 24 h until all of the product precipitates (Note 5). The solids are collected by suction filtration through a porcelain Büchner funnel (100 mm, Whatman #1, 90 mm), then are washed carefully with water (120 mL) and dried, first over night in air, then under vacuum (100 mmHg) at room temperature, to afford 20.1 g (69% of 1. This product is used without further purification (Note 6) in the next step.

B. Benzyl isopropoxymethyl carbamate (2). A 1-L, single-necked, round-bottomed flask fitted with a stir bar and nitrogen inlet is charged with benzyl hydroxymethyl carbamate (1) (19.6 g, 108 mmol), tert-butyl methyl ether (TBME, 200 mL) and isopropyl alcohol (50 mL). Next, p-toluenesulfonic acid hydrate (200 mg) (Note 7) is added to the solution and stirring is continued at room temperature for 24 h (Notes 8 and 9). Sodium hydrogen carbonate (2.0 g) and anhydrous magnesium sulfate (12 g) are added, and stirring is continued for another 2 h to remove the acid and the water formed. After removal of the solids by filtration through a glass-sintered Büchner funnel (45 mm, coarse) and washing the residue with TBME (50 mL), most of the solvent is removed from the filtrate under reduced pressure (Note 10). The crude product is purified by chromatographic filtration (Note 11) to give 23.5 g (97%) of 2 as a colorless solid (Notes 12 and 13).

2. Notes

1. The submitters reported using a 45 g rugby-ball-shaped stir bar. However, more reproducible results were found by employing a mechanical stirrer (7.6 cm Teflon paddle).

2. Benzyl carbamate is commercially available (Fluka Chemie AG) or can be easily prepared by modification of a literature procedure:³ A 2-L, three-necked round-bottomed flask fitted with an overhead stirrer, dropping funnel and a reflux condenser with a gas adapter is charged with conc. aqueous ammonium hydroxide solution (1 L). Under ice-bath cooling benzyl chlorocarbonate (200 mL, 1.42 mol) is added over a period of 30 min. Stirring is continued for 2 h, after which the precipitated product is filtered off, then is washed carefully with water (2 L) and dried in air for two days. The crude product thus obtained is dissolved, under slight warming, in ethyl acetate (600 mL). Anhydrous magnesium sulfate is added for drying, then is filtered off and part of the solvent (ca. 400 mL) is evaporated until precipitation ensues. Hexane (600 mL) is added to complete the precipitation, the solids are isolated to give 180.5 g (84%) benzyl carbamate. Checkers obtained benzyl carbamate from Sigma-Aldrich (99%) and it was used as received.

3. Aqueous formaldehyde solution (37 wt. % solution in water, ACS-grade) was obtained from Sigma-Aldrich and was used as received. The submitters used aqueous formaldehyde solution (36.5% stabilized with 10% methanol) obtained from Fluka Chemie AG.

4. At the beginning of the reaction the solid ester floats on the surface. After ca. 10 min, the mixture reaches a temperature of 45 °C, whereupon the solid material melts and the reaction begins. After 20 min, the internal temperature is 58 °C, and almost complete conversion occurs, as indicated by TLC. Benzyl carbamate R_f = 0.28, 1, R_f = 0.1 (silica gel, hexane/ethyl acetate, 3:2).

5. This protracted stirring is needed to cleave water soluble multi-addition products of formaldehyde. The yield of 1 increases from 45% (without this step) up to about 65%. The checkers noted that without mechanical stirring during this step a yield of 55% was typically obtained.

6. Higher purity product can be obtained by recrystallization: 56.0 g of compound 1 are dissolved, with warming, in 60 mL of ethyl acetate; 220 mL of hexane are added in portions. After being cooled to 5 °C (refrigerator), the product 1 is collected and washed with an ice-cold solution of hexane/ethyl acetate, 2:1 to give 50.2 g (90%) of 1. (Products containing up to 15% starting material from incomplete reaction may be effectively purified by adding only half the volume of hexane relative to the used ethyl acetate.) The checkers obtained an analytically pure sample by recrystallizing 1.0 g of 1 from 15 mL of hot tert-butyl methyl ether (TBME). Filtration and washing with cold TBME afforded 0.56 g of 1 as white needles (56% recovery). mp 87.5–88.5 °C; ¹H NMR pdf (500 MHz, CDCl₃, 70 mM) δ: 7.38-7.31 (m, 5 H), 5.9 (br s, 0.1 H) and 5.75 (br s, 0.8 H), 5.13 (s, 2H), 4.72 (br d, J = 6.6 Hz ), 3.16 (br s, 0.7 H) and 2.63 (br d, 0.05 H) equilibrium mixture of rotamers. ¹³C NMR pdf (125 MHz, CDCl₃, 470 mM) rotamers observed, δ for major rotamer: 156.8, 135.9, 128.5, 128.2, 128.0, 68.8, 67.0; minor signals observed δ: 66.9 and 65.9. IR (KBr) cm⁻¹: 3350, 3033, 2956, 2899, 1698, 1524, 1458, 1294, 1230, 1138, 1082, 1041, 973, 906, 747, 697; HRMS (ESI) m/z: calcd. for C₉H₁₁NO₃Na [M+Na]⁺, 204.0637; found [M+Na]⁺, 204.0636. Anal. Calcd for C₉H₁₁NO₃: C, 59.66; H, 6.12; N, 7.73. Found: C, 59.91; H, 6.32; N, 7.81.

7. Isopropyl alcohol (99.5%, ACS reagent), tert-butyl methyl ether (99%, ACS reagent), p-Toluenesulfonic acid monohydrate (98.5%, Reagent plus®) and sodium bicarbonate (99.7%, ACS reagent) were obtained from Sigma-Aldrich. Magnesium sulfate (certified anhydrous) was obtained from Fisher.

8. The reaction progress was monitored by TLC: 2, R_f = 0.40 (silica gel, hexane/ethyl acetate, 3:2)

9. If the reaction is not complete at this point, more p-toluenesulfonic acid hydrate (100 mg) is added and stirring at room temperature is continued for 24 h.

10. Rotary evaporation at 45 °C and 20 mmHg. The checkers noted that after removing ca. 85% of the solvent the product would precipitate. Redissolution prior to chromatography was then achieved by adding 10 mL of dichloromethane and heating the mixture to 40 °C.

11. A chromatography column (6 cm diameter) is prepared with a 6 cm high bed of silica gel (ca. 100 g) packed with TBME. The crude product is placed on the column as a concentrated solution in TBME (ca. 25 mL) and is eluted with the same solvent (1000 mL in 25-mL fractions). The product-containing fractions are combined, evaporated and dried under vacuum (100 mm Hg) at room temperature. An analytical sample was obtained after drying 0.5 g the product in an Abderhalden at 55 °C at 100 mmHg for 12 h.

12. The product has the following physicochemical properties: mp 71.5–72.0 °C; ¹H NMR pdf (500 MHz, CDCl₃) δ: 7.36-7.32 (m, 5 H), 5.51 (br s, 0.9 H) and 5.35 (br s, 0.1 H), 5.18 (br s, 0.2 H) and 5.13 (s, 1.8 H), 4.70 (d, J = 7 Hz, 1.8 H) and 4.63 (br s, 0.2 H), 3.8 (sept, J = 6.1 Hz, 0.9 Hz) and 3.7 (br s, 0.2 H), 1.17 (d, J = 6.1 Hz, 5.6 H) and 1.12 (br s, 0.8 H) equilibrium mixture of rotamers; ¹³C NMR pdf (125 MHz, CDCl₃) δ: 156.3, 136.2, 128.5, 128.2, 128.1, 70.1, 69.0, 66.9 22.3; IR (KBr) cm⁻¹: 3331 (br), 3066, 3028, 2967, 2926, 1718, 1522, 1458, 1374, 1312, 1240, 1176, 1126, 1096, 1042, 993 958, 754, 696; HRMS (ESI) m/z: calcd. for C₁₂H₁₇NO₃Na [M+Na]⁺, 246.1106; found {M+Na]⁺, 246.1100. Anal. Calcd. for C₁₂H₁₇NO₃: C, 64.55; H, 7.67; N, 6.27. Found: C, 64.56; H, 7.86; N, 6.37.

13. In contrast to the analogous, oily, methoxy-derivative 3 (see Discussion),⁴ the product 2 can be stored at room temperature for months without decomposition.

3. Discussion

Benzyl methoxy-carbamate (3) was first prepared in 1951 by oxidative electrochemical decarboxylation (Hofer-Moest-electrolysis) of N-benzyloxycarbonyl-glycine (4) in methanol,⁵^,⁶ a method which is also applicable to other amino acid derivatives^7–11 and to peptides.⁸^,^11–13

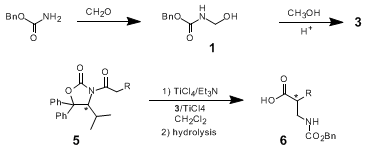

The use of carbamate 3 as a carbamidomethylating reagent for titanium enolates (Mannich reaction) was reported 46 years later.⁴ The authors of this report have prepared compound 3 by an alternative method, similar to that described herein: reaction of benzyl carbamate with formaldehyde to give the N-hydroxymethyl derivative 1 and acid-catalyzed methanolysis. Reagent 3 was employed extensively for the enantioselective preparation of β²-amino-acids¹⁴ of type 6, using the titanium enolates of N-acyl-5,5-diphenyl-4-isopropyl-1,3-oxazolidin-2-one (5, DIOZ derivatives)¹⁵ as nucleophiles^16–19 (cf. accompanying procedure).

The isopropoxy derivative 2 had not been reported before. This derivative has the practical advantage of being solid and stable on storage under exclusion of moisture at room temperature, whereas the methoxy derivative 3 is an oil and has to be stored in a deep freezer (−15 °C). Other preparative advantages of 2 over 3 are described in the accompanying procedure employing the benzyl isopropoxymethyl carbamate.

References and Notes

Fachbereich Chemie, Institut für Organische Chemie, Leibniz Universität Hannover, Schneiderberg 1B, D-30167 Hannover, Germany.
Departement für Chemie und Angewandte Biowissenschaften, Laboratorium für Organische Chemie, ETH-Hönggerberg HCI, Wolfgang-Pauli-Str. 10, CH-8093 Zürich, Switzerland
Carter, H. E.; Frank, R. L.; Johnston, H. W. Org. Synth., Coll. Vol. 3, 1955, 167-169.
Barnett, C. J.; Wilson, T. M.; Evans, D. A.; Somers, T. C. Tetrahedron Lett. 1997, 38, 735-738.
Linstead, R. P.; Shephard, B. R.; Weedon, B. C. L. J. Chem. Soc. 1951, 2854-2858.
Shono, S.; Matsumura, Y.; Tsubata, K. Nippon Kagku Kaishi 1984, 11, 1782-1787 (Chem. Abstr. 1985, 102, 61636h).
Renaud, P.; Seebach D. Synthesis 1986, 424-426.
Renaud, P.; Seebach, D. Angew. Chem. 1986, 98, 836-837; Angew. Chem. Int. Ed. 1986, 25, 843-844.
Renaud, P.; Seebach D. Helv. Chim. Acta 1986, 69, 1704-1710.
Stucky, G.; Seebach D. Chem. Ber. 1989, 122, 2365-2375.
Seebach, D.; Charczuk, R.; Gerber, C.; Renaud, P.; Berner, H.; Schneider, H. Helv. Chim. Acta 1989,72, 401-425.
Gerber, C.; Seebach D. Helv. Chim. Acta 1991, 74, 1373-1385.
Sommerfeld, T. L.; Seebach D. Angew. Chem. 1995, 107, 622-623; Angew. Chem. Int. Ed. Engl. 1995, 34, 553-554.
Hintermann, T.; Ph.D.-thesis ETH No. 12964, Zürich 1998.
Brenner, M.; La Vecchia, L.; Leutert, T.; Seebach D. Org. Synth. 2003, 80, 57-61.
Hintermann, T.; Seebach D. Helv. Chim. Acta 1998, 81, 2093-2126.
Seebach, D.; Schaeffer, L.; Gessier, F.; Bindschädler, P.; Jäger, C.; Josien, D.; Kopp, S.; Lelais, G.; Mahajan, Y.; Micuch, P.: Sebesta, R.; Schweizer, B. W. Helv. Chim. Acta 2003, 86, 1852-1861.
Kimmerlin, T.; Sebesta, R.; Campo, M. A.; Beck, A. K.; Seebach D. Tetrahedron 2004, 60, 7455-7506.
Gessier, F.; Schaeffer, L.; Kimmerlin, T.; Flögel, O.; Seebach, D. Helv. Chim. Acta 2005, 88, 2235-2250.
