THE DIRECT ACYL-ALKYLATION OF ARYNES
[PREPARATION OF METHYL 2-(2-ACETYLPHENYL)ACETATE]
Submitted by David C. Ebner, Uttam K. Tambar, and Brian M. Stoltz1.
Checked by Morten Storgaard, Nathan D. Ide, John A. Ragan, and Jonathan A. Ellman.
Discussion Addendum: Org. Synth. 2019, 96, 80
1. Procedure
Methyl 2-(2-acetylphenyl)acetate. An oven-dried (Note 1) 500-mL, three-necked, round-bottomed flask is equipped with a magnetic stir bar, and cesium fluoride (19.7 g, 130 mmol, 2.5 equiv) (Note 2) is added. The flask is fitted with a reflux condenser in the middle neck, an adaptor equipped with a thermometer in one of the side necks, and a septum in the other side neck. The condenser is equipped with a vacuum adaptor connected to a Schlenk line (nitrogen/vacuum manifold). The connected glassware is evacuated under high vacuum (0.025 mmHg) and carefully back-filled with nitrogen. This procedure is repeated twice to secure an oxygen-free atmosphere in the flask. Dry MeCN (260 mL) (Note 3) is added to the flask via a syringe through the septum. While stirring the reaction mixture, methyl acetoacetate (5.60 mL, 6.01 g, 51.8 mmol, 1.00 equiv) (Note 4) and 2-(trimethylsilyl)phenyl trifluoromethanesulfonate (15.7 mL, 19.3 g, 64.7 mmol, 1.25 equiv) (Note 5) are added through the septum via syringes. The flask is submerged in an oil bath (100 °C) and the reaction mixture is heated to reflux (internal temperature: 78-81 °C, reached after 15 min). The mixture is stirred at reflux temperature for 40 min (Note 6). Initially, the reaction mixture is a white opaque suspension, but during heating it changes color to yellow and upon reflux the color changes to orange. As the reaction progresses the opaque solution becomes transparent and the color changes back to yellow. Throughout the entire time a white precipitate is present in the flask. The reaction flask is removed from the oil bath and allowed to cool to ambient temperature (23 °C) over the course of 1 h. The flask is disconnected from the condenser and the nitrogen inlet, and the reaction mixture is diluted with saturated aqueous NaCl solution (200 mL) (Note 7). This mixture is carefully poured into a 1-L separatory funnel (Note 8). After the layers are separated, the aqueous layer is extracted with Et2O (3 × 200 mL) (Notes 9 and 10). The combined organic layers are dried over anhydrous Na2SO4 (Note 11) and filtered (Note 12). Concentration of the dried organic layers is effected by rotary evaporation (35 °C, 45 mmHg) which affords an orange, viscous oil. Partial purification is achieved by flash chromatography (4.5 × 24 cm, 170 g silica gel) (Note 13) using a gradient of hexanes to 40% Et2O in hexanes. The crude product is loaded on the column with benzene (20 mL) (Note 14). Fraction collection (50 mL fractions) is begun as the crude product is eluted first with 100 mL of hexanes (Note 15), followed by 1500 mL of 9:1 hexanes:Et2O, 2000 mL of 4:1 hexanes:Et2O, 1000 mL of 7:3 hexanes:Et2O and finally 750 mL of 3:2 hexanes:Et2O. Fractions 38-85 are concentrated by rotary evaporation (30-35 °C, 45 mmHg) to afford 7.96 g (80%) of a slightly yellow solid (Note 16). The partially purified product is further purified by bulb-to-bulb distillation (Note 17) at 124-130 °C (0.75 mmHg) (Note 18) which affords 6.63 g (67%) of the title compound as an off-white, crystalline solid (Notes 19, 20, 21, 22 and 23).
2. Notes
1. The glassware and magnetic stir bar are dried in an oven (150 °C) overnight before use and assembled while still hot and cooled to ambient temperature (23 °C) under high vacuum (0.025 mmHg).
2. Cesium fluoride (CsF) (99.9%) was purchased from the Sigma-Aldrich Chemical Company, Milwaukee, WI. The submitters used the reagent directly as received, but the checkers found that it may be important to dry CsF prior to use. The CsF is dried in a desiccator in high vacuum (0.025 mmHg) overnight at room temperature (23 °C) in the presence of P2O5.
3. The submitters used acetonitrile (MeCN) that was dried by passage through an activated alumina column under argon. The checkers used acetonitrile (HPLC grade, 0.2 micron filtered) from Fisher Scientific Chemicals that was distilled over CaH2 under nitrogen atmosphere prior to use.
4. Methyl acetoacetate (99%) was purchased from the Sigma-Aldrich Chemical Company, Milwaukee, WI. The reagent was used as received without further purification.
5. 2-(Trimethylsilyl)phenyl trifluoromethanesulfonate (97%) was purchased from the Sigma-Aldrich Chemical Company, Milwaukee, WI. The reagent was used as received without further purification. Submitters reported that the reagent can be prepared alternatively by a method of Peña and coworkers.2
6. The progress of the reaction is followed by thin-layer chromatography (TLC) analysis on E. Merck silica gel 60 F254 precoated plates (0.25 mm) (used by submitters) or Dynamic Adsorbents, Inc. glass plates coated with 250 mm F-254 silica gel (used by checkers) with 1:4 EtOAc:hexanes as the eluent. The plates are visualized by UV and p-anisaldehyde staining (0.5 mL p-anisaldehyde in 50 mL glacial acetic acid and 1 mL 97% H2SO4). The title compound and a side product identified as methyl 2-(2-acetylphenyl)-2-phenylacetate both have very similar Rf values; 0.43 and 0.53, respectively. Both compounds are visible in UV and with p-anisaldehyde staining. The title compound stains reddish brown and the side product stains pale brown. The completion of the reaction is determined by disappearance of 2-(trimethylsilyl)phenyl trifluoromethanesulfonate, which has a Rf = 0.91 visualized by UV. This starting material cannot be visualized with p-anisaldehyde staining. To clarify the disappearance, cross-spotting with pure 2-(trimethylsilyl)phenyl trifluoromethanesulfonate is used since many by-products are formed nearby the diagnostic spot.
7. Sodium chloride (NaCl), crystalline, was purchased from Fisher Scientific Chemicals.
8. The remaining solids in the flask are not transferred to the separatory funnel to avoid clogging of the stopcock. Instead, the solids are washed with the portions of Et2O before the solvent is transferred to the separatory funnel for extraction.
9. Ethyl ether (Et2O) anhydrous, stabilized, HPLC grade, was purchased from Fisher Scientific Chemicals and was used without further purification.
10. Extraction with Et2O forms a white, opaque emulsion that only slowly separates.
11. Sodium sulfate (Na2SO4) anhydrous, powder, was purchased from EMD Chemicals Inc.
12. Removal of the drying agent was carried out by using a Wilmad Labglass (60 mL, size M) sintered glass funnel by vacuum filtration.
13. The submitters used ICN silica gel (particle size 0.032-0.063 mm) and the checkers used silica gel 60 (0.040-0.063 mm), 230-400 mesh ASTM purchased from Merck KGaA.
14. Benzene was purchased from EMD Chemicals Inc.
15. Hexanes, HPLC grade, were purchased from Fisher Scientific.
16. Purification by flash chromatography gives a mixture of the title compound and a side product, methyl 2-(2-acetylphenyl)-2-phenylacetate,3 in an 87:13 ratio as determined by 1H NMR. This side product was obtained pure by the submitters using preparative thin-layer chromatography (3:2 hexanes:Et2O eluent) and exhibits the following spectroscopic properties: 1H NMR (300 MHz, CDCl3) δ: 2.56 (s, 3 H), 3.71 (s, 3 H), 5.76 (s, 1 H), 7.04-7.09 (m, 1 H), 7.18-7.25 (m, 2 H), 7.25-7.40 (m, 5 H), 7.73-7.77 (m, 1 H). 13C NMR (75 MHz, CDCl3) δ: 29.3, 52.2, 53.7, 127.0, 127.3, 128.7, 129.3, 129.6, 130.6, 131.8, 137.1, 138.1, 138.7, 173.3, 202.0. IR (thin film) υ 1735, 1681, 1254, 1201, 1161 cm-1. HRMS (EI+) calcd for [C17H16O3]+: m/z 268.1100, found 268.1105.
17. Bulb-to-bulb distillation was performed with a Büchi Glass Oven B-585 Kugelrohr by the submitters. The checkers used an oven from Aldrich with an internal thermometer installed. The temperature is controlled by a variable autotransformer from Staco Engery Products Co. model 3PN1010B (in: 120 V, 50/60 Hz, out: 0 - 140 V, 10 apm, 1.4 KVA). The bulbs are connected to a Trico-Folberth air pressure wiper and the entire instrument is connected to a mercury manometer from Kontes Scientific Glassware Instruments. The receiving bulb is cooled with an acetone/dry ice bath.
18. The submitters reported a boiling point at 159-165 °C (1.1 mmHg).
19. The yellow solid melts at 70-80 °C. When 100 °C is reached the receiving bulb is exchanged with a new one to avoid contamination with low-boiling impurities. Initially, the product distillate is a colorless oil, which solidifies as the distillation proceeds. The distillation stops when 59% of the title compound is recovered leaving a residue (2.00 g) containing a 50:50 mixture of the title compound and the side product. This residue is transferred from a 250-mL round-bottomed flask to a 50-mL round-bottom flask and is resubjected to distillation to afford an additional 762 mg (8%) of the title compound. The brown distillation residue (1.08 g) primarily contains the side product and contains less than 5 mol% of the title compound.
20. The title compound contains 2-3% of methyl 2-(2-acetylphenyl)-2-phenylacetate, as determined by 1H NMR.
21. The title product exhibits the following properties: mp 53-55 °C (lit.4 mp 57-59 °C). MS (ES+) m/z 193 (100%, M + H+). IR (neat) υ 3004, 2954, 1732, 1674, 1217, 1168 cm-1. 1H NMR pdf (400 MHz, CDCl3) δ: 2.54 (s, 3 H), 3.64 (s, 3 H), 3.91 (s, 2 H), 7.21 (d, J = 7.3 Hz, 1 H), 7.32 - 7.43 (m, 2 H), 7.78 (d, J = 7.6 Hz, 1 H). 13C NMR pdf (100 MHz, CDCl3) δ: 28.2, 39.6, 51.3, 127.0, 129.6, 131.6, 132.2, 133.9, 136.6, 171.4, 200.6. Anal. calcd for C11H12O3: C, 68.74; H, 6.29; found: C, 68.65; H, 6.55.
22. The submitters also suggest an alternative procedure for the final purification: After chromatography the material can be purified by crystallization. To 8.00 g of the yellow solid is added 1200 mL of pentane. The mixture is warmed to dissolve the solid. The yellow solution is allowed to cool to room temperature before cooling to -20 °C in a freezer. After 9 h, the off-white solid that has formed is collected by vacuum filtration through [CZ1][CZ2]a Büchner funnel. The solid is washed with cold pentane (2 × 25 mL) and dried under vacuum to afford 5.12 g (51% yield) of the title compound. This material contains 2.4% of the side product by 1H NMR. Attempts by the initial checkers (Ide and Ragan) to perform this recrystallization gave variable results, with one run providing pure material in modest yield (43%), and another run providing material still containing 12% of the side product (57% recovery). The checkers noted that the product crystals were very dense spheres that were firmly attached to the sides of the flask, suggesting that the material may have initially come out of solution as oil droplets adhered to the flask wall, and then subsequently crystallized. Regardless of the explanation, distillation appears to provide a more robust purification.[e3]
23. The checkers discovered that the pure product slowly decomposed upon storage at room temperature. It is therefore recommended to store it in the freezer below -18 °C.
Handling and Disposal of Hazardous Chemicals
The procedures in this article are intended for use only by persons with prior training in experimental organic chemistry. All hazardous materials should be handled using the standard procedures for work with chemicals described in references such as "Prudent Practices in the Laboratory" (The National Academies Press, Washington, D.C., 2011 www.nap.edu). All chemical waste should be disposed of in accordance with local regulations. For general guidelines for the management of chemical waste, see Chapter 8 of Prudent Practices.
These procedures must be conducted at one's own risk. Organic Syntheses, Inc., its Editors, and its Board of Directors do not warrant or guarantee the safety of individuals using these procedures and hereby disclaim any liability for any injuries or damages claimed to have resulted from or related in any way to the procedures herein.
3. Discussion
While arynes have historically received attention from physical organic chemists, their use as reagents in synthetic organic chemistry is limited because of the harsh conditions needed to generate arynes, and the uncontrolled reactivity exhibited by these species. We have developed the acyl-alkylation of arynes, which is a mild and direct aryne insertion into a carbon-carbon bond.5,6 With this reaction, two carbon-carbon bonds are formed in a single step, often with exquisite regiocontrol. The acyl-alkyation reaction is the net result of benzyne insertion into the α,β C-C single bond of the β-keto ester, presumably by a formal [2+2] cycloaddition/ fragmentation cascade.7

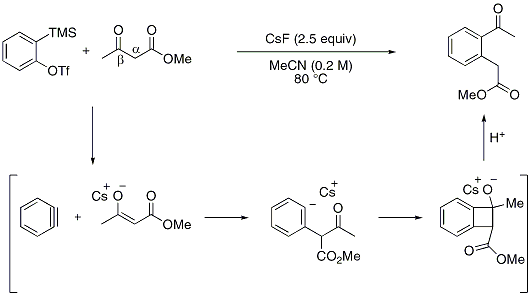

Scheme 1
