Pd(0)-CATALYZED DIAMINATION OF TRANS-1-PHENYL-1,3-BUTADIENE WITH DI-TERT-BUTYLDIAZIRIDINONE AS NITROGEN SOURCE

Submitted by Haifeng Du, Baoguo Zhao, and Yian Shi*¹.

Checked by Eric E. Buck and Peter Wipf².

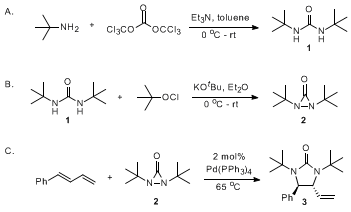

1. Procedure

A. Di-tert-butylurea (1). A 5-L Erlenmeyer flask equipped with a mechanical stirrer and an internal thermometer is charged with tert-butylamine (85.2 mL, 791 mmol, 6.6 equiv), triethylamine (127 mL, 900 mmol, 7.5 equiv), and toluene (2000 mL) (Note 1). The mixture is cooled to an internal temperature of 5 °C in an ice bath and triphosgene (36.3 g, 120 mmol, 1.0 equiv) (Note 2) is added in small portions over a period of 20 min (Note 3). The mixture is warmed to room temperature and stirred for 24 h. The reaction mixture is quenched with water (500 mL), transferred to a separatory funnel, and the aqueous phase is discarded. The organic layer is washed with water (4 × 500 mL) and the white solids are collected by suction filtration (water aspirator) (Note 4 and 5). The combined white solids are washed with water (2000 mL) (Note 6), and dried at 65 °C under vacuum (74 mmHg) for 12 h to give 49.7 g (80%) of di-tert-butylurea as a white solid (Notes 7 and 8).

B. Di-tert-butyldiaziridinone (2).³^,⁴ A 500-mL, one-necked, round-bottomed flask equipped with a Teflon-coated magnetic stir bar (length: 3.3 cm) and a rubber septum is charged with di-tert-butylurea (30.0 g, 174 mmol, 1.0 equiv) and Et₂O (200 mL) (Note 9). The reaction vessel is protected from light and tert-butyl-hypochlorite (20.8 g, 192 mmol, 1.1 equiv) (Note 10) is added to the slurry over a period of 10 min. The resulting pale yellow solution is stirred for an additional 30 min, cooled to 5 °C in an ice bath, and treated with potassium tert-butoxide (25.4 g, 226 mmol, 1.3 equiv) (Note 11) in small portions over a period of 20 min (Note 12). The resulting solution is warmed to room temperature and stirred for 5 h (Note 13). The reaction mixture is diluted with hexanes (200 mL), transferred to a 2-L separatory funnel, and washed with water (3 × 150 mL). The organic phase is dried over anhydrous K₂CO₃ (30.0 g) (Note 14) by stirring over 5 h, filtered, and concentrated by rotary evaporation (25 °C, 18 mmHg) (Note 15). The crude material is purified by fractional distillation under vacuum (7 mmHg) using a vigreux column (length 10.5 cm) fitted with a short path distillation head (Note 16). The oil bath temperature is gradually increased from 24 °C to 70 °C to give 22.6 g (76%) of di-tert-butyldiaziridinone as a colorless liquid (Notes 17, 18, 19, and 20).

C. trans-1,3-Di-tert-butyl-4-phenyl-5-vinyl-imidazolidin-2-one (3). A 25-mL, one-necked, round-bottomed flask equipped with a Teflon-coated magnetic stir bar (length: 1.3 cm) and a rubber septum is charged with freshly distilled (E)-1-phenyl-1,3-butadiene (2.60 g, 20.0 mmol, 1.0 equiv) (Note 21) and tetrakis(triphenylphosphine)palladium (0.462 g, 0.400 mmol, 0.02 equiv) (Notes 22 and 23). The flask is evacuated and back-filled with argon three times. The mixture is placed in a preheated (65 °C) oil bath and di-tert-butyl-diaziridinone (3.75 g, 22.0 mmol, 1.1 equiv) is added over 3 h via syringe pump (Note 24). The resulting red mixture is stirred for an additional 1 h (Note 13), cooled to room temperature, and diluted with 5 mL of a hexanes/Et₂O (5:1) solution. The solution is loaded onto a wet-packed silica gel column (305 g SiO₂, diameter: 6.5 cm, height: 22 cm, pretreated with hexanes/diethyl ether, 5:1 (Note 25). The product is eluted with hexanes/diethyl ether, 5:1) to give 5.78 g (96%) of trans-1,3-di-tert-butyl-4-phenyl-5-vinyl-imidazolidin-2-one as a yellow oil (Notes 26 and 27).

2. Notes

1. tert-Butylamine (98%, Alfa Aesar), triethylamine (99%, Fisher Chemicals), and toluene (99.9%, Fisher Chemicals, ACS grade) were used as received.

2. Triphosgene (98%) was purchased from Alfa Aesar and used as received.

3. The addition was carried out at such a rate that an internal temperature of 15 °C was not exceeded.

4. The solids are suspended in the organic phase.

5. The filtrate was concentrated to give an additional 2.35 g of di-tert-butylurea.

6. It is imperative to wash the solids extensively with water to remove any residual Et₃N·HCl, which may decrease the yield for the subsequent step.

7. Working at 50% scale, the checkers obtained 23.1 g (76%).

8. The product has the following physicochemical properties: White solid, mp 245-246 °C; ¹H NMR pdf (300 MHz, DMSO-d₆) δ: 1.18 (s, 18H), 5.45 (s, 2H); ¹³C NMR pdf (75 MHz, DMSO-d₆) δ: 29.3, 48.8, 157.0; IR (ATR) 3349, 1633 cm^-1; MS (EI+) m/z 172 (M⁺, 26), 157 (67), 57 (100); HRMS (EI+) m/z calcd for C₉H₂₀N₂O 172.1576, found 172.1569; Anal. Calcd for C₉H₂₀N₂O C, 62.75; H, 11.70; N, 16.26; Found C, 63.02; H, 11.94; N, 16.16.

9. Diethyl ether (ACS grade) was purchased from Fisher Chemicals and dried by distillation over sodium/benzophenone under an argon atmosphere.

10. tert-Butyl hypochlorite was prepared according to a literature procedure: Teeter, H. M.; Bell, E. W. Org. Synth. 1952, 32, 20.

11. Solid potassium tert-butoxide (97%) was purchased from Alfa Aesar and used as received.

12. Upon complete addition the reaction vessel does not need to be protected from light.

13. The progress of the reaction can be monitored by ¹H NMR analysis of aliquots taken directly from the reaction mixture.

14. Anhydrous K₂CO₃ (ACS grade) was purchased from Fisher Chemicals and used as received.

15. The tert-butanol generated in the reaction should be completely removed to prevent interference with the subsequent distillation.

16. The dimensions of the distillation head are as follows. Single piece construction with inlet for vacuum/inert gas, 10/18 thermometer joint on top, 14/20 joints for distillation and collection flasks, approx. 35 mm length of condenser × 65 mm height (head).

17. Di-tert-butyldiaziridinone is collected at 47-49 °C (7 mmHg) and stored away from light.

18. The submitters reported a bp of di-tert-butyldiaziridinone of 60-64 °C (7 mmHg).

19. Working at 50% scale, the checkers obtained 11.1 g (75%).

20. The product has the following physicochemical properties: bp 47-49 °C /7 mmHg; ¹H NMR pdf (300 MHz, benzene-d₆) δ: 1.07 (s, 18 H); ¹³C NMR pdf (75 MHz, benzene-d₆) δ: 27.2, 59.3, 159.3; IR (ATR) 1929, 1875, 1856 cm^-1; MS (EI+) m/z 170 (M⁺, 5), 157 (67), 131 (15), 84 (40), 57 (100); HRMS (EI+) m/z calcd for C₉H₁₈N₂O 170.1419, found 170.1420; Anal. Calcd for C₉H₁₈N₂O C, 63.49; H, 10.66; N, 16.45; Found C, 63.61; H, 10.79; N, 16.17.

21. (E)-1-Phenyl-1,3-butadiene was prepared according to a literature procedure: Grummitt, O.; Becker, E. I. Org. Synth. 1950, 30, 75; or Wittig, G.; Schoellkopf, U. Org. Synth. 1960, 40, 66. Similar results were obtained for step C using the diene prepared from either protocol.

22. Tetrakis(triphenylphosphine)palladium (9% min. palladium) was purchased from Pressure Chemical Co. and used as received.

23. Reaction is performed neat.

24. The submitters added di-tert-butyl-diaziridinone via a 10-mL addition funnel. The checkers observed more consistent results using a syringe pump.

25. Silica gel 40-63 D (60 Å) (Silicycle, Quebec City, Canada) was used.

26. Working at 50% scale, the checkers obtained 2.86 g (95%).

27. The product has the following physicochemical properties: ¹H NMR pdf (300 MHz, benzene-d₆) δ: 1.36 (s, 9 H), 1.39 (s, 9 H), 3.55 (dm, J = 8.4 Hz, 1 H), 4.05 (d, J = 1.2 Hz, 1 H), 4.86 - 4.95 (m, 2 H), 5.92 (ddd, J = 17.1, 10.2, 8.4 Hz, 1 H), 7.07-7.16 (m, 3 H), 7.27 (dm, J = 6.9 Hz, 2 H); ¹³C NMR pdf (75 MHz, benzene-d₆) δ: 29.1, 29.2, 53.7, 53.9, 63.8, 65.5, 115.6, 126.5, 129.4, 141.8, 145.1, 159.2; IR (ATR) 1682 cm^-1; MS (EI+) m/z 300 (M⁺, 55), 285 (100), 229 (81), 132 (60); HRMS (EI+) m/z calcd for C₁₉H₂₈N₂O 300.2202, found 300.2191; Anal. Calcd for C₁₉H₂₈N₂O C, 75.96; H, 9.39; N, 9.32; Found C, 76.01; H, 9.60; N, 9.31.

Handling and Disposal of Hazardous Chemicals

The procedures in this article are intended for use only by persons with prior training in experimental organic chemistry. All hazardous materials should be handled using the standard procedures for work with chemicals described in references such as "Prudent Practices in the Laboratory" (The National Academies Press, Washington, D.C., 2011 www.nap.edu). All chemical waste should be disposed of in accordance with local regulations. For general guidelines for the management of chemical waste, see Chapter 8 of Prudent Practices.

These procedures must be conducted at one's own risk. Organic Syntheses, Inc., its Editors, and its Board of Directors do not warrant or guarantee the safety of individuals using these procedures and hereby disclaim any liability for any injuries or damages claimed to have resulted from or related in any way to the procedures herein.

3. Discussion

The diamination of olefins provides an attractive and efficient approach to biologically and chemically important vicinal diamines.⁵ To date, various metal-mediated⁶ or catalyzed⁷ diaminations have been developed. Recently, we reported that conjugated dienes and trienes can be regio- and stereoselectively diaminated using Pd(0)⁸ or Cu(I)⁹ as the catalyst and di-tert-butyldiaziridinone (2) or related compounds as a convenient nitrogen source. When Pd(0) is used as the catalyst, the diamination occurs regioselectively at the internal double bond (Scheme 1).^8a

Scheme 1

This diamination can be applied to various alkyl and aryl-substituted dienes as well as electron-rich and electron-deficient dienes (Table 1).^8a When the diamination is carried out under solvent-free conditions as described herein, the amount of Pd(PPh₃)₄ catalyst can be further reduced.¹⁰

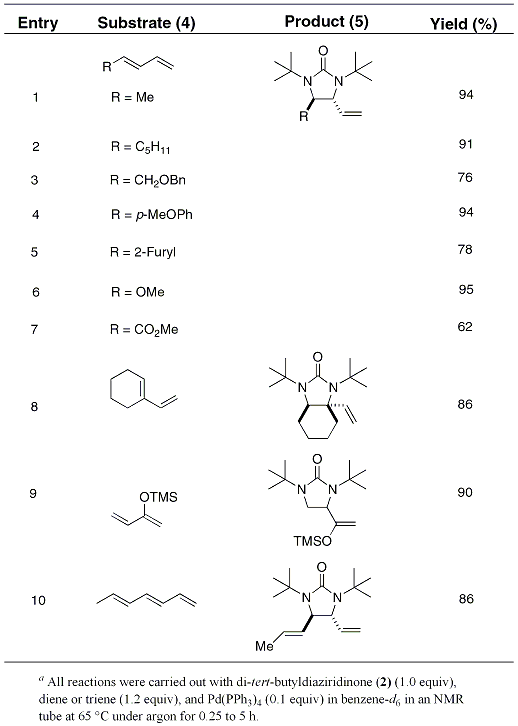

Table 1. Pd(0)-Catalyzed Diamination of Conjugated Dienes and Trienes^a

A possible catalytic cycle for this diamination is shown in Scheme 2.^8a Oxidative insertion of Pd(0) into the N-N bond of diaziridinone 2 generates four-membered Pd(II) species 6. This intermediate then reacts with diene 4 to form π-allyl Pd complex 8, which undergoes a reductive elimination to release 5 and regenerate the Pd(0) catalyst.

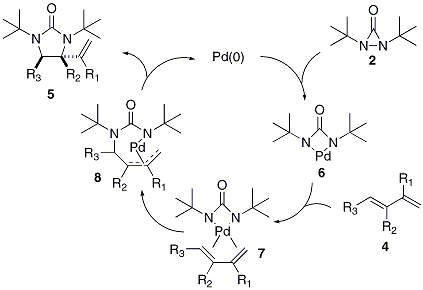

Scheme 2

When a chiral ligand is used, the diamination proceeds with high enantioselectivity. Chiral diamines can be obtained upon deprotection and the double bonds contained in the diamination products can be elaborated into other functionalities.^8d
