Org. Synth. 2024, 101, 229-241

DOI: 10.15227/orgsyn.101.0229

Platinum-Catalyzed Enantioselective Diboration of Monosubstituted Alkenes

Submitted by Chenpeng Gao, Paul S. Lee, and James P. Morken*¹

Checked by Matthieu Maciejewski and Tehshik Yoon

1. Procedure (Note 1)

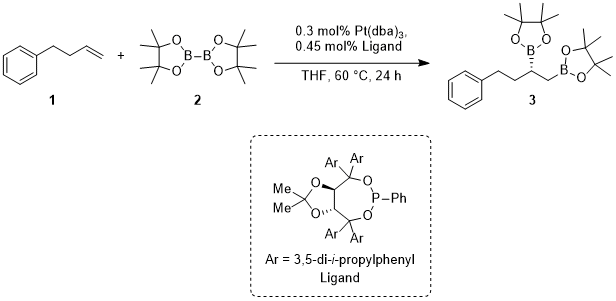

(R)-2,2'-(4-Phenylbutane-1,2-diyl)bis(4,4,5,5-tetramethyl-1,3,2-dioxaborolane) (3). An oven-dried 48 mL heavy-walled pressure vessel equipped with a Telfon-coated, football-shaped magnetic stir bar is charged with tris(dibenzylideneacetone)platinum(0) (26.9 mg, 0.03 mmol, 0.30 mol%) (Note 2), (R,R)-3,5-di-iso-propylphenyl-TADDOL-PPh (46.4 mg, 0.051 mmol, 0.51 mol%) (Note 3) and bis(pinacolato)diboron (2.67 g, 10.5 mmol, 1.05 equiv) (Note 4) in an atmosphere of air. The flask is sealed by a rubber septum, the septum wrapped with electrical tape, and a stainless-steel needle connected to a nitrogen/vacuum manifold affixed. The flask is then placed under vacuum (20 ℃, manifold pressure is 0.1 mmHg) for 5 min, and then slowly backfilled with nitrogen. The vacuum-backfill process is repeated three times.

The flask is brought into a nitrogen glove box, and dry tetrahydrofuran (10 mL) (Note 5) is added to the flask. The flask is then sealed with a PTFE bushing screw cap, removed from the glove box, and placed in a preheated (80 ℃) oil bath. The reaction mixture is allowed to stir (450 rpm) for 30 min (Figure 1) (Note 6).

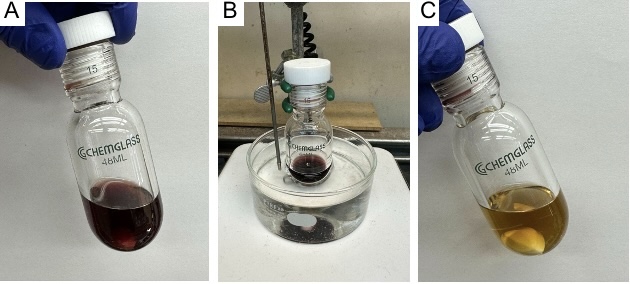

Figure 1. Color change of the reaction mixture during pre-complexation (A) The reaction mixture before heating at 80℃; (B) The heating apparatus; (C) The reaction mixture after heating at 80℃ for 30 minutes (Photos provided by checkers)

After 30 min, the flask is removed from the oil bath, and allowed to cool to room temperature (20 ℃). The flask is brought back into the glove box and 4-phenyl-1-butene (1.32 g, 1.50 mL, 10.0 mmol, 1.0 equiv) (Note 7) is added. The reaction flask is then removed from the glove box and placed in a preheated oil bath (60 ℃) and stirred (450 rpm) for 24 h. After 24 h, the flask is removed from the oil bath and cooled to room temperature (20 ℃). The solution is transferred to a 50 mL round-bottomed flask and the reaction flask is rinsed with diethyl ether (Note 8). The solution is concentrated by rotary evaporation under reduced pressure (35 ℃, 30 mmHg) to afford a dark yellow oil.

For purification, a column (6.0 cm diameter) of silica gel (silica height of 15 cm) (Note 9) is prepared by presolvating with hexanes (300 mL) (Note 8). Once the eluent has eluted onto the column, sodium sulfate (Note 10) is added to protect the silica surface. Then the crude material is directly transferred onto the compacted column with a pipette. The flask containing residual crude material is washed with additional hexanes (3 x 1.5 mL) (Note 8), and the washings are added to the column. The column is first eluted with hexanes (400 mL) and the eluent discarded. Then the column is eluted with hexanes/ethyl acetate (95/5, v/v) (2200 mL) (Note 8), and the first 150 mL eluent is discarded. The eluent is then collected in 15 x 250 mm test tubes. The product typically elutes in fractions 11 - 40 and is monitored by TLC (Note 11). The fractions are transferred to a 2 L round-bottomed flask, and the test tubes are subsequently rinsed with diethyl ether (3 x 5 mL) (Note 8) which is added to the combined fractions. The solvent is removed by rotary evaporation (35℃, 30 mmHg), after which diethyl ether (Note 8) is added and the solution is transferred to a 20-mL scintillation vial where it is concentrated in vacuo (35 ℃, 30 mmHg). The yellow oil is kept under high vacuum (20 ℃, 0.1 mmHg) overnight to afford 3.27 g (85%) of pure (R)-2,2'-(4-phenylbutane-1,2-diyl)bis(4,4,5,5-tetramethyl-1,3,2-dioxaborolane) (3) (Notes 12, 13, 14, and 15).

2. Notes

1. Prior to performing each reaction, a thorough hazard analysis and risk assessment should be carried out evaluating each chemical and experimental operation on the scale planned and in the context of the laboratory where the procedures will be carried out. Guidelines for carrying out risk assessments and for analyzing the hazards associated with chemicals can be found in references such as Chapter 4 of "Prudent Practices in the Laboratory" (The National Academies Press, Washington, Org. Synth. 2023, 100, 99-112 DOI: 10.15227/orgsyn.100.0099 102 D.C., 2011; the full text can be accessed free of charge at https://www.nap.edu/catalog/12654/prudent-practices-in-thelaboratory-handling-and-management-of-chemical. See also "Identifying and Evaluating Hazards in Research Laboratories" (American Chemical Society, 2015) which is available via the associated website "Hazard Assessment in Research Laboratories" at https://www.acs.org/content/acs/en/about/governance/committees/chemicalsafety/hazard-assessment.html. In this procedure, the risk assessment should include (but not necessarily be limited to) an evaluation of the potential hazards associated with tris(dibenzylideneacetone)platinum(0), (R,R)-3,5-di-iso-propylphenyl-TADDOLPPh, bis(pinacolato)diboron, 4-phenyl-1-butene, tetrahydrofuran, diethyl ether, hexanes, ethyl acetate, and 230-400 mesh silica gel. The temperature of the reaction exceeds the boiling point of tetrahydrofuran, and the reaction is performed in a closed system; therefore, use of a blast shield is recommended.

2. Tris(dibenzylideneacetone)platinum(0) was purchased from Strem Chemicals and used as received.

3. (R,R)-3,5-Di-iso-propylphenyl-TADDOLPPh was purchased from Ambeed, Inc. and used as received.

4. Bis(pinacolato)diboron was purchased from Oakwood Chemical and used as received.

5. Tetrahydrofuran (THF) was purified using the Pure Solv MD-4 solvent purification system from Innovative Technology, Inc.

6. The heating temperature exceeds the boiling point of tetrahydrofuran, and a blast shield is recommended.

7. 4-Phenyl-1-butene was purchased from Oakwood Chemical and used as received.

8. Hexanes, ethyl acetate and diethyl ether were purchased from Fisher Chemical and used as received.

9. Silica gel (230-400 mesh) was purchased from Silicycle as SiliaFlash® P60 and used as received.

10. Sodium sulfate (anhydrous) was purchased from Oakwood Chemical and used as received.

11. The column progress was monitored by TLC analysis, hexanes/ethyl acetate (9:1, v/v). R_f (product) = 0.5.

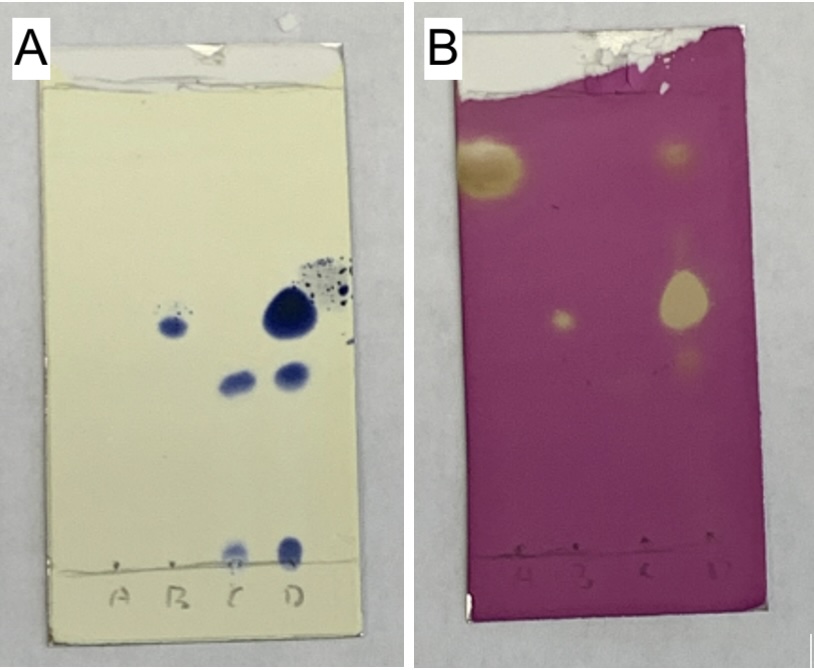

Figure 2. Thin-layer chromatography (TLC) analysis of the reaction mixture; (A) Visualized by ceric ammonium molybdate (CAM) stain; (B) Visualized by KMnO₄ stain; Left-to-right: Terminal alkene 1, pure product 3, B₂pin₂ 2 and the reaction mixture (photos provided by authors)

12. Characterization data of product 3. ¹H NMR pdf (500 MHz, CDCl₃) δ: 7.28 - 7.21 (m, 2H), 7.20 - 7.11 (m, 3H), 2.66 - 2.57 (m, 2H), 1.84 - 1.73 (m, 1H), 1.69 - 1.58 (m, 1H), 1.25 (s, 12H), 1.23 (s, 12H), 0.98 - 0.83 (m, 2H). ¹³C NMR pdf (126 MHz, CDCl₃) δ: 143.3, 128.4, 128.1, 125.4, 82.9, 35.9, 35.3, 24.9, 24.9, 24.8, 24.8. ¹¹B NMR pdf (128 MHz, CDCl₃) δ: 34.3. IR (neat) v_max 2977 (m), 1369 (s), 1311 (s), 1140 (s), 967 (w), 845 (w), 698 (w) cm^-1. HRMS (ESI) [M + H]⁺ calcd for C₂₂H₃₇B₂O₄: 387.2872. Found: 387.2871. [α]₂₀^D -7.4 (c 1.0, CHCl₃). The product (3) is stable on the benchtop at room temperature under air atmosphere.

13. Product 3 was oxidized into the corresponding diol (Note 16) to determine the enantiomeric excess. Separation of the two enantiomers was accomplished using chiral HPLC (Waters Alliance), Daicel CHIRALCEL® columns, and Chromasolv®-grade solvents with isopropanol and hexanes as mobile phase. Chiral HPLC (OD-H, MPA: 10% IPA, MPB: 90% hexanes, 0.5 mL/min, 220 nm) retention times are 13.39 min (minor enantiomer) and 18.80 min (major enantiomer). The ee of the diol product was determined to be 94%.

14. A second reaction on half-scale performed by the checkers provided 1.51 g (78%) of the same product with 93% ee.

15. The purity of product 3 was determined by C/H elemental analysis. Anal. Calcd. For C₂₂H₃₆B₂O₄: C, 68.43; H, 9.40. Found: C, 68.52; H, 9.30.

16. A 20 mL scintillation vial equipped with a Telfon-coated, football-shaped magnetic stir bar is charged with product 3 (38.6 mg, 0.10 mmol, 1.0 equiv.) under an atmosphere of air. Tetrahydrofuran (1 mL) (Note 5) is added to the flask via a plastic syringe. The vial is then cooled to 0 ℃ in an ice-water bath. 3 M NaOH solution (0.8 mL, 2.4 mmol, 24 equiv) (Note 17) is added via a plastic syringe, followed by the dropwise addition over the course of 1 min of 30% H₂O₂ solution (0.4 mL) (Note 18). The reaction mixture is warmed to room temperature and stirred for 4 h. Upon completion, the reaction mixture is again cooled to 0 ℃ in an ice-water bath and quenched by addition of 1.0 mL of saturated Sodium thiosulfate solution (Note 19). The reaction mixture is transferred to a 25 mL separatory funnel and extracted with diethyl ether (3 x 2 mL). The combined organic layers are dried over sodium sulfate and filtered through a silica plug with diethyl ether (10 mL). The solution is concentrated in vacuo under reduced pressure (35 ℃, 30 mmHg) to afford a clear oil. The crude product is directly submitted for HPLC analysis without further purification.

17. Sodium hydroxide was purchased from Thermo Fisher Scientific Co.

18. Hydrogen peroxide solution was purchased from Thermo Fisher Scientific Co.

19. Sodium thiosulfate was purchased from Thermo Fisher Scientific Co.

Working with Hazardous Chemicals

The procedures in Organic Syntheses are intended for use only by persons with proper training in experimental organic chemistry. All hazardous materials should be handled using the standard procedures for work with chemicals described in references such as "Prudent Practices in the Laboratory" (The National Academies Press, Washington, D.C., 2011; the full text can be accessed free of charge at http://www.nap.edu/catalog.php?record_id=12654). All chemical waste should be disposed of in accordance with local regulations. For general guidelines for the management of chemical waste, see Chapter 8 of Prudent Practices.

In some articles in Organic Syntheses, chemical-specific hazards are highlighted in red "Caution Notes" within a procedure. It is important to recognize that the absence of a caution note does not imply that no significant hazards are associated with the chemicals involved in that procedure. Prior to performing a reaction, a thorough risk assessment should be carried out that includes a review of the potential hazards associated with each chemical and experimental operation on the scale that is planned for the procedure. Guidelines for carrying out a risk assessment and for analyzing the hazards associated with chemicals can be found in Chapter 4 of Prudent Practices.

The procedures described in Organic Syntheses are provided as published and are conducted at one's own risk. Organic Syntheses, Inc., its Editors, and its Board of Directors do not warrant or guarantee the safety of individuals using these procedures and hereby disclaim any liability for any injuries or damages claimed to have resulted from or related in any way to the procedures herein.

3. Discussion

Non-directed, catalytic enantioselective transformations of terminal alkenes are useful processes in synthetic chemistry; however, this class of reaction is largely underdeveloped. Enantioselective diboration followed by functionalization offers one strategy for converting terminal alkenes into an array of useful building blocks. While direct oxidation provides a useful route from terminal alkenes to chiral 1,2-diols (Figure 3), site-selective derivatization² enables transformations that, in many cases, retain a boronic ester that may engage in subsequent reactions.³ Recent efforts in our laboratory have employed Pd-based site-selective catalytic cross-coupling of C(sp²) electrophiles⁴ and Cu-based catalytic coupling with allylic, propargylic, and alkynyl electrophiles as well as simple protonation.⁵

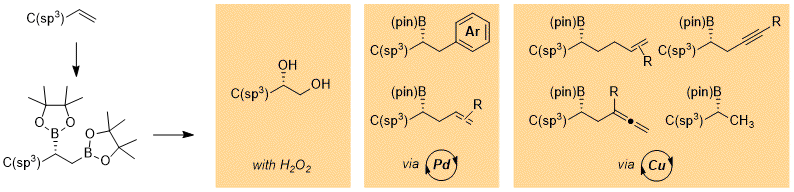

Figure 3. Transformations of vicinal bis(boronic esters) arising from alkene diboration

A number of catalytic processes have been advanced to effect the diboration of alkenes.⁶ The diboration of terminal alkenes with platinum-based catalysts using bis(pinacolato)diboron was first reported by Miyaura in 1996.⁷ An enantioselective Pt-catalyzed variant was reported in 2009⁸ and further studied in 2013.⁹ Using an air-stable platinum (0) source, a readily accessible TADDOL-derived phenyl phosphonite ligand, and bench-stable bis(pinacolato)diboron as boron source allows the reaction to proceed smoothly with low catalyst loading and functional group tolerance on a gram-scale. Results with several substrates that have been subjected to oxidative work-up⁹ are presented in Table 1. The diboration process has also been employed in the synthesis of a number of natural products^{10,11,12,13,14,15,16,17,18,19} and these examples give evidence of useful levels of functional group tolerance.

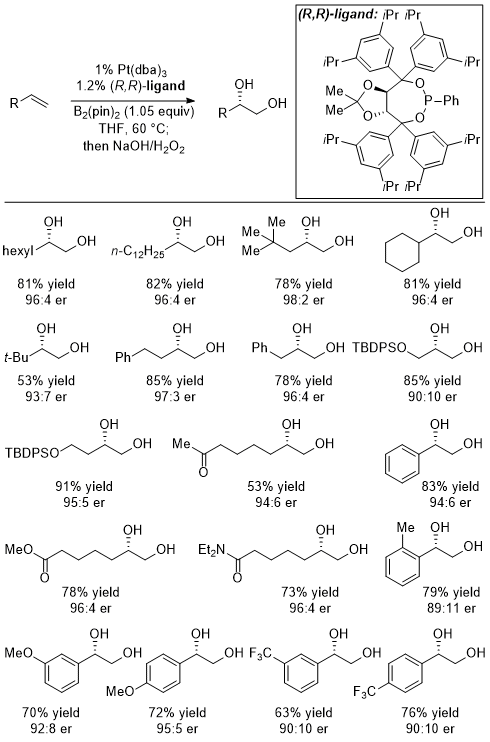

Table 1. Diboration/Oxidation of Terminal Alkenes

References and Notes

Department of Chemistry, Boston College, 2609 Beacon Street, Chestnut Hill MA, 02467 USA. JPM ORCID: 0000-0002-9123-9791, morken@bc.edu. Funding for NIGMS (R35-GM1217140) is gratefully acknowledged.
For the review on site-selective functionalization of vicinal boronates, see Viso, A.; Fernández de la Pradilla, R.; Tortosa, M. Site-Selective Functionalization of C(sp³) Vicinal Boronic Esters. ACS Catal. 2022, 12, 10603-10620. doi: 10.1021/acscatal.2c02857[CrossRef]
For the review on functionalization of organoboronates, see: Sandford, C.; Aggarwal, V. K. Stereospecific Functionalizations and Transformations of Secondary and Tertiary Boronic Esters. Chem. Commun. 2017, 53, 5481-5494. doi: 10.1039/C7CC01254C[CrossRef]
Mlynarski, S. N.; Schuster, C. S.; Morken, J. P. Asymmetric Synthesis From Terminal Alkenes by Diboration/Cross-Coupling Cascades. Nature 2014, 505, 386-390. doi: 10.1038/nature12781[CrossRef]
Xu, N.; Kong, Z.; Wang, J.; Lovinger, G. J.; Morken, J. P. Copper-Catalyzed Coupling of Alkyl Vicinal Bis(Boronic Esters) to an Array of Electrophiles. J. Am. Chem. Soc. 2022, 144, 17815-17823. doi: 10.1021/jacs.2c02817[CrossRef]
Wang, X.; Wang, Y.; Huang, W.; Xia, C.; Wu, L. Direct Synthesis of Multi(boronate) Esters from Alkenes and Alkynes via Hydroboration and Boration Reactions. ACS Catal. 2021, 11, 1-18. doi: 10.1021/acscatal.0c03418[CrossRef]
Ishiyama, T.; Yamamoto, M.; Miyaura, N. Diboration of Alkenes with Bis(pinacolato)diboron Catalysed by a Platinum(0) Complex. Chem. Commun. 1997, 689. doi: 10.1039/A700878C[CrossRef]
Kliman, L. T.; Mlynarski, S. N. Morken, J. P. Pt-Catalyzed Enantioselective Diboration of Terminal Alkenes with B₂(pin)₂. J. Am. Chem. Soc. 2009, 131, 13210-13211. doi: 10.1021/ja9047762[CrossRef]
Coombs, J. R.; Haeffner, F.; Kliman, L. T.; Morken, J. P. Scope and Mechanism of the Pt-Catalyzed Enantioselective Diboration of Monosubstituted Alkenes. J. Am. Chem. Soc. 2013, 135, 11222-11231. doi: 10.1021/ja4041016[CrossRef]
Zachmann, R. J.; Yahata, K.; Holzheimer, M.; Jarret, M.; Wirtz, C.; Fürstner, A. Total Syntheses of Nominal and Actual Prorocentin. J. Am. Chem. Soc. 2023, 145, 2584-2595. doi:10.1021/jacs.2c12529[CrossRef]
Fiorito, D.; Keskin, S.; Bateman, J. M.; George, M.; Noble, A.; Aggarwal, V. K. Stereocontrolled Total Synthesis of Bastimolide B Using Iterative Homologation of Boronic Esters. J. Am. Chem. Soc. 2022, 144, 7995-8001. doi: 10.1021/jacs.2c03192[CrossRef]
Fürstner, A.; Zhuo, C. X. Catalysis-Based Total Syntheses of Pateamine A and DMDA-Pat A. J. Am. Chem. Soc. 2018, 140, 10514-10523. doi: 10.1021/jacs.8b05094[CrossRef]
Liu, X.; Sun, C.; Mlynarski, S.; Morken, J. P. Synthesis and Stereochemical Assignment of Arenolide. Org. Lett. 2018, 20, 1898-1901. doi: 10.1021/acs.orglett.8b00439[CrossRef]
Aiken, S. G.; Bateman, J. M.; Liao, H.-H.; Fawcett, A.; Bootwicha, T.; Vincetti, P.; Myers, E. L.; Noble, A.; Aggarwal, V. K. Iterative Synthesis of 1,3-Polyboronic Esters with High Stereocontrol and Application to the Synthesis of Bahamaolide A. Nat. Chem. 2023, 15, 248-256. doi: 10.1038/s41557-022-01087-9[CrossRef]
Xie, T.; Zheng, C.; Chen, K.; He, H.; Gao, S. Asymmetric Total Synthesis of the Complex Polycyclic Xanthone FD-594. Angew. Chem., Int. Ed. 2020, 59, 4360-4364. doi: 10.1002/anie.201915787[CrossRef]
Fawcett, A.; Nitsch, D.; Ali, M.; Bateman, J. M.; Myers, E. L.; Aggarwal, V. K. Regio- and Stereoselective Homologation of 1,2-Bis(Boronic Esters): Stereocontrolled Synthesis of 1,3-Diols and Sch 725674. Angew. Chem., Int. Ed. 2016, 55, 14663-14667. doi: 10.1002/anie.201608406[CrossRef]
Zhuo, C.-X.; Fürstner, A. Concise Synthesis of a Pateamine A Analogue with In Vivo Anticancer Activity Based on an Iron-Catalyzed Pyrone Ring Opening/Cross-Coupling. Angew. Chem., Int. Ed. 2016, 55, 6051-6056. doi: 10.1002/anie.201602125[CrossRef]
Matsumoto, K.; Koyachi, K.; Shindo, M. Asymmetric Total Syntheses of Xanthatin and 11,13-Dihydroxanthatin Using a Stereocontrolled Conjugate Allylation to γ-Butenolide. Tetrahedron 2013, 69, 1043-1049. doi: 10.1016/j.tet.2012.11.077[CrossRef]
Geerdink, D.; Horst, B. t.; Lepore, M.; Mori, L.; Puzo, G.; Hirsch, A. K. H.; Gilleron, M.; de Libero, G.; Minnaard, A. J. Total Synthesis, Stereochemical Elucidation and Biological Evaluation of Ac2SGL; a 1,3-Methyl Branched Sulfoglycolipid from Mycobacterium tuberculosis. Chem. Sci. 2013, 4, 709-716. doi: 10.1039/C2SC21620E[CrossRef]

Appendix
Chemical Abstracts Nomenclature (Registry Number)

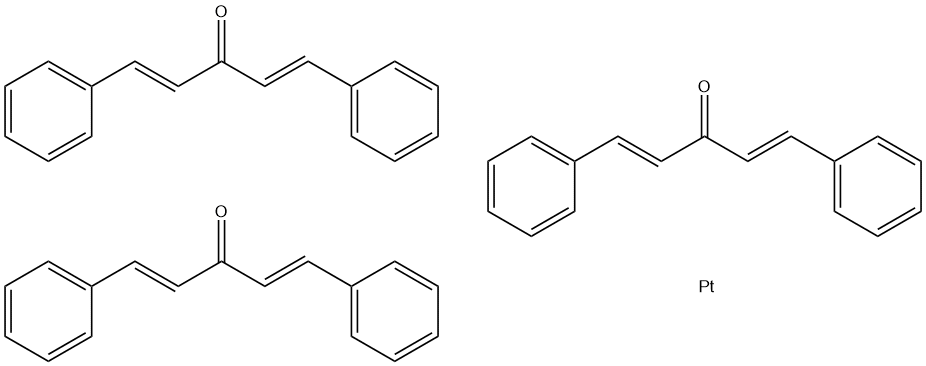

Tris(dibenzylideneacetone)platinum(0); (11072-92-7)

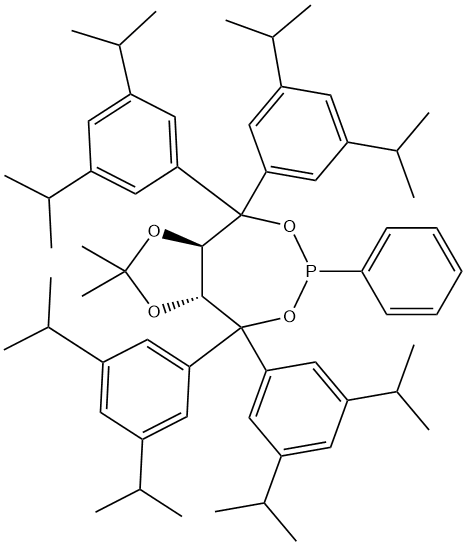

(R,R)-3,5-di-iso-propylphenyl-TADDOLPPh; (1361146-90-8)
