Org. Synth. 2025, 102, 657-667

DOI: 10.15227/orgsyn.102.0657

Preparation of (S,S)-B₂bg₂, a Chiral Diboron Reagent

Submitted by Cliff Yang, Brooklyn Maddox, Anshu Yadav, Robert E. Maleczka Jr.*

Checked by Samuel Jacobo and M. Kevin Brown

1. Procedure (Note 1)

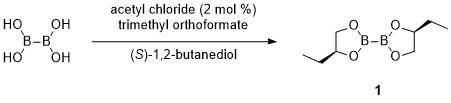

(4S,4'S)-4,4'-diethyl-2,2'-bi(1,3,2-dioxaborolane) ((S,S)-B₂bg₂) (1). A 100-mL round bottom flask and Teflon coated stir bar (egg-shaped 3/4 x 3/8'') were dried in an oven. The flask and stir bar were cooled to room temperature (22 ℃), charged with tetrahydroxydiboron B₂(OH)₄, (2.25 g, 25 mmol, 1.0 equiv) (Notes 1 and 2), and the flask was capped with a rubber septum. The flask was purged with N₂ for 15 min (Figure 1A). Trimethyl orthoformate (11 mL, 10.6 g, 100 mmol, 4.0 equiv) (Note 3) was added via syringe (Figure 1B), and the reaction mixture was stirred briefly to form a suspension (Figure 1C). Acetyl chloride (40 μL, 39.3 mg, 0.50 mmol, 0.02 equiv) (Note 4) was added via syringe, and the reaction mixture was stirred until a clear solution was observed (typically 1-3 min, Figure 1D). (S)-1,2-Butanediol (4.5 mL, 4.5 g, 50 mmol, 2.0 equiv) (Note 5) was added via syringe, and the mixture was stirred for 30 min at room temperature (22 ℃).

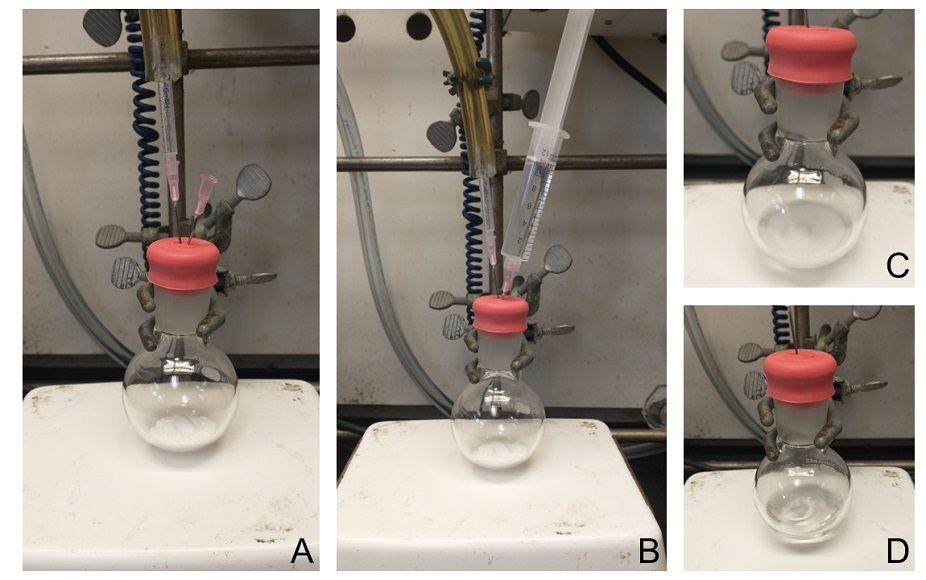

Figure 1. A. Purging of apparatus with N₂; B. Injection of liquid compounds; C. Suspension formed before addition of acetyl chloride; D. Clear reaction mixture formed after addition of acetyl chloride

After 30 min, volatile solvents were removed on a rotary evaporator at 50 ℃ and 9 torr to yield a clear oil. The oil was further dried under high-vacuum (0.05 torr) for 18 h to remove additional volatile compounds.

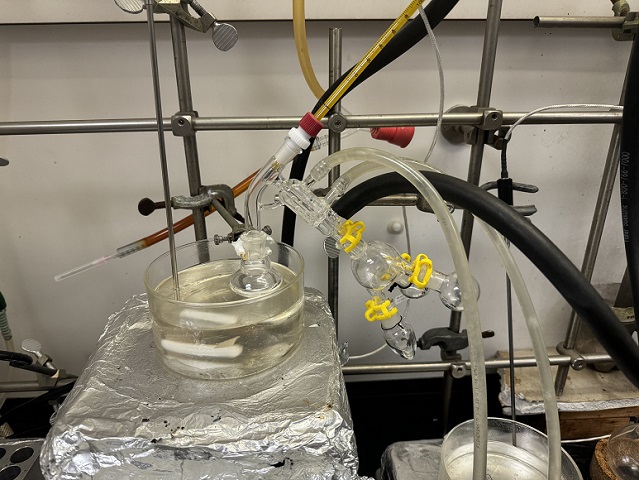

Figure 2. Short path vacuum distillation apparatus

Further purification was conducted using short path distillation under vacuum. The crude product was transferred to a 50-mL, round-bottom flask equipped with a magnetic stir bar (egg-shaped 3/4 x 3/8''). A water-cooled short path condenser with a cow style distillation receiver was attached (Figure 2). The apparatus was evacuated under high vacuum (0.02 mmHg) and the flask containing the crude product was heated in an oil bath that was warmed to 175 ℃. A forerun at 92-96 ℃ (0.02 mm Hg) (approx. 0.5 mL) was collected and discarded before collecting the product at 92-96 ℃ (0.02 mm Hg). The product was collected as a clear oil (3.92 g, 79%) (Notes 6,7,8,9,10,11).

2. Notes

1. Prior to performing each reaction, a thorough hazard analysis and risk assessment should be carried out with regards to each chemical substance and experimental operation on the scale planned and in the context of the laboratory where the procedures will be carried out. Guidelines for carrying out risk assessments and for analyzing the hazards associated with chemicals can be found in references such as Chapter 4 of "Prudent Practices in the Laboratory" (The National Academies Press, Washington, D.C., 2011; the full text can be accessed free of charge at https://www.nap.edu/catalog/12654/prudent-practices-in-the-laboratory-handling-and-management-of-chemical. See also "Identifying and Evaluating Hazards in Research Laboratories" (American Chemical Society, 2015) which is available via the associated website "Hazard Assessment in Research Laboratories" at https://www.acs.org/about/governance/committees/chemical-safety.html. In the case of this procedure, the risk assessment should include (but not necessarily be limited to) an evaluation of the potential hazards associated with peroxide former 1,4-dioxane and tetrahydroxydiboron, which has been reported to react with water to form B(OH)₃ and hydrogen gas (Wiberg, E.; Ruschmann, W, Über eine neue Borsäure ("Unnterborsäure") der Formel H₄B₂0₄ und ihre Ester Chem Ber. 1937, 6, 1393-1402; DOI: 10.1002/cber.19370700636).

2. Tetrahydroxydiboron was obtained from Ambeed and used as received.

3. Trimethyl orthoformate (99.8%) was obtained from Sigma Aldrich and used as received.

4. Acetyl chloride (98%) was obtained from Sigma Aldrich and used as received.

5. (S)-1,2-Butanediol (97%) was obtained from Ambeed and used as received.

6. Characterization data for 1: ¹H NMR pdf (500 MHz, CDCl₃) δ 4.36 (p, J = 7.0 Hz, 1H), 4.24 (ddd, J = 9.4, 8.1, 1.4 Hz, 1H), 3.78 (ddd, J = 8.9, 7.3, 1.4 Hz, 1H), 1.77 - 1.45 (m, 2H), 0.95 (td, J = 7.5, 1.4 Hz, 3H). ¹³C NMR pdf (126 MHz, CDCl₃) δ 78.6, 70.4, 29.0, 9.3. ¹¹B NMR pdf (160 MHz, CDCl₃) δ 30.8. HRMS (ESI): Calculated for C₆H₁₄O₄B₂Na [M-C₂H₃]⁺: 195.0976, Found: 195.0971

7. The authors noted that the optical activity of 1 was measured to be -201.165° (DCM, 1 mg/mL, 22.1 ℃).

8. The authors noted that the purity of product 1 was determined using CHN analysis. Elemental composition of a sample of 1 was C (48.42%) and H (7.96%); expected from C₈H₁₆B₂O₄ is C (48.57%), H (8.15%).

9. The purity of product 1 was confirmed using ¹H qNMR pdf analysis. ¹H qNMR pdf was performed using a mixture of 1 (24.0 mg) and hexamethyl benzene (22.1 mg) (Sigma Aldrich, 99%, as an internal standard) in CDCl₃. The purity was calculated according to the standard method as 98.3 wt%.

10. The authors noted that the enantiomeric purity of the product could not be determined via the use of chiral NMR shift reagents, chiral GC, or chiral supercritical fluid chromatography (SFC). All analyses of a mixture of B₂Bg₂ prepared with racemic 1,2-butanediol did not separate the three stereoisomers expected. While the reaction is very unlikely to result in epimerization of the stereocenters present in the enantiomerically pure alcohol, an indirect method of establishing the enantiomeric purity of the diboron product was required (see note 11).

11. Enantiomeric purity of 1 was assessed by the checker by analyzing the products of Miyaura borylations with B₂bg₂ and 4-bromoaniline to form 2 and 3. The detailed procedure is in Note 12. HPLC analysis of the product prepared using 1 resulted in one product peak (2). HPLC analysis (Notes 13) of the product prepared using the mixture of B₂bg₂ stereoisomers resulted in two peaks corresponding with the two enantiomers produced 2 and 3.

12. Procedure for Miyaura borylation (Scheme 1): An oven-dried 100 mL round bottom flask was charged with 4-bromoaniline (172.0 mg, 1 mmol, 1 equiv) (Note 15), B₂bg₂ (237.4 mg, 1.2 mmol, 1.2 equiv), Pd(dppf)Cl₂•CH₂Cl₂ (0.82 g, 0.1 mmol, 0.1 equiv) (Note 16), and KOAc (294.4 mg, 3 mmol, 3 equiv). 1,4-Dioxane (8.3 mL) and a stir bar were added, and the round bottom flask was fitted with a water-cooled condenser. The condenser was fitted with a septum and the apparatus purged with N₂ for 15 min. The reaction was heated at 90 ℃ for 12 h under N₂. After cooling, the mixture was filtered through Celite, and volatile solvents were evaporated. The product was purified via silica gel chromatography with 20/80 ethyl acetate/hexane with 1% triethylamine added (Note 14). This procedure is based on previously reported literature.²

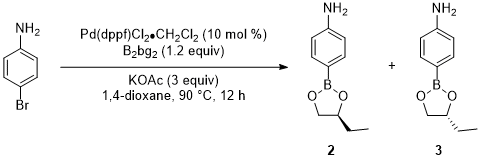

Scheme 1. Miyaura borylation of 4-bromoaniline with B₂Bg₂

13. Miyaura borylation of 4-bromoaniline with 1 resulted in 2 (0.120 g, 63%). HPLC analysis (ChiralPak IA with an amylose tris(3,5-dimethylphenylcarbamate) immobilized 5 μm column) showed one peak in the chromatogram (Figure 3A). Miyaura borylation of 4-bromoaniline with a mixture of B₂bg₂ prepared from racemic 1,2-butanediol resulted in a mixture of 2 and 3 (0.111 g, 58%). HPLC analysis (ChiralPak IA with an amylose tris(3,5-dimethylphenylcarbamate) immobilized 5 μm column) showed two peaks in the chromatogram (Figure 3B).

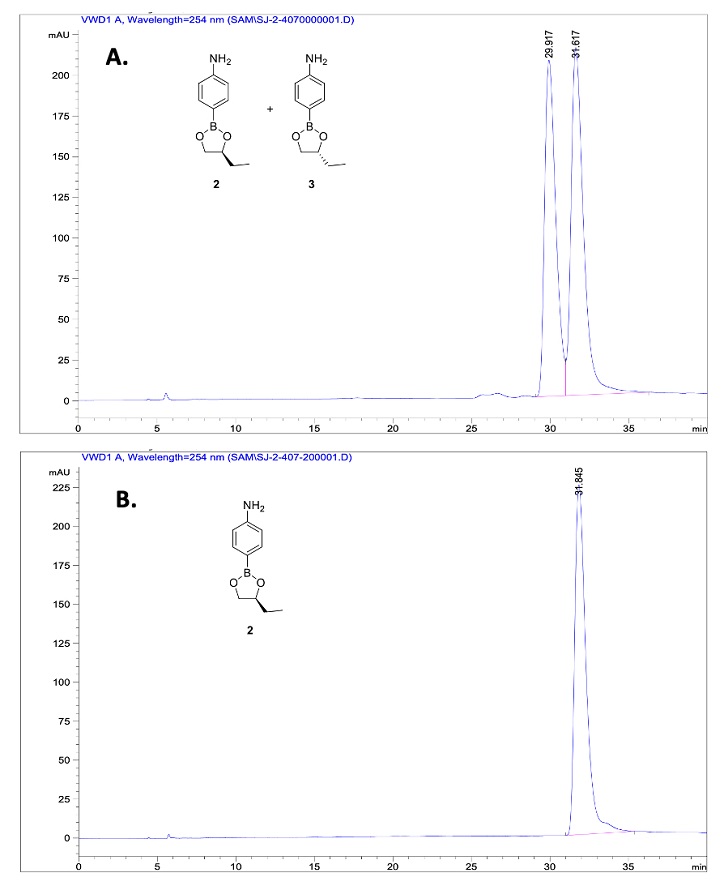

Figure 3. Chiral HPLC chromatograms; A. Racemic mixture 2 and 3. B. Compound 2 from procedure.

14. Characterization data for 2: ¹H NMR pdf (500 MHz, CDCl₃) δ 7.63 (d, J = 8.5 Hz, 2H), 6.66 (d, J = 8.4 Hz, 2H), 4.47 (dq, J = 7.9, 6.6 Hz, 1H), 4.37 (dd, J = 8.9, 7.6 Hz, 1H), 3.92 (dd, J = 8.8, 6.8 Hz, 2H), 1.80 - 1.58 (m, 2H), 1.00 (t, J = 7.4 Hz, 3H). ¹³C NMR pdf (126 MHz, CDCl₃) δ 149.5, 136.6, 114.2, 78.4, 70.7, 28.9, 9.0. ¹¹B NMR pdf (160 MHz, CDCl₃) δ 31.2.

15. 4-Bromoaniline (99%) was obtained from Oakwood Chemical and used as received.

16. Pd(dppf)Cl₂•CH₂Cl₂ (99%) was obtained from Strem and used as received.

Working with Hazardous Chemicals

The procedures in Organic Syntheses are intended for use only by persons with proper training in experimental organic chemistry. All hazardous materials should be handled using the standard procedures for work with chemicals described in references such as "Prudent Practices in the Laboratory" (The National Academies Press, Washington, D.C., 2011; the full text can be accessed free of charge at http://www.nap.edu/catalog.php?record_id=12654). All chemical waste should be disposed of in accordance with local regulations. For general guidelines for the management of chemical waste, see Chapter 8 of Prudent Practices.

In some articles in Organic Syntheses, chemical-specific hazards are highlighted in red "Caution Notes" within a procedure. It is important to recognize that the absence of a caution note does not imply that no significant hazards are associated with the chemicals involved in that procedure. Prior to performing a reaction, a thorough risk assessment should be carried out that includes a review of the potential hazards associated with each chemical and experimental operation on the scale that is planned for the procedure. Guidelines for carrying out a risk assessment and for analyzing the hazards associated with chemicals can be found in Chapter 4 of Prudent Practices.

The procedures described in Organic Syntheses are provided as published and are conducted at one's own risk. Organic Syntheses, Inc., its Editors, and its Board of Directors do not warrant or guarantee the safety of individuals using these procedures and hereby disclaim any liability for any injuries or damages claimed to have resulted from or related in any way to the procedures herein.

3. Discussion

Diboron reagents are widely used as boron sources in borylation reactions (Figure 2). Due to the stable products produced, B₂pin₂ is often chosen. Other smaller boron sources such as B₂eg₂ have been found to improve selectivity in ortho directed Ir-catalyzed CH borylation of anilines and phenols, though transesterification of the Beg to the Bpin group post-borylation is required for isolation of a stable product.^3,4 Another boron source, B₂bg₂, provides a balance, affording high ortho selectivity without the need for post-borylation transesterification.⁵ These boron sources can all be prepared from tetrahydroxydiboron via a simple, green reaction.⁶

Figure 4. Common diboron sources for borylation

Previous preparations of B₂bg₂ and B₂pg₂ used racemic 1,2-butanediol, resulting in a mixture of 3 stereoisomers. These stereoisomers (R,S), (R,R), and (S,S) are indistinguishable by NMR, though the stereoisomers of B₂pg₂ could be observed by NMR in the presence of chiral shift reagents.⁶ Using enantiomerically pure (S)-1,2-butanediol, (S,S)-B₂bg₂ (1) can be produced. While the synthesis of the single stereoisomer of B₂bg₂ is as simple as the synthesis of multiple stereoisomers, establishing the stereoisomeric purity is difficult.

In contrast with B₂pg₂, the stereoisomers of B₂bg₂ could not be distinguished by NMR even in the presence of chiral shift reagents or separated via GC or SFC chromatography using various chiral columns. However, when a mixture of three stereoisomers of B₂bg₂ were used in a Miyaura borylation of 4-bromoaniline following a known procedure,² the resulting enantiomers 2 and 3 could be separated via HPLC chromatography. When 1 was used in the same borylation, only 2 was observed. This demonstrates the utility of diboron reagents beyond iridium catalyzed borylation and the stereoisomeric purity of the (S,S)-B₂bg₂ produced as described in this report.
