1.
All glassware and needles were dried in an oven at 120°C overnight and assembled under a nitrogen purge or flame-dried immediately prior to use. All reactions were performed under nitrogen (submitters) or argon (checkers).
2.
(S)-Ethyl lactate (98%) and imidazole (99+%) were purchased from Aldrich Chemical Co. TBDMSCl was purchased from FMC Corporation (submitters) or Aldrich (checkers). A newly opened bottle of dimethylformamide (ACS Reagent grade, 0.02% water) was used as received.
3.
The distillation was conducted in a 500-mL, round bottomed flask equipped with a magnetic stirring bar and a variable take-off distillation head.
4.
The ester 1 displayed the following properties: [α]D −25.9 (c 1.56, CHCl3); IR (thin film): cm−1 1753; 1H NMR pdf (300 MHz, CDCl3): δ 0.05 (s, 3H), 0.08 (s, 3H), 0.88 (s, 9H), 1.23 (t, J = 7.2 Hz, 3H), 1.36 (d, J = 6.6 Hz, 3H), 4.11 (m, 1H), 4.25 (q, J = 7.2 Hz, 2H); 13C NMR (75 MHz, CDCl3): δ −5.3, −4.9, 14.2, 18.3, 21.3, 25.7, 60.7, 68.4, 174.1.
5.
The submitters report that by the same procedures without modifications the (R)-enantiomer can be prepared from (R)-isobutyl lactate, available from Sigma Chemical Co. The physical properties for (R)-isobutyl 2-(t-butyldimethylsilyloxy)- propanoate are: bp 85-88°C, 0.1 mm; [α]D +28.7 (c 1.61, CHCl3); IR (thin film) 1763 cm−1; 1H NMR (300 MHz, CDCl3) δ 0.06 (s, 3H), 0.09 (s, 3H), 0.89 (s, 9H), 0.91 (d, J = 6.6 Hz, 6H), 1.38 (d, J = 6.6 Hz, 3H), 1.94 (septet, 1H), 3.88 (dq, J = 10.5, 6.9 Hz, 2H), 4.28 (q, J = 6.6 hz, 1H); 13C NMR (125 MHz, CDCl3) δ −5.4, −5.0, 18.3, 19.0, 21.4, 25.7, 27.7, 68.4, 70.8, 174.1
6.
DIBAL-H (1.0M in hexanes) was purchased from Aldrich Chemical Co. Hexanes from a freshly opened bottle (ACS Reagent Grade) was used as solvent.
7.
Potassium sodium tartrate (Rochelle salt) was purchased from Fluka (purum p.a. grade). The quantity of salt solution specified was found to be optimal (2 mL/mmol of DIBAL-H). Use of less salt resulted in incomplete complexation. The submitters reported similar yields with stirring overnight.
8.
Concentration is carried out without heating. Heating the rotary evaporator bath above 35°C results in lower yields due to the volatility of the aldehyde.
9.
The aldehyde contains small amounts of the starting ester and the overreduced alcohol along with other minor impurities. It can be stored for short periods of time (1-2 days) in a freezer at −20°C without significant deterioration. However long term storage is not recommended.
10.
The enantiomeric excess of aldehyde 2 was estimated to be >96% by derivatization as the Schiff bases with (S and R)-α-methylbenzylamine as described below. Spectral characteristics for aldehyde 2: [α]D −12.1 (c 1.96, CHCl3); IR (thin film): cm−1 1741; 1H NMR pdf (300 MHz, CDCl3): δ 0.07 (s, 3H), 0.08 (s, 3H), 0.9 (s, 9H), 1.26 (d, J = 6.9 Hz, 3H), 4.07 (dq, J = 6.9, 1.3 Hz, 1H), 9.59 (d, J = 1.3 Hz, 1H); 13C NMR (125 MHz, CDCl3): δ −4.8, 18.1, 18.5, 25.6, 73.8, 204.2.
11.
THF (99.9% anhydrous, inhibitor free) and CH2Cl2 (99.8% anhydrous) were obtained from Aldrich Chemical Co. and used as received. The submitters distilled diisopropylamine and stored it over KOH. The checkers used 99.5% diisopropylamine as received from Aldrich. p-Toluenesulfonyl chloride (99%) was obtained from Acros Chemical Co. (submitters) or Avocado (checkers).
12.
This material consisted of a 45:55 mixture of diastereomers based on 1H NMR analysis. Rf = 0.53 (10% EtOAc/hexanes, phosphomolybdic acid stain). Spectral characteristics for tosylate 3: 1H NMR pdf (300 MHz, CDCl3): δ 0.08 (s, 6H), 0.09 (s, 6H), 0.88 (s, 18H), 1.24 (d, J = 6.3 Hz, 3H), 1.29 (d, J = 6.0 Hz, 3H), 2.44 (s, 6H), 4.04 (dq, J = 6.0, 7.5 Hz, 1H), 4.34 (dq, J = 3.3, 6.3 Hz, 1H), 4.70 (dd, J = 3.3, 6.0 Hz, 1H), 4.74 (dd, J = 2.1, 7.2 Hz, 1H), 5.81 (d, J = 6.3 Hz, 1H), 6.00 (d, J = 2.1 Hz, 1H), 7.31 (d, J = 8.4 Hz, 4H), 7.82 (dd, J = 5.4, 8.4 Hz, 4H).
13.
Paraformaldehyde (95%) was obtained from Aldrich Chemical Co. (submitters) or Baker (checkers) and was dried azeotropically with benzene by concentrating a benzene solution (100 mL per gram of paraformaldehyde) at 45°C by rotary evaporation, repeating this process, and then drying the residue under high vacuum overnight. Dry paraformaldehyde was stored in a sealed container under argon. Butyllithium was obtained from Acros Chemical Co (submitters) or Aldrich (checkers).
14.
The submitters reported that an immediate preliminary distillation is advisable to minimize contact time with the dark polymeric byproducts which results in decomposition and lowered yields. This is achieved by means of a Kugelrohr distillation apparatus preheated to 80°C. Care should be exercised to prevent bumping in the early stage of this distillation. However, the checkers had problems with bumping and preferred direct fractional distillation according to the following procedure. After concentration, the flask containing the crude product was equipped with a 30 × 1.5 cm distillation column and evacuated at 0.1 mm. After an initial period of distillation at room temperature to remove residual solvent, a first fraction of bp up to 45°C was collected; this is believed to be TBSOH. The main product fraction (21-24 g) was collected at bp 79-82°C.
15.
The ee of alcohol 5 was determined to be >97% by derivatization with a chiral silylating reagent (Note 16). Physical characteristics for alcohol 5: Rf = 0.42 (25% EtOAc/hexanes, phosphomolybdic acid); [α]D −53.0 (c 1.42, CHCl3); IR (thin film): cm−1 3370; 1H NMR pdf (300 MHz, CDCl3): δ 0.09 (s, 3H), 0.11 (s, 3H), 0.89 (s, 9H), 1.39 (d, J = 6.5 Hz, 3H), 2.44 (t, J = 6.2 Hz, 1H), 4.27 (dd, J = 6.2, 1.7 Hz, 2H), 4.54 (tq, J = 6.5, 1.7 Hz, 1H); 13C NMR (75 MHz, CDCl3): δ −5.0, −4.7, 18.2, 25.2, 25.7, 50.8, 59.0, 81.4, 88.0
16.

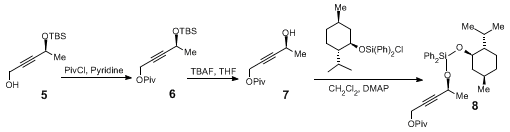

The enantiomeric purity of alcohol 5 was determined by conversion to the silyl ether 8via the following sequence:
17.
Pyridine was freshly distilled from calcium hydride and stored under nitrogen over potassium hydroxide. Trimethylacetyl chloride (99%) was obtained from Aldrich Chemical Company and used as received.
18.
Physical characteristics of (S)-ester 6: Rf = 0.83 (25% EtOAc/hexanes, cerium molybdate); [α]D −36.0 (c 0.79, CHCl3); IR (thin film): cm−1 2968, 1745; 1H NMR pdf (500 MHz, CDCl3): δ 0.11 (s, 3H), 0.13 (s, 3H), 0.90 (s, 9H), 1.21 (s, 9H), 1.40 (d, J = 6.5 Hz, 3H), 4.55 (qt, J = 6.0, 2.0 Hz, 1H), 4.68 (d, J = 2.0 Hz, 2H); 13C NMR (125 MHz, CDCl3): δ −5.0, −4.6, 18.2, 25.1, 25.8, 27.1, 38.7, 52.3, 58.9, 77.5, 88.9, 177.7.
19.
Tetrabutylammonium fluoride (1.0M in THF) was obtained from Aldrich Chemical Company and used as received.
20.
Physical characteristics of (S)-alcohol 7: Rf = 0.30 (25% EtOAc/hexanes, cerium molybdate); IR (thin film): cm−1 3440, 2986, 1745; [α]D −18.1 (c 1.2, CHCl3); 1H NMR pdf (500 MHz, CDCl3): δ 1.22 (s, 9H), 1.46 (d, J = 7.0 Hz, 3H), 4.57 (dq, J = 1.5 Hz, 6.5 Hz, 1H), 4.69 (s, 2H); 13C NMR (125 MHz, CDCl3): δ 24.0, 27.0, 38.7, 52.2, 58.3, 78.3, 88.2, 177.9.
21.
The (−)-chloromenthyloxydiphenylsilane was prepared from (−)-menthol (Aldrich, >99% ee) according to the published procedure : Weibel, D. B.; Walker, T. R.; Schroeder, F. C.; Meinwald, J. Org.Lett. 2000, 2, 2381.
22.
Diagnostic 1H NMR peaks (singlets) are located at δ 4.62 (S) and δ 4.57 (R) ppm, respectively, in the 1H NMR spectra of the crude products prior to chromatography. Physical characteristics of the (S)-silylmenthyl derivative 8: Rf = 0.67 (25% EtOAc/hexanes, cerium molybdate); [α]D −73.5 (c 0.63, CHCl3); IR (thin film): cm−1 2960, 1745; 1H NMR pdf (500 MHz, CDCl3): δ 0.56 (d, J = 6.9 Hz, 3H), 0.87 (d, J = 6.3 Hz, 3H), 0.90 (d, J = 7.2 Hz, 3H), 0.80-0.94 (m, 2H), 1.22 (s, 9H), 1.12-1.33 (m, 3H), 1.42 (d, J = 6.6 Hz, 3H), 1.56-1.62 (m, 2H), 2.09 (m, 1H), 2.33 (m, 1H), 3.63 (dt, J = 10.2, 4.2 Hz, 1H), 4.62 (d, J = 1.5 Hz, 2H), 4.72 (dq, J = 6.6, 1.5 Hz, 1H), 7.33-7.46 (m, 6H), 7.65-7.70 (m, 4H); 13C NMR (125 MHz CDCl3): δ 15.6, 21.3, 22.3, 22.6, 24.9, 25.3, 27.1, 31.5, 34.4, 38.7, 45.2, 50.0, 52.3, 59.2, 73.5, 77.8, 88.4, 127.6, 130.1, 133.1, 133.5, 135.1, 177.8. (R)-silylmenthylderivative: [α]D +1.1 (c 0.94, CHCl3); IR (thin film): cm−1 2957, 1739; 1H NMR pdf (300 MHz, CDCl3): δ 0.59 (d, J = 7.2 Hz, 3H), 0.85 (d, J = 6.3 Hz, 3H), 0.91 (d, J = 7.2 Hz, 3H), 0.79-0.92 (m, 2H), 1.12 (apparent q, J = 12.0 Hz, 1H) 1.21 (s, 9H), 1.24-1.34 (m, 2H), 1.46 (d, J = 6.3 Hz, 3H), 1.56-1.62 (m, 2H), 2.02 (m, 1H), 2.38 (m, 1H), 3.64 (dt, J = 10.2, 4.2 Hz, 1H), 4.57 (d, J = 1.5 Hz, 2H), 4.73 (qt, J = 6.6, 1.5 Hz, 1H), 7.33-7.45 (m, 6H), 7.64-7.72 (m, 4H); 13C NMR (125 MHz CDCl3): δ 15.6, 21.3, 22.2, 22.6, 24.9, 25.3, 27.1, 31.5, 34.4, 38.7, 45.2, 50.0, 52.3, 59.2, 73.6, 77.8, 88.3, 127.6, 130.1, 133.3, 135.1, 177.7.
