Org. Synth. 2007, 84, 129

DOI: 10.15227/orgsyn.084.0129

PREPARATION OF N-p-TOLYLSULFONYL-(E)-1-PHENYLETHYLIDENEIMINE

Submitted by José Luis García Ruano, José Alemán, Alejandro Parra, and M. Belén Cid¹ .

Checked by Kounosuke Oisaki and Masakatsu Shibasaki.

1. Procedure

Caution! Reactions and subsequent operations involving peracids and peroxy compounds should be run behind a safety shield. For relatively fast reactions, the rate of addition of the peroxy compound should be slow enough so that it reacts rapidly and no significant unreacted excess is allowed to build up. The reaction mixture should be stirred efficiently while the peroxy compound is being added, and cooling should generally be provided since many reactions of peroxy compounds are exothermic. New or unfamiliar reactions, particularly those run at elevated temperatures, should be run first on a small scale. Reaction products should never be recovered from the final reaction mixture by distillation until all residual active oxygen compounds (including unreacted peroxy compounds) have been destroyed. Decomposition of active oxygen compounds may be accomplished by the procedure described in Korach, M.; Nielsen, D. R.; Rideout, W. H. Org. Synth. 1962, 42, 50 (Org. Synth. 1973, Coll. Vol. 5, 414). [Note added January 2011].

A. N-p-Tolylsulfinyl-(E)-1-phenylethylideneimine (2). An oven-dried 300-mL two-necked round-bottomed flask, equipped with a reflux condenser, a magnetic stirring bar, and a rubber septum, is charged with N-p-toluenesulfinamide 1 (Note 1) (5.2 g, 33.5 mmol, 1.0 equiv), acetophenone (8.0 mL, 68.5 mmol, 2.0 equiv) (Note 2), and Ti(OEt)₄ (35 mL, 168 mmol, 5.0 equiv) (Note 3) by temporarily removing the septum. A vacuum adaptor is attached to the condenser and the reaction mixture is stirred under vacuum (1 mmHg) for 15 min. A balloon of argon is attached to the adapter at the top of the condensor. The solid is dissolved in CH₂Cl₂ (75 mL), which is added via syringe through the septum (Note 4). The solution is heated under reflux for 36 h (external bath temperature 80 °C and internal temperature 40 °C), and the reaction is monitored by TLC (Note 5). After cooling the solution to 0 °C using an ice bath, MeOH (50 mL), CH₂Cl₂ (50 mL) and a saturated solution of NaHCO₃ (7 mL) are sequentially added with vigorous stirring until precipitation of titanium salts is observed. The solid is vacuum filtered (25 mmHg) through a Büchner funnel (Note 6) and washed with CH₂Cl₂ (3 × 75 mL). The organic phase is dried over anhydrous Na₂SO₄, filtered into a single-necked, 500-mL round-bottomed flask and concentrated by rotary evaporation (25 °C, 10 mmHg) to afford a yellow oil, which is charged onto a silica gel column (8 cm × 18 cm) (Note 7). While collecting fractions of 50 mL, the column is eluted with AcOEt/hexanes (10:90) until acetophenone has completely emerged (volumes of eluents used = 0.6 L). The elution is then continued with AcOEt/hexanes (50:50). The product-containing fractions (total volume of eluent used for this product = 1.7 L) are concentrated and successively recrystallized from CH₂Cl₂/hexanes to afford N-sulfinylketimine 2 (5.78 g, 67%) as a white solid (Notes 8 and 9).

B. N-p-Tolylsulfonyl (E)-1-phenylethylideneimine (3). Into a round-bottomed 300-mL flask equipped with a magnetic stirring bar is added N-p-tolylsulfinylketimine 2 (5.2 g, 20 mmol, 1.0 equiv) and CH₂Cl₂ (75 mL) (Note 10). The solution is cooled to 0 °C (Note 11) and commercially available m-CPBA (4.5 g, 20 mmol, 1.0 equiv) (Note 12) is added slowly (portions of 1.0 g per min) to the solution, which is open to the atmosphere. The mixture is allowed to warm to room temperature and the reaction is monitored by TLC (Note 13). After five min, the mixture is diluted with CH₂Cl₂ (50 mL), transferred to a separatory funnel, washed with a saturated solution of NaHCO₃ (5 × 25 mL) (Note 14), and the organic phase is dried over anhydrous Na₂SO₄. The solution is filtered into a single-necked, 300-mL round-bottomed flask and concentrated by rotary evaporation (25 °C, 10 mmHg) to afford crude 3 as a white solid, which is diluted with 7 mL of CH₂Cl₂ and charged on a silica gel column (150 g, 5.5 cm × 18 cm) (Note 7). The column is eluted initially with AcOEt/hexanes (10:90) until the N-sulfinylketimine 2 emerges, and then the elution is then continued with AcOEt/hexanes (10:50). The product-containing fractions are concentrated to afford N-sulfonylketimine 3 (4.23 g, 77%) as a white solid (Notes 14, 15 and 16).

2. Notes

1. N-Sulfinamide 1 could be purchased from Aldrich Chemical Company, Inc. in optically pure form. However, (±)-1 can be obtained at much lower cost following a known procedure,¹¹ which involves two steps from p-tolyldisulfide.

2. Acetophenone, 99% was purchased from Aldrich Chemical company, Inc. and was used without further purification.

3. Titanium (IV) ethoxide, technical grade was purchased from Aldrich Chemical Company, Inc. and was used without further purification.

4. No difference in the yield was observed when using either dried CH₂Cl₂ (from P₂O₅) or the directly purchased CH₂Cl₂ from SDS (purex analytical grade).

5. The reaction was monitored by TLC on silica gel using hexanes/EtOAc (2:1) as eluent and visualization with phosphomolibdic acid. The starting material 1 had R_f = 0.1 (green), acetophenone had R_f = 0.77 (green), and the final product 2 had R_f = 0.38 (brown).

6. A double filter paper of medium porosity was used.

7. Silica gel (230–400 mesh) from Merck was used.

8. The physical properties of N-sulfinylketimine 2 were as follows: white solid, mp 95.0–96.0 °C (lit.² mp 99–100 °C). ¹H NMR pdf (500 MHz) δ: 2.40 (s, 3 H) 2.78 (s, 3 H), 7.32 (d, J = 8.2 Hz, 2 H), 7.39 (t, J = 8.0 Hz, 2 H), 7.47 (t, J = 6.7 Hz, 1 H), 7.72 (d, J = 8.2 Hz, 2 H), 7.88 (d, J = 7.6 Hz, 2 H), ¹³C NMR pdf (125.7 MHz) δ: 20.2, 21.4, 125.2, 127.5, 128.4, 129.8, 131.8, 138.2, 141.8, 143.3, 173.9; IR (KBr, cm⁻¹): 3430, 1637, 1565, 1096; LRMS (ESI-MS) m/z 258 (M+H)⁺, 280 (M+Na)⁺; HRMS (FAB-MS) calcd for C₁₅H₁₆NOS (M+H)⁺ 258.0947, found 258.1008.

9. N-Sulfinylketimine 2 and N-sulfonylketimine 3 are hydrolyzed upon extended contact with silica gel; therefore the flash chromatography should be carried out rapidly.

10. In this case, dry CH₂Cl₂ (distilled from P₂O₅) was used, since traces of water can hydrolyze the starting material 2 or N-sulfonylketimine 3.

11. This reaction was exothermic, therefore the addition should be carried out at 0 °C. Without an ice bath (0 °C) an increase in temperature from 21 to 40 °C was detected.

12. 3-Chloro-perbenzoic acid (>77 %) was purchased from Aldrich Chemical Company, Inc. (Lot number S22939 was used, which contained 18.03 % of water and 71.70 % of 3-chloroperbenzoic acid). The reagent was directly used without removal of the water, which resulted in a 78% yield. The yield of the reaction could be increased to 84% when water was removed from this reagent. The procedure for removing water was as follows: Prior to its use, water was removed by dissolving the commercial product in CH₂Cl₂, drying the organic solution over anhydrous Na₂SO₄, filtering and concentrating the reagent to dryness under vacuum. Titration following the procedure reported in the literature (McDonald, R. N.; Steppel, R. N.; Dorsey, J. E. Org. Synth. 1970, 50, 15) indicated a purity of 90% (using Na₂S₂O₃ 0.1004 N). A purity of 91% was obtained when the purity determination was carried out by HPLC: performed on ZORBAX RX-C8 (4.6 mm × 25 cm) with 50:50 water:methanol, with a flow rate of 0.5 mL/min at 210 nm (3-chlorobenzoic acid t_R= 5.5 min, 3-Chloroperbenzoic acid t_R= 21.5 min). When a calibration standard was used (3-chlorobenzoic acid at different concentrations) under these conditions, the purity was determined to be 90%.

13. The reaction was monitored by TLC on silica gel using hexanes/EtOAc (2:1) as eluent and visualization with a phosphomolibdic acid. The starting material 2 has an R_f = 0.38 while R_f= 0.70 for the final product 3.

14. N-Sulfonylketimine 3 is hydrolyzed upon extended contact with water; therefore, the washes should be carried out rapidly.

15. The physical properties of N-sulfonylketimine 3 were as follows: white solid, mp 88.5–90.5 °C (lit.^10kmp 88–90 °C). ¹H NMR pdf (500 MHz) δ: 2.45 (s, 3 H) 2.99 (s, 3 H), 7.34 (d, J = 8.2 Hz, 2 H), 7.41 (t, J = 8.0 Hz, 2H), 7.53 (t, J = 7.2 Hz, 1H), 7.90 (d, J = 8.2 Hz, 2 H), 7.93 (d, J = 8.0 Hz, 2 H); ¹³C NMR pdf (125.7 MHz, CDCl₃) δ: 21.1, 21.5, 127.0, 128.2, 128.6, 129.4, 133.1, 137.5, 138.7, 143.5, 179.8; IR (KBr, cm⁻¹): 3435, 1590, 1570, 1286, 1180, 1083; LRMS (ESI-MS) m/z 274 (M+H)⁺, 296 (M+Na)⁺; HRMS (FAB-MS) calcd for C₁₅H₁₆NO₂S (M+H)⁺ 274.0896, found 274.0775. The purity of the sample was determined by HPLC (>98%), performed on Chiral AS (Daicel) with 60:40 hexane:2-propanol and a flow rate of 0.6 mL/min.

16. The N-sulfonylketimine 3 (0.007 mol, 2 g) could be crystallized from Et₂O (80 mL). The solution was heated until the solid dissolved, and filtered through filter paper of medium porosity. The solution was kept for 12 h at −20 °C. White needles were collected using a Büchner funnel under vacuum (25 mmHg), which resulted in the isolation of 1.90 g of pure 3 (95% yield).

Working with Hazardous Chemicals

The procedures in this article are intended for use only by persons with prior training in experimental organic chemistry. All hazardous materials should be handled using the standard procedures for work with chemicals described in references such as "Prudent Practices in the Laboratory" (The National Academies Press, Washington, D.C., 2011 www.nap.edu). All chemical waste should be disposed of in accordance with local regulations. For general guidelines for the management of chemical waste, see Chapter 8 of Prudent Practices.

These procedures must be conducted at one's own risk. Organic Syntheses, Inc., its Editors, and its Board of Directors do not warrant or guarantee the safety of individuals using these procedures and hereby disclaim any liability for any injuries or damages claimed to have resulted from or related in any way to the procedures herein.

3. Discussion

As the sulfonyl moiety has proven to be a powerful activating group of iminic C=N bonds, N-sulfonyl imines have been widely used in organic synthesis.³ They are excellent substrates in aza Diels-Alder reactions,⁴ nucleophilic additions,⁵ reductions,⁶ as well as in radical⁷ or ene⁸ reactions. They have been also used in the synthesis of aziridines.⁹

Despite the plethora of methods reported for obtaining N-sulfonyl imines,¹⁰ most of the methods are only efficient in preparing those compounds derived from aromatic or non-enolizable aldehydes. Therefore, it was necessary to find a new general protocol for synthesizing any N-sulfonyl aldimine or ketimine, even those containing enolizable α-hydrogens. We have recently reported a new procedure that fulfills all of these requirements.¹¹ The procedure involves the condensation of carbonyl compounds with p-tolyl (Table 1) and tert-butyl (Table 2) sulfinamides followed by oxidation of the resulting N-sulfinylimines with m-CPBA. The method is applicable to aldehydes (aliphatics and aromatics) and ketones (dialkyl, diaryl, and alkyl aryl), even those containing enolizable protons. The configurations of α-stereogenic centers are not affected and the method is highly selective in the presence of C=N and C=C (deactivated or not) double bonds. The new procedure has been applied to the preparation of compounds collected in Table 1. The main advantages of this procedure derive from the near absence of structural limitations for the starting carbonyls used for preparing sulfinylimines, as well as the higher stability of these sulfinylimines (they can be stored without significant decomposition for long periods of time) with respect to their corresponding sulfonylimines.

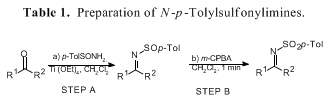

Entry	R¹	R²	Reaction Yields (%)

Entry	R¹	R²	Step A	Step B	Overall

1	Ph	H	93	100	93
2	3-MeOC₆H₄	H	92	100	92
3	2-Napht	H	94	95	89
4	2-BrC₆H₄	H	91	100	91
5	4-CNC₆H₄	H	81	85^a	69
6	PhCH=CH₂	H	80	95	76
7	n-Pr	H	78	96^b	75
8	i-Pr	H	65	100^b	65
9	t-Bu	H	79	96	76
10	Ph	Ph	79	88	69
11	4-MeOC₆H₄	Me	73	84	61
12	4-CNC₆H₄	Me	77	90	69
13	t-Bu	Me	48	90	43
14	i-Pr	Me	64	90	58

^a In this case the reaction time was 15 min. ^b To avoid oxaziridine formation, this reaction was carried out at 45 °C.


Entry	R¹	R²	Reaction Yields (%)

Entry	R¹	R²	Step A	Step B	Overall

1	Ph	H	96	100	96
2	2-furyl	H	63	100	63
3	n-Pr	H	100	84	84
4	Ph	Ph	75	100	75
5	Ph	Me	63	100	63
6	4-MeOC₆H₄	Me	62	100	62
7	4-CNC₆H₄	Me	73	100	73
8	-(CH₂)₅-		65	90	59
9	Et	Me	73^a	78	57
10	2-pyridyl	Me	59^b	80	47

^a A 4:1 mixture of the E/Z isomers was formed. ^b In this case the reaction time was 15 m.
