MONO CARBAMATE PROTECTION OF ALIPHATIC DIAMINES USING ALKYL PHENYL CARBONATES
[(2-Aminoethyl)carbamic acid tert-butyl ester]
Submitted by Michael Pittelkow, Rasmus Lewinsky, and Jørn B. Christensen
1.
Checked by Cara Cesario and Marvin J. Miller.
1. Procedure
(2-Aminoethyl)carbamic acid tert-butyl ester. tert-Butyl phenyl carbonate (Note 1) (64.62 g, 61.6 mL, 0.33 mol) is added to a solution of 1,2-ethanediamine (Note 2) (20.0 g, 22.3 mL, 0.33 mol) in absolute EtOH (Note 3)(200 mL) in a 500-mL, single-necked, round-bottomed flask equipped with a stirring bar and a reflux condenser. The reaction mixture is heated gently to reflux overnight (18 h) (Note 4) ensuring that the temperature of the oil bath is at a maximum of 80 °C resulting in a yellow solution. The reaction mixture is cooled to room temperature and the solution concentrated to approximately 150 mL using a rotary evaporator (20 °C, 20 mmHg), which leaves a yellow solution. Water (300 mL) is added and the pH is adjusted to approximately 3 (Note 5) by careful addition of aqueous HCl (2M, approximately 110 mL) followed by extraction with CH2Cl2 (3 × 400 mL) (Note 6). The aqueous phase is adjusted to pH 12 by addition of aqueous NaOH (2M, 150 mL) and extracted with CH2Cl2 (5 × 500 mL). The combined organic extracts are dried (Na2SO4), filtered and concentrated using a rotary evaporator (20 °C, 20 mmHg) to afford 27.0 g (51%) of the title compound as a yellow oil (Notes 7, 8, 9, and 10).
2. Notes
1.
tert-Butyl phenyl carbonate (98%) was purchased from Aldrich Chemical Company, Inc. and used as received.
tert-Butyl phenyl carbonate is a low melting solid that should be stored in a refrigerator. It is convenient to allow it to melt before handling.
2.
1,2-Ethanediamine was purchased from Aldrich Chemical Company, Inc. (99%). Distillation before use is recommended if the compound has a deep yellow color. Otherwise it can be used as received.
3.
Absolute
Ethanol (99.9%) was purchased from De Danske Spritfabrikker and was used without further efforts to remove water. The checkers used 200 proof ethanol from Aaper Alcohol and Chemical Company; the solvent was used as received.
4.
The Boc protection group is known to be thermally unstable and temperatures above 85–90 °C for prolonged periods should be avoided.
25.
The acid labile protective group should not be exposed to acidic aqueous media for prolonged periods of time, otherwise unwanted cleavage of the group may occur.
6.
Thorough extraction was needed at this stage to remove unreacted alkyl phenyl carbonate and side products including the bis-carbonate-protected diamine and phenol. Also, it was important to conduct this extraction immediately after addition of 2M HCl, as the Boc group is known to be acid sensitive.
7.
The product had the following physical data:
1H NMR
pdf (300 MHz, CDCl
3) δ: 1.23 (br s, 2 H, NH
2), 1.37 (s, 9 H, (CH
3)
3), 2.78 (t, 2 H,
J = 6.0 Hz), 3.09 (q, 2 H,
J = 6.0 Hz), 5.18 (br s, 1 H, NHCO);
13C NMR
pdf (125 MHz, CDCl
3) δ: 28.2, 41.7, 42.2, 78.9, 156.1. MS (FAB):
m/
z 161 (MH
+). IR (film) 3350, 2977, 1693, 1524, 1391, 1366, 1252, 1172. Anal. Calcd for C
7H
16N
2O
2: C, 52.48; H, 10.07; N, 17.48. Found: C, 52.54; H, 9.83; N, 17.28.
8.
The level of phenol in the product was below the level that could be detected by the human nose. No other products were detected by NMR and TLC (visualized either by UV light at 256 nm or 316 nm, by oxidation with I
2 or by ninhydrin test).
9.
If long-term storage of the product is required, it should be stored under an inert atmosphere as it is prone to react with CO
2 from the air to produce a solid compound.
10.
The checkers also performed the procedure on half-scale and obtained 14.4 g (54%) of the title compound as a yellow oil. The submitters report yields ranging from 59–65% when the reaction is performed on the scale of the procedure.
Handling and Disposal of Hazardous Chemicals
The procedures in this article are intended for use only by persons with prior training in experimental organic chemistry. All hazardous materials should be handled using the standard procedures for work with chemicals described in references such as "Prudent Practices in the Laboratory" (The National Academies Press, Washington, D.C., 2011 www.nap.edu). All chemical waste should be disposed of in accordance with local regulations. For general guidelines for the management of chemical waste, see Chapter 8 of Prudent Practices.
These procedures must be conducted at one's own risk. Organic Syntheses, Inc., its Editors, and its Board of Directors do not warrant or guarantee the safety of individuals using these procedures and hereby disclaim any liability for any injuries or damages claimed to have resulted from or related in any way to the procedures herein.
3. Discussion
A challenge often encountered in the synthesis, or in the synthetic use of polyamines, is selective protection of the amino groups. This synthetic challenge has been dealt with in a number of ways and elegant multi-step synthetic procedures have been developed to strategically incorporate protection groups in polyamines.
2–4 The most widely used procedure for mono carbamate protection of aliphatic diamines is that of Krapcho and co-workers that uses an excess of diamine as compared to di-
tert-butyl dicarbonate to achieve high yield with respect to the di-
tert-butyl dicarbonate.
5,6 This procedure, however, is not attractive if the diamine is a valuable intermediate; in general, the use of a large excess of a reagent should be avoided if possible. Other reagents such as 2-(
tert-butoxycarbonyloxyimino)-2-phenylacetonitrile (BOC-ON)
7 and
O-alkyl-
O'-(
N-succinimidyl) carbonates
8 have also been successful for similar transformations, but issues with strict temperature control and pH control complicates these procedures. The use of alkyl chloroformates has also been described, but these generally give statistical mixtures of products.
This procedure, which uses alkyl phenyl carbonates as the electrophiles, is a simple, efficient and selective method for the preparation of mono-carbamate-protected diamines. It is applicable for large laboratory scale preparations and the purification of the product proceeds without the need for column chromatography, distillation or recrystallization. The procedure has been shown to work almost equally well for the introduction of Boc, Cbz and Alloc protecting groups.
9The selectivity in the introduction of carbamate protecting groups has further been tested by reaction with unsymmetrical aliphatic diamines.
9 Selectivity towards reaction with primary amines located on a primary carbon in the presence of a primary amine located on either a secondary or a tertiary carbon was studied by reaction of the alkyl phenyl carbonates with the two diamines, 2-methyl-1,2-propanediamine and 1,2-propanediamine. Both of these diamines were successfully mono-carbamate-protected on the primary amino groups located on the primary carbon atom in high yields with the three carbonates tested (Table 1).

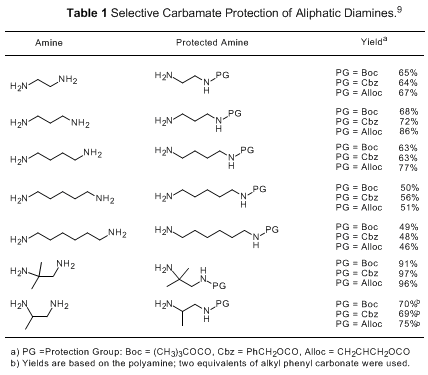

Some representative examples of mono-carbamate-protected diamines prepared by this method are compiled in Table 1, which illustrates the possibility to incorporate the Boc, Cbz and Alloc protecting groups by the same procedure.
