Org. Synth. 2008, 85, 106

DOI: 10.15227/orgsyn.085.0106

SYNTHESIS AND RESOLUTION OF RACEMIC TRANS-2-(N-BENZYL)AMINO-1-CYCLOHEXANOL: ENANTIOMER SEPARATION BY SEQUENTIAL USE OF (R)- AND (S)-MANDELIC ACID

[Cyclohexanol, 2-(N-benzyl)amino, (1S,2S)- and (1R,2R)-]

Submitted by Ingo Schiffers and Carsten Bolm¹.

Checked by Scott E. Denmark, Eric Woerly, Aurélie Toussaint, and Andreas Pfaltz.

1. Procedure

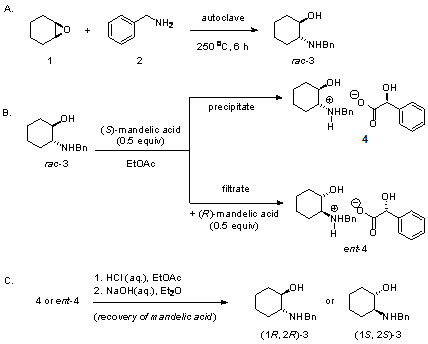

A. Racemic trans-2-(N-benzyl)amino-1-cyclohexanol (rac-3). An autoclave (Note 1) with a properly fitted 400-mL glass insert (Note 2) is charged with cyclohexene oxide (1) (61.5 mL, 59.7 g, 0.596 mol, 1.1 equiv) and benzylamine (2) (60.0 mL, 58.8 g, 0.543 mol, 1 equiv) (Note 3), equipped with a magnetic stirring bar (Note 4), sealed and flushed with nitrogen. The reaction mixture is placed in a 250 °C preheated oven for 6 h (Note 5), then cooled to ambient temperature, diluted with dichloromethane (60 mL) (Note 6) and transferred into a 1000-mL single-necked, round-bottomed flask. The glass inlay is rinsed with dichloromethane (3 × 50 mL) and the combined organic phases are concentrated using a rotary evaporator (30 mmHg, ambient temperature). The residual cyclohexene oxide is removed under reduced pressure (1 mmHg) at room temperature over 11 h to yield 110.68 g (99%) amino alcohol rac-3 as a light yellow solid, which is suitable for use in the next step without further purification (Note 7).

B. (S)-Mandelic acid salt of (1R,2R)-trans-2-(N-benzyl)amino-1-cyclohexanol (4) and (R)-mandelic acid salt of (1S,2S)-trans-2-(N-benzyl)amino-1-cyclohexanol (ent-4). A 1-L single-necked, round-bottomed flask containing a magnetic stirring bar is equipped with a pressure-equalizing addition funnel fitted with an argon inlet (Note 8). The flask is charged with amino alcohol rac-3 (82.12 g, 0.40 mol, 1.0 equiv) dissolved in ethyl acetate (600 mL) and a solution of (S)-mandelic acid (30.43 g, 0.20 mol, 0.5 equiv) (Note 9) in ethyl acetate (200 mL) and diethyl ether (100 mL) (Note 10) is added via the addition funnel over a period of 5 h at room temperature (Note 11). After the addition is complete the dropping funnel is rinsed with diethyl ether (2 × 5 mL) and the reaction mixture is stirred overnight at ambient temperature, followed by 5 h at 0 °C. The precipitated ammonium salt is collected by suction filtration, then is washed with ethyl acetate (100 mL), followed by diethyl ether (2 × 100 mL), and dried in vacuo at 0.05 mmHg at room temperature over 1 h (Note 12) to afford 52.86 g (0.15 mol, 74% based on the amount of mandelic acid) of the (S)-mandelic acid salt of (1R,2R)-trans-2-(N-benzyl)amino-1-cyclohexanol (4) as a colorless solid (Note 13). The filtrate from the above procedure is transferred to a 2-L separatory funnel, then is washed with 1 N aq. NaOH solution (3 × 50 mL) and the aqueous layer is back-extracted with diethyl ether (3 × 50 mL). The combined organic layers are dried (MgSO₄, approx. 50 g), filtered and concentrated under reduced pressure (40 °C, 100 mbar) to give 49.20 g of the crude amino alcohol (1S,2S)-3 as a pale yellow oil. The oily residue is dissolved in ethyl acetate (400 mL), transferred into a 1-L flask, and treated with a solution of (R)-mandelic acid (30.43 g, 0.20 mol, 0.5 equiv) in ethyl acetate (200 mL) and diethyl ether (100 mL) analogously to the above described procedure, to deliver 55.50 g (0.15 mol, 78% based on the amount of mandelic acid) of the (R)-mandelic acid salt of (1S,2S)-trans-2-(N-benzyl)amino-1-cyclohexanol (ent-4) as a colorless solid (Note 14).

C. Liberation of the amino alcohols and recovery of mandelic acid. In a 1-L separatory funnel, the mandelic acid ammonium salt 4 or ent-4 (50.04 g, 0.14 mol) is partitioned between ethyl acetate (500 mL) (Note 10) and 2 N aq. HCl solution (200 mL). Then, the mixture is manually and vigorously shaken until the salt is completely dissolved. The organic layer is additionally washed with 2 N aq. HCl solution (2 × 25 mL) and the combined aqueous phases are back-extracted with ethyl acetate (3 × 100 mL). The combined organic phases are dried (MgSO₄, approx. 50 g), filtered and concentrated under reduced pressure to provide 19.80-20.02 g (93-94%) of the corresponding mandelic acid enantiomer (Note 17). To a mixture of the acidic aqueous phase and diethyl ether (200 mL) in the same separatory funnel, 5 N NaOH (280 mL) is added carefully in small portions over a period of 45-60 minutes. After separation, the aqueous layer is extracted with diethyl ether (4 × 100 mL) and the combined organic phases are dried (MgSO₄, approx. 30 g), filtered, and concentrated under reduced pressure (40 °C, 100 mbar) to yield 25.80-26.74 g (90-93%) (Note 18) of the corresponding trans-2-(N-benzyl)amino-1-cyclohexanol enantiomer (1R,2R)-3 or (1S,2S)-3 as a white solid (Note 19).

2. Notes

1. A custom made high-pressure autoclave was used. See Figures 1 and 2 for autoclave dimensions. The dimensions for the Teflon and rubber O-rings are: Teflon ring 4 1/4" (ID) × 4 7/16" (OD) × 3/32" thick; rubber O-ring 3" (ID) × 3 3/16" (OD) × 3/32" thick.

2. Glass inlay dimensions: outer diameter = 7 cm; inner diameter = 6.5 cm; height = 13 cm.

3. Benzylamine (99%) and cyclohexene oxide (98%) were purchased from Acros Organics and used as received.

4. Magnetic stirring was used when purging the system with nitrogen. In the original procedure, magnetic stirring was used during the reaction. Magnetic stirring was not used in the Checker's procedure.

5. A Stabil-Therm Oven (model #OV-12A) at a high power setting of 5 was used as a heat source.

6. Dichloromethane (>99.5%) was purchased from Sigma-Aldrich and used as supplied. The Submitters used dichloromethane (>99%) purchased from Merck as received.

7. The NMR spectra indicated a purity of 91-94% for rac-3. It is also available from Acros Organics (>99%). mp 57.6 - 58.6 °C. ¹H NMR (500 MHz, CDCl₃) δ: 1.00 (q, J = 10 Hz, 1 H), 1.06-1.56 (m, 5 H), 1.60-1.94 (m, 3 H), 1.94-2.12 (m, 1 H), 2.19 (d, J = 10 Hz, 1 H), 2.26-2.50 (m, 1 H), 3.21-3.30 (m, 1 H), 3.69 (d, J = 15 Hz, 1 H), 3.96 (d, J = 15 Hz, 1 H), 7.10-7.58 (m, 6 H); ¹³C NMR (125 MHz, CDCl₃) δ: 24.3, 25.1, 30.5, 33.2, 50.7, 63.1, 73.8, 127.0, 128.1, 128.4, 140.5; IR (thin film): 3305 (m), 3062 (m), 3028 (m), 2930 (s), 2857 (s), 1604 (w), 1496 (w), 1452 (s), 1354 (w), 1199 (w), 1074 (m), 1029 (m), 977 (w), 845 (w), 747 (m), 699 (s) cm⁻¹. MS (EI, 70eV) m/z : 205 (M⁺ (11%)), 146 (27%), 121 (20%), 115 (16%), 106 (27%), 92 (17%), 91 (100%), 56 (58%).

8. In the original procedure, a gas inlet adapter with stopcock connected to a nitrogen-filled balloon was used.

9. (S)-Mandelic acid (>99%) and (R)-mandelic acid (99%) were purchased from Acros Organics and used as received.

10. Ethyl acetate (>99%) and diethyl ether (>99%) were purchased from Fluka and used as received.

11. After addition of one-third of the mandelic acid solution, the ammonium salt began to precipitate.

12. A sintered glass funnel (100 mm diameter) was used. After washing the filter cake, suction filtration was continued for 5 min to dry the ammonium salt by a stream of air. Then, the damp solid was transferred into a 250-mL single-necked, round-bottomed flask to remove residual solvents under vacuum.

13. In a run carried out on half-scale, 25.70 g of product was obtained (72% yield). The product has the following characteristics: mp 146 °C; [α]_D²⁵ +16.0 (c 2.15, CHCl₃). ¹H NMR (400 MHz, CDCl₃) δ: 0.96-1.35 (m, 4 H), 1.58-1.73 (m, 3 H), 1.90 (d, J = 12.6 Hz, 1 H), 2.53 (dt, J = 4.0 Hz, J = 12.0 Hz, 1 H), 3.03 (dt, J = 4.3 Hz, J = 10.6 Hz, 1 H), 3.46 (d, J = 12.9 Hz, 1 H), 3.89 (d, J = 12.6 Hz, 1 H), 4.90 (s, 1 H), 7.15-7.32 (m, 8 H), 7.49 (s, 1 H), 7.52 (s, 1 H); ¹³C NMR (100 MHz, CDCl₃) δ: 23.9, 24.2, 26.6, 34.0, 48.4, 62.5, 70.4, 74.4, 76.8, 126.7, 127.3, 128.1, 128.9, 129.1, 130.0, 131.4, 142.3, 178.6. IR (KBr) 3362, 3036, 2937, 2859, 1606, 1554, 1490, 1447, 1370, 1086, 1061, 1041 cm⁻¹; MS (EI, 70 eV) m/z : 205 (34), 146 (88), 114 (12), 107 (51), 91 (100), 79 (29), 77 (22); Anal. Calcd for C₂₁H₂₇NO₄ (357.44): C, 70.56; H, 7.61; N, 3.92. Found: C, 70.54; H, 7.50; N, 3.75.

14. In a run carried out on half-scale, 27.92 g of product ent-4 was obtained (78% yield); [α]_D²⁵ -14.3 (c 2.15, CHCl₃). Both ammonium salts, 4 and ent-4, were diastereomerically pure according to NMR analysis. To determine the enantiomeric excess (ee) of the free amino alcohol, a 50 mg sample of the mandelic acid salt was partitioned between 1 N aq. NaOH solution (4 mL) and diethyl ether (3 × 10 mL). The combined organic phases were dried (MgSO₄, 50 mg), filtered, concentrated under reduced pressure (40 °C, 300 mbar), and analyzed by HPLC analysis using a chiral stationary phase (for conditions, see Note 19). The described procedure yields (1R,2R)-3 with 99% ee and (1S,2S)-3 with >99% ee (no signal detected for the minor enantiomer in HPLC analysis). One recrystallization (Note 15) of (1R,2R)-3 followed by liberation of the amino alcohol as described in Step C, provides product that showed no signal for the minor enantiomer in the CSP-HPLC analysis.

15. General procedure for the recrystallization: A 1-L, three-necked, round-bottomed flask equipped with a magnetic stirring bar, two rubber septa, and a reflux condenser fitted with an argon inlet (Note 8) is charged with mandelic acid salt 4 (20 g, 56 mmol) and ethyl acetate (600 mL). The suspension is heated to reflux before ethanol (Note 16) is added in portions via syringe until complete dissolution occurs (25 mL in total). Then the stirring is stopped, the oil bath is removed, and the clear solution is allowed to cool to room temperature overnight. The crystallized ammonium salt is collected by suction filtration (Note 12), washed with ethyl acetate (15 mL), followed by diethyl ether (2 × 30 mL), and dried in vacuo affording 18.30 g (91%) of enantiomerically pure 4.

16. Ethanol (≥ 99.9%) was purchased from Fluka and used as received.

17. The recovered mandelic acid showed an identical value for optical rotation in comparison to the starting material; (R)-mandelic acid [α]_D²⁵ -152.4 (c 2.5, H₂O), (S)-mandelic acid [α]_D²⁵ +153.5 (c 2.8, H₂O). These values are in accord with the literature (-150 to -155 for (R)-mandelic acid and +153 to +155 for (S)-mandelic acid).

18. In the runs carried out on half-scale, 12.86-12.97 g of products were obtained (89-90% yield). CSP-HPLC separation conditions: t_R (1S,2S)-3, 24.2 min; t_R (1R,2R)-3, 30.0 min (Daicel CHIRALCEL OB-H (4.6 × 250 mm); n-heptane/2-propanol, 98:2; 0.5 mL/min; 220 nm). For (1R,2R)-3, the enantiomeric excess measured was 99% and for (1S,2S)-3, the minor enantiomer was not detected (ee>99%).

19. The products have the following physicochemical characteristics (data reported for (1S,2S)-3): [α]_D²⁵ +82.2 (c 1.05, MeOH) for (1S,2S)-3, [α]_D²⁵ −79.8 (c 1.22, MeOH) for (1R,2R)-3; mp 91 °C; ¹H NMR (400 MHz, CDCl₃) δ: 0.92-1.02 (m, 1 H), 1.18-1.30 (m, 3 H), 1.68-1.78 (m, 2 H), 1.99-2.06 (m, 1 H), 2.10-2.22 (m, 1 H), 2.29 (ddd, J = 4.0, 9.4, 11.4 Hz, 1 H), 3.20 (dt, J = 4.5,10.1 Hz, 1 H), 3.70 (d, J = 12.9 Hz, 1 H), 3.96 (d, J = 12.9 Hz, 1 H),7.22-7.28 (m, 1 H), 7.30-7.35 (m, 4 H); ¹³C NMR (100 MHz, CDCl₃) δ: 24.5, 25.3,30.8, 33.4, 50.9, 63.3, 74.1, 127.1, 128.2, 128.6, 140.8; IR (KBr) 3295, 3060, 2933, 2854, 1602, 1496, 1449, 1356, 1292, 1219, 1152, 1077 cm⁻¹; MS (EI, 70 eV) m/z : 205 (36), 146 (90), 114 (10), 91 (100); Anal. Calcd for C₁₃H₁₉NO (205.30): C, 76.06; H, 9.33; N, 6.82. Found: C, 75.87; H, 9.18; N, 6.72.

Handling and Disposal of Hazardous Chemicals

The procedures in this article are intended for use only by persons with prior training in experimental organic chemistry. All hazardous materials should be handled using the standard procedures for work with chemicals described in references such as "Prudent Practices in the Laboratory" (The National Academies Press, Washington, D.C., 2011 www.nap.edu). All chemical waste should be disposed of in accordance with local regulations. For general guidelines for the management of chemical waste, see Chapter 8 of Prudent Practices.

These procedures must be conducted at one's own risk. Organic Syntheses, Inc., its Editors, and its Board of Directors do not warrant or guarantee the safety of individuals using these procedures and hereby disclaim any liability for any injuries or damages claimed to have resulted from or related in any way to the procedures herein.

3. Discussion

Enantiopure amino alcohols are versatile synthetic intermediates for the preparation of a wide variety of natural products and biologically active compounds.² Also their importance in asymmetric synthesis, where the need for chiral auxiliaries and ligands is continually increasing, has been well recognized in recent years.³ Despite the great interest in this field and the impressive success that have been made in the development of new procedures for the preparation of optically pure vicinal amino alcohols, there are only few efficient procedures for the preparation of highly enantiomerically enriched aminocyclohexanols which are suitable for a broad variety of further derivatizations.⁴ Among those few procedures, only Overman's aminolysis of cyclohexene oxide with an aluminum amide stemming from enantiomerically enriched methylbenzylamine and trimethylaluminum,⁵ Jacobsen's Cr(III)/salen-catalyzed enantioselective ring-opening reaction of cyclohexene oxide by azidosilanes,⁶ and the enzymatic resolution of racemic 2-azidocyclohexanol⁷ have found occasional applications in synthesis.⁸ The procedure described here is an improved version of the previously reported protocol for the resolution of racemic trans-2-(N-benzyl)amino-1-cyclohexanol (rac-3), which is easily available in 100 g scale by a solvent-free aminolysis of cyclohexene oxide at high temperature.⁹ The advantages of this novel method are its preparative ease and its efficiency in large scale resolutions delivering both amino alcohol enantiomers with 99% ee by sequential use of inexpensive (S)- and (R)-mandelic acid. A simple aqueous workup procedure permits the isolation of the amino alcohol in analytically pure form and the recovery of mandelic acid in high yield. The synthetic usefulness of the method was demonstrated by debenzylation of enantiopure trans-2-(N-benzyl)amino-1-cyclohexanol (3) by hydrogenolysis, leading to the easily modifiable deprotected amino alcohol 5 (Scheme 1), which gave access to a broad variety of diversely substituted derivatives and their corresponding cis isomers 6-8.⁹ These enantiomerically pure aminocyclohexanols have been applied as ligands in catalyzed, asymmetric phenyl transfer reactions to benzaldehyde and transfer hydrogenations of aryl ketones, leading to enantioselectivities of up to 96% ee.

Scheme 1

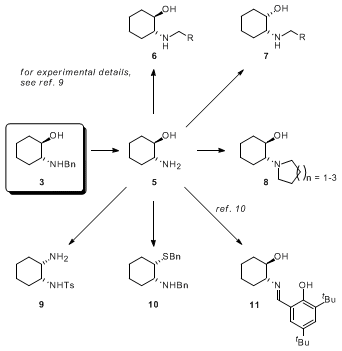

In addition, it was demonstrated that enantiopure trans-2-aminocyclohexanol 5 is a valuable building block for the preparation of enantiomerically pure cis-diaminocyclohexane 9 and chiral cis-amino thiol derivative 10. The latter compound showed an impressive activity in the iridium-catalyzed transfer hydrogenation reaction. Syntheses of new analogues of well-known classes of amino alcohol derived ligands, like oxazolines, oxazaborolidines and Schiff bases 11, starting from 5 are currently in progress.¹⁰

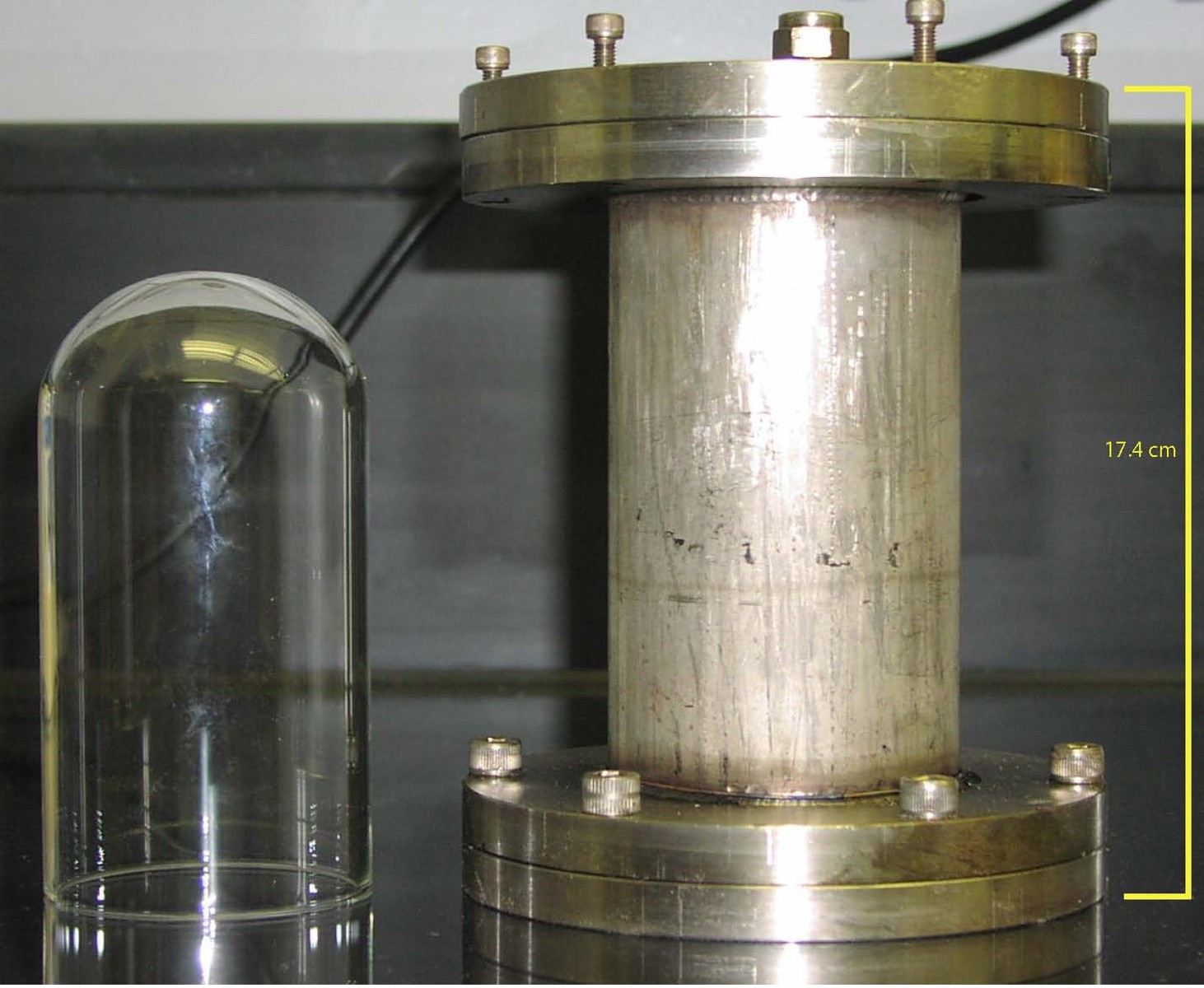

Figure 1

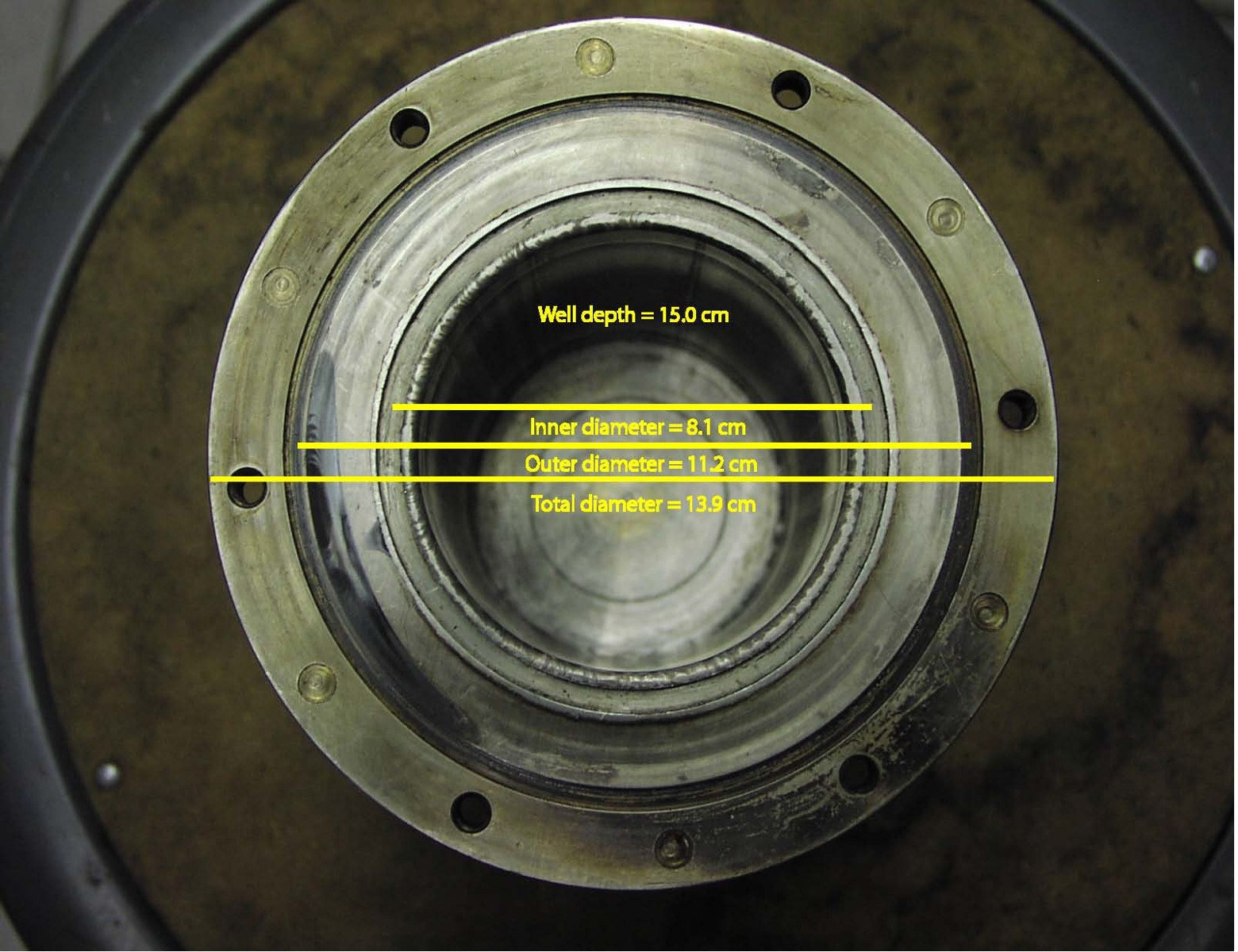

Figure 2
