1. Procedure

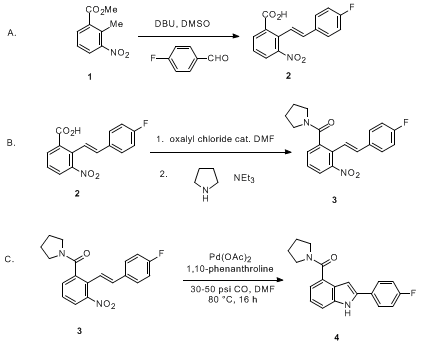

{2-[trans-2-(4-Fluorophenyl)vinyl]-3-nitrophenyl}-1-pyrrolidinylmethanone 3. A single-necked, 500-mL round-bottomed flask equipped with a magnetic stirring bar is charged 2-[trans-2-(4-fluorophenyl)vinyl]-3-nitrobenzoic acid (2) (8.50 g, 29.6 mmol) and CH2Cl2 (65 mL) (Note 15). The flask is closed with a rubber septum and placed under nitrogen by piercing the septum with an 18-gauge needle. Oxalyl chloride (3.37 mL, 4.88 g, 38.5 mmol, 1.30 equiv) (Note 16) is added via syringe through the septum followed by the addition of 2 drops of DMF (Note 17). The resulting mixture is stirred at room temperature for 1.5 h and then concentrated by rotary evaporation (23 °C, 40 mmHg). To the resulting crude, yellow acid chloride is added CH2Cl2 (25 mL) and the solution is concentrated by rotary evaporation (23 °C, 40 mmHg). In a separate 250-mL, three-necked, round-bottomed flask, equipped with a magnetic stirring bar, a nitrogen inlet, a rubber septum, 125-mL pressure-equalizing addition funnel, and a temperature probe is charged CH2Cl2 (50 mL), triethylamine (6.20 mL, 4.49 g, 44.4 mmol, 1.5 equiv) (Note 18), and pyrrolidine (3.18 mL, 2.74 g, 38.5 mmol, 1.30 equiv) (Note 19) and the mixture is cooled in an acetone/ice bath to an internal temperature of < 5 °C. The crude acid chloride is dissolved in CH2Cl2 (45 mL) and this solution is transferred to the addition funnel. The acid chloride is added dropwise to the stirred pyrrolidine solution at such a rate that the internal temperature is maintained < 23 °C. Upon completion of the addition of the acid chloride solution, the mixture is stirred at room temperature for 30 min (Note 5). The mixture is then diluted with 2 N HCl (60 mL) (Note 20) and is transferred to a 500-mL separatory funnel and the layers separated. The organic layer is washed with brine (60 mL) and is then concentrated under reduced pressure (23 °C, 40 mmHg) (Note 10), diluted with MeOH (60 mL) and re-concentrated under reduced pressure (23 °C, 40 mmHg) to give a crude, yellow solid. The solid is slurried in MeOH (150 mL) and water (300 mL) is added dropwise over 20 min (Note 21). The slurry is stirred at room temperature for 1 h and then is filtered through a 150-mL fritted-glass, medium porosity funnel. The wet solid is washed with water (60 mL) and dried under a vacuum/N2 sweep (Note 11) for 8 h to provide {2-[trans-2-(4-fluorophenyl)vinyl]-3-nitrophenyl}-1-pyrrolidinyl-methanone (3) as a yellow, crystalline solid or a yellow powder (9.90-10.0 g, 98-99%) (Notes 22, 23).
2. Notes
1.
Methyl 2-methyl-3-nitrobenzoate 1 (97%) was purchased from Aldrich Chemical Company, Inc. and used as received.
2.
Anhydrous
DMSO was purchased from Aldrich Chemical Company, Inc. and was used as received.
3.
4-Fluorobenzaldehyde (98%) was purchased from Aldrich Chemical Company, Inc. and was purified by distillation (175-177 °C, atmospheric pressure under nitrogen) prior to its use in order to eliminate any traces of 4-fluorobenzoic acid.
4.
DBU (1,8-diazabicyclo[5.4.0]undec-7-ene (98%)) was purchased from Aldrich Chemical Company, Inc. and used as received.
5.
All reactions were monitored by TLC using Merck silica gel 60 F
254, 250
μ, 1 × 10 cm, TLC plates using hexane/EtOAc, 1:1 as the eluent. The following R
f values were obtained: compound
1 (0.76), compound
2 (0.13), compound
3 (0.18), compound
4 (0.26). The submitters used reverse phase HPLC employing the following conditions: Zorbax Eclipse Plus C18 Rapid Resolution HT column (4.6 × 50 mm, 1.8-micron, Agilent part number: 959941-902) with a standard gradient of 10:90 MeCN/0.1% H
3PO
4 to 95:5 MeCN/0.1% H
3PO
4 over 5 min and hold at 95:5 MeCN/0.1% H
3PO
4 for 1 min, then back to 10:90 MeCN/0.1% H
3PO
4 at 8 min, detection at 210 nm. Retention times are as follows: compound
1 (3.78 min), compound
2 (3.92 min), compound
3 (4.03 min), compound
4 (3.73 min).
6.
Typical conversion after 20 h was 80% by HPLC analysis. Heating for 4 h drives the conversion to > 90% by HPLC analysis.
7.
Methyl
tert-butyl ether was purchased from Aldrich Chemical Company, Inc. and was used as received.
8.
The temperature should be maintained below 5 °C in order to avoid hydrolysis of any remaining methyl 2-methyl-3-nitrobenzoate
1 to 2-methyl-3-nitrobenzoic acid which will contaminate the product. Under these conditions, no hydrolysis occurs. The third neck is left open.
9.
6 N H
2SO
4 was prepared from 12 N HCl purchased from Fisher Scientific.
10.
The organic extracts will likely contain some water; however, there is no need to dry the extracts over any drying agent such as MgSO
4.
11.
Methanol was purchased from Aldrich Chemical Company, Inc. and was used as received.
12.
The product is dried under vacuum/N
2 sweep under house vacuum with house nitrogen at full flow using the apparatus below for the indicated time. Alternatively, the solid can be dried in a vacuum oven (10-25 mmHg, 35 °C) for the same amount of time.
13.
Product
2 displayed the following physicochemical properties: bright yellow solid; mp 166-168 °C (sealed tube);
1H NMR
pdf (CDCl
3, 500 MHz) δ: 6.49 (d,
J = 16.5 Hz, 1 H), 7.03 (tt,
J = 8.9, 2.5 Hz, 2 H), 7.42 (dt,
J = 6.1, 2.5 Hz, 2 H), 7.45 (d,
J = 16.5 Hz, 1 H), 7.52 (t,
J = 7.8 Hz, 1 H), 7.94 (dd,
J = 8.0, 1.5 Hz, 1 H), 8.17 (dd,
J = 8.3, 1.5 Hz, 1 H), 11.7 (br s, 1 H);
13C NMR
pdf (CDCl
3, 125 MHz) δ: 115.7 (d,
J = 21.2 Hz), 122.3 (d,
J = 2.8 Hz), 127.7, 127.9, 128.5 (d,
J = 8.3 Hz), 131.1, 132.5 (d,
J = 3.7 Hz), 133.1, 134.1, 134.3, 150.9, 162.8 (d,
J = 246.6 Hz), 171.5;
19F NMR (CDCl
3, 500 MHz) δ: -113.9. Anal. Calcd. For C
15H
10FNO
4: C, 62.72; H, 3.51; N, 4.88. Found: C, 62.32; H, 3.45; N, 4.87.
14.
The submitters reported the mp at 156-157 °C, 10 °C lower than that of the checkers. As both samples passed elemental analysis, the discrepancy most likely arises from two different crystal forms.
15.
Methylene chloride was purchased from Aldrich Chemical Company, Inc. and was used as received.
16.
Oxalyl chloride (98%) was purchased from Aldrich Chemical Company, Inc. and was used as received.
17.
Anhydrous
DMF was purchased from Aldrich Chemical Company, Inc. and was used as received.
18.
Triethylamine (99.5%) was purchased from Aldrich Chemical Company, Inc. and was used as received.
19.
Pyrrolidine (99%) was purchased from Aldrich Chemical Company, Inc. and was used as received.
20.
2 N HCl was prepared from 12 N HCl purchased from Fisher Scientific.
21.
The submitters used MeOH (60 mL) and
water (120 mL), which the checkers found gave a yellow powder. When checkers used MeOH (150 mL) and
water (300 mL) the product obtained was a yellow, crystalline solid. The extra MeOH helps in forming more fine particles.
22.
Product
3 displayed the following physicochemical properties: yellow powder or yellow crystalline solid; mp 123-124 °C (sealed tube);
1H NMR
pdf (CDCl
3, 500 MHz) δ: 1.78 (m, 4 H), 3.05 (t,
J = 6.3 Hz, 2 H), 3.52 (t,
J = 6.5 Hz, 2 H), 6.91 (d,
J = 16.5 Hz, 1 H), 7.03 (tt,
J = 8.9, 2.5 Hz, 2 H), 7.24 (d,
J = 16.5 Hz, 1 H), 7.42 (tt,
J = 7.3, 2.5 Hz, 2 H), 7.46 (t,
J = 8.0 Hz, 1 H), 7.59 (dd,
J = 7.5, 1.0 Hz, 1 H), 7.94 (dd,
J = 8.5, 1.0 Hz, 1 H);
13C NMR
pdf (CDCl
3, 125 MHz) δ: 24.3, 25.8, 45.8, 47.7, 115.8 (d,
J = 22.1 Hz), 120.1 (d,
J = 2.8 Hz), 124.9, 128.2, 128.5 (d,
J = 8.3 Hz), 12.2, 131.5, 132.5 (d,
J = 3.7 Hz), 135.3, 139.2, 148.6, 162.9 (d,
J = 248.6 Hz), 167.4;
19F NMR (CDCl
3, 500 MHz) δ: -113.5. Anal. Calcd. For C
19H
17FN
2O
3: C, 67.05; H, 5.03; N, 8.23. Found: C, 66.99; H, 5.05; N, 8.19.
23.
The submitters reported the mp at 94-95 °C, 30 °C lower than that of the checkers. As both samples passed elemental analysis, the discrepancy most likely arises from two different crystal forms.
24.
Palladium (II) acetate (min. 98%) was purchased from Strem Chemicals, Inc. and was used as received.
25.
1,10-Phenanthroline (99%) was purchased from Aldrich Chemical Company, Inc. and was used as received.
26.
Submitters used a 4300 mL Fluitron Rocker Assembly, while the checker's rocker assembly was purchased from American Instruments CC Inc. A similar type reaction apparatus may be utilized for this transformation, see Söderberg, B. C.; Shriver, J. A.; Wallace, J. M.
Org. Synth. 2003,
80, 75-84; however, it is strongly recommended that the reaction be conducted in an autoclave or metal reaction vessel with glass liner as described in this procedure. http://www.fluitron.com/vessels.html
27.
Submitters evacuated the reaction vessel under reduced pressure (10-30 mm Hg).
28.
Carbon monoxide was purchased from Matheson Trigas Co. and was used as received. Submitters used CO (30 psi) while checkers used CO (30 psi) for small-scale reaction (4.7 mmol) and CO (50 psi) for the full scale runs.
29.
Celite® 545 coarse was purchased from Aldrich Chemical Company, Inc. and was used as received.
30.
1 M H
3PO
4 was prepared by dilution with water of 85%
o-H
3PO
4 (115.3 g, Fisher Scientific, HPLC grade) to a final volume of 250 mL.
31.
The addition of 75 mL of 1 M H
3PO
4 to the DMF filtrate is slightly exothermic from room temperature to 35-40 °C, but is not detrimental to the crystallization of the product.
32.
Compound
4 displayed the following physicochemical properties: off-white to slight yellow crystalline solid: mp 184-185 °C (sealed tube);
1H NMR
pdf (CDCl
3, 500 MHz) δ: 1.84 (q,
J = 6.6 Hz, 2 H), 1.98 (q,
J = 7.0 Hz, 2 H), 3.39 (t,
J = 6.8 Hz, 2 H), 3.76 (t,
J = 7.3 Hz, 2 H), 6.75 (d,
J = 2.0 Hz, 1 H), 7.00 (tt,
J = 8.8, 2.3 Hz, 2 H), 7.08 (t,
J = 7.5 Hz, 1 H), 7.16 (dd,
J = 7.5, 0.5 Hz, 1 H), 7.33 (d,
J = 9.0 Hz, 1 H), 7.56 (tt,
J = 7.3, 2.3 Hz, 1 H), 9.43 (s, 1 H);
13C NMR
pdf (CDCl
3, 125 MHz) δ: 24.6, 26.2, 45.9, 49.0, 98.7, 112.6, 115.7 (d,
J = 22.1 Hz), 118.5, 121.3, 126.3, 127.1 (d,
J = 7.4 Hz), 128.4 (d,
J = 3.7 Hz), 128.6, 137.4, 138.3, 162.3 (d,
J = 247.6 Hz), 170.1;
19F NMR (CDCl
3, 500 MHz) δ: -115.0. Anal. Calcd. For C
19H
17FN
2O: C, 74.01; H, 5.56; N, 9.07. Found: C, 74.11; H, 5.61; N, 9.08.
33.
The submitters reported the mp at 130-131 °C, over 50 °C lower than that of the checkers. As both samples passed elemental analysis, the discrepancy most likely arises from two different crystal forms.
