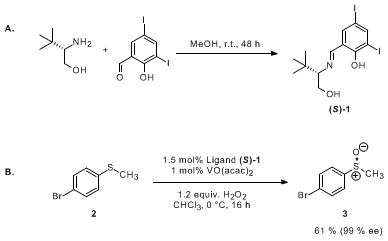

ENANTIOSELECTIVE OXIDATION OF AN ALKYL ARYL SULFIDE: SYNTHESIS OF (S)-(-)-METHYL P-BROMOPHENYL SULFOXIDE
Submitted by Carmelo Drago, Emma-Jane Walker, Lorenzo Caggiano, and Richard F. W. Jackson1.
Checked by Katherine Rawls and Jonathan A. Ellman.
1. Procedure
A. (S)-(-)-2-(N-3,5-Diiodosalicyliden)amino-3,3-dimethyl-1-butanol [(S)-1]: To a solution of (L)-(+)-tert-leucinol (350 mg, 3.0 mmol, 1.13 equiv) (Note 1) dissolved in 15 mL of MeOH (Note 2) in a flame-dried 50-mL round-bottomed flask kept under positive nitrogen pressure during the reaction is added 3,5-diiodosalicylaldehyde (1.00 g, 2.66 mmol, 1.0 equiv) (Note 3). The reaction mixture is stirred at room temperature (25 °C) for 48 h (Note 4). The solvent is evaporated under reduced pressure (30 °C, 40 mmHg) and the crude product is transferred to a 25-mL Erlenmeyer flask and purified by dissolving in 5 mL of hot EtOH (Note 5). The resulting yellow solution is allowed to reach room temperature slowly over a two-hour period (25 °C), allowing partial solvent evaporation (~1 mL), and needle crystal formation is observed. At this point, the Erlenmeyer flask is plugged and left overnight (17 h) in a refrigerator at 3 °C. The crystals are filtered in a Büchner funnel and washed with ice-cold EtOH (3 × 2 mL), and then dried under vacuum (0.02 mmHg) to afford the ligand (S)-1 as a yellow solid (1.04 g, 82% yield) (Note 6).
B. (S)-(-)-p-Bromophenyl methyl sulfoxide (3). A flame-dried, three-necked, 250-mL round-bottomed flask is equipped with a rubber septum, a 25-mL pressure-equalizing addition funnel, a thermometer adaptor fitted with a suitable thermometer, and a magnetic stir bar (30 mm length, oval) and is placed under positive nitrogen pressure. The apparatus is charged with (S)-(-)-2-(N-3,5-diiodosalicyliden)amino-3,3-dimethyl-1-butanol (S)-1 (425.8 mg, 0.90 mmol, 1.5 mol%) and 15 mL of CHCl3 (Note 7). A green solution of vanadyl acetylacetonate (VO(acac)2, 159.0 mg, 0.60 mmol, 1.0 mol%) (Note 8) in 15 mL of chloroform is added dropwise via the addition funnel to the stirred bright yellow solution at room temperature over 3 minutes. The stirred translucent solution immediately turns from yellow to green and then finally dark brown as it is left stirring for 30 min at room temperature open to the atmosphere. p-Bromophenyl methyl sulfide (2) (12.19 g, 0.060 mol, 1.0 equiv) (Note 9) is added in one portion to the reaction mixture, followed by CHCl3 (30 mL) and the solution is cooled to 0 °C by means of a cryocool with an isopropanol bath. Once the internal temperature reaches 0 °C (20-30 minutes), an aqueous solution of hydrogen peroxide (7.75 g of a 31.6% solution in H2O, 0.072 mol, 1.2 equiv) (Note 10) is added dropwise over a period of 25 min via the dropping funnel, keeping the internal temperature between 0-5 °C. The reaction mixture is then kept at 0 °C (± 1 °C) and vigorously stirred for 16 h (Note 11).
The reaction is quenched at 0 °C by the addition of 10 % w/v aqueous solution of sodium thiosulfate (100 mL) added dropwise via the addition funnel and then transferred to a 500-mL separatory funnel, rinsing with CH2Cl2 (2 × 50 mL) (Note 12). The layers are separated and the aqueous fraction is washed with CH2Cl2 (2 × 50 mL). The combined organic fractions are washed with saturated aqueous sodium chloride (50 mL) and dried over magnesium sulfate (10 g). The solution is filtered, and the magnesium sulfate is washed with 100 mL CH2Cl2. The organic solvent is evaporated under reduced pressure (30°C, 40 mmHg) to give the crude product as a dark brown solid (13.83 g, Sample 1, Note 13). The solid is dissolved in CH2Cl2 (17 mL) and layered on a silica pad (50 g SiO2, Note 14) in a 7-cm diameter glass-sintered filter funnel (Note 15) and a mixture of sulfoxide and sulfone is eluted using EtOAc and petroleum ether (50:50, 200 mL) (Notes 16 and 17). The mixture is collected and evaporated under reduced pressure (3.37 g brown solid, Sample 2.1, Note 18). Elution with EtOAc (300 mL) and evaporation under reduced pressure gives pure sulfoxide as a pale yellow solid (9.3 g, Sample 2.2, 71% yield) (Note 19).
Column chromatography is performed on the mixed fraction Sample 2.1 (Note 20) and elution with a mixture of EtOAc and petroleum ether (50:50, 550 mL, until complete elution of ligand (S)-1 and sulfone) followed by EtOAc (1.4 L) and evaporation of the EtOAc fraction under reduced pressure gives pure sulfoxide as a yellow-brown solid (0.93 g, 7% yield, Sample 3) (Note 21).
The pure sulfoxide fractions, Samples 2.2 and 3, are combined in a 250-mL Erlenmeyer flask and dissolved in a mixture of hot EtOAc and heptane (20:80, 75 mL, Notes 22 and 23). Recrystallization occurs as the solution sits at room temperature (12 h, 25 °C), allowing for partial solvent evaporation (5 mL). Filtration on a Büchner funnel gives the sulfoxide, which is dried under vacuum (0.02 mmHg) to afford off-white needles (8.07 g, 61%, Sample 4) (Note 24). Further purification is performed by sublimation of the solid at a pressure of 0.02 mmHg over a period of 4 h in a standard sublimation apparatus, with a water-cooled cold finger and with the external oil bath at 90 °C, which gives (S)-(-)-p-bromophenyl methyl sulfoxide as a white powder (8.07 g, 99 % ee, 61% yield) (Note 25).
2. Notes
1. The submitters received (L)-tert leucinol from Degussa AG Industrie, who prepared the reagent by I2/NaBH4 reduction of (L)-tert leucine.3 {[α]D20 +40.3, (EtOH, c 1.0), lit. +35.3 (EtOH, c 3.05)}2 The checkers purchased (S)-tert-leucinol from Aldrich Chemical Company, and it was used as received.
2. HPLC Grade methanol from Fisher Scientific (submitters) or Spectro Grade from Fisher Scientific (checkers) was used as received.
3. 3,5-Diiodosalicylaldehyde (97%), from Aldrich Chemical Company, was used as received.
4. Reaction progress was monitored by silica gel TLC, using 2:1 hexanes:EtOAc as eluent, and UV and ninhydrin stain to visualize (checkers). The aldehyde starting material has an Rf value of 0.65 (UV only), the desired imine product has an Rf value of 0.38 (yellow), and (S)-tert-leucinol (pink) remains at the baseline.
5. HPLC Grade ethanol from Fisher Scientific was used as received. The checkers heated the product in ethanol in a 25 mL Erlenmeyer flask in an oil bath at 90 °C (bath temperature) until all product dissolved.
6. The submitters reported a yield of 1.08 g, 86%. Characterization of (S)-(-)-2-(N-3,5-diiodosalicyliden)amino-3,3-dimethyl-1-butanol [(S)-1] is as follows: mp 162-163 °C, lit. mp 163-164 °C;3 [α]D20 -16.0 (acetone, c 1.0), lit.4 [α]D20 -16.6 (acetone, c 1.0); νmax (cm-1) 3303 (O-H), 2965 (CH=N, C-H), 1637 (CH=N, C-N); 1H NMR pdf (400 MHz, CDCl3) δ: 0.99 (s, 9 H), 2.73 (br s, 1 H), 3.09 (dd, 1 H, J = 9.2, 2.5 Hz), 3.69 (dd, 1 H, J = 11.2, 10.4 Hz), 4.00 (dd, 1 H, J = 11.5, 2.5 Hz), 7.50 (d, 1 H, J = 2.1 Hz), 7.99 (d, 1 H, J = 2.0 Hz), 8.09 (s, 1 H), 14.88 (br s, 1 H,); 13C NMR pdf (125 MHz, CDCl3) δ: 26.8, 32.9, 61.8, 75.7, 78.0, 93.0, 116.8, 141.1, 150.0, 164.7, 167.0; m/z (EI) 474 (MH+, 22%), 473 (M+, 100), 442 (22), 416 (73) and 359 (30); Anal. Calcd. for C13H17I2NO2: C, 33.00; H, 3.62; N, 2.96. Found: C, 33.02; H, 3.73; N, 2.83. The submitters synthesized (R)-(-)-2-(N-3,5-diiodosalicyliden)amino-3,3-dimethyl-1-butanol [(R)-1] from (D)-(-)-tert-Leucinol (kindly provided as a gift from Degussa AG Industrie) according to the procedures outlined above, in similar yields. Use of the (R)-1 ligand in the sulfoxidation reaction afforded the corresponding (R)-sulfoxide product in similar yields and enantioselectivity.
7. HPLC Grade Chloroform from Fisher Scientific, was used as received.
8. Vanadyl acetylacetonate [VO(acac)2], from Alfa Aesar, was used as received.
9. p-Bromophenyl methyl sulfide (4-bromothioanisole, 98 %), from Alfa Aesar, was used as received.
10. Hydrogen peroxide solution (~30% w/w in water) from Aldrich Chemical Company was used. The concentration of H2O2 was determined to be 31.6 % by titration with KMnO4/H2SO4 using a procedure based on the Degussa analytical method WM 09 / WM 11.5
11. Reaction progress was monitored by silica gel TLC, using diethyl ether as eluent, and UV or p-anisaldehyde to visualize (checkers). The desired sulfoxide product has an Rf value of 0.29 (white-yellow), the overoxidation product sulfone has an Rf of 0.67 (UV only), and the starting sulfide has an Rf of 0.90 (UV only).
12. HPLC Grade dichloromethane from Fisher Scientific, was used as received.
13. The checkers obtained a crude ee of 93.4% using a Chiralpak AS chiral column from Chiral Technologies (250 × 4.6 mm) on an Agilent 1100 Series LC equipped with a multiwavelength detector (85:15 heptane:isopropanol, 1 mL/min, λ = 222, 254, and 280 nm, tR (minor) = 35.96 min, tR (major) = 43.20 min). The checkers obtained a ratio of sulfoxide:sulfone of 86:14 by 1H NMR.
14. The submitters purchased silica gel from BDH. The checkers purchased silica gel from Sorbent Technologies (60 Å, 230-400 mesh).
15. The submitters used a fritted funnel with pore size 2. The checkers used a 150-mL fritted funnel, ASTM, 40-60 C.
16. HPLC Grade Ethyl Acetate from Fisher Scientific was used as received.
17. Analytical Reagent Grade petroleum ether (40-60 °C) from Fisher Scientific (submitters) or Certified ACS Grade petroleum ether (30-60 °C) from Fisher Scientific (checkers) was used as received.
18. The submitters report a ratio of sulfoxide:sulfone of 67:33 by 1H NMR for 6.09 g of mixed fractions. The checkers obtained a ratio of sulfoxide:sulfone of 37:63 for 3.37 g of mixed fractions.
19. The submitters report collection of 7.21 g (55%) of pure product.
20. The checkers used a column with diameter = 4.5 cm, length = 38.1 cm, loaded with 100 g of silica gel (see Note 13). The compound was loaded onto the column with 13 mL of CH2Cl2.
21. The submitters report collection of 3.3 g of pure product, 25% yield.
22. HPLC Grade heptane from Fisher Scientific was used as received.
23. The submitters used 100 mL of 80:20 heptane:EtOAc for recrystallization. The checkers found that the enantiomeric purity and yield of the product was highly dependent on the amount of solvent used for recrystallization. The checkers heated the product in 80:20 heptane:EtOAc in a 250-mL Erlenmeyer flask in an oil bath at 90 °C (bath temperature) until all solid dissolved.
24. The submitters reported the isolation of 9.3 g (70.7 %).
25. The submitters reported the isolation of 9.2 g (70%) at >99% ee. The checkers collected the sublimation product in two batches due to the small size of the sublimation apparatus. (S)-(-)-4-Bromophenyl methyl sulfoxide (3): mp 77-78 °C; [α]D20 -106.9 (acetone, c 1.8), 99 % ee; lit. [α] D20 -97.5 (acetone, c 1.8) for 94 % ee;4 1H NMR pdf (500 MHz, CDCl3) δ: 2.69 (s, 3 H), 7.49 (d, 2 H, J = 8.4 Hz), 7.64 (d, 2 H, J = 8.3 Hz); 13C NMR pdf (125 MHz, CDCl3) δ: 43.9, 125.0, 125.3, 132.5, 144.8; Anal. Calcd. for C7H7BrOS: C, 38.37; H, 3.22; S, 14.63. Found C, 38.36; H, 3.17; S 14.85. Chiral HPLC using a Chiralpak AS chiral column from Chiral Technologies (250 × 4.6 mm) on an Agilent 1100 Series LC equipped with a multiwavelength detector (85:15 heptane:isopropanol, 1 mL/min, λ = 222, 254, and 280 nm) retention times are as follows: p-bromophenyl methyl sulfide tR 5 min.; p-bromophenyl methyl sulfone tR 30 min.; (R)-p-bromophenyl methyl sulfoxide tR 37 min. and (S)-p-bromophenyl methyl sulfoxide tR 45 min.
Handling and Disposal of Hazardous Chemicals
The procedures in this article are intended for use only by persons with prior training in experimental organic chemistry. All hazardous materials should be handled using the standard procedures for work with chemicals described in references such as "Prudent Practices in the Laboratory" (The National Academies Press, Washington, D.C., 2011 www.nap.edu). All chemical waste should be disposed of in accordance with local regulations. For general guidelines for the management of chemical waste, see Chapter 8 of Prudent Practices.
These procedures must be conducted at one's own risk. Organic Syntheses, Inc., its Editors, and its Board of Directors do not warrant or guarantee the safety of individuals using these procedures and hereby disclaim any liability for any injuries or damages claimed to have resulted from or related in any way to the procedures herein.
3. Discussion
Asymmetric oxidation of alkyl aryl sulfides has received a substantial amount of attention, due to the synthetic utility of the product sulfoxides. An existing Organic Syntheses procedure describes the preparation of (S)-(-)-methyl p-tolyl sulfoxide by oxidation of methyl p-tolyl sulfide using a stoichiometric reagent derived from (S,S)-(-)-diethyl tartrate and titanium(IV) isopropoxide, employing cumene hydroperoxide as the oxidant.6 Purification of the product is achieved by flash chromatography. Herein is presented an alternative catalytic procedure for the asymmetric oxidation of p-bromophenyl methyl sulfide, based on our optimization7,8 of the asymmetric sulfur oxidation procedure discovered by Bolm,9 which employs a catalyst derived from VO(acac)2 and an amino alcohol Schiff base ligand. A significant feature of this procedure is that the enantiomeric excess of the initially formed product is enhanced by a subsequent kinetic resolution process,10 in which the minor enantiomer of the product is selectively oxidized to the corresponding sulfone. The key parameter is the use of chloroform as solvent, which promotes initial asymmetric oxidation and subsequent efficient kinetic resolution at the same temperature (namely 0 °C). In addition to the catalytic nature of the procedure, the main advantage is the use of hydrogen peroxide as oxidant.
From a practical point of view, the challenge is not achieving high levels of enantiomeric excess, but rather finding a convenient purification procedure that allows the separation of the by-product sulfone that is always produced (typically 10%). While flash column chromatography is an effective method, we have made a substantial effort to purify the product sulfoxide without recourse to chromatography. However, in the case of both methyl p-tolyl sulfoxide and p-bromophenyl methyl sulfoxide, it has proved impossible to remove the corresponding sulfone by-product using distillation, trituration, crystallization or sublimation. The compromise purification method presented in this procedure, namely the use of a pad of silica gel in a sintered filter funnel, allows separation of pure sulfoxide product in reasonable yield, due to the large Rf difference between the sulfone and sulfoxide. The yield can be enhanced by conventional flash chromatographic purification of the mixed fraction that is eluted first.
Another application of Bolm's system to the asymmetric synthesis of (R)-(+)-2-methyl-2-propanesulfinamide has been recently reported by Ellman in Organic Syntheses.11
