A PRACTICAL AND SCALABLE SYNTHESIS OF N-HALO COMPOUNDS: 2-CHLORO-6,7-DIMETHOXY-1,2,3,4-TETRAHYDROISOQUINOLINE
Submitted by Yong-Li Zhong
1 and Paul G. Bulger.
Checked by Stephen G. Newman and Mark Lautens.
1. Procedure
2-Chloro-6,7-dimethoxy-1,2,3,4-tetrahydroisoquinoline (2). A 250-mL, three-necked, round-bottomed flask is equipped with an overhead stirrer, an addition funnel that is fitted with a tap adaptor connected to a nitrogen line, and a rubber septum through which a digital thermometer probe is inserted. The septum is temporarily removed and the apparatus is purged with nitrogen for 5 min and then the flask is charged with 6,7-dimethoxy-1,2,3,4-tetrahydroisoquinoline hydrochloride 1 (5.16 g, 21.8 mmol, 1.0 equiv) (Notes 1 and 2), tert-butanol (2.11 mL, 21.8 mmol, 1.0 equiv) (Note 3), water (15 mL) (Note 4), and toluene (40 mL) (Note 5) at room temperature. The septum is replaced and the mixture is stirred at 120 rpm, and the resulting biphasic solution is cooled to -5 °C (internal temperature) in an ice/salt bath over which time the aqueous layer freezes to become a white slurry in the organic layer. The addition funnel is charged with 5% aqueous sodium hypochlorite (30.9 mL, 25.1 mmol, 1.15 equiv, Note 6), which is then added dropwise over 30 min to the reaction mixture, maintaining the internal temperature between -5 and 0 °C. Once the addition is complete, stirring is continued at this temperature for a further 15 min (Note 7). Once the mixture reaches >15 °C, it is transferred to a 125 mL separatory funnel (washing with 2 × 10 mL of toluene). The layers are separated and the lower, aqueous layer is discarded. The colorless organic layer is washed with water (1 × 15 mL), and then with brine (1 × 15 mL) (Note 8). The organic layer is concentrated by rotary evaporation (20 mmHg, keeping the bath temperature below 30 °C) to a volume of approximately 12 mL (Note 9). A stir bar is added, and to the stirred toluene solution is then added n-heptane (40 mL) (Note 10) dropwise via an addition funnel over 20 min at room temperature, and the resulting white slurry is then cooled to 0 °C in an ice bath and stirred at that temperature for a further 3 h. The crystalline product is then collected by filtration through a 60-mL fritted-glass funnel of medium porosity. The wet solid is washed with n-heptane (2 × 10 mL) and then dried under vacuum with a nitrogen sweep (Note 11) for 1 h to give 2-chloro-6,7-dimethoxy-1,2,3,4-tetrahydroisoquinoline 2 (4.70-4.83 g, 95-97%) (Notes 12, 13, and 14) as a white powder (Note 15).
2. Notes
1.
6,7-Dimethoxy-1,2,3,4-tetrahydroisoquinoline hydrochloride 1 (97%) was purchased from Sigma-Aldrich, Inc. and used as received.
2.
If the starting material is an amide or a neutral amine, then the addition of one equivalent of acetic acid to the reaction is also required.
3.
tert-Butanol (anhydrous, ≥ 99.5%) was purchased from Sigma-Aldrich, Inc. and used as received (submitters used 99+% grade from Sigma-Aldrich, Inc.).
4.
Distilled water was used (submitters used deionized water).
5.
Toluene was purchased from ACP Chemicals, Canada and used as received (submitters used 99% grade from Sigma-Aldrich, Inc.).
6.
5% Aqueous sodium hypochlorite (bleach) was purchased from Acros Organics Ltd. and used as received.
7.
The progress of the reaction was followed by TLC analysis on silica gel with visualization under UV (254 nm) and with a ceric ammonium molybdate stain. Using an eluent comprising 10% methanol in dichloromethane, product
2 has R
f = 0.87, while the starting amine
1 has R
f = 0.22. Alternatively, the reaction was monitored by reverse-phase HPLC employing the following conditions: Zorbax Eclipse Plus C18 Rapid Resolution HT column (4.6 × 50 mm, 1.8 μm particle size, Agilent part number: 253583-0191); column temperature 25 °C; flow rate: 1.5 mL/min; linear gradient of 10:90 to 95:5 acetonitrile:0.1% v/v aqueous H
3PO
4 in 5 min, then hold at 95:5 for 1 min, then back to 10:90 in 0.1 min, then hold at 10:90 for 1.9 min; UV detection at 210 nm. Retention times for compounds
1 and
2 are 0.83 and 4.53 min, respectively.
8.
At this stage the organic layer may be dried using
sodium sulfate (2 g) for 0.5 h if necessary.
9.
The product may begin to crystallize prior to the addition of heptane, depending upon the exact volume of the toluene solution and ambient temperature.
10.
n-Heptane was purchased from ACP Chemicals, Canada and used as received (submitters used 99% grade from Sigma-Aldrich, Inc.).
11.
The product is dried for 1 h under house vacuum (20 mmHg) with a nitrogen sweep, using the apparatus illustrated below:
12.
Physical properties and spectroscopic data for
2 are as follows: white powder; mp >76 °C (dec.); IR (film): 2935, 2830, 1610, 1520, 1465, 1360, 1260, 1220, 1120 cm
-1;
1H NMR
pdf (CDCl
3, 400 MHz) δ: 2.96 (t,
J = 6.0 Hz, 2 H), 3.43 (t,
J = 6.0 Hz, 2 H), 3.84 (s, 3 H), 3.85 (s, 3 H), 4.24 (s, 2 H), 6.47 (s, 1 H), 6.59 (s, 1 H);
13C NMR
pdf (CDCl
3, 100 MHz) δ: 28.1, 55.9 (2 peaks), 59.2, 63.4, 109.1, 111.1, 124.1, 125.1, 147.6, 148.1; HRMS (ESI)
m/z calcd. for C
11H
15ClNO
2 [M+H]
+ 228.0785; found 228.0780; Anal. calcd. for C
11H
14ClNO
2: C, 58.05; H, 6.20; N, 6.15; found: C, 58.05; H, 6.29; N, 6.20.
13.
During melting-point analysis, the solid product
2 decomposed rapidly at 76 °C to give a brown oil. Differential scanning calorimetry (DSC) studies suggested that the product was stable at temperatures below 61 °C. Handling and manipulation of this, and other,
N-halo compounds at or below 30 °C is therefore recommended.
14.
The crystalline product
2 gave negative results in drop-weight tests, indicating that the material is not shock-sensitive.
15.
The white product slowly colorized to pale yellow upon standing at room temperature. However, the product was stable at room temperature for several weeks without noticeable degradation.
Handling and Disposal of Hazardous Chemicals
The procedures in this article are intended for use only by persons with prior training in experimental organic chemistry. All hazardous materials should be handled using the standard procedures for work with chemicals described in references such as "Prudent Practices in the Laboratory" (The National Academies Press, Washington, D.C., 2011 www.nap.edu). All chemical waste should be disposed of in accordance with local regulations. For general guidelines for the management of chemical waste, see Chapter 8 of Prudent Practices.
These procedures must be conducted at one's own risk. Organic Syntheses, Inc., its Editors, and its Board of Directors do not warrant or guarantee the safety of individuals using these procedures and hereby disclaim any liability for any injuries or damages claimed to have resulted from or related in any way to the procedures herein.
3. Discussion
N-Halo compounds are versatile reagents in synthesis. For many organic chemists, experience with
N-chloro or
N-bromo derivatives is limited to the use of the halogenating agents
N-chlorosuccinimide (NCS) and
N-bromosuccinimide (NBS). However, this class of compounds is employed in a variety of synthetically useful transformations, including radical cyclizations,
2 the Hofmann-Löffler-Freytag reaction,
3 and elimination to give imines,
4 amongst other processes.
5
The synthesis of
N-halo compounds is most readily achieved by the reaction of amines or amides with electrophilic halogen sources. The most commonly employed reagents for this oxidation are sodium hypohalites (bleach and NaOBr),
6 the
N-halo succinimides NCS and NBS,
7 and
tert-butyl hypochlorite;
8 each has its own advantages and limitations. Sodium hypochlorite is a cheap, safe, commodity chemical, though oxidation of secondary amines (R
2NH to R
2NCl) can be plagued by modest yields and prolonged reaction times. NCS and NBS are widely utilized, but removal of the succinimide by-product is often problematic.
9 Yields with
tert-butyl hypochlorite are generally good to excellent, but the reagent is expensive, hazardous, and suitable only for small-scale research applications.
5a,10We have demonstrated a practical and scalable preparation of
N-halo compounds based on the
in situ generation of
tert-butyl hypohalite (
t-BuOCl or
t-BuOBr) under biphasic conditions.
11 Organic solutions of amines or amides are treated with aqueous sodium hypohalite (0.5-0.75 M, 1-1.5 equiv) in the presence of
tert-butanol (0.25-1 equiv) and acetic acid (1-1.5 equiv). The
tert-butyl hypohalite is generated slowly by the dropwise addition of the oxidant, and then reacts rapidly in the organic phase with the substrate to give the desired N-Cl or N-Br product. Slow addition of the sodium hypohalite maintains a low concentration of
tert-butyl hypohalite present at any given time, a feature which, combined with elimination of the need for handling and manipulation of the latter reagents, makes this protocol attractive for larger-scale processing.

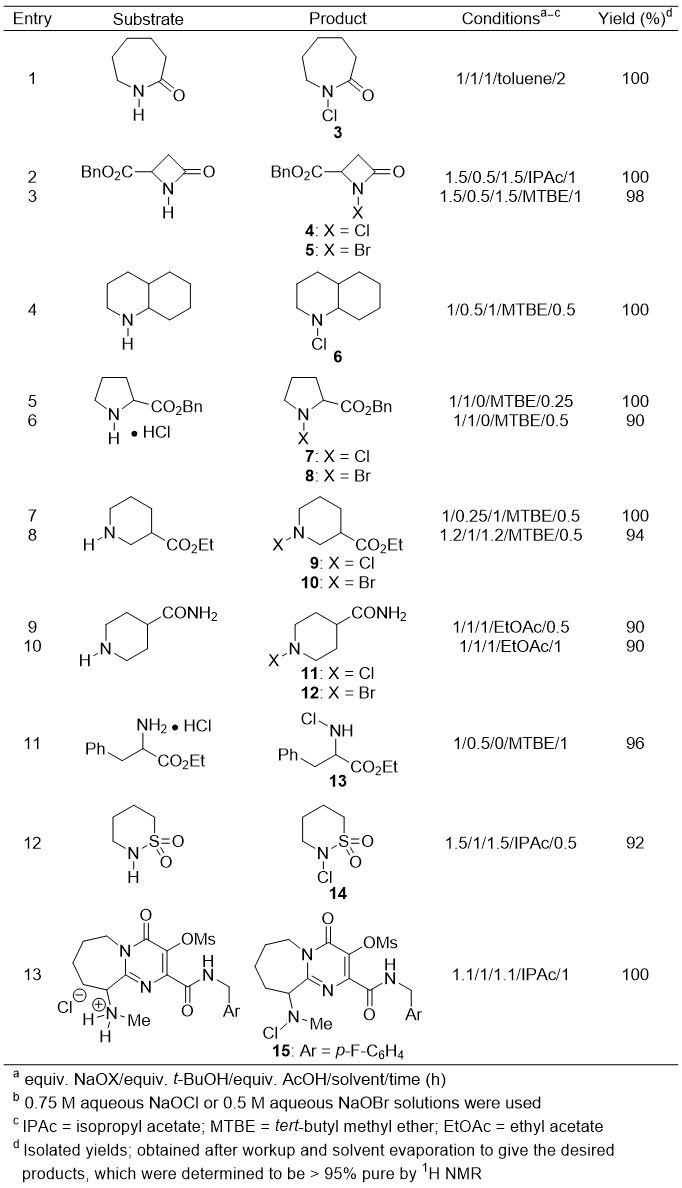

Table 1. Synthesis of N-halo compounds
The conditions are mild, high yielding, and general for a variety of substrates (Table 1). Reactions are typically complete within 15-30 minutes for amines and 1-2 hours for amides. This rate differential allows for chemoselective oxidation (Entries 9 and 10). A primary amine is selectively monochlorinated (Entry 11). Amine hydrochloride salts are sufficiently acidic to promote the reaction (Entries 5, 6 and 11); no acetic acid is required for these substrates. This protocol has been demonstrated on multi-kilogram scale (Entry 13).
5aFollowing a simple workup procedure, the N-halo products are isolated in high purity by concentration and, if applicable, crystallization. For the N-halo amines, the crystalline solids (e.g. 2 and Table 1, 11 and 12) are generally quite stable at room temperature, but the stability of the neat oils (6-10, 13) is variable, with some (e.g. 6 and 13) decomposing within thirty minutes. Manipulation and storage of the more sensitive non-crystalline N-halo amine products as solutions, in which degradation is much slower, is recommended. In contrast, all the N-halo amide (3-5) or sulfonamide (14) products were found to be very stable either in crystalline form or as neat oils.
